Connector ID needed

Old 01-19-2018, 09:49 PM
  #1
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,898
smokinjoe73 is on a distinguished road
Connector ID needed

Can someone help me identify and maybe find a source for this connector. I keep it on my lithium battery and one on the vtr for jump starts. Im thinking molex or corsa as a source but what is it other than a high amp connector?

EDIT: It seems to be an Anderson sb50 but they come in different sizes. This one is @35mm wide.
Attached Thumbnails Connector ID needed-dsc09597.jpg

Last edited by smokinjoe73; 01-19-2018 at 10:14 PM.
smokinjoe73 is offline
Old 01-20-2018, 05:37 AM
  #2
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,173
E.Marquez is on a distinguished road
Originally Posted by smokinjoe73 View Post
Can someone help me identify and maybe find a source for this connector. I keep it on my lithium battery and one on the vtr for jump starts. Im thinking molex or corsa as a source but what is it other than a high amp connector?

EDIT: It seems to be an Anderson sb50 but they come in different sizes. This one is @35mm wide.
If it is a real Anderson SB50, the housings is the same no matter if its the 50 amp one or the 120 amp version.
If it is a pattern part, all bets are off.
Is the connector marked Anderson? If so, the housing should match this http://www.andersonpower.com/_global...df/ds-sb50.pdf for dimensions, then you just need to pick cable size and use the appropriate sized terminals

If you need an Anderson SB50. I buy these . Heavy Duty Power Connectors SB50 RED #6 AWG 50A 6 AWG CONT https://www.zoro.com/anderson-power-...specifications 20 at a time for Jump box Quick connects on my training bikes.
Best prices Ive seen fast service, and quality product.

Last edited by E.Marquez; 01-20-2018 at 05:42 AM.
E.Marquez is offline
Old 01-20-2018, 10:35 AM
  #3
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,898
smokinjoe73 is on a distinguished road
Thanks Erik. The connector says ANEN ANNENG CONNECTOR & when I google that it says its an Anderson.
smokinjoe73 is offline
Old 01-20-2018, 11:49 AM
  #4
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,173
E.Marquez is on a distinguished road
Originally Posted by smokinjoe73 View Post
Thanks Erik. The connector says ANEN ANNENG CONNECTOR & when I google that it says its an Anderson.
Its an Anderson copy I think connector-Dongguan Electronics Technology Co., Ltd. and if decently copied, it should interchange with Anderson just fine.

You can get the ANEN ANNENG CONNECTOR on Alba, just need to buy a min of 1000 units...lol
E.Marquez is offline
Old 01-20-2018, 12:20 PM
  #5
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,173
E.Marquez is on a distinguished road

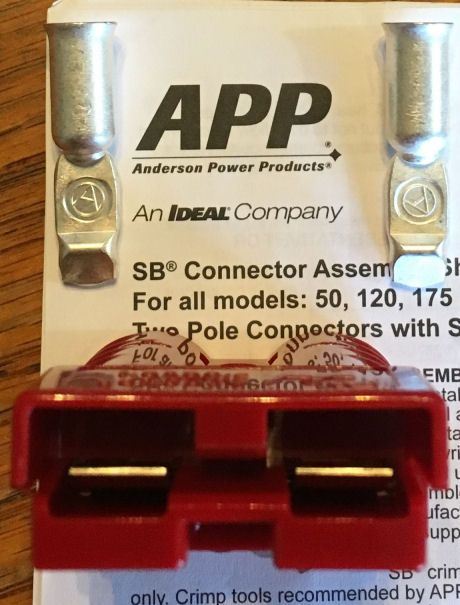

This is a like angle view of an Anderson Sb50 to what you have....they look like they will inter fit Yes?


Last edited by E.Marquez; 01-20-2018 at 12:25 PM.
E.Marquez is offline
Old 01-20-2018, 02:47 PM
  #6
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,898
smokinjoe73 is on a distinguished road
Yes carbon copy. Thanks
