Coil on cap redo

Old 04-17-2015, 05:18 PM
  #1
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,911
smokinjoe73 is on a distinguished road
Coil on cap redo

So after butchering my original plug boots, I have acquired more to retry.

It seems I am the only guy who has CBR 600 coils instead of the 1000s.

Here is a pic of what I have. I began grinding to make the thin lower part long enough to reach the plugs. Problem is I hit metal of some kind and don't want to kill these coils.

Has anyone used these coils & have pics of the mod?

Name:  DSC07454.jpg
Views: 45
Size:  285.9 KB
smokinjoe73 is offline
Old 04-17-2015, 10:41 PM
  #2
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,211
E.Marquez is on a distinguished road
https://www.superhawkforum.com/forum...04/#post278584
98VTRrider reported in my coil on cap thread he used 600 coils
E.Marquez is offline
Old 04-18-2015, 09:18 PM
  #3
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,911
smokinjoe73 is on a distinguished road
Erik, if you look at the coils I have pictured, they are quite different from the ones you have pictured in your thread.

The base seems shorter and the whole coil shorter on mine. When mine are fully seated on the plug the very top of the coil is below the capped off air valve on the head of the motor.

In your pic your coil can clear it enough to have the coil at 90* to the rubber base.
smokinjoe73 is offline
Old 04-18-2015, 09:41 PM
  #4
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,211
E.Marquez is on a distinguished road
Originally Posted by smokinjoe73 View Post
Erik, if you look at the coils I have pictured, they are quite different from the ones you have pictured in your thread.

The base seems shorter and the whole coil shorter on mine. When mine are fully seated on the plug the very top of the coil is below the capped off air valve on the head of the motor.

In your pic your coil can clear it enough to have the coil at 90* to the rubber base.
Yes, but I linked you to the users post that said he used coils like yours....
E.Marquez is offline
Old 04-18-2015, 10:13 PM
  #5
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Mine are supposed to be 600 coils and I had no issues setting them up
8541Hawk is offline
Old 04-19-2015, 04:18 AM
  #6
Senior Member
Back Marker

sjscicluna's Avatar

Join Date: Jul 2012
Location: Melbourne, Australia
Posts: 143
sjscicluna is on a distinguished road
Whats the denso id on the top of the Coil
sjscicluna is offline
Old 04-19-2015, 07:07 AM
  #7
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,911
smokinjoe73 is on a distinguished road
8541, you adapted the stock boots to fit? I am finding the lower part that is to be ground down too short to reach the plugs if I leave enough rubber to be waterproof.

Did you grind the coil, cut the boot or both?
smokinjoe73 is offline
Old 04-19-2015, 03:55 PM
  #8
Senior Member
Back Marker

sjscicluna's Avatar

Join Date: Jul 2012
Location: Melbourne, Australia
Posts: 143
sjscicluna is on a distinguished road
i just Cut my boot and stretched it over the coil but didn't but it over the widest section ill need some time as work is busy ill have a look tonight for you and take a photo.

i did have some issues getting the coil to reach but i just pushed up the rubber on the lower part of the coil and they went on with a lil bit of force.
sjscicluna is offline
Old 04-19-2015, 05:41 PM
  #9
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by smokinjoe73 View Post
8541, you adapted the stock boots to fit? I am finding the lower part that is to be ground down too short to reach the plugs if I leave enough rubber to be waterproof.

Did you grind the coil, cut the boot or both?
I did a bit of both. I'll try to go out and get some pics but Though I haven't talked about it here, I have been fighting a couple of medical conditions the last couple of years and sometimes it takes a while to get stuff like this done anymore.

I do remember that I got the upper part of the boot to fit and then had to trim off some of the lower round bit to get engagement on the plug.

Been running them for about 3-4 yrs now with no issues.
8541Hawk is offline
Old 04-19-2015, 08:22 PM
  #10
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,911
smokinjoe73 is on a distinguished road
Thanks man, sorry to hear about the health thing. Feel better.

I am hung up on this booth thing since my last heavy rain rides I could feel the misfires from the wetness.
smokinjoe73 is offline
Old 04-20-2015, 04:04 AM
  #11
Senior Member
Back Marker

sjscicluna's Avatar

Join Date: Jul 2012
Location: Melbourne, Australia
Posts: 143
sjscicluna is on a distinguished road
sjscicluna is offline
Old 04-23-2015, 11:43 AM
  #12
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Not a great day for pics here but hope this helps.

In the head mine look like this:



Name:  002_zpscruowytq.jpg
Views: 49
Size:  128.3 KB
8541Hawk is offline
Old 04-23-2015, 11:45 AM
  #13
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough

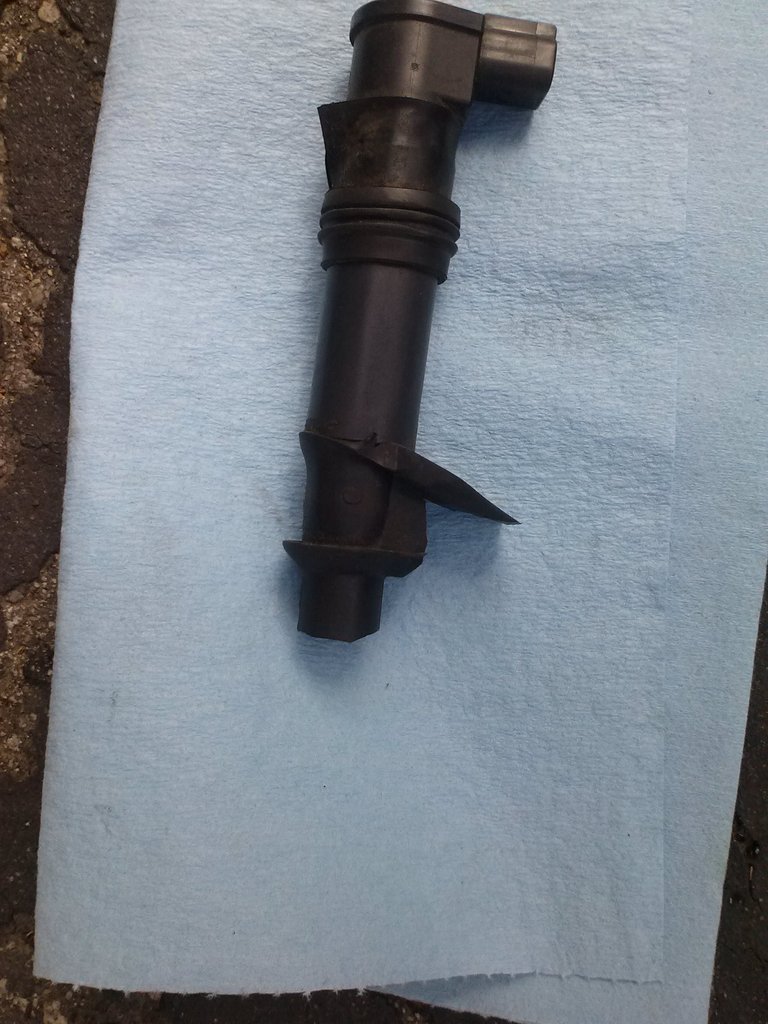

and this is how much you have to butcher the stock bit to get there:

Name:  006_zps431r0l2z.jpg
Views: 44
Size:  167.1 KB
8541Hawk is offline
Old 04-23-2015, 01:15 PM
  #14
Senior Member
Superstock

Hangfly's Avatar

Join Date: Mar 2015
Location: San Fran Freako
Posts: 389
Hangfly is on a distinguished road
Name:  stick1.jpg
Views: 49
Size:  83.3 KB

Another pic for comparison.
Grind man, grind.
Hangfly is offline
