Rather than buying the pricy Honda tools, I did some measuring and compared some old threads and found the frame castle nuts measured 20mm, and 24mm.

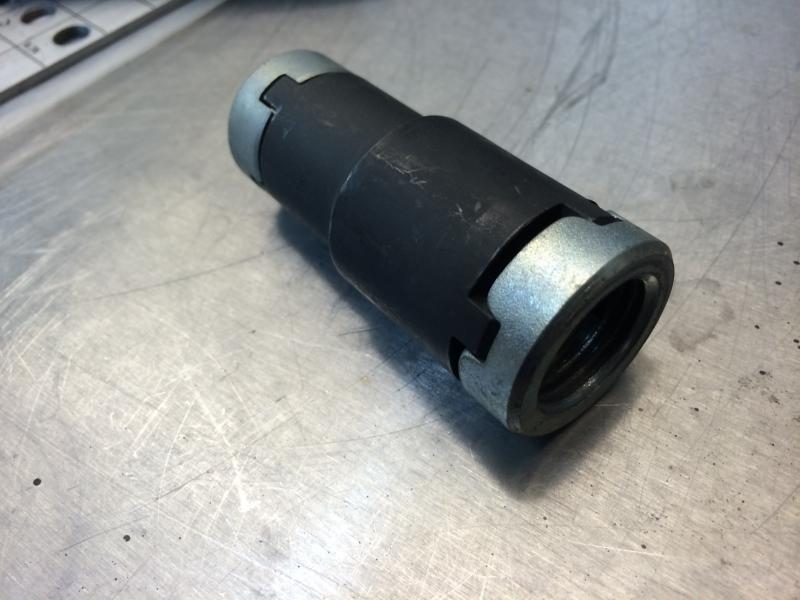

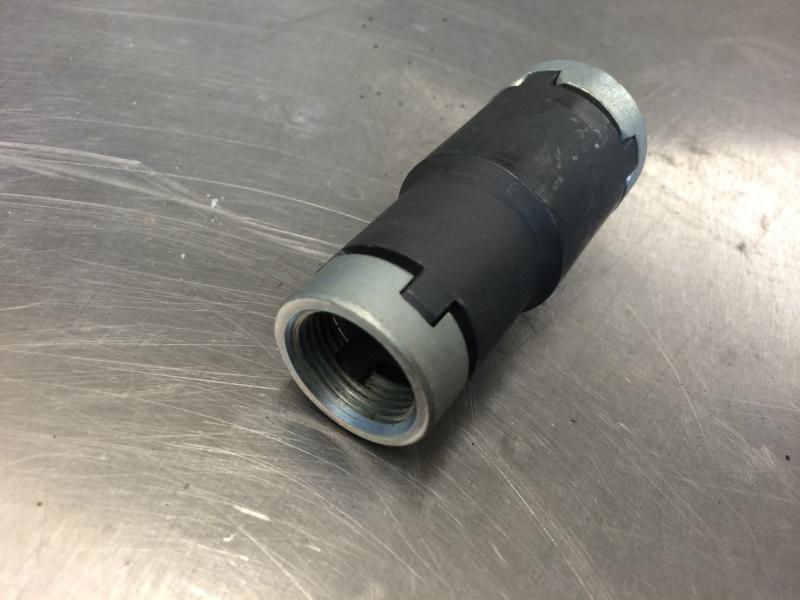

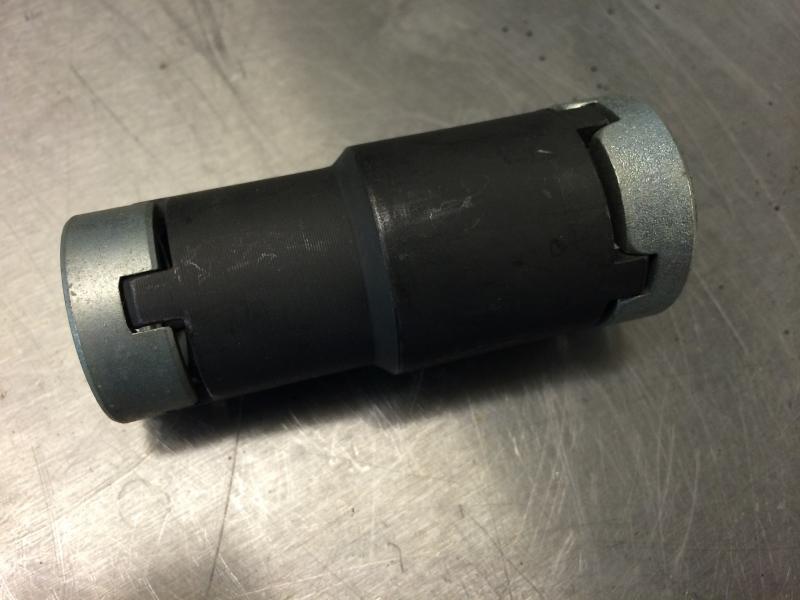

A google search turned up a double sided tool, which i found on Ebay for $9.95 shipped. The tool arrived today, and i used it with a 1/2" ratchet and extension to remove the three frame castle nuts!

James



Picture 2



Picture 3



Picture 4



Picture 5



Picture 6



Picture 7



Picture 8



Picture 9



Hey deat, can you post a link to the fleabay description/auction where you found this or tell the wording you used to find it? Great and smart discovery. Wish I thought of it.



I think i googled searched "30mm 24mm castle tool" or something like that. Sometimes the more vague you are, the more you find.

James



There's a whole slug of them!

Honda Clutch Lock 20mm 24mm Nut combo Cx500 | eBay



Yes... Though i would shy away from the $100 ones.

James



Well done.... and nice find.

I have then tooling and machines to make that, but no way is it worth the time spent vs the $14 shipped I found thanks to you.

Not the $9 deal you got (that seller had only the one) but still $14 saving me 3 hours of time on the lathe and mil... Oh ya.



No prob.

My seller originally had 3, and I think I bought the second one. I gave his contact info in case you guys wanted to try and contact him via Ebay.


James



A favor please. Would you, if the top triple is off, see if your new socket fits the stem castle nut?
Thanks in advance.



I am gonna bet that no way it fits. Just because I have used the frame one and just don't think so.



Aw man, just did an ebay search and found no reasonably priced tools. Just not worth $65 to me.



Yeah you're probably right. I am hoping to find a ready made so I don't have to grind a socket to fit.
Is this what you're searching for?20mm 24mm Honda Clutch Lock Nut Tool Spanner Socket 250x 450R 600RR 250L CRF | eBay



That's the same tool i bought. $10 free shipping.

James



Xeris YES thanks! I was shocked at the mark up to 65 clams. I ordered one Now I hope to not have to use it soon.



I also ordered one. For $10 if it fits the stem nut, great, if not I'll have the right tool if I ever need to remove the engine.
