Carb set up

Old 02-21-2011, 08:05 PM
  #31
ride it out
SuperSport

nothing's Avatar

Join Date: Feb 2009
Location: NH
Posts: 745
nothing is on a distinguished road
Originally Posted by 8541Hawk View Post
No those are the stock, unmodified slides in the pics. The needle goes in the center hole.......

Attachment 11024
=P what a goof I am thanks for that
nothing is offline
Old 02-22-2011, 05:58 AM
  #32
Member
Squid

aaugsbu's Avatar

Join Date: May 2010
Posts: 71
aaugsbu is on a distinguished road
7moore7 or 8541Hawk what kind of epoxy did you use to plug one of the holes?
aaugsbu is offline
Old 02-22-2011, 10:22 AM
  #33
Banned
MotoGP
Thread Starter

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by aaugsbu View Post
7moore7 or 8541Hawk what kind of epoxy did you use to plug one of the holes?
The way I have done them is like this:

First take a small piece of tape and by reaching through the slide ( like you would put the needle in) put it on the back side of the hole you want to plug.

Then take a small dab on epoxy ( I normally use some 30 min cure time stiff but just about any will work, also the brand really isn't that important as long as its a "name brand") and fill the hole.

I don't end up with near as big a lump on the outside of the slide a 7moore7 did but either should work, I just don't like to do anything that "might" disrupt the airflow past the slide. So I would just put enough in there to fill the hole but still keep the level flush with the end of the slide.
8541Hawk is offline
Old 02-22-2011, 11:11 AM
  #34
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,867
7moore7 is on a distinguished road
I used 6 min plastic epoxy- I was debating on how much of a "lump" to leave as I didn't want the epoxy to be breaking off inside of my carbs. It's filed down, so has a pretty flat profile, but could probably be smoothed out all the way now that it's had a couple days to cure fully....

I bet if I did this there'd be no problem as the air pressure in these things isn't enough to mess up the epoxy.
7moore7 is offline
Old 02-22-2011, 03:53 PM
  #35
Member
Squid

aaugsbu's Avatar

Join Date: May 2010
Posts: 71
aaugsbu is on a distinguished road
I have been looking at the manaul and 7moore7's pics my slide looks different. Mine has four holes (with the slide) and 7moore7 has three. Is mine aftermarket or stock? Previous owner said everything was stock that's why I assumed it was. How do I get the needle out?
Attached Thumbnails Carb set up-dscn0322-400.jpg
aaugsbu is offline
Old 02-22-2011, 04:19 PM
  #36
Member
Squid

aaugsbu's Avatar

Join Date: May 2010
Posts: 71
aaugsbu is on a distinguished road
Previous owner full of $#it, front cyclinder 180 main and 45 pilot, back cyclinder 185 main and 45 pilot. What to do now go back to stock?
aaugsbu is offline
Old 02-22-2011, 04:19 PM
  #37
Banned
MotoGP
Thread Starter

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Those are set up for a DynoJet kit and the extra hole is the additional lift hole they have you drill.

To get the needles out take one of the screws from the diaphragm cover and screw it into the needle holder (you can see it in the pics 7moore7 posted) and then just pull it out.
8541Hawk is offline
Old 02-22-2011, 04:21 PM
  #38
Banned
MotoGP
Thread Starter

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by aaugsbu View Post
Previous owner full of $#it, front cyclinder 180 main and 45 pilot, back cyclinder 185 main and 45 pilot. What to do now go back to stock?
Well you would need needles, main jets and slide springs to return it to stock configuration.
8541Hawk is offline
Old 02-22-2011, 04:39 PM
  #39
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,867
7moore7 is on a distinguished road
When you pull the slides apart, if the needle just has a pinhead like a nail, then it's stock. If it has a clip with 5 or so different positions that it can be placed in, then it's a jet kit. With the extra hole drilled, you probably have a jet kit needle in there as well.

Follow the pictures like a picture book to get the needle out!
7moore7 is offline
Old 02-22-2011, 05:04 PM
  #40
Member
Squid

aaugsbu's Avatar

Join Date: May 2010
Posts: 71
aaugsbu is on a distinguished road
Thanks you two for helping me out. Here's what I found. Somebody drilled out the slide and drilled right into the needle holder. Just like you two said it has a jet kit in it. Needles have five different sittings. The o-ring on both needle holders need to be replaced (fell apart when I took the needles out). Should I replace the needle holders since they both have a hole in them now (see pic)? The diaphram on the rear carb was folded. Luckily I was able to unfold it without breaking it. I haven't gotten to the mixture screws yet.Thanks again.
Attached Thumbnails Carb set up-dscn0324-400.jpg
aaugsbu is offline
Old 02-22-2011, 05:20 PM
  #41
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,173
E.Marquez is on a distinguished road
Needle holder and slide get drilled as part of installing a JD kit.. Seal the extra holes in the slide with epoxy, needle holder is fine the way it is.

Originally Posted by aaugsbu View Post
Thanks you two for helping me out. Here's what I found. Somebody drilled out the slide and drilled right into the needle holder. Just like you two said it has a jet kit in it. Needles have five different sittings. The o-ring on both needle holders need to be replaced (fell apart when I took the needles out). Should I replace the needle holders since they both have a hole in them now (see pic)? The diaphram on the rear carb was folded. Luckily I was able to unfold it without breaking it. I haven't gotten to the mixture screws yet.Thanks again.
E.Marquez is offline
Old 02-22-2011, 05:20 PM
  #42
Member
Squid

aaugsbu's Avatar

Join Date: May 2010
Posts: 71
aaugsbu is on a distinguished road
Here's the other needle holder one side broken off.
Attached Thumbnails Carb set up-dscn0326-400.jpg
aaugsbu is offline
Old 02-22-2011, 05:28 PM
  #43
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,867
7moore7 is on a distinguished road
Originally Posted by aaugsbu View Post
Previous owner full of $#it, front cyclinder 180 main and 45 pilot, back cyclinder 185 main and 45 pilot. What to do now go back to stock?
Ain't that just the best!

As far as the holes thing, I'd replace the needle holder. It looks to me like having it there will have an effect on the air pushing through the holes, and you probably want to avoid that.

If you want, I have an extra set that I can sell you...
7moore7 is offline
Old 02-22-2011, 05:29 PM
  #44
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,867
7moore7 is on a distinguished road
Originally Posted by E.Marquez View Post
Needle holder and slide get drilled as part of installing a JD kit.. Seal the extra holes in the slide with epoxy, needle holder is fine the way it is.
Did not know this- so is the hole basically just a pressure escape for the air, rather than an extra lift hole?
7moore7 is offline
Old 02-22-2011, 05:50 PM
  #45
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,173
E.Marquez is on a distinguished road
Originally Posted by 7moore7 View Post
Did not know this- so is the hole basically just a pressure escape for the air, rather than an extra lift hole?

The JD kit has you drill a hole in the slide,, the needle holder covers the same spot in the slide, so it gets drilled as well.. If you seal the hole that is drilled, the hole in the needle cap is no longer an issue.. Call it what you want, air bleed, extra lift hole.. No matter,, Point is,, the needle holder is not a concern after you fix the hole in the slide.
E.Marquez is offline
Old 02-22-2011, 05:51 PM
  #46
Banned
MotoGP
Thread Starter

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by 7moore7 View Post
Did not know this- so is the hole basically just a pressure escape for the air, rather than an extra lift hole?
Well the hole in the slide is a lift hole. Why DynoJet wants you to drill the needle holder also is kind of a mystery.

So you can either just reuse the needle holders and shouldn't have a real issue or replace the broken one and seal the hole in the other one if you would like.
8541Hawk is offline
Old 02-22-2011, 06:16 PM
  #47
Member
Squid

aaugsbu's Avatar

Join Date: May 2010
Posts: 71
aaugsbu is on a distinguished road
7moore7 I just pm'ed you for the needle holders. I am still trying to decide on going back to the stock parts. My bike ran good last year except for a hiccup or carb fart at low rpm. I wasn't really happy with the acceleration in first and second gear though. I just set the TPS to 500ohms it was at 860. Maybe someone has the stock parts for sale and I can try both.lol.
aaugsbu is offline
Old 02-23-2011, 09:30 AM
  #48
ride it out
SuperSport

nothing's Avatar

Join Date: Feb 2009
Location: NH
Posts: 745
nothing is on a distinguished road
if you want to trade needles/jets from my stock carb ones (and maybe some monies) for yours then I may be interested, I had been planning on upgrading due to my mods but never came across a deal.
nothing is offline
Old 02-23-2011, 09:56 AM
  #49
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,173
E.Marquez is on a distinguished road
Originally Posted by nothing View Post
if you want to trade needles/jets from my stock carb ones (and maybe some monies) for yours then I may be interested, I had been planning on upgrading due to my mods but never came across a deal.
PM sent
E.Marquez is offline
Old 02-23-2011, 10:46 AM
  #50
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,867
7moore7 is on a distinguished road
Ok so now I have another question that I didn't think to ask before... If I had a FactoryPro kit installed, what other changes have been made, and what should I do to get to a base tuning setup? I ordered 48 pilots, have 178 rear and 175 front mains (stock air filter, aftermarket slipons, 1K ft elevation).
7moore7 is offline
Old 02-23-2011, 12:55 PM
  #51
Banned
MotoGP
Thread Starter

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
FactoryPro uses different needles and their own jets.
Did you want to try and use their needles?

Guess I'm just trying to figure out how to answer your question.
8541Hawk is offline
Old 02-23-2011, 01:03 PM
  #52
Senior Member
MotoGP

lazn's Avatar

Join Date: Mar 2007
Location: Phoenix, AZ
Posts: 3,132
lazn is on a distinguished road
IIRC FactroyPro jets are sized the same as the stock ones, unlike DynoJet.

(that is a 175 FactoryPro jet is the same as a 175 Honda one but a 175 DynoJet one is different from either of those)
lazn is offline
Old 02-23-2011, 01:13 PM
  #53
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,867
7moore7 is on a distinguished road
Originally Posted by 8541Hawk View Post
FactoryPro uses different needles and their own jets.
Did you want to try and use their needles?

Guess I'm just trying to figure out how to answer your question.
Nope, I'm going back to shimming the stock needles- I'm trying to set it up as base line as possible so that if I have any issues with your suggested setup, it'll be easier to diagnose/tune.

I've shimmed the rear needle about .040" and the front one about .035". I won't have the tank in for about a week and a half, so there's no rush, but don't want to miss anything.
7moore7 is offline
Old 02-23-2011, 01:17 PM
  #54
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,867
7moore7 is on a distinguished road
Originally Posted by lazn View Post
IIRC FactroyPro jets are sized the same as the stock ones, unlike DynoJet.

(that is a 175 FactoryPro jet is the same as a 175 Honda one but a 175 DynoJet one is different from either of those)
Is there a visual difference? Because I have another set of jets that I'm almost positive are stock. I could just switch them out and not worry about it... for some reason I didn't think to do this before.
7moore7 is offline
Old 02-23-2011, 01:26 PM
  #55
Banned
MotoGP
Thread Starter

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Here are a few new pics to update this tread a little...

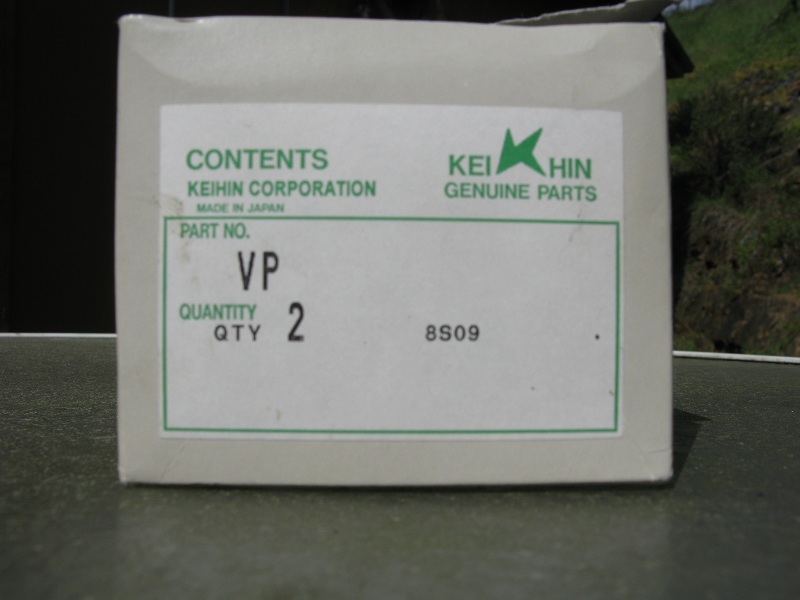

The nice thing about the HRC jet kit is that all the parts come in these nice Keihin packages....

Carb set up-hrc-box-.jpg

Here are a couple of the rarely seen HRC slide. You can even see the witness mark where the second lift hole should be drilled.

Carb set up-hrc-slide-1a.jpg

Carb set up-hrc-slide-2a.jpg
8541Hawk is offline
Old 02-23-2011, 01:52 PM
  #56
Senior Member
MotoGP

lazn's Avatar

Join Date: Mar 2007
Location: Phoenix, AZ
Posts: 3,132
lazn is on a distinguished road
Originally Posted by 7moore7 View Post
Is there a visual difference? Because I have another set of jets that I'm almost positive are stock. I could just switch them out and not worry about it... for some reason I didn't think to do this before.
No clue, I have a Factory Pro jet kit sitting in a box at home, but have never pulled my carbs apart.
lazn is offline
Old 02-23-2011, 05:06 PM
  #57
Banned
MotoGP
Thread Starter

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by 7moore7 View Post
Is there a visual difference? Because I have another set of jets that I'm almost positive are stock. I could just switch them out and not worry about it... for some reason I didn't think to do this before.
If they have a star on them, then they are Keihin jets.
8541Hawk is offline
Old 02-23-2011, 05:08 PM
  #58
Banned
MotoGP
Thread Starter

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by lazn View Post
IIRC FactroyPro jets are sized the same as the stock ones, unlike DynoJet.

(that is a 175 FactoryPro jet is the same as a 175 Honda one but a 175 DynoJet one is different from either of those)
This is the information I have also. I have never tried it myself, so I can't say 100%.
8541Hawk is offline
Old 02-25-2011, 07:27 AM
  #59
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,867
7moore7 is on a distinguished road
Originally Posted by 8541Hawk View Post
I don't end up with near as big a lump on the outside of the slide a 7moore7 did...
Better?



haha

And yeah, the mains had a star on them.
Just gotta wait for the tank to get back from paint and leave for a buddy's wedding, then I'll be able to give this setup a shot.
7moore7 is offline
Old 02-25-2011, 08:01 AM
  #60
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
Originally Posted by skokievtr View Post
I can't remember now...which CBR coils were the best to adapt to the VTR?
CBR 600RR is the best fit, 1000RR works but are a bit longer...
Tweety is offline

Thread Tools
Search this Thread
Quick Reply: Carb set up


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
