Brake Master Part ID

What is it?
This came out of the reservoir from a 03 954. It was under the rubber anti cavitation piece. I don't think it is suppose to be in there with the rubber piece as it was distorting the rubber. Looks like it is ment to perform the asme function, but....

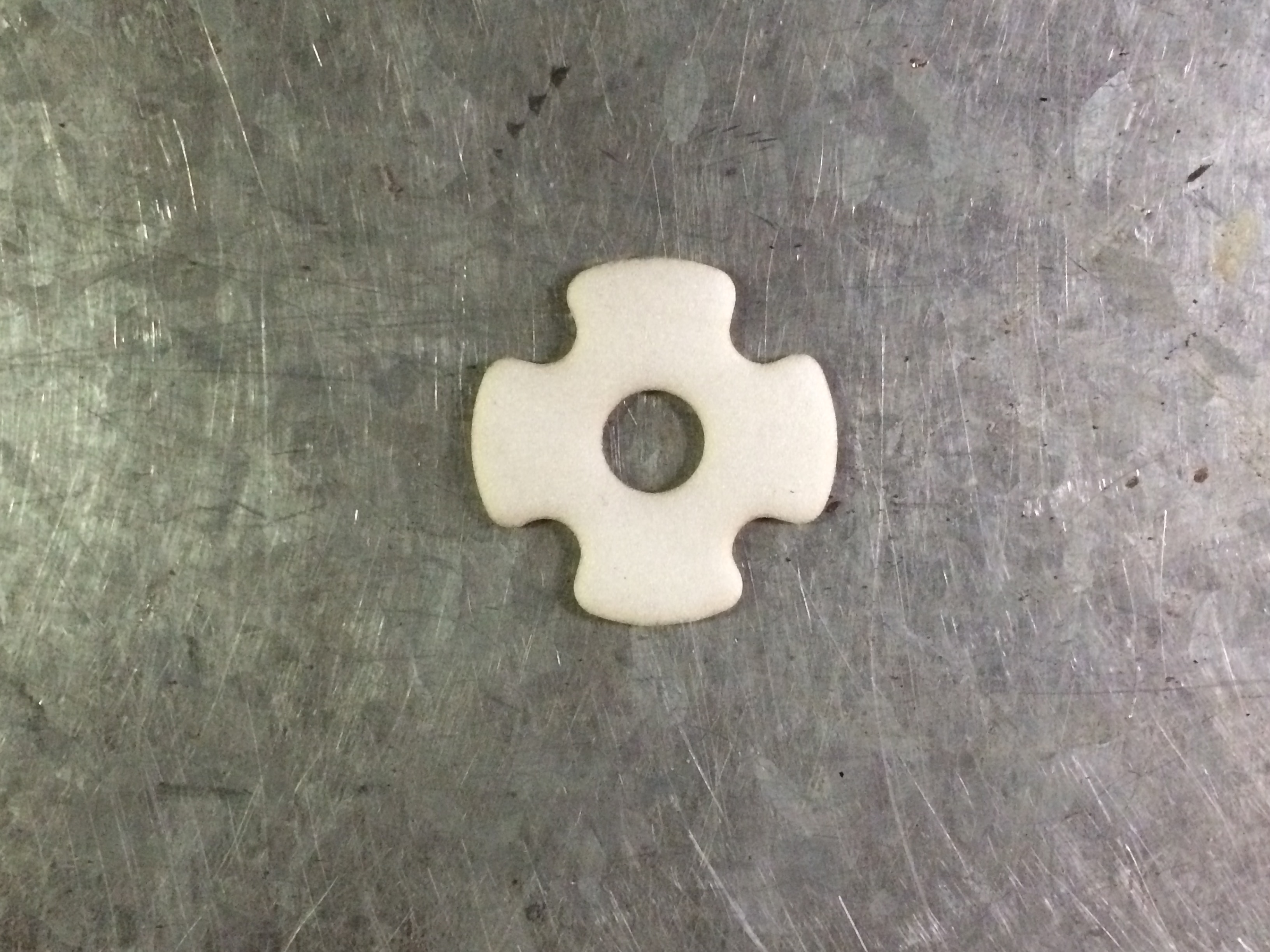

Brake Master Part ID-brake-master-part.jpg
xeris is offline
Old 05-16-2016, 08:28 PM
  #2
VTR virgin
Superstock

Cadbury64's Avatar

Join Date: Mar 2015
Location: Auckland, New Zealand
Posts: 408
Cadbury64 is on a distinguished road
That is meant to be in there, described in the parts fiche as "Float". From the top down you should have the cap, white plastic diaphragm plate, the rubber diaphragm, then the float. Not unusual for the diaphragm to be distorted this happens when the fluid level is sucked down.
Cadbury64 is offline
Old 05-16-2016, 08:59 PM
  #3
Senior Member
SuperBike
Thread Starter

xeris's Avatar

Join Date: Sep 2010
Location: Bisbee, AZ
Posts: 1,465
xeris is on a distinguished road
Originally Posted by Cadbury64 View Post
That is meant to be in there, described in the parts fiche as "Float". From the top down you should have the cap, white plastic diaphragm plate, the rubber diaphragm, then the float. Not unusual for the diaphragm to be distorted this happens when the fluid level is sucked down.
Thanks. I didn't think to look at the part fich. The thing that has me wondering is that the rubber diaphragm bottoms out on the "float" causing it to become distorted. This is with test fitting with a dry reservoir.
The fich shows the diaphragm as the same on multiple yrs/models, but the float isn't used on all the same yrs/models.
I'm guessing detail changes in sub parts.
