STIFFENING THE VTR1000F

Old 08-15-2008, 10:13 AM
  #1
Senior Member
Back Marker
Thread Starter

Letsrideinsc's Avatar

Join Date: Jul 2005
Location: Santa Cruz, CA
Posts: 156
Letsrideinsc
STIFFENING THE VTR1000F

I saw a picture of a completely modified race vtr1000f, it had a brace constructed in between the flexed member of the frame/swingarm....basically on both sides it was attached to the swingarm pivot bolt and attached itself to the rear subframe mounting position, thus stiffening the flexed member of the chassis. Aftermarket rearsets were used as well. Anybody seen these on the market?

-Jeromy
Letsrideinsc is offline
Old 08-15-2008, 10:16 AM
  #2
Senior Member
SuperBike

trinc's Avatar

Join Date: Feb 2007
Location: Portland, Oregon
Posts: 1,051
trinc is on a distinguished road
if you could, please post the picture, i'd like to see what they did.

tim
trinc is offline
Old 08-15-2008, 10:41 AM
  #3
Fastest Color
SuperBike

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
This works too!

Makes rear end much more stable at speed even passing trucks on the interstate...

Good luck with your mods bro!
RC
Attached Images

Last edited by FL02SupaHawk996; 08-15-2008 at 10:41 AM. Reason: correction
FL02SupaHawk996 is offline
Old 08-15-2008, 11:17 AM
  #4
Senior Member
Back Marker
Thread Starter

Letsrideinsc's Avatar

Join Date: Jul 2005
Location: Santa Cruz, CA
Posts: 156
Letsrideinsc
I'm looking for the picture, I'll post once I find it. I think it was on bikepics.com. I am considering doing a swingarm swap, but I saw this and thought it would be a faily easy mod and maybe a worthwhile one too! One day I'll find a complete 929 or rc front end to buy too. I remember it being yellow w/blue bellypan, morowaki cans and exhaust wrap. I'll keep trying to find it.
Letsrideinsc is offline
Old 08-15-2008, 02:41 PM
  #5
evil man of nothing
MotoGP

captainchaos's Avatar

Join Date: Jan 2006
Location: Boynton Beach, FL
Posts: 4,199
captainchaos is on a distinguished road
Originally Posted by FL02SupaHawk996 View Post
This works too!

Makes rear end much more stable at speed even passing trucks on the interstate...

Good luck with your mods bro!
RC
Sweet! Who's the monkey who sold you that? And in case no one saw it the Captain's cliTAURUS makes an encore appearance!!!

Last edited by captainchaos; 08-15-2008 at 02:44 PM.
captainchaos is offline
Old 08-15-2008, 03:23 PM
  #6
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,560
mikstr is on a distinguished road
I beleive you're referring to the modified frame made by Spondon in the UK. Your best bet to find a pic would be on the www.vtr1000.org site, like this, for example:
http://www.vtr1000.org/phpBB2/viewto...hlight=spondon
mikstr is offline
Old 08-15-2008, 03:29 PM
  #7
Senior Member
Back Marker
Thread Starter

Letsrideinsc's Avatar

Join Date: Jul 2005
Location: Santa Cruz, CA
Posts: 156
Letsrideinsc
Nope that's not it, but basically same idea. Looks like spondon did it the correct way!
Letsrideinsc is offline
Old 08-15-2008, 05:11 PM
  #8
evil man of nothing
MotoGP

captainchaos's Avatar

Join Date: Jan 2006
Location: Boynton Beach, FL
Posts: 4,199
captainchaos is on a distinguished road
I know what you're talking about...I think...they weld plates inside the frame webbing towards the back of the frame. I've seen a few racebikes online with that mod.
captainchaos is offline
Old 08-15-2008, 07:53 PM
  #9
Fastest Color
SuperBike

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by captainchaos View Post
Sweet! Who's the monkey who sold you that? And in case no one saw it the Captain's cliTAURUS makes an encore appearance!!!
Can't remember where I got it but Captian **** rings a bell
FL02SupaHawk996 is offline
Old 08-16-2008, 01:56 PM
  #10
Senior Member
Back Marker
Thread Starter

Letsrideinsc's Avatar

Join Date: Jul 2005
Location: Santa Cruz, CA
Posts: 156
Letsrideinsc

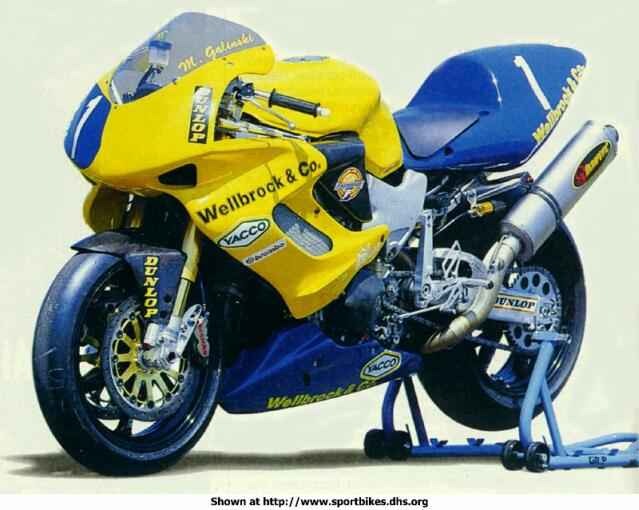

Found it...I think I attached it correctly.
Attached Thumbnails STIFFENING THE VTR1000F-race_vtr.jpg
Letsrideinsc is offline
Old 08-16-2008, 07:56 PM
  #11
Senior Member
SuperBike

RCVTR's Avatar

Join Date: Dec 2005
Location: South Lake Tahoe, CA, USA
Posts: 1,689
RCVTR is an unknown quantity at this point
The stiffening i've seen is to weld plates on the inside of the cast section in the back of the frame and gussets in the top corner by the shock cross member.

The head of the frame was also heavily braced with plates over the ribs of the head casting, plates over the head end of the extruded main side rails, and a 3rd diagonal brace forward of the other two between the side rails.

Even after that it was supposedly nowhere near as good a race chassis as the RC51.

It might make a really good improvement to a street chassis though.

EDIT***

It would make a great track chassis, too for track days. Most of us can't exceed the limits of a VTR on the track, myself included.

Last edited by RCVTR; 08-16-2008 at 08:01 PM.
RCVTR is offline
Old 08-16-2008, 09:51 PM
  #12
2nd mouse gets the cheese
SuperBike

Little_Horse's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697
Little_Horse is on a distinguished road
does anyone have a closer shot of the rear swingarm on the wellbrock bike? I wouldn't mind seeing if its something I might be able to do.
Little_Horse is offline
Old 09-02-2008, 08:10 AM
  #13
2/97 VTR
Back Marker

Kelevra's Avatar

Join Date: Sep 2008
Location: EMPIRE STATE
Posts: 204
Kelevra is on a distinguished road
Originally Posted by Letsrideinsc View Post
Found it...I think I attached it correctly.
Looks like a Moriwaki bike..
I remember when I bought my VTR in '97, Mori had already produced a race version of it with a trussed up frame, swinger, etc.
Kelevra is offline
Old 01-19-2019, 03:24 AM
  #14
Senior Member
Back Marker

fabiostar's Avatar

Join Date: Jan 2017
Posts: 153
fabiostar is on a distinguished road
heres what you are looking for



heres it before i refitted the spondon swingarm

fabiostar is offline
Old 01-19-2019, 03:36 AM
  #15
Senior Member
Back Marker

fabiostar's Avatar

Join Date: Jan 2017
Posts: 153
fabiostar is on a distinguished road
and some of the internal bracing spondon welded in. they put a lot of internal bracing inside the frame










fabiostar is offline
Old 02-23-2019, 02:44 AM
  #16
Senior Member
SuperBike

kenmoore's Avatar

Join Date: Mar 2012
Location: New South Wales Australia
Posts: 1,527
kenmoore is on a distinguished road
Just happened upon this post and I must say a big thank you to Fabio.

Not too often we get to see the workings of a Spondon frame.

Thanks for sharing mate.

I am interested because I have many mods to the suspension on my bike and have now come to the conclusion that as I push the old girl harder this may be the answer I am looking for . Lately the old girl wants to rare her head a bit out of corners and the forks feel like they are topping out over uneven surfaces under hard acceleration and some bracing of the frame may do the trick .

Thanks once again for the pics , very interesting.

I have Zx10'USD, Triumph 675 radials, DMR Rear shock and a braced swinger and the frame needs a couple of tweaks to keep up with these mods.

Once again the VTR just begs for some tinkering and fettling.

It already gives my riding buddies the ***** the way it is now and that's why I still have it after almost 7 years.

A few bikes have come and gone through the cave during that time including some mentle things that were gunna kill me, but still the VTR has stayed.

I have come to the conclusion that the reason I love the VTR is that even with many mods I can thrash it. I had bikes with more power back in the 90s but the power wasn't accesable like it is on the VTR. Only inline fours had the big numbers in those days.

It's scary when I think that's almost 30 years ago.

PS Fabio, If you have more detailed pics put them up.

Cheers

The most rewarding out of 43 bikes and a blank canvas to turn into what you want.
kenmoore is offline
Old 02-23-2019, 07:22 AM
  #17
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,478
Wolverine is on a distinguished road
Talking

Originally Posted by kenmoore View Post
It already gives my riding buddies the ***** the way it is now and that's why I still have it after almost 7 years.

I have come to the conclusion that the reason I love the VTR is that even with many mods I can thrash it. I had bikes with more power back in the 90s but the power wasn't accesable like it is on the VTR.


I love that 1st statement.
Wolverine is offline
Old 02-28-2019, 10:12 AM
  #18
Senior Member
SuperBike

killer5280's Avatar

Join Date: Aug 2004
Location: Atlanta, GA
Posts: 1,728
killer5280 is on a distinguished road
Love those 10 year old thread revivals!

But, nice pics fabiostar.
killer5280 is offline
Old 02-28-2019, 02:39 PM
  #19
Member
Squid

Join Date: Jul 2018
Location: Champaign, IL
Posts: 67
YMRacing is on a distinguished road
Might I suggest that if you haven't already, upgrade the shock, the front suspension, renew your steering head and swing arm bearings
YMRacing is offline
