R6 frontend on the Superhawk

Old 09-14-2011, 05:38 PM
  #1
Junior Member
Squid
Thread Starter

Join Date: Apr 2011
Posts: 25
KCar is on a distinguished road
R6 frontend on the Superhawk

I just wanted to share my latest project with you guys. I've read allot of posts on mods and have done a few of them already. I figured I should share my front end swap in case anybody looks at doing this in the future.

I had a spare set of 2006 R6 forks, triple trees, front rim, brakes and other stuff from my track bike that was lying around. Needless to say..beer and free time..parts start to come off the Hawk.

The end result...I ordered new bearings from allballz, stock 954 clipons (the woodcraft clipon with no rise would hit the gauge cluster), I used the Superhawk front brake master(I'll be looking at my spare R1/R6 master later) and clutch, R6 rim, brakes and lines, triples. It fit with no real problems.

The triple steering stops hit the bottom of the fairing stay, but it is plenty movement. The turning radius is kind of bad trying to turn the bike while off it in the garage, but riding you do not even get close. The throttle cables now rub on the fairing, but I think I can move them up or forward to fix that.

The brakes are awesome, the ride position is a little more forward and it handles great.

I just did a track day with it at VIR north, with no problems. I did take it easy the whole day, but I had zero problems out of the front end. I did not bottom out on hard braking and had no tank slappers or harsh steering. I had some bad tire wear (ripping) on the rear..but I think it is because the stock rear shock and or tire pressures.

Sorry I know its kind of bunched together but I'm not a expert forum author. Any questions ask away..now to look at the rear end. Oh and here is a pic..I'll try to get more with the fairings on.

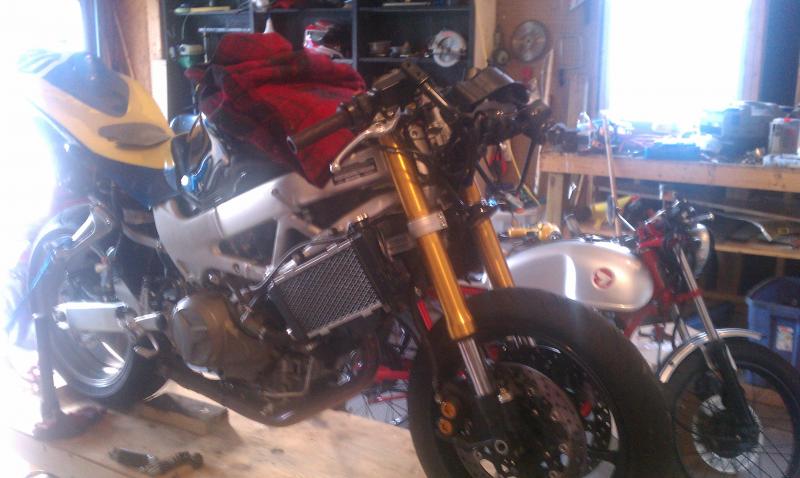

Attached Thumbnails R6 frontend on the Superhawk-imag0045.jpg

Last edited by KCar; 09-14-2011 at 05:41 PM.
KCar is offline
Old 09-14-2011, 05:49 PM
  #2
Junior Member
Squid

Join Date: Jul 2010
Posts: 11
beloden is on a distinguished road
nice job
beloden is offline
Old 09-14-2011, 05:56 PM
  #3
Senior Member
SuperSport

zmaniv's Avatar

Join Date: Jun 2008
Location: San Diego
Posts: 916
zmaniv is on a distinguished road
Damn I want to do that looks awesome.
You were able to use the entire r6 tripples and steering stem? Or did you have to swap out parts?
What tail section is that?
zmaniv is offline
Old 09-14-2011, 05:57 PM
  #4
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,561
mikstr is on a distinguished road
Nice job
mikstr is offline
Old 09-14-2011, 06:01 PM
  #5
Senior Member
SuperSport

Crashrat's Avatar

Join Date: Oct 2009
Location: In a van down by the river (I wish!)
Posts: 617
Crashrat is on a distinguished road
Nice!

Details?
Crashrat is offline
Old 09-14-2011, 06:20 PM
  #6
Junior Member
Squid
Thread Starter

Join Date: Apr 2011
Posts: 25
KCar is on a distinguished road
Thanks
Yes both triples and stem are R6. If you look at doing this you would need both triple trees and stem, forks, front rim, axle and wheel spacers, front fender, brake calipers and lines. 954 clip-ons or other 50mm with rise (unless you remove the gauge cluster). I used the Superhawk's stock master cylinders for brakes and clutch. Oh and you will have to figure out how to mount your Key ignition..close with the R6 triple but does not fit. I slotted my key ignition to fit it, but I do not like it. I should have and most likely going to relocated it somewhere else. Then cut the hoop off the upper triple. I also thought of going keyless and mounting a toggle switch there.

The tail is a 06 GSXR race tail I modified for my R6 (it was free from a friend and I needed a tail faring at the time). I just sat it there to see what it look like. It does not fit with out some cutting of fiberglass...I going to look at that over the winter or make a new one. I can take other pictures of it... if your interested to see what it looks like for any future projects you may have..

Last edited by KCar; 09-14-2011 at 06:27 PM.
KCar is offline
Old 09-15-2011, 07:10 AM
  #7
Senior Member
SuperBike

Erik S.'s Avatar

Join Date: Nov 2007
Location: Westerly, RI
Posts: 1,216
Erik S. is on a distinguished road
PAY ATTENTION guys. That is now 2 (TWO) 600 front ends that swap over to the SH, with only new bearings.

Yamaha R-6
Suzuki GSX-R600

Use the whole front end and you don't have to worry about shimming for brakes, and finding the right upper triple.

For my Suzuki swap, the 954 clip-ons are the correct height also.
Erik S. is offline
Old 09-15-2011, 09:25 AM
  #8
Senior Member
SuperSport

zmaniv's Avatar

Join Date: Jun 2008
Location: San Diego
Posts: 916
zmaniv is on a distinguished road
Yes post more pics of that tail section
zmaniv is offline
Old 09-15-2011, 11:22 AM
  #9
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Well if the steering stops are like the Honda stops on a 954 you can relieve them a bit so they can pass under the fairing stay.

It ends up looking like this

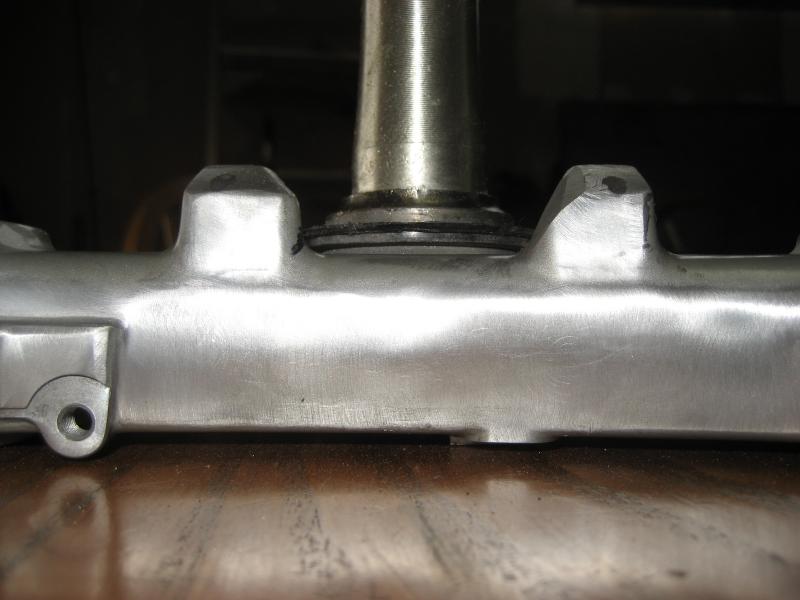

R6 frontend on the Superhawk-004.jpg

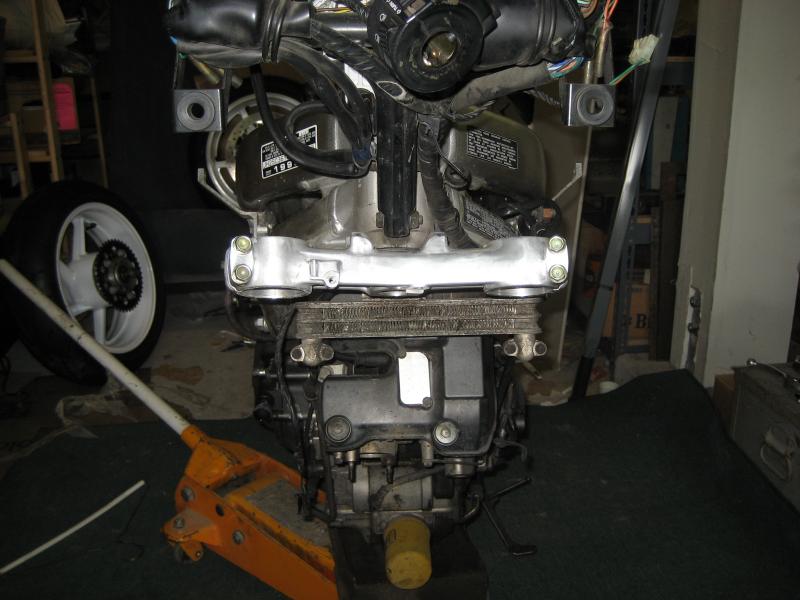

R6 frontend on the Superhawk-005.jpg

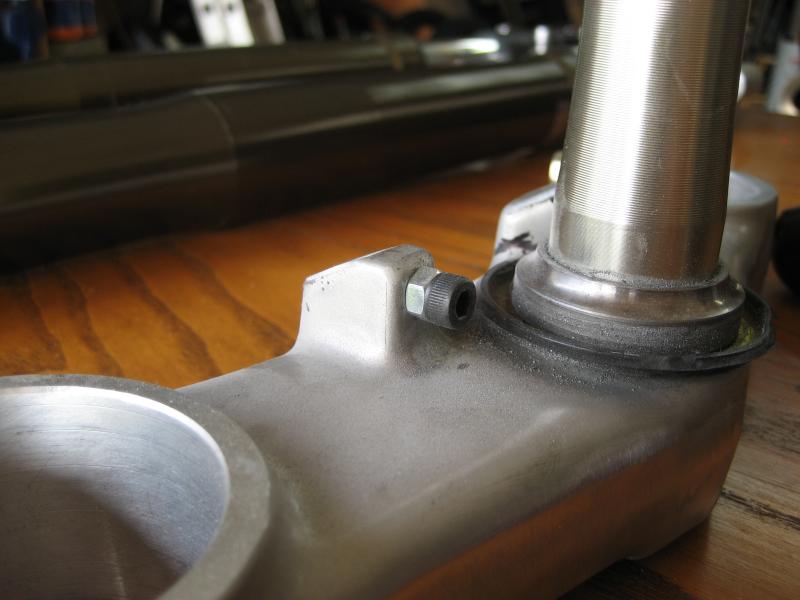

You also might need to adjust where the stop contacts depending on your radiator position and all that. The way you do that is like this:

R6 frontend on the Superhawk-021.jpg

8541Hawk is offline
Old 09-15-2011, 05:08 PM
  #10
Junior Member
Squid
Thread Starter

Join Date: Apr 2011
Posts: 25
KCar is on a distinguished road
Thanks for posting the picture of the steering stops. They look about the same. I'll look into it, I tried to get a picture but with everything on I not sure what can be seen..I'll post it anyways.

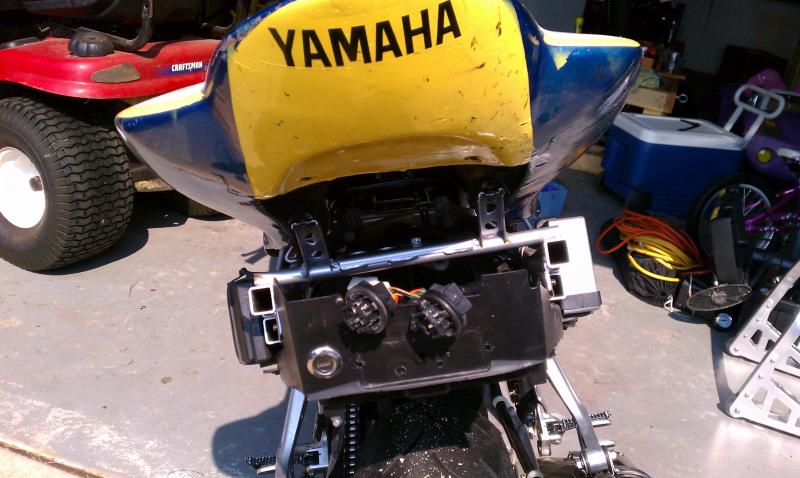

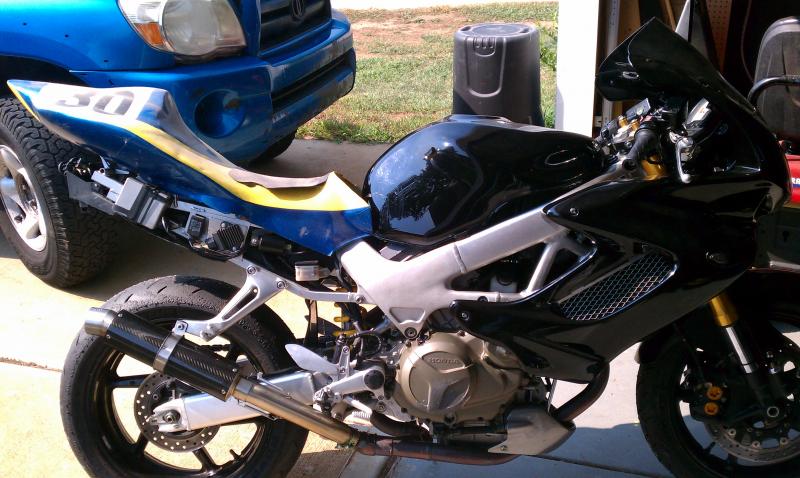

Here are some more pics of the tail. As I said earlier it does not fit, but some trimming of fiberglass and who knows. If I get a chance this weekend I'll trim it up, should not take long. I would guess a un-modified GSXR tail might fit better, because of what I need to trim is what I added so it would fit the R6. However I would bet you would still need to mod it.

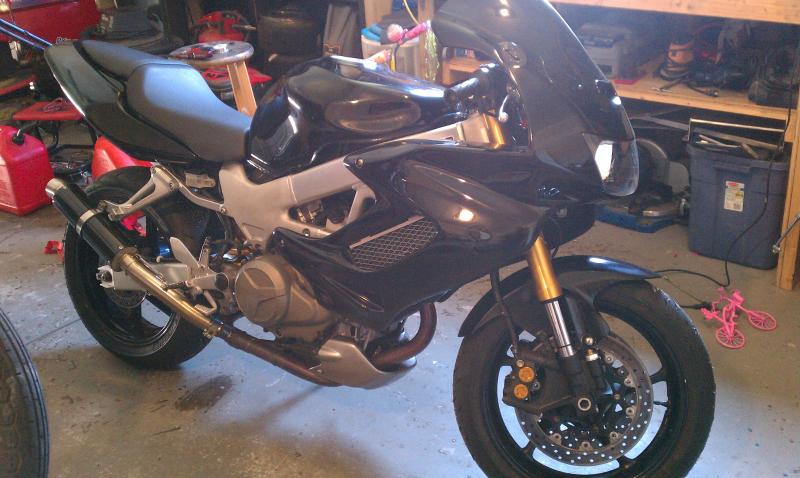

Attached Thumbnails R6 frontend on the Superhawk-imag0053.jpg   R6 frontend on the Superhawk-imag0054.jpg   R6 frontend on the Superhawk-imag0056.jpg   R6 frontend on the Superhawk-imag0060.jpg   R6 frontend on the Superhawk-imag0062.jpg

KCar is offline
Old 09-15-2011, 05:11 PM
  #11
Junior Member
Squid
Thread Starter

Join Date: Apr 2011
Posts: 25
KCar is on a distinguished road

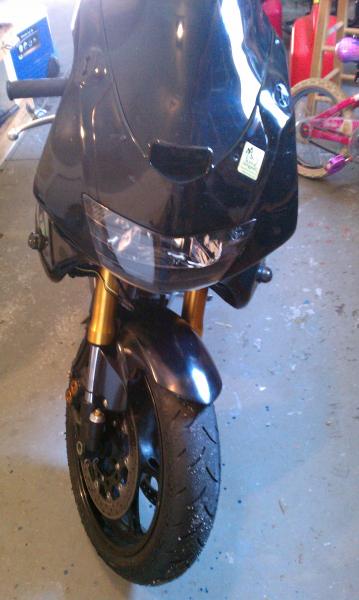

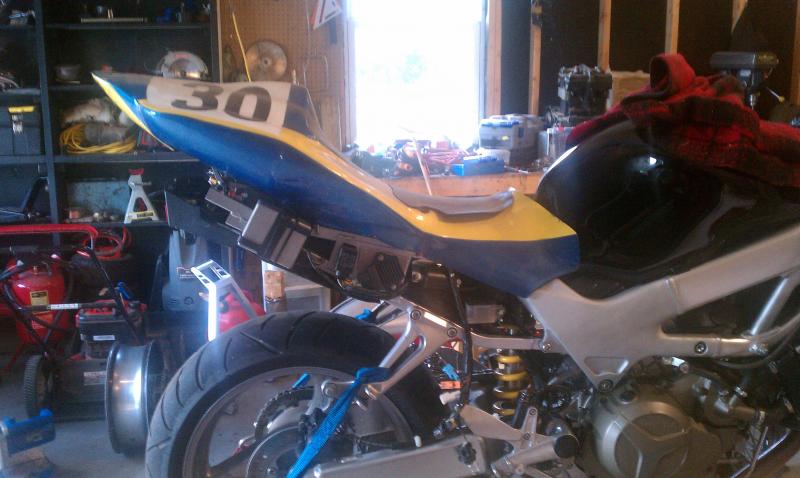

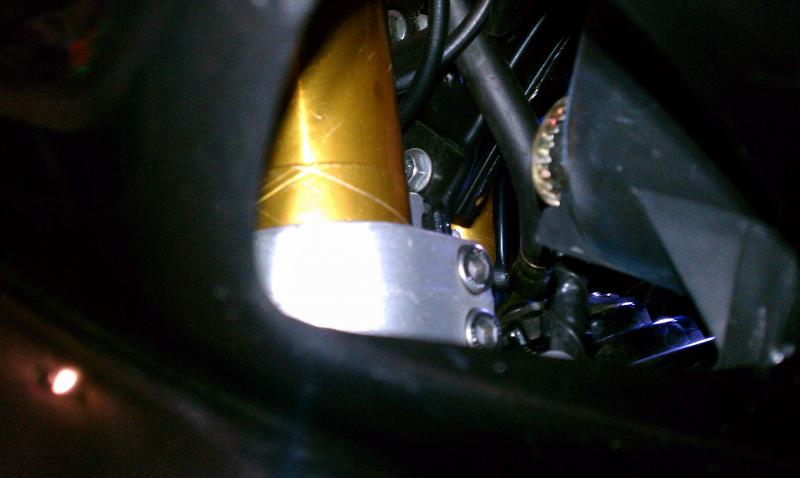

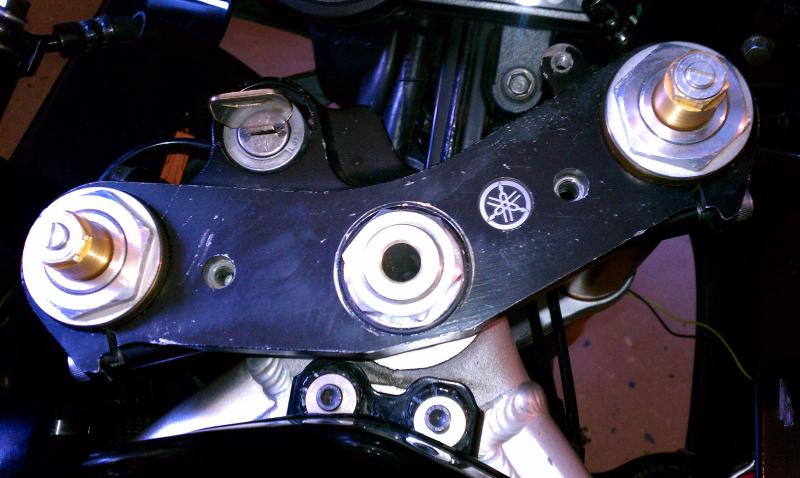

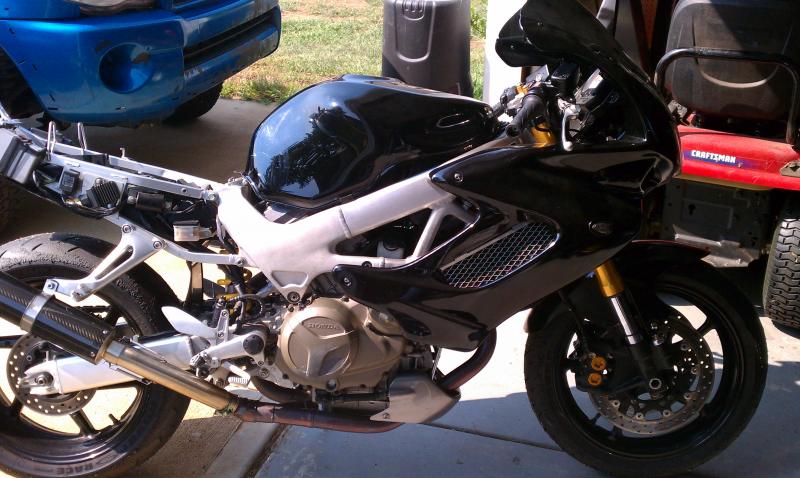

Some more pics of both front and tail.
Attached Thumbnails R6 frontend on the Superhawk-imag0046.jpg   R6 frontend on the Superhawk-imag0055.jpg   R6 frontend on the Superhawk-imag0058.jpg
KCar is offline
Old 10-02-2011, 07:28 PM
  #12
Senior Member
SuperSport

jay956's Avatar

Join Date: Aug 2009
Location: Richmond, VA
Posts: 684
jay956 is on a distinguished road
might have to look into doing this.

do you know the geometry changes (length, rake)? also i see you used a set from a 06, does anyone know what years the r6 stayed the same?
jay956 is offline
Old 10-02-2011, 07:55 PM
  #13
Senior Member
MotoGP

nath981's Avatar

Join Date: Aug 2006
Location: altoona, pa
Posts: 2,934
nath981 is on a distinguished road
awesome job KCar. and you even track tested it for us. Can you calculate geometry, height of front end, other limitations? Looks good!
nath981 is offline
Old 10-06-2011, 07:01 PM
  #14
Junior Member
Squid
Thread Starter

Join Date: Apr 2011
Posts: 25
KCar is on a distinguished road
Calculate geometry...hmmm if someone explains how... ill do it.

Total length of stock VTR is just under 32 and r6 is 30.5. From center of axle hole to top of fork where the oil cap meets
VTR is 31. And r6 is 29.5.

Since I mounted the clip ons under the triple I subtracted the the amount of the stock fork above the triple. I believe it was around 2 inches. That placed it at the same height as stock...I then raised them about 5mm above the triple.

Stock rake and trail is 24.9 and 3.8
R6 is 24 and 3.4...
I figured it would be around there..I did no actual measuring after install.
I hope this helps...

I have not notice anything negative..the brakes are the biggest gain I noticed even with the stock master. I would like to get it to turn in faster and not feel so heavy...but that is comparing it to the r6. I am going to play with fork height and shiming the rear. Also look at a better rear shock...

Last edited by KCar; 10-06-2011 at 07:13 PM.
KCar is offline
Old 10-06-2011, 07:20 PM
  #15
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,561
mikstr is on a distinguished road
Originally Posted by KCar View Post
..the brakes are the biggest gain I noticed even with the stock master.
IIRC, the caliper pistons in the Sumitomo calipers used on the R6 are the same as the OEM Nissins used on the VTR, that is 27/30mm.....
mikstr is offline
Old 10-06-2011, 07:39 PM
  #16
Senior Member
MotoGP

nath981's Avatar

Join Date: Aug 2006
Location: altoona, pa
Posts: 2,934
nath981 is on a distinguished road
Originally Posted by KCar View Post
Calculate geometry...hmmm if someone explains how... ill do it.

Total length of stock VTR is just under 32 and r6 is 30.5. From center of axle hole to top of fork where the oil cap meets
VTR is 31. And r6 is 29.5.

Since I mounted the clip ons under the triple I subtracted the the amount of the stock fork above the triple. I believe it was around 2 inches. That placed it at the same height as stock...I then raised them about 5mm above the triple.

Stock rake and trail is 24.9 and 3.8
R6 is 24 and 3.4...
I figured it would be around there..I did no actual measuring after install.
I hope this helps...

I have not notice anything negative..the brakes are the biggest gain I noticed even with the stock master. I would like to get it to turn in faster and not feel so heavy...but that is comparing it to the r6. I am going to play with fork height and shiming the rear. Also look at a better rear shock...
thanks. i tried calculating geometry rake and trail and it ended up being what i call a cluster ****. But it would be good to have some way of accurate measurement.
nath981 is offline
Old 10-06-2011, 08:08 PM
  #17
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,867
7moore7 is on a distinguished road
Originally Posted by KCar View Post
I am going to play with ... shiming the rear. Also look at a better rear shock...
Highly recommended... shimming the rear was a very cheap and easy way to improve turn in for me... and it also just looks ready to pounce! Rawr!
7moore7 is offline
Old 10-06-2011, 08:42 PM
  #18
Senior Member
SuperSport

jay956's Avatar

Join Date: Aug 2009
Location: Richmond, VA
Posts: 684
jay956 is on a distinguished road
sounds like the length is pretty much spot on then, considering most of us run with the forks pulled up slightly anyway.
jay956 is offline
Old 10-10-2011, 01:12 PM
  #19
Junior Member
Squid
Thread Starter

Join Date: Apr 2011
Posts: 25
KCar is on a distinguished road
Originally Posted by mikstr View Post
IIRC, the caliper pistons in the Sumitomo calipers used on the R6 are the same as the OEM Nissins used on the VTR, that is 27/30mm.....
I guessing the biggest difference in braking power is because the 06 to present r6 calipers are mounted radial and the rotors are 310mm. Of course it could all be in my head.
KCar is offline
Old 10-20-2011, 05:54 PM
  #20
Member
Squid

Join Date: Apr 2011
Location: YUMA AZ
Posts: 44
FLETCH is on a distinguished road
What steering head bearings did you use? All *****? Part number?
FLETCH is offline
Old 10-20-2011, 06:22 PM
  #21
Senior Member
SuperSport

jay956's Avatar

Join Date: Aug 2009
Location: Richmond, VA
Posts: 684
jay956 is on a distinguished road
if anyone else was wondering, 06+ r6 forks are all the same.

Last edited by jay956; 10-20-2011 at 08:41 PM.
jay956 is offline
Old 10-20-2011, 06:28 PM
  #22
Junior Member
Squid
Thread Starter

Join Date: Apr 2011
Posts: 25
KCar is on a distinguished road
Originally Posted by FLETCH View Post
What steering head bearings did you use? All *****? Part number?
Yes they are allballz...I can not remember the part number. I believe they for the 06 to present r6...(not the R6 "S" model) I contacted allballz and asked them for the conversion. I would suggest contacting them to do your conversion. If I remember correctly the lower bearing was the only one different between the VTR and r6 and only by height. I'll check to see if I can come up with the part number and exact measurements.

Update: They are different and will not work you must get a conversion

Last edited by KCar; 10-21-2011 at 05:13 PM.
KCar is offline
Old 10-20-2011, 07:19 PM
  #23
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,931
smokinjoe73 is on a distinguished road
I noticed the brakes the most on my 1000rr fork swap too. But I used the cbr's radial master. Insane brakes.
smokinjoe73 is offline
Old 10-21-2011, 10:43 AM
  #24
Member
Squid

Join Date: Apr 2011
Location: YUMA AZ
Posts: 44
FLETCH is on a distinguished road
Ok I called all ***** and they said the 30x47x15 top bearing that I should require for the swap is discontinued-part #99-3540. The bottom bearing that is required is 31x55x17 part number 99-3538 is available and I ordered it. I'm hoping that your comment about the top bearing being able to be reused is correct-which bearing though the one from the vtr or the r6? Thx
FLETCH is offline
Old 10-21-2011, 01:05 PM
  #25
Junior Member
Squid
Thread Starter

Join Date: Apr 2011
Posts: 25
KCar is on a distinguished road
Originally Posted by FLETCH View Post
Ok I called all ***** and they said the 30x47x15 top bearing that I should require for the swap is discontinued-part #99-3540. The bottom bearing that is required is 31x55x17 part number 99-3538 is available and I ordered it. I'm hoping that your comment about the top bearing being able to be reused is correct-which bearing though the one from the vtr or the r6? Thx

Well I am very sorry...I was wrong the top and bottom bearings are different. The 99-3540 part number is the one you need for the top.

I think I might still have the stock R6 bearings...but no outer race (the one you press into the steering neck) If you can come up with a outer race I'll pass them onto. Perhaps the dealership can order them. I am sorry I lead you to believe it might work, I honestly did not remember.
KCar is offline
Old 10-21-2011, 02:45 PM
  #26
King of this hill
Back Marker

Cafe Racer's Avatar

Join Date: Apr 2011
Location: San Francisco, Ca
Posts: 149
Cafe Racer is on a distinguished road
Originally Posted by KCar View Post
Well I am very sorry...I was wrong the top and bottom bearings are different. The 99-3540 part number is the one you need for the top.

I think I might still have the stock R6 bearings...but no outer race (the one you press into the steering neck) If you can come up with a outer race I'll pass them onto. Perhaps the dealership can order them. I am sorry I lead you to believe it might work, I honestly did not remember.

So, you are running with an OEM R6 bearing and race? And an All ***** lower bearing?

Miguel
Cafe Racer is offline
Old 10-21-2011, 03:30 PM
  #27
Junior Member
Squid
Thread Starter

Join Date: Apr 2011
Posts: 25
KCar is on a distinguished road
No they are both allballz.

Now that I have thought more about it...the VTR bearings do not work at all. The steering stem is a different diameter. What was close was the stock r6 bearings I had and the VTR inner race. I still cant remember which one...my thoughts are if you get a stock r6 inner race it should work. Even the allballz r6 replacement I would think it should work. But don't take my word for it....ill do some research on the part number he posted. If a new part number replaced the old I dont see why it would not work. Maybe they have not updated there list for conversions yet.

Someone help me with my logic.. ill pull the numbers tonight or tomorrow.
KCar is offline
Old 10-21-2011, 03:56 PM
  #28
Member
Squid

Join Date: Apr 2011
Location: YUMA AZ
Posts: 44
FLETCH is on a distinguished road
The top bearing is the 30x47x15 size. Couldnt really find anything with the all ***** part number. I started searching and found lots of people are looking for that size bearing for conversions-belive I found another source twf racing which modifies sv650's. Emailed earlier to order the bearing listed at $45. A couple other options came up when i was searching. Get the 30X48X15 bearing and have it machined 1mm to get the 47mm OD. Another was to use a 30x47x12 part # hr32906j and use washers or some spacers to take up the extra 3mm of width. Saw one comment on using 30x47x9 sealed wheel bearing but didnt feel comfortable with the amount of side load involved with steering head bearings and keeping them tight.
FLETCH is offline
Old 10-21-2011, 04:08 PM
  #29
Member
Squid

Join Date: Apr 2011
Location: YUMA AZ
Posts: 44
FLETCH is on a distinguished road
TWF Racings bearing is 13mm not 15mm wide so i would have to shim it i belive-think ill order it and once its here go from there.
FLETCH is offline
Old 10-21-2011, 05:11 PM
  #30
Junior Member
Squid
Thread Starter

Join Date: Apr 2011
Posts: 25
KCar is on a distinguished road
That might be your best bet. I could not find any info as a replacement. It does seem allot of people are looking for a replacement or something else. I found some dirt bikes are using that bearing size for their fork conversion. Did allballz give you a idea that they would get a replacement?
KCar is offline
