Latest OCMD project: modded airbox lid
über-n00b
Superstock
Joined: Dec 2011
Posts: 257
From: S. WI
and, I might be willing to pay for a dyno-run...if you can come to Madison for it?
Motorcycle Performance are the guys I would have do my carb tuning - if we find tasty results from the FIL mod.
They have tuned a number of bikes that have won regional and national championships - and they have built & tuned a number of salt-flat entries.
The shop was featured in the Slimey Crud Run documentary as well (American Cafe)
Motorcycle Performance are the guys I would have do my carb tuning - if we find tasty results from the FIL mod.
They have tuned a number of bikes that have won regional and national championships - and they have built & tuned a number of salt-flat entries.
The shop was featured in the Slimey Crud Run documentary as well (American Cafe)
Last edited by Spoot; Sep 15, 2014 at 09:44 AM.
Rex Kramer-Thrill Seeker
SuperBike
Joined: Jan 2011
Posts: 2,312
From: Brookfield, WI
I have a standing offer for free dyno runs from a shop in Milwaukee. I need to install the new clutch and then go get some numbers.
Madison isn't far for me at all. Just ~45-50 minute ride (got there from Brookfield in 20 minutes flat once when I was a stupid kid).
I need to meet up with another forum member in Madison and pick up some high comp pistons for my VTR. So, if I can schedule this right, I can get the parts AND meet up with you.
So, you can wait for my dyno run sheet, or I can meet up with ya.
Madison isn't far for me at all. Just ~45-50 minute ride (got there from Brookfield in 20 minutes flat once when I was a stupid kid).
I need to meet up with another forum member in Madison and pick up some high comp pistons for my VTR. So, if I can schedule this right, I can get the parts AND meet up with you.
So, you can wait for my dyno run sheet, or I can meet up with ya.
über-n00b
Superstock
Joined: Dec 2011
Posts: 257
From: S. WI
It would be most prudent to run mine on the same dyno as yous...no?
I have a standing offer for free dyno runs from a shop in Milwaukee. I need to install the new clutch and then go get some numbers.
Madison isn't far for me at all. Just ~45-50 minute ride (got there from Brookfield in 20 minutes flat once when I was a stupid kid).
I need to meet up with another forum member in Madison and pick up some high comp pistons for my VTR. So, if I can schedule this right, I can get the parts AND meet up with you.
So, you can wait for my dyno run sheet, or I can meet up with ya.
Madison isn't far for me at all. Just ~45-50 minute ride (got there from Brookfield in 20 minutes flat once when I was a stupid kid).
I need to meet up with another forum member in Madison and pick up some high comp pistons for my VTR. So, if I can schedule this right, I can get the parts AND meet up with you.
So, you can wait for my dyno run sheet, or I can meet up with ya.
Senior Member
SuperSport
Joined: Apr 2014
Posts: 932
From: Auckland, new Zealand
For mine I will be keeping as stock as I can. So only change jets in the carbs. I already have 1 hole in each slide blocked.
The K&N filter I will be using is the stock one for the Superhawk. I got one with the bike. Tried it and it ran badly.
My motor is stock. Only have CBR coils and alloy velocity stacks. I may get the flywheel done before the FIL is finished as I have a track day approaching.
And to start with I intend not to drop the height of the lid. More on that once I get further down the track.
This will be a doing it at lunch time mod at work.
The K&N filter I will be using is the stock one for the Superhawk. I got one with the bike. Tried it and it ran badly.
My motor is stock. Only have CBR coils and alloy velocity stacks. I may get the flywheel done before the FIL is finished as I have a track day approaching.
And to start with I intend not to drop the height of the lid. More on that once I get further down the track.
This will be a doing it at lunch time mod at work.
Senior Member
SuperSport
Joined: Apr 2014
Posts: 932
From: Auckland, new Zealand

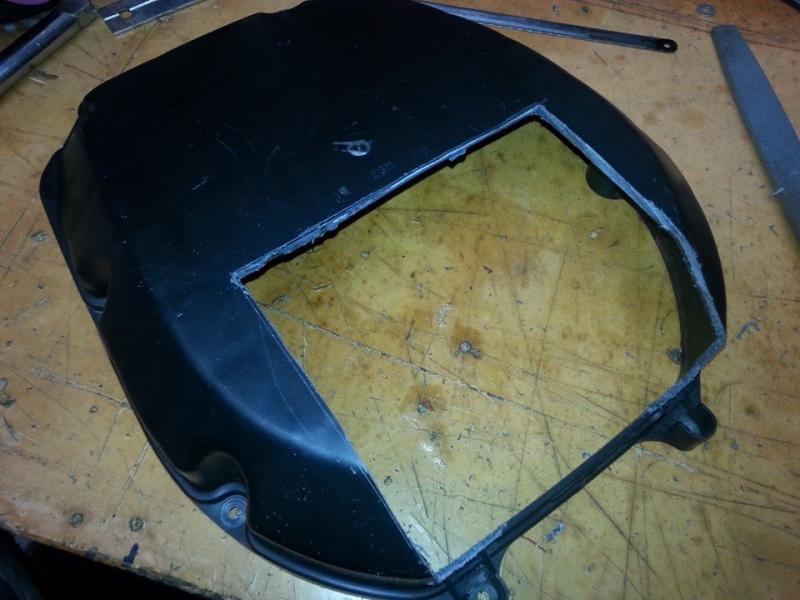

So started at lunch time. So far it looks very easy how im doing it. To the point I had to stand back and make sure I wasn't missing something. I will have the lid ready to assemble tomorrow. Photos being taken so will post later.
Rex Kramer-Thrill Seeker
SuperBike
Joined: Jan 2011
Posts: 2,312
From: Brookfield, WI
I agree. However, the guy who invitied me to use the dyno in Milwaukee, I don't want to get in trouble by inviting another person and bike. I hope you understand.
I am willing to ride up to Madison though, so if you set something up with that shop, and let me know far enough in advance (my work schedule is constantly changing), I can make it.
At least we have figures for stock Superhawks. Good to know!
As soon as my carb adjustments are finalized (still tweaking the lower RPM's a little bit), I can run a couple tanks of fuel through 'er and recalibrate my Veypor gauge to see the exact MPG.
The bike IS getting better MPG than before. Looked like I had almost an entire gallon left in the tank when my Veypor's fuel gauge read empty. My Veypor gauge is still calibrated to the old carb settings and stock airbox. So, there's that.
I am willing to ride up to Madison though, so if you set something up with that shop, and let me know far enough in advance (my work schedule is constantly changing), I can make it.
At least we have figures for stock Superhawks. Good to know!
Originally Posted by 7moore7
You guys do this so I can shamelessly copy it once you're done. Also, can you do an MPG report? Methinks it may play part of the decision making...
The bike IS getting better MPG than before. Looked like I had almost an entire gallon left in the tank when my Veypor's fuel gauge read empty. My Veypor gauge is still calibrated to the old carb settings and stock airbox. So, there's that.
Last edited by CruxGNZ; Sep 16, 2014 at 10:05 AM. Reason: Addin' shtuff
Rex Kramer-Thrill Seeker
SuperBike
Joined: Jan 2011
Posts: 2,312
From: Brookfield, WI
I have no idea what my bike will dyno at. It is faster, but not sure by how much, so I won't make a guess.
Rex Kramer-Thrill Seeker
SuperBike
Joined: Jan 2011
Posts: 2,312
From: Brookfield, WI
Nice! Now, are you going to conform the filter to the lid profile? Mikstr and I both sunk ours down a bit into the lid, so it wasn't tight up against the bottom of the tank and could get some decent airflow. We both still raised our tanks a bit. Food for thought.
Senior Member
SuperSport
Joined: Apr 2014
Posts: 932
From: Auckland, new Zealand
I currently have 2 plans. First is just fit the element in the hole as it will just clip in. Then raise the tank 10mm. Frontal area is huge in comparison to stock. This I may well try first as it is easy. the K&N once it is off its solid board is flexible so will easily conform to that shape.
Other way is to mount it on the inside of the lid. I would probably make clips and rivet it down. Then use RTV to seal it.
My preference is the first way as it will be the easiest to replicate for others to do. The filter area is more than enough to flow good hp even with the top part restricted by the tank.
I will also be using an O ring to seal the airbox not a cut up filter housing as that will gain me a couple of mm.
Rex Kramer-Thrill Seeker
SuperBike
Joined: Jan 2011
Posts: 2,312
From: Brookfield, WI
How's the project coming along?
Senior Member
SuperSport
Joined: Apr 2014
Posts: 932
From: Auckland, new Zealand
Mine bends fine but only on one plane. But it does in such a way that it will fit.
Not had a chance to do much since the photo but as I have a track day in 3 weeks I need to get it finished and on this weekend so next week I can start tuning. This will be in between kids sports and prizegivings etc.
Really like the remote reservoir idea as that means I think I could re-jet without pulling the carbs. But time is my issue for that mod.
Also need to find my jet drills.
Senior Member
SuperSport
Joined: Apr 2014
Posts: 932
From: Auckland, new Zealand

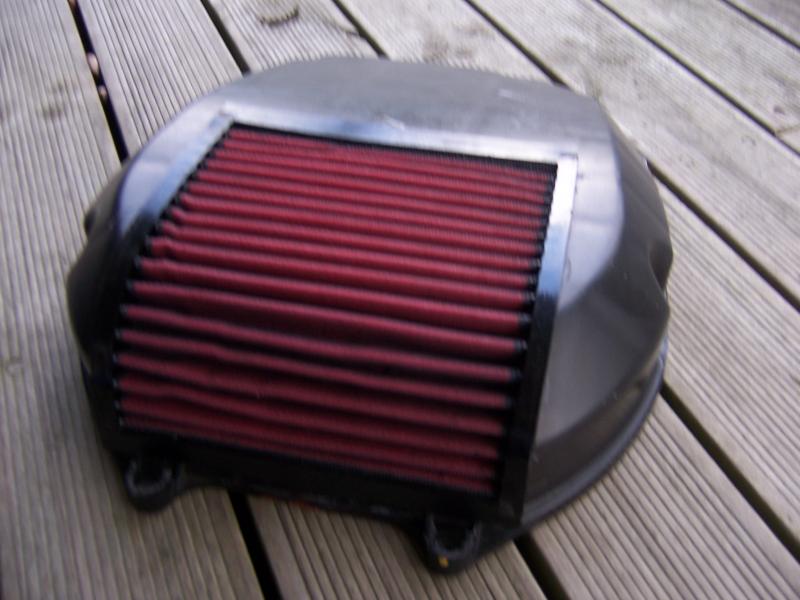

Getting there. I cut the hole a little big but it hold there fine. Will run a little RTV round the edge on the inside and use some to hold in the O Ring.
And the geek in me has to weigh it all as well.....
Should be on the bike later today.
And the geek in me has to weigh it all as well.....
Should be on the bike later today.
Rex Kramer-Thrill Seeker
SuperBike
Joined: Jan 2011
Posts: 2,312
From: Brookfield, WI
That's awesome! I wanted to do that with mine, but the pleats on my K&N filter ran 90 degrees to yours and couldn't bend that way. You got the most post filter volume by doing it that way. Looks great man.
What are your plans for carb settings first time out with the new lid?
What are your plans for carb settings first time out with the new lid?
Senior Member
SuperSport
Joined: Apr 2014
Posts: 932
From: Auckland, new Zealand
That's awesome! I wanted to do that with mine, but the pleats on my K&N filter ran 90 degrees to yours and couldn't bend that way. You got the most post filter volume by doing it that way. Looks great man.
What are your plans for carb settings first time out with the new lid?
What are your plans for carb settings first time out with the new lid?
Im going to ride it as it is. Going out in a couple of hours. Im sure it will be wrong but will give me a starting point. Only ran it for a few mins but its doesnt like idling. Sounds blubbery so I suspect its rich.
Senior Member
SuperSport
Joined: Apr 2014
Posts: 932
From: Auckland, new Zealand
Oh another idea i had, just in case it really doesnt run well I can re-fit the K&N filter holder . Not sure if this would help but just something that jumped to mind.
Weight savings is 400grams. I can eat another Big Mac.
Weight savings is 400grams. I can eat another Big Mac.
Senior Member
SuperSport
Joined: Apr 2013
Posts: 972
nice work man, that sucker will breathe
Rex Kramer-Thrill Seeker
SuperBike
Joined: Jan 2011
Posts: 2,312
From: Brookfield, WI

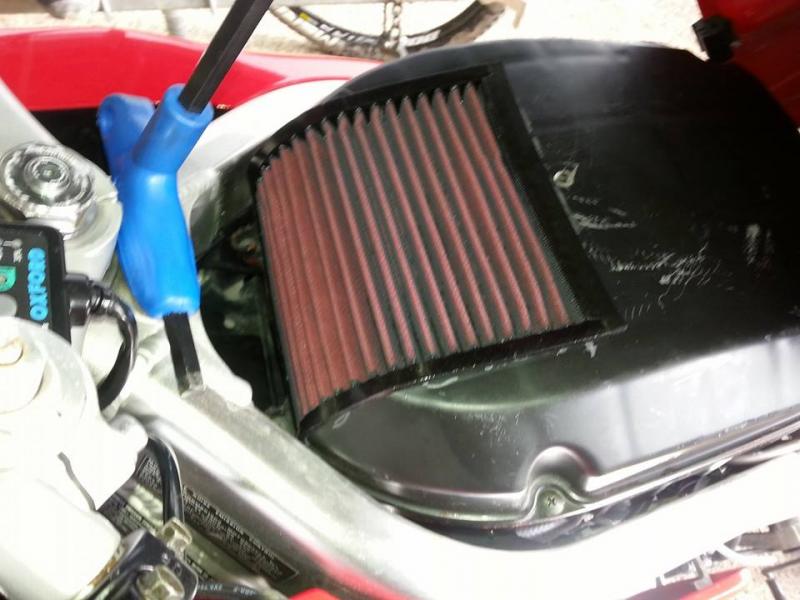

Looks fantastic all together. I can't wait for you to get the carbs dialed in. You won't believe the difference!
For jetting, maybe look back at mine to get ya in the ballpark, since your K&N looks to be almost the same size.
For jetting, maybe look back at mine to get ya in the ballpark, since your K&N looks to be almost the same size.
Last edited by CruxGNZ; Sep 20, 2014 at 09:01 AM.
Senior Member
SuperSport
Joined: Apr 2014
Posts: 932
From: Auckland, new Zealand
Hit a small snag. My spare jets are Mikuni. Wont fit the Kehin emulsion tube. Have shimed the needles so that will have to be it for the week.
At least that will help tell me if it wants more fuel. Just have to make up my mind on sizes. Will probably copy Crux main size. I have smaller idles which I can drill.
At least that will help tell me if it wants more fuel. Just have to make up my mind on sizes. Will probably copy Crux main size. I have smaller idles which I can drill.
