Front or Rear suspension upgrade?

Old 05-30-2010, 08:39 PM
  #1
Senior Member
Back Marker
Thread Starter

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
Front or Rear suspension upgrade?

Hi,
I have a few questions for you guys.
I am going to do a suspension upgrade, but only have money to do 1 of them at the moment. So which one will I get the best initial results from...front or rear?
As far as the front goes I will be going with Racetech, since I weigh 155lbs. with no gear, and the calculator on racetech says .835 for the spring rate. So I will go with .85. Sonic springs go as low as .90, so that makes that decision an easy one.
As far as the gold valves, are they necessary for me? I really only ride for leisure. I don't do any twisties or any track days, so basically I leave my preload adjustment in 1 position.
Also, what weight fork oil should I go with?
As for the rear spring, the calculator on Racetech says the factory spring rate is actually right on for my weight. I know an aftermarket shock and spring will give the bike a much nicer ride, but is it worth it considering the spring rate is actually perfect with the stock equipment?
Also, when I do upgrade the rear spring, will the F4 conversion with ONLY the spring be adequate, or is the gold valve something I want to do?
Thanks for your input.
Mike

Last edited by superh1998; 05-30-2010 at 08:46 PM. Reason: forgot 1 question
superh1998 is offline
Old 05-30-2010, 08:55 PM
  #2
Senior Member
Superstock

Join Date: Apr 2007
Posts: 321
davidka is on a distinguished road
Leave it stock. If you don't ride twisty roads there's really no reason for performance mods to the suspension.
davidka is offline
Old 05-30-2010, 09:30 PM
  #3
Senior Member
Back Marker
Thread Starter

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
Stock in the rear, or both?
Considering the front spring rate is so off, I think I should at least do the front.
superh1998 is offline
Old 05-30-2010, 09:33 PM
  #4
Senior Member
Superstock

spladle160's Avatar

Join Date: Aug 2009
Location: Warrenton Virginia
Posts: 380
spladle160 is on a distinguished road
Nah leave it stock, bottoming out the forks going into parking lots is fun. Do the front first, it gives more improvement in ride and handling.
spladle160 is offline
Old 05-30-2010, 09:35 PM
  #5
Senior Member
Back Marker
Thread Starter

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
Haha...yeah, that definitely gets old real quick.
superh1998 is offline
Old 05-30-2010, 09:45 PM
  #6
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
It is always best to do the front first. With the way you have described your riding style you can try the stock valving to see how it works for you. I would still run 5wt with those springs as the stock set up is over damped to begin with.

As for the gold valves, IMHO I really don't think you would notice the difference. Just get the sag set properly and then go from there.
8541Hawk is offline
Old 05-31-2010, 02:45 AM
  #7
Senior Member
SuperSport

residentg's Avatar

Join Date: Feb 2010
Location: NY State
Posts: 667
residentg is on a distinguished road
+1
residentg is offline
Old 05-31-2010, 05:48 AM
  #8
Senior Member
SuperBike

cliby's Avatar

Join Date: Jul 2005
Location: MN
Posts: 1,547
cliby is on a distinguished road
i think its a toss up regarding which one you will feel the most given your riding style. the rear is just not very compliant so over sharp bumps, like you might notice even on the freeway or expansion joints, it just kicks you in the butt. that get transfered to the front also (like a rocking horse) - so they are both related. But the front is a much cheaper starting point. Personally I think the rear shock is what smoothed out the ride most - the front changes made it a better sport bike. for me at least.
cliby is offline
Old 05-31-2010, 07:27 AM
  #9
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,240
E.Marquez is on a distinguished road
I'd have to agree with Cliby on all points.

The two are related, and until you do both you'll not realize the full benefit of the work at ether end.

The shock will significantly help with comfort.. The front will help with performance more (though for me I'm more comfortable when the suspension is doing things predictable and not diving, bottoming out,,ect,,so it was one and the same)

Get a used F41 shock, send it off to Jamie.at Daugherty Motorsports ...for a rework... add some new springs and oil to the front.. you can hold off a bit that way and build up funds to do the font wright. Only thing you'll be out is the new oil.. springs will get re used.
E.Marquez is offline
Old 05-31-2010, 07:29 AM
  #10
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,240
E.Marquez is on a distinguished road
Originally Posted by davidka View Post
Leave it stock. If you don't ride twisty roads there's really no reason for performance mods to the suspension.
Well thats a thought..

Do you use your brakes at all? When you do, have you noticed the front dive considerable?.. That reason alone is enough to rework the suspension.
E.Marquez is offline
Old 05-31-2010, 08:53 AM
  #11
Sprung
World Champion

Hawkrider's Avatar

Join Date: Dec 2004
Location: Fulton, MO
Posts: 105,285
Hawkrider will become famous soon enoughHawkrider will become famous soon enough
Get the .85 springs. Change the oil and replace with same or slightly lighter oil viscosity than stock. Stock oil is Showa SS-8 at 36.47cSt. I wouldn't use anything lighter than about 30cSt. Maybe Redline medium (red). This will still allow you some rebound damping control.

See Jamie for a shock.

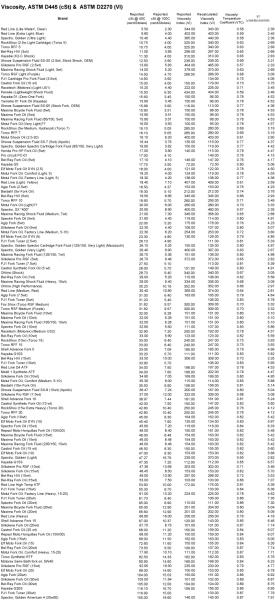

Attached Thumbnails Front or Rear suspension upgrade?-oil-data.jpg
Hawkrider is offline
Old 05-31-2010, 09:04 AM
  #12
Senior Member
Back Marker
Thread Starter

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
Cool, so it sounds like the front will be first.
I will change the springs to .85 and the oil as well. I will hold off on the gold valves, and hopefully notice a dramatic enough difference to maybe not even do them.
I already have an F4i shock, so when I get the funds, I will be sending that off to Jamie. So so you think I need to do the gold valve on the rear, or should I be OK given my riding style?
As far as the the front dive when I brake, I don't really notice it that much since I don't ride aggressively, but I have definitely noticed it when I have had to brake suddenly to avoid being killed by other drivers.
superh1998 is offline
Old 05-31-2010, 10:42 AM
  #13
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by superh1998 View Post
Cool, so it sounds like the front will be first.
I will change the springs to .85 and the oil as well. I will hold off on the gold valves, and hopefully notice a dramatic enough difference to maybe not even do them.
I already have an F4i shock, so when I get the funds, I will be sending that off to Jamie. So so you think I need to do the gold valve on the rear, or should I be OK given my riding style?
As far as the the front dive when I brake, I don't really notice it that much since I don't ride aggressively, but I have definitely noticed it when I have had to brake suddenly to avoid being killed by other drivers.
I my case it wasn't so much the fork dive, the real problem came when there were bumps in the road while trying to brake. The stock set up is so under sprung and over damped that the front end would lock up in those situations....

As for the rear, once again with your riding style, I don't think you would need a gold valve kit. It is nice but not really necessary.
8541Hawk is offline
Old 05-31-2010, 12:37 PM
  #14
Sprung
World Champion

Hawkrider's Avatar

Join Date: Dec 2004
Location: Fulton, MO
Posts: 105,285
Hawkrider will become famous soon enoughHawkrider will become famous soon enough
Originally Posted by 8541Hawk View Post
....The stock set up is so under sprung and over damped that the front end would lock up in those situations....
You mean UNDERdamped? The problem is that the stock shimstack is so weak that the forks are limited in how much fluid they flow by the size of the orifices in the valves. Using a lower viscosity oil or different valving would the be ideal solution.

[Edit] The other problem is that once you blow through the entire stroke of the fork then what's left is the oil locks. These drastically raise compression damping at the end of the stroke to prevent hard bottoming. It would feel like the forks were locked solid.
Hawkrider is offline
Old 05-31-2010, 12:42 PM
  #15
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Originally Posted by Hawkrider View Post
You mean UNDERdamped? The problem is that the stock shimstack is so weak that the forks are limited in how much fluid they flow by the size of the orifices in the valves. Using a lower viscosity oil or different valving would the be ideal solution.

[Edit] The other problem is that once you blow through the entire stroke of the fork then what's left is the oil locks. These drastically raise compression damping at the end of the stroke to prevent hard bottoming. It would feel like the forks were locked solid.
Sorry...... typing fast and hadn't finished that first cup o' coffee yet.....
8541Hawk is offline
Old 05-31-2010, 12:43 PM
  #16
Senior Member
Back Marker
Thread Starter

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
Greg,
I am going with your suggestions.
I am going to use the .85 springs(already ordered), and the Redline medium (red) fluid(also ordered).
Do I need to change spacers, or anything else, or simply the springs and fluid?
superh1998 is offline
Old 06-02-2010, 10:42 AM
  #17
Senior Member
Superstock

salmanilla2000's Avatar

Join Date: Jul 2008
Posts: 344
salmanilla2000 is on a distinguished road
Originally Posted by E.Marquez View Post
Get a used F41 shock, send it off to Jamie.at Daugherty Motorsports ...for a rework... add some new springs and oil to the front..
Does the year matter?
salmanilla2000 is offline
Old 06-06-2010, 03:38 PM
  #18
Senior Member
Back Marker
Thread Starter

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
From reading numerous other posts about the fork oil level, I see there is really no specific air gap that everyone uses.
I was wondering if anyone has gone with the same or similar setup and has any suggestions for the air gap in my case.
Also, as far as cutting spacers...do I just measure the stock spring and spacer, the new spring and spacer, and cut off the difference?
Thanks,
Mike
superh1998 is offline
Old 06-06-2010, 05:36 PM
  #19
Sprung
World Champion

Hawkrider's Avatar

Join Date: Dec 2004
Location: Fulton, MO
Posts: 105,285
Hawkrider will become famous soon enoughHawkrider will become famous soon enough
No, it's not quite that simple. Hehe, I wish it was! You are shooting for 15mm preload on the spring. If you get your springs from Sonic then your approximate spacer length will be 66mm. It might take a few cuts - trial and error before you get it. They give plenty of spacer material. Sonic sends PVC. RT sends aluminum. Ensure you get all burrs and stuff off the cuts. Don't want that **** getting stuck in your valving.
Hawkrider is offline
Old 06-06-2010, 05:42 PM
  #20
Senior Member
Back Marker
Thread Starter

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
Yeah, I definitely dont want to get metal burrs in the forks...that wouldn't help anything.
I got the RT sonce sonic didn't list .85...If my memory serves me correctly (and usually it doesn't) Sonic started at either .90 or .95.
So any approximate length for the RT spacers? or suggestions on where to start for the air gap?
Thanks Greg!
superh1998 is offline
Old 06-06-2010, 05:45 PM
  #21
Sprung
World Champion

Hawkrider's Avatar

Join Date: Dec 2004
Location: Fulton, MO
Posts: 105,285
Hawkrider will become famous soon enoughHawkrider will become famous soon enough
Go 155mm on air gap, fork bottomed, spring out, cartridge bled. No data on the RT stuff. It's been too long since I used them. Sorry.
Hawkrider is offline
Old 06-06-2010, 05:48 PM
  #22
Senior Member
Back Marker
Thread Starter

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
No Problem...thanks again for all the info!
superh1998 is offline
Old 06-06-2010, 07:19 PM
  #23
Senior Member
SuperSport

residentg's Avatar

Join Date: Feb 2010
Location: NY State
Posts: 667
residentg is on a distinguished road
Originally Posted by superh1998 View Post
Yeah, I definitely dont want to get metal burrs in the forks...that wouldn't help anything.
I got the RT sonce sonic didn't list .85...If my memory serves me correctly (and usually it doesn't) Sonic started at either .90 or .95.
So any approximate length for the RT spacers? or suggestions on where to start for the air gap?
Thanks Greg!
I have .90 RT springs, spacer needed to be 72mm based on RT instructions, I used 7wt Belray oil, I do not remember the height. It all works great.
residentg is offline
Old 06-06-2010, 07:21 PM
  #24
Senior Member
Back Marker
Thread Starter

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
Sounds good...I will start out somewhere areound there.
Thanks for the info, JB.
Mike
superh1998 is offline
Old 06-06-2010, 07:24 PM
  #25
Senior Member
SuperSport

residentg's Avatar

Join Date: Feb 2010
Location: NY State
Posts: 667
residentg is on a distinguished road
trail and error with pvc first, then cut aluminum. i used a chop saw with die cutting disc
residentg is offline
Old 06-06-2010, 07:27 PM
  #26
Senior Member
Back Marker
Thread Starter

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
Thats exactly what I was thinking...just need to get the die cutting disc.
But just like everyone else on here...I love having an excuse to buy new tools, or accessories for them...haha
superh1998 is offline
Old 06-11-2010, 06:00 PM
  #27
Senior Member
Back Marker
Thread Starter

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
Well, I got a stipend check for my clothing allowance from work the other day. I figured since I already paid the credit card bill, I may as well spend the money for the gold valves since the shocks are already off the bike, right?...haha
There's always a way to justify it!
Anyway, now I am thinking I may be over my head with the install...taking off the top part of the shock for the springs was easy, but I seem to be lacking the confidence to go any further.
I think I may have to wind up sending the stuff to Greg or Jamie.
I guess I'll wait for the valves to arrive, take a look at the instructions, and go from there.
superh1998 is offline
Old 06-12-2010, 08:03 AM
  #28
Sprung
World Champion

Hawkrider's Avatar

Join Date: Dec 2004
Location: Fulton, MO
Posts: 105,285
Hawkrider will become famous soon enoughHawkrider will become famous soon enough
Send 'em to JD if you've got GVs. He's the resident expert on them. I like using the stock stuff for revalves. 6 of one, half dozen of the other....
Hawkrider is offline
Old 06-16-2010, 07:45 PM
  #29
Senior Member
Back Marker
Thread Starter

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
Quick question...Since I am going with the gold valves, should I now use a lighter weight oil (5wt), or can I stay with the Redline medium (10wt)?
superh1998 is offline
Old 06-16-2010, 08:04 PM
  #30
Sprung
World Champion

Hawkrider's Avatar

Join Date: Dec 2004
Location: Fulton, MO
Posts: 105,285
Hawkrider will become famous soon enoughHawkrider will become famous soon enough
No, if you use Gold Valves, their shimstack and valve are designed for the Racetech US2 10wt oil. Depending on the spring rate you go with, and since you already have everything apart, use some of the extra shims they give you and build a stiffer rebound stack.
Hawkrider is offline

Thread Tools
Search this Thread
Quick Reply: Front or Rear suspension upgrade?


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

All times are GMT -7. The time now is 06:16 PM.


© 2019 MH Sub I, LLC dba Internet Brands
