Anyone have access to shims???

Old 04-17-2015, 06:36 PM
  #1
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Anyone have access to shims???

I asked McMaster Carr if they would sample a shim to me, but they declined.

I'm looking for a shim that is .016 thick, with an ID of about .625 (5/8"), and an OD of no more than .875 (7/8") - (actually an OD of .75 (3/4") is preferred).

I'm hoping to shim up the shifter a bit so it doesn't wiggle... And I figured a 15 cent shim mod is something I can pull off pretty easy

James
thedeatons is offline
Old 04-17-2015, 06:56 PM
  #2
Senior Member
SuperSport

thetophatflash's Avatar

Join Date: Jan 2005
Location: Nooksack WA
Posts: 829
thetophatflash
Have you thought about using nylon washers?
thetophatflash is offline
Old 04-17-2015, 07:13 PM
  #3
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Yes... I was hoping to find brass or PTFE, but the only thing McMaster had in the correct dimensions was a stainless shim. I'm not being too picky about it because it's just taking up a little space...

I would prefer not cutting something out and having to make it round... Was just hoping to found a simple round washer/shim...

James
thedeatons is offline
Old 04-18-2015, 02:16 AM
  #4
Senior Member
SuperSport

NZSpokes's Avatar

Join Date: Apr 2014
Location: Auckland, new Zealand
Posts: 932
NZSpokes is on a distinguished road
Why not just fit a new bush? I got a new DU one for a few bucks.
NZSpokes is offline
Old 04-18-2015, 12:42 PM
  #5
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
I did a bronze bushing last year, i'd like the shim for this area... See pic.

James

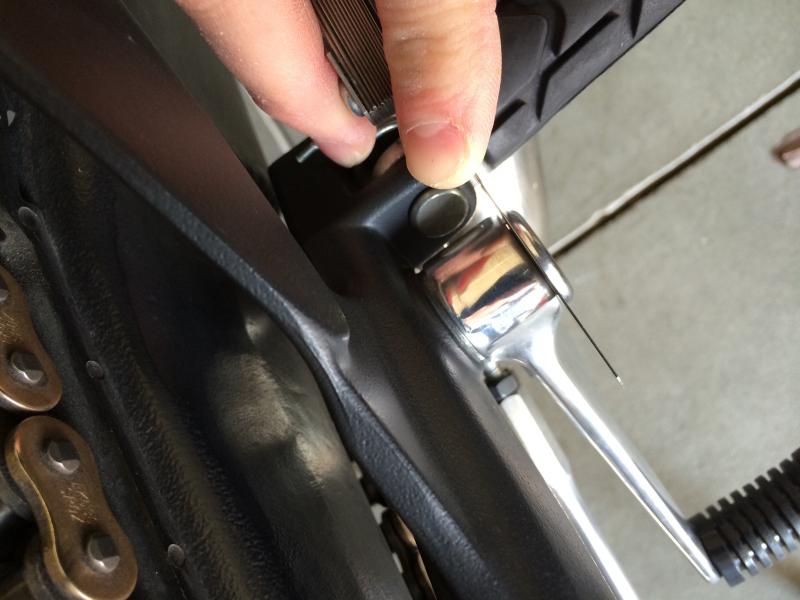

Attached Thumbnails Anyone have access to shims???-image.jpg
thedeatons is offline
Old 04-18-2015, 12:43 PM
  #6
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Pic 2

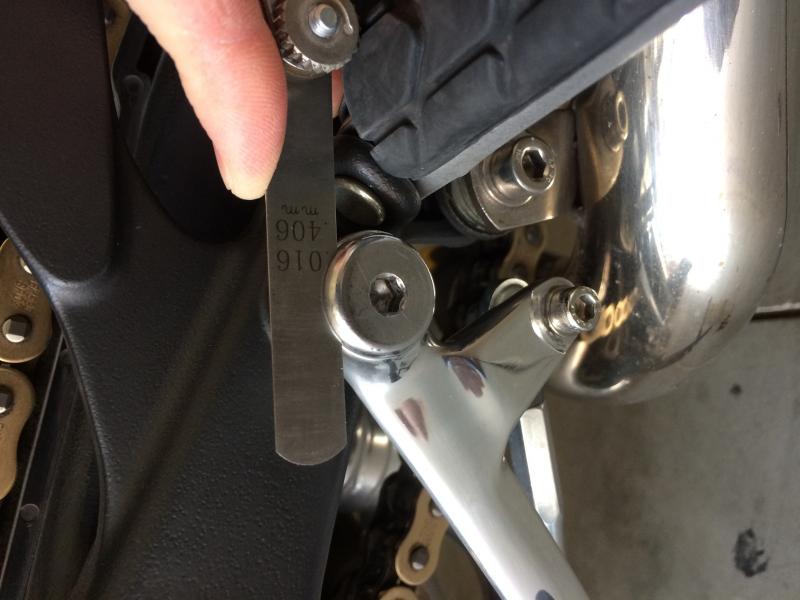

Attached Thumbnails Anyone have access to shims???-image.jpg
thedeatons is offline
Old 04-18-2015, 01:11 PM
  #7
Retired- but not tired!
SuperBike

CrankenFine's Avatar

Join Date: Aug 2010
Location: Pittsburgh
Posts: 1,428
CrankenFine is on a distinguished road
K&S Precision Metals, sells bulk brass shimstock available at any good hobby shop. Punch out your own with copper tubing and old drill bits??
CrankenFine is offline
Old 04-20-2015, 11:36 AM
  #8
Not Realy A Squid
Squid

Join Date: Sep 2006
Location: Portland Oregon area
Posts: 93
waltr is on a distinguished road
I do not have any brass available but I can make you some stainless ones. Let me know if you want me to make you some. If you still have my email from the signals send me an email and I will do them in the morning and drop them in an envelope. I usualy only get on the forum once a day so I will see an email first.

Walt
waltr is offline
Old 04-20-2015, 01:24 PM
  #9
Senior Member
SuperBike

skokievtr's Avatar

Join Date: Jan 2007
Posts: 1,928
skokievtr is on a distinguished road
James, read "Zen and the Art of Motorcycle maintenance"; i.e., aluminum soda or beer can/bottle. Cut out approximate size, punch center hole, punch OD, trim with scissors as need, stack to thickness required. That's what I did...
skokievtr is offline
Old 04-27-2015, 04:39 PM
  #10
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Walt made some shims for me and now the shifter has no play at all!!!

I used a .008" on one side of the shifter, and a .007 and .002 on the other side of the shifter.

Shim size was 5/8" ID to clear the brass bushing i installed, and about 3/4" OD.

Thanks Walt!!!

James
thedeatons is offline
Old 04-27-2015, 05:48 PM
  #11
Senior Member
SuperSport

thetophatflash's Avatar

Join Date: Jan 2005
Location: Nooksack WA
Posts: 829
thetophatflash
Originally Posted by skokievtr View Post
James, read "Zen and the Art of Motorcycle maintenance"; i.e., aluminum soda or beer can/bottle. Cut out approximate size, punch center hole, punch OD, trim with scissors as need, stack to thickness required. That's what I did...
++++1 "Zen" is wonderful. Thanks for bringing it up. It's time for another reading.
thetophatflash is offline
Old 04-28-2015, 05:27 PM
  #12
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Rode my bike after the new shifter shims were installed... Shifting is ridiculously precise now! It's shocking the difference... One of the better mods i've done. Thanks Walt!!

James
thedeatons is offline
Old 04-29-2015, 10:44 AM
  #13
Not Realy A Squid
Squid

Join Date: Sep 2006
Location: Portland Oregon area
Posts: 93
waltr is on a distinguished road
Glad I could help.
waltr is offline
Old 05-07-2015, 11:08 AM
  #14
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,173
E.Marquez is on a distinguished road
Originally Posted by thedeatons View Post
I asked McMaster Carr if they would sample a shim to me, but they declined.

I'm looking for a shim that is .016 thick, with an ID of about .625 (5/8"), and an OD of no more than .875 (7/8") - (actually an OD of .75 (3/4") is preferred).

I'm hoping to shim up the shifter a bit so it doesn't wiggle... And I figured a 15 cent shim mod is something I can pull off pretty easy

James
0.015" Thick, 0.625" ID, 7/8" OD
99432A372
McMaster Carr
McMaster-Carr
E.Marquez is offline
Old 05-07-2015, 12:19 PM
  #15
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Probably the same ones I found at first, but cost with shipping is quite a bit....

Plus I ended up going a different direction. I shimmed one side of the shifter with a .007 shim, and the other side of the shifter with a .008 shim.

Thanks!
James
thedeatons is offline
Old 05-07-2015, 03:30 PM
  #16
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,173
E.Marquez is on a distinguished road
Originally Posted by thedeatons View Post
Probably the same ones I found at first, but cost with shipping is quite a bit....

Plus I ended up going a different direction. I shimmed one side of the shifter with a .007 shim, and the other side of the shifter with a .008 shim.

Thanks!
James
McMaster-Carr
.005 thick, same size otherwise.

I suppose if all you needed was one shim, no spare hardware no material stock, no cleaners, tools, tooling, than yes $8.30 for a 10 pack and $6-10 for shipping is a lot.

There never been a day when I needed something from McMaster Carr I could not add 1/2 doz other things to make the order worth the shipping.

And not everyone has a buddy to cut them shims....
E.Marquez is offline
Old 07-14-2015, 02:41 PM
  #17
VTR virgin
Superstock

Cadbury64's Avatar

Join Date: Mar 2015
Location: Auckland, New Zealand
Posts: 405
Cadbury64 is on a distinguished road
Originally Posted by NZSpokes View Post
Why not just fit a new bush? I got a new DU one for a few bucks.
I think a new bushing in my sloppy gearshift would be a good investment. Can I ask what you purchased and where please?
Cadbury64 is offline
Old 07-14-2015, 02:47 PM
  #18
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
I have no idea what he is talking about. Stock shifters don't have bushings, so there is nothing to order.

I had a bushing custom made for my stock shifter, then had the shifter bored out to accept the custom bushing. Pretty simple to do, just need to order the brass stock to get it started. I think I picked up a remnant piece on Ebay.

James
thedeatons is offline
Old 07-14-2015, 03:15 PM
  #19
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,173
E.Marquez is on a distinguished road
Originally Posted by thedeatons View Post
I have no idea what he is talking about. Stock shifters don't have bushings, so there is nothing to order.

I had a bushing custom made for my stock shifter, then had the shifter bored out to accept the custom bushing. Pretty simple to do, just need to order the brass stock to get it started. I think I picked up a remnant piece on Ebay.

James
Better than brass if you're making a bushing use PTFE/Oil-Lubricated SAE 841 Bronze
McMaster-Carr

Or fit a bearing...
E.Marquez is offline
Old 07-14-2015, 03:20 PM
  #20
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Sorry, I meant to say I did a bronze bushing, then stainless shims on the inside and outside of the shifter to take up the "wobble"....

Hard to remember all the little things that have been done.

James
thedeatons is offline
Old 07-14-2015, 05:10 PM
  #21
VTR virgin
Superstock

Cadbury64's Avatar

Join Date: Mar 2015
Location: Auckland, New Zealand
Posts: 405
Cadbury64 is on a distinguished road
Pardon my ignorance but if you are going to the effort of boring out the shift lever to take a bushing, why not just install a bearing?
Cadbury64 is offline
Old 07-14-2015, 08:09 PM
  #22
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
No problem. Good question actually! I had planned to do a bearing at first, but they cost more, can be more difficult to find, and after conferring with forum members, they are really overkill.

I'm telling ya, if you rode my bike you would notice how amazing the shifting is. It is the most positive shifting bike i have ever owned, which is saying a lot because i have owned quite a few.

James
thedeatons is offline
Old 07-14-2015, 08:57 PM
  #23
VTR virgin
Superstock

Cadbury64's Avatar

Join Date: Mar 2015
Location: Auckland, New Zealand
Posts: 405
Cadbury64 is on a distinguished road
Thanks for a helpful reply James. I have a number of bearing suppliers located close to my work. What was the consensus on the bearing type? I'm pretty sure I can get needles or ***** to suit, or bushings, and I have a helpful engineer at work as well.

Terry
Cadbury64 is offline
Old 07-15-2015, 03:34 AM
  #24
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,173
E.Marquez is on a distinguished road
Originally Posted by Cadbury64 View Post
Thanks for a helpful reply James. I have a number of bearing suppliers located close to my work. What was the consensus on the bearing type? I'm pretty sure I can get needles or ***** to suit, or bushings, and I have a helpful engineer at work as well.

Terry
It will have to be a needle bearing and one that has no inner race (or cone) unless you can find a better bearing then i could by way of common availability stock.

And it will take boring shifter and reducing or enlarging the size of the bolt that acts as the inner race for the bearing depending on what bearing you use.

Or you make a new attachment bolt to fit the new bearing.

The bronze bushing is much faster to make, fit and ream to size and if made to fit the bike specifically, can have a shoulder designed in that means you do not need shims in addition to the bushing.

I did the bearing way first, but found the bearing to get contaminated way to fast, then it gets notchy. Really needs a seal on both sides to keep the gunk out.

Then I made a bushing from the bronze material I linked above. Simple build, install and use compared to the bering, no slop no extra parts to assembly when the shifter goes on.... Just the shifter and bolt.
E.Marquez is offline
Old 07-15-2015, 06:27 AM
  #25
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Yep i like that last idea...

I didn't want to deal with a custom bolt either, which was another vote for the bushing.


James
thedeatons is offline
Old 07-15-2015, 07:30 AM
  #26
Senior Member
Superstock

Hangfly's Avatar

Join Date: Mar 2015
Location: San Fran Freako
Posts: 389
Hangfly is on a distinguished road
This is good stuff guys. Thanks for sharing the information. Another mod for my list now.
Hangfly is offline
Old 07-15-2015, 05:24 PM
  #27
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
The shim/bushing is great, but it was only an enhancement to the real mod, which was replacing the shift linkage with heim joints and the early style aluminum shift rod.

All those mods working together makes a big difference.

James
thedeatons is offline
