airbox problems

Old 05-26-2011, 06:52 PM
  #1
Member
Squid
Thread Starter

Join Date: Feb 2011
Posts: 56
Jessehawk111611 is on a distinguished road
airbox problems

So opened the airbox for the first time and what do i find a plastic tray with a what looks like is a small k&n air filter glued in to where a stock filler mite have gone so i was thinking of removing the airbox completly and just running cone filters on each carb so wat i would like to know is if this would work good or hurt the bike ????
Jessehawk111611 is offline
Old 05-26-2011, 07:08 PM
  #2
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
Anything can work but it isn't worth the time or effort.
8541Hawk is offline
Old 05-26-2011, 07:24 PM
  #3
Senior Member
SuperBike

Join Date: Mar 2007
Location: Belgium, WI
Posts: 1,611
autoteach is on a distinguished road
Stock air filter. Do it and love it. You will need to make sure that you have the air foil in the lid.
autoteach is offline
Old 05-26-2011, 08:12 PM
  #4
Member
Squid
Thread Starter

Join Date: Feb 2011
Posts: 56
Jessehawk111611 is on a distinguished road
Airfoil? Im getting carb farts sence i opened it up and i also have exshaust leak where the headers split out for the pipes i neeed did i say neeeeed a new set of headers or at least just the part that the slip on conect to
Jessehawk111611 is offline
Old 05-26-2011, 08:40 PM
  #5
Senior Member
SuperBike

Join Date: Mar 2007
Location: Belgium, WI
Posts: 1,611
autoteach is on a distinguished road
Fiche Parts

Look at it, item #9
autoteach is offline
Old 05-26-2011, 08:44 PM
  #6
Member
Squid
Thread Starter

Join Date: Feb 2011
Posts: 56
Jessehawk111611 is on a distinguished road
Dont have that in there and that flat wall looking thing is cut off that right behind it
Jessehawk111611 is offline
Old 05-26-2011, 09:04 PM
  #7
Senior Member
SuperBike

Join Date: Mar 2007
Location: Belgium, WI
Posts: 1,611
autoteach is on a distinguished road
Yeah, it comes on the new filter. Order that air foil and all is good.
autoteach is offline
Old 05-26-2011, 09:10 PM
  #8
Member
Squid
Thread Starter

Join Date: Feb 2011
Posts: 56
Jessehawk111611 is on a distinguished road
I think the air inlet is also cut
Jessehawk111611 is offline
Old 05-26-2011, 09:12 PM
  #9
Senior Member
SuperBike

Join Date: Mar 2007
Location: Belgium, WI
Posts: 1,611
autoteach is on a distinguished road
eek, can you put up some pictures?
autoteach is offline
Old 05-26-2011, 09:35 PM
  #10
Senior Member
Back Marker

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
If you need one, I have a complete box...top, bottom, velocity stacks, air filter (I forgot what it looks like. I will check tomorrow). Figure $35 shipped, as long as you are in the US.
superh1998 is offline
Old 05-27-2011, 04:29 AM
  #11
Member
Squid
Thread Starter

Join Date: Feb 2011
Posts: 56
Jessehawk111611 is on a distinguished road
You wouldnt happen to have a stock header to would youor know of one i can get at least just the pipes that are after where the front and back meet
Jessehawk111611 is offline
Old 05-27-2011, 05:49 AM
  #12
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,867
7moore7 is on a distinguished road
Originally Posted by Superhawk11610 View Post
You wouldnt happen to have a stock header to would youor know of one i can get at least just the pipes that are after where the front and back meet
There may be something in the classifieds. This guy maybe...

https://www.superhawkforum.com/forum...perhawk-25639/
7moore7 is offline
Old 05-27-2011, 11:27 AM
  #13
Senior Member
Back Marker

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
Originally Posted by Superhawk11610 View Post
You wouldnt happen to have a stock header to would youor know of one i can get at least just the pipes that are after where the front and back meet
Sorry, Really just the airbox and electrical stuff is left.
superh1998 is offline
Old 05-27-2011, 12:16 PM
  #14
Retired- but not tired!
SuperBike

CrankenFine's Avatar

Join Date: Aug 2010
Location: Pittsburgh
Posts: 1,433
CrankenFine is on a distinguished road
Originally Posted by superh1998 View Post
If you need one, I have a complete box...top, bottom, velocity stacks, air filter (I forgot what it looks like. I will check tomorrow). Figure $35 shipped, as long as you are in the US.

That's a great offer. My airbox snorkel was butchered by the P.O. so I paid $20+ shipping just for a lid. Anyone with an airbox AFU should jump on this.
CrankenFine is offline
Old 05-27-2011, 01:55 PM
  #15
Senior Member
Back Marker

Revelation's Avatar

Join Date: Jul 2010
Location: Netherlands
Posts: 102
Revelation is on a distinguished road
No airbox and putting filters on the carbs is a headache
You get wind between the carbs

Same applies to only removing the nozzle form the box.
This causes turbulence in the box and it makes big dip 3-5k.

Taking of the top is possible, but extensive dyno needed.

Best leave box stock, with K&N filter + strip.
Revelation is offline
Old 05-27-2011, 07:55 PM
  #16
Member
Squid
Thread Starter

Join Date: Feb 2011
Posts: 56
Jessehawk111611 is on a distinguished road
Superh i will take you up on that airbox offer pm so we can work out the details and thank you for the help
Jessehawk111611 is offline
Old 05-27-2011, 10:12 PM
  #17
Senior Member
Back Marker

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
pm'd
superh1998 is offline
Old 05-28-2011, 06:55 AM
  #18
Senior Member
Back Marker

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
OK,

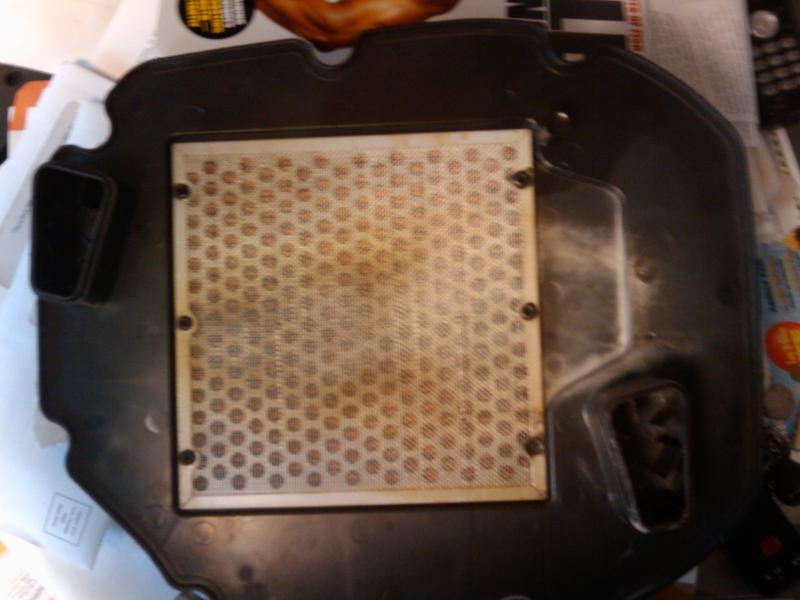

I took a look at the filter this morning, and I am not sure what type it is.
It is definitely not a K&N (those have separate block offs for the small filters). I don't think it's a BMC filter, but it does have the built in block offs like the BMC.
The only numbers/letters on the filter are "H61 HM-MBB".
I do not have the small foam filters that go in the airbox, since this filter obviously blocked them off.
Maybe someone else can help identify this filter?
Let me know if you still want the airbox/velocity stacks/air filter.
Thanks,
Mike
airbox problems-2011-05-28-08.44.15.jpg

airbox problems-2011-05-28-08.44.30.jpg
superh1998 is offline
Old 05-28-2011, 12:14 PM
  #19
Banned
MotoGP

Join Date: Aug 2007
Location: Lake View Terrace, CA
Posts: 5,942
8541Hawk will become famous soon enough
MBB in the part number..... Factory Honda part.
You better pick up the small foam filters and install them unless you want to buy a new set of carbs sometime soon..... yes they are that important.
8541Hawk is offline
Old 05-28-2011, 02:10 PM
  #20
Senior Member
SuperBike

Join Date: Mar 2007
Location: Belgium, WI
Posts: 1,611
autoteach is on a distinguished road
Agreed Hawk,
They damp the slide movement and not having them leads to premature...needle jet wear. I had to buy a set of carbs due to this (didnt know they deteriorated and disappeared).
autoteach is offline
Old 05-28-2011, 03:03 PM
  #21
Senior Member
Back Marker

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
Thanks guys..I had no idea what it was..this is from a parts bike that I picked up a while ago.
superh1998 is offline
Old 05-28-2011, 04:03 PM
  #22
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
Originally Posted by superh1998 View Post
I do not have the small foam filters that go in the airbox, since this filter obviously blocked them off.
No, this does not "block off" the small foam filters... They are still needed...

When people are talking about the K&N having separate "block-offs" or the stock filter having them integrated, they are just confusing themselfes and others... Those chambers are not blocking anything...

The airbox have an inlet in the bottom, at each corresponding part... The air passes in there, through the foam filter that sites between the airbox chambers, and these chambers, making a loop in the chambers, down into the hose connected just half an inch beside the inlet... These small chambers keep the airbox and the carb vents separate, making for separate pressure... No separation means a bad running bike, and no filter on here means the carbs will literally self destruct...

Just hoping to clear up the confusion for some people...
Tweety is offline
Old 05-28-2011, 08:41 PM
  #23
Senior Member
Back Marker

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
Lesson Learned...Thanks Tweet.
superh1998 is offline
Old 05-29-2011, 03:52 PM
  #24
K30
Member
Squid

K30's Avatar

Join Date: Apr 2011
Location: Washington State
Posts: 84
K30 is on a distinguished road
So those plastic blocks inside the airbox come with the K&N filter? The previous owner of my bike installed one and I'm thinking about going back to OEM. What parts would I have to order? Looking at a parts blow up, I definitely do not have Numbers 9, 17, or 10 anymore.

http://oem.thumpertalk.com/images/Ho...%20CLEANER.gif

Thanks for any insight.
K30 is offline
Old 05-29-2011, 10:57 PM
  #25
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
Originally Posted by K30 View Post
So those plastic blocks inside the airbox come with the K&N filter? The previous owner of my bike installed one and I'm thinking about going back to OEM. What parts would I have to order? Looking at a parts blow up, I definitely do not have Numbers 9, 17, or 10 anymore.

http://oem.thumpertalk.com/images/Ho...%20CLEANER.gif

Thanks for any insight.
9 & 17 should like the picture be mounted to the lid of the airbox... It's fairly popular to remove them...

#10, you should have 2 of this, on the carb vents... No matter what airfilter you have, you really need them...
