What would be...

the best way to mount my passenger pegs with this set up? Im guessing they are a high mount bracket for the exhaust (were on there when i bought the bike). Didnt think about it until i already bought the passenger pegs and they were in route to me. Would there be a simple way to mount the passenger pegs with the set up, or would i have or just go and find some stock exhaust mount brackets? Im sure there is a simple way of doing it and im just not seeing it.

What it looks likes

Name:  sh.jpg
Views: 31
Size:  46.2 KB

with the passenger pegs

Name:  n1.jpg
Views: 67
Size:  35.7 KB

Name:  n.jpg
Views: 17
Size:  37.4 KB
Mrredline05 is offline
Old 05-28-2013, 09:11 PM
  #2
Rex Kramer-Thrill Seeker
SuperBike

CruxGNZ's Avatar

Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
CruxGNZ is on a distinguished road
Looks like you got it with that last picture. Just use some longer fasteners. Then cut off that unsightly ear that the stock exhaust used to bolt to.

Or, if that won't work for ya, perhaps make a plate that relocates the footpegs down a hair. The plate would be sandwhiched between the exhaust hanger and subframe. The passenger pegs would then bolt to the plate.

Or, take the existing exhaust hanger off and put the stock passenger peg/exhaust hanger on, then make a bracket that holds up the current mufflers.

Without having it in my hands, that's just the first few things that popped into my head.
CruxGNZ is offline
Old 05-28-2013, 10:38 PM
  #3
Member
Squid
Thread Starter

Mrredline05's Avatar

Join Date: May 2013
Location: Oak Harbor, WA
Posts: 61
Mrredline05 is on a distinguished road
well i have over come my brain fart and figured it out. I just loosened up the bracket around the exhaust and move it down some and then bolted up the whole passenger peg lol, worked just fine.
Mrredline05 is offline
Old 05-28-2013, 11:41 PM
  #4
Senior Member
Superstock

Join Date: Apr 2011
Location: Oak Harbor, Washington
Posts: 463
Squid is on a distinguished road
You're welcome...
Squid is offline
Old 05-29-2013, 06:37 AM
  #5
evil man of nothing
MotoGP

captainchaos's Avatar

Join Date: Jan 2006
Location: Boynton Beach, FL
Posts: 4,177
captainchaos is on a distinguished road
If you want to keep the higher mount look you'll need to use longer bolts and spacers to space out the pegs past the mufflers. Those look like two brothers hangers. They didn't sell them but companies like Jardine and LeoVince and other did make them. I know myself and others have posted pictures of what the spacers look like in the past. Or you could just do what I think you did and remove the tbr hangers and mount them to the passenger pegs like stock.

Last edited by captainchaos; 05-29-2013 at 06:43 AM.
captainchaos is offline
Old 05-29-2013, 06:39 AM
  #6
Member
Squid
Thread Starter

Mrredline05's Avatar

Join Date: May 2013
Location: Oak Harbor, WA
Posts: 61
Mrredline05 is on a distinguished road
Originally Posted by Squid View Post
You're welcome...
right on.....lol..... with a little help from you i might add
Mrredline05 is offline
Old 05-29-2013, 06:42 AM
  #7
evil man of nothing
MotoGP

captainchaos's Avatar

Join Date: Jan 2006
Location: Boynton Beach, FL
Posts: 4,177
captainchaos is on a distinguished road

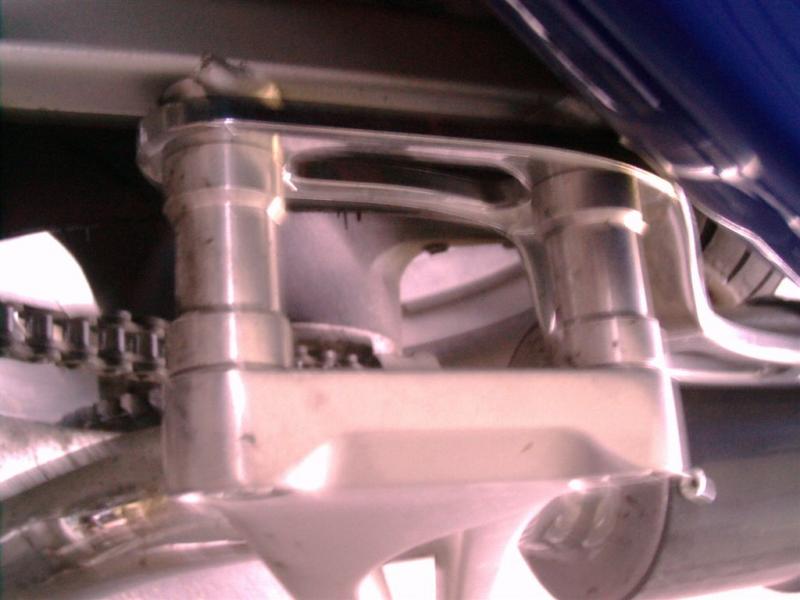

Like this...
Attached Thumbnails What would be...-spacerjardinecomp.jpg
captainchaos is offline
Old 05-29-2013, 08:04 AM
  #8
Senior Member
Superstock

Killemall's Avatar

Join Date: Jul 2007
Location: CA, South of Heaven
Posts: 340
Killemall is on a distinguished road
No need for pegs. According to the new safety regulations female passengers are now required to sit in the front.




Male passengers have been forbidden.
Killemall is offline
Old 05-30-2013, 04:55 PM
  #9
Senior Member
SuperSport

Join Date: Apr 2013
Posts: 972
jerryh is on a distinguished road
Killemall nice mod, imagine this guy buys brake pads in bulk
jerryh is offline
Old 05-30-2013, 07:47 PM
  #10
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,898
smokinjoe73 is on a distinguished road
FWIW, that tab that the stock exhaust goes on is a perfect place to put a set of frame(exhaust) sliders. They have saved my carbon fiber cans several times.
