Superhawk Polished Stainless Steel and-or Black Oxide Fastener List

Polished Stainless Steel Bolts Motorsport Fasteners John Sieg [email protected]
(Black bolts are black-oxide stainless steel, purchased at Fastenal)
Gauge mounting SHCS m6-1.0 x 25mm (3)
Radiator mounting bolts SHCS m6-1.0 x 20mm (4)
Clutch line bracket SHCS m6-1.0 x 12mm (1)
Left & right fairing stay SHCS m6-1.0 x 15mm (4)
Mirror acorn nuts m6-1.0 (4)
Seat bracket bolt SHCS m6-1.0 x 15mm (1)
Engine mounting nuts m12-? (2)
Upper subframe mounting SHCS m10-1.25 x 25mm (2)
Oil cooler top bracket to frame SHCS m6-1.0 x 12mm (2)
Oil cooler to top bracket SHCS m6-1.0 x 20mm (2)
Oil cooler to oil lines SHCS m6-1.0 x 18mm (4)
PAIR Valve bolts SHCS m5-.8 x 12mm (4)
Rearset bolt (right) SHCS m6-1.0 x 50mm (1)
Gas tank front mounting bolts SHCS m6-1.0 x 25mm (2)
Rear brake master cylinder SHCS m6-1.0 x 18mm (or 20mm) (2)
Lower radiator mounting bracket to engine SHCS m6-1.0 x 15mm (2)
Wire loom bracket in frame SHCS m6-1.0 x 12mm (1)
Misc bolt in frame SHCS m6-1.0 x 12mm (1)
Shift knuckle bolt SHCS m6-1.0 x 20mm (1)
Shift linkage bolt SHCS m6-1.0 x 30mm (2)
Shift linkage nylon lock nut m6-1.0 (2)
Rearset bolt (left) SHCS m6-1.0 x 25mm (1)
Rear trunk tray nylock nuts m6-1.0 (2)
Rear master cylinder cap bolts SHCS m4-.7 x 15mm (2)
Upper zx10 Rectifier mounting bolt SHCS m6-1.0 x 15mm
Lower zx10 Rectifier mounting bolt SHCS m6-1.0 x 25mm
Bolts for frame brace project M10 x 1.5 x 60 x8
Tranny sensor m6 x 1.0 x 15 x2
Cam Chain Tensioners m6 x 1.0 x 25 x4
Starter m6 x 1.0 x 25 x2
Starter m5 x .8 x 110 x2 (replaced with Fastenal 35406 140mm black oxide)
Oil line m8 x 1.25 x 20 x2
Clutch cover m6 x 1.0 x 30 x7
Clutch cover m6 x 1.0 x 40 x6
Flywheel cover m6 x 1.0 x 45 x8
Water pump cover m6 x 1.0 x 65 x 3
Water pump cover m6 x 1.0 x 30 x1
Water pump cover m6 x 1.0 x 25 x1
Clutch lever mount m6 x 1.0 x 22 x2
Clutch reservoir cap m4 x .7 x 10 x1
Brake lever mount m6 x 1.0 x 22 x2
Brake reservoir mount m6 x 1.0 x 12 x1
Brake reservoir mount m6 x 1.0 Nylock option or?
Brake reservoir mount m6 x 1.0 x 25 x1
Throttle mount m5 x .8 X 22 x2
Clip on mount m8 x 1.25 X 35 x2
Top triple clamp m8 x 1.25 X 40 x2
Horn m8 x 1.25 X 12 x1
Cowl mount m6 x 1.0 x 22 x2
Oil pan m6 x 1.0 x 30 x5
Oil pan m6 x 1.0 x 35 x4
Oil pan m6 x 1.0 x 40 x2
Oil pan m6 x 1.0 x 80 x1
Bottom triple clamp m10 x 1.25 X 35 x2
Shock top bolt m10 x 1.25 X 50 x1
Shock top nut m10 x 1.25 x1 Nylock option or?
Shock bottom bolt m10 x 1.25 X 60 x1
Shock bottom nut m10 x 1.25 x1 Nylock option or?
Linkage nuts m10 x 1.25 X5 Nylock option or?
Linkage bolt m10 x 1.25 X 60 x1
Linkage bolt m10 x 1.25 X 110 x1
Linkage bolt m10 x 1.25 X 190 x1
Linkage bolt m10 x 1.25 X 150 x1
Linkage bolt m10 x 1.25 X 215 x1
M4 washers x1
M5 washers x3
M6 washers x54
M8 washers x7
M10 Washers x18
Windscreen screws m5 x .8 x 15 x4

James
thedeatons is offline
Old 06-01-2016, 04:45 PM
  #2
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Black oxide starter bolts
Attached Thumbnails Superhawk Polished Stainless Steel and-or Black Oxide Fastener List-image.jpeg
thedeatons is offline
Old 06-01-2016, 04:46 PM
  #3
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road

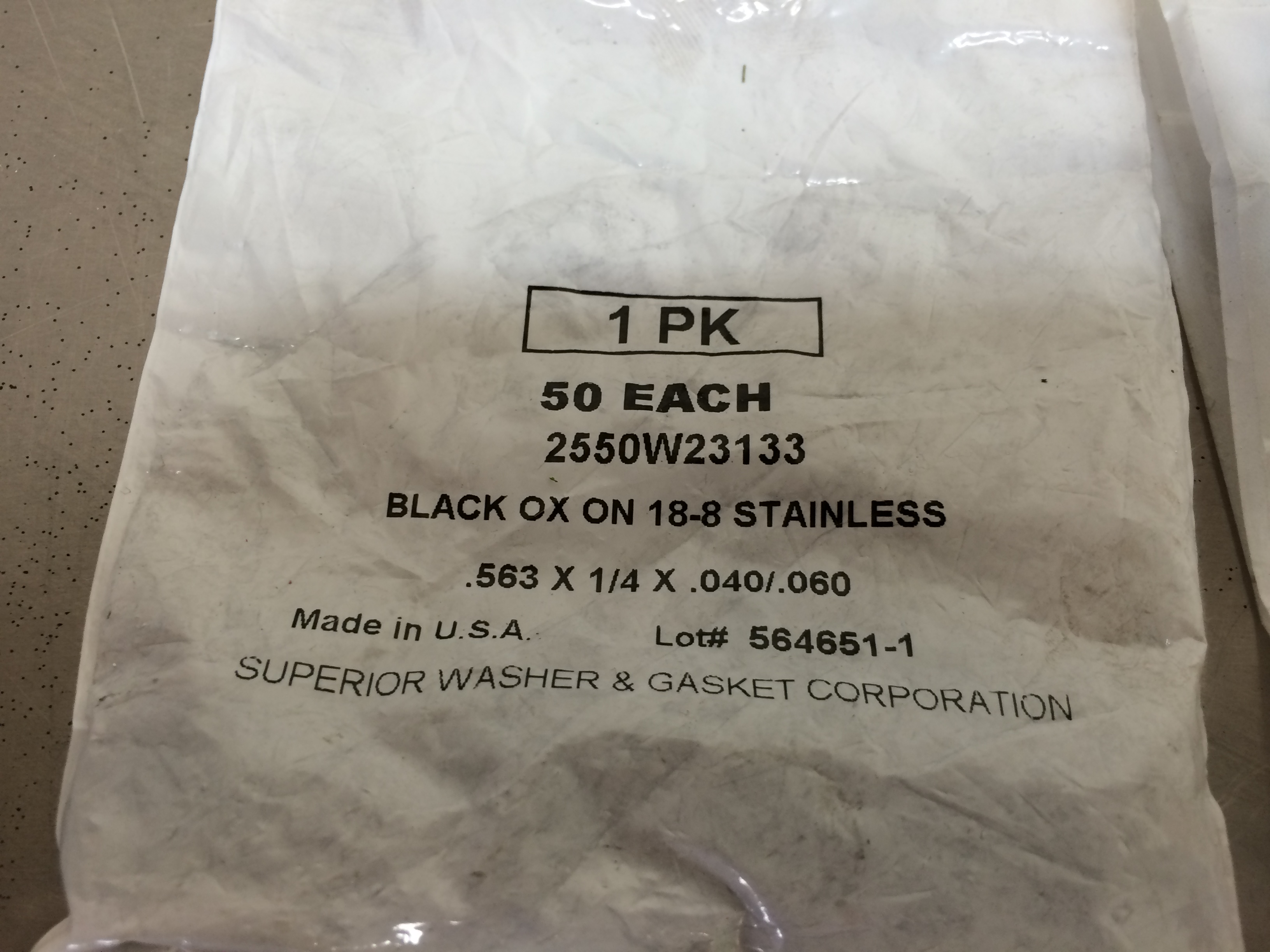

Black oxide fairing bolts (how to make them)
Attached Thumbnails Superhawk Polished Stainless Steel and-or Black Oxide Fastener List-image.jpeg
thedeatons is offline
Old 06-01-2016, 04:47 PM
  #4
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Fairing bolts 2
Attached Thumbnails Superhawk Polished Stainless Steel and-or Black Oxide Fastener List-image.jpeg
thedeatons is offline
Old 06-01-2016, 04:48 PM
  #5
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Fairing bolts 3
Attached Thumbnails Superhawk Polished Stainless Steel and-or Black Oxide Fastener List-image.jpeg
thedeatons is offline
Old 06-01-2016, 04:48 PM
  #6
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Fairing bolts 4
Attached Thumbnails Superhawk Polished Stainless Steel and-or Black Oxide Fastener List-image.jpeg
thedeatons is offline
Old 06-01-2016, 04:51 PM
  #7
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Fairing bolts assembled
Attached Thumbnails Superhawk Polished Stainless Steel and-or Black Oxide Fastener List-image.jpeg
thedeatons is offline
Old 06-01-2016, 04:52 PM
  #8
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Fairing bolts assembled 2
Attached Thumbnails Superhawk Polished Stainless Steel and-or Black Oxide Fastener List-image.jpeg
thedeatons is offline
Old 06-01-2016, 04:54 PM
  #9
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Windscreen screws and washers
Attached Thumbnails Superhawk Polished Stainless Steel and-or Black Oxide Fastener List-image.jpeg
thedeatons is offline
Old 06-01-2016, 04:54 PM
  #10
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Windscreen 2
Attached Thumbnails Superhawk Polished Stainless Steel and-or Black Oxide Fastener List-image.jpeg
thedeatons is offline
Old 06-01-2016, 05:07 PM
  #11
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Windscreen 3
Attached Thumbnails Superhawk Polished Stainless Steel and-or Black Oxide Fastener List-image.jpeg
thedeatons is offline
Old 06-01-2016, 06:34 PM
  #12
Thread Killer
SuperBike

Join Date: Apr 2013
Location: Geneseo, IL
Posts: 1,637
VTR1000F is on a distinguished road
Thanks so much, James. Sure to save some of us a lot of time and effort.
VTR1000F is offline
Old 06-01-2016, 07:49 PM
  #13
Rex Kramer-Thrill Seeker
SuperBike

CruxGNZ's Avatar

Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
CruxGNZ is on a distinguished road
Wow! This should be in the Knowledge Base.
CruxGNZ is offline
Old 06-01-2016, 09:28 PM
  #14
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Be easy on John Sieg and just give him big orders... No onesy-twosy stuff. He's a great guy with a high quality product, but he gets very busy at times.

There are a few items John cannot supply, certain thread pitches, like the lower triple clamp bolts, and the rear suspension linkage bolts. I ended up leaving those stock on mine.

James
thedeatons is offline
Old 06-03-2016, 05:57 PM
  #15
Senior Member
Superstock

Fastguy59's Avatar

Join Date: Nov 2014
Location: Middletown, CT
Posts: 408
Fastguy59 is on a distinguished road
Amazing!
