James' 2001 Honda VTR1000 Build

Old 09-07-2013, 05:17 PM
  #31
Thread Killer
SuperBike

Join Date: Apr 2013
Location: Geneseo, IL
Posts: 1,637
VTR1000F is on a distinguished road
James, what are you doing with the rear pegs and brackets/hangers? Staying silver or will they be flat black too? You've got me thinking I'm going to go flat black for the subframe, rear pegs & brackets so it all kinda fades away instead of standing out. Looking forward to seeing your bike all back together. Only thing wrong with your build so far is it isn't yellow.
VTR1000F is online now
Old 09-07-2013, 08:47 PM
  #32
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Silver for now. I thought long and hard about them, and while i'd love to have them black, the simple fact it that the powdercoat will be rubbed off from passenger shoes/boots. So, silver is safer at this point.

My simple motorcycle philosophy is this: whenever you open your garage and look at your bike, it should make you smile. If it doesn't, then sell it and get another one. I've had lots of colors over the years, red continually makes me smile.

James
thedeatons is offline
Old 09-08-2013, 10:02 AM
  #33
Senior Member
Superstock

RobertLever's Avatar

Join Date: Aug 2013
Location: Everett, Washington
Posts: 295
RobertLever is on a distinguished road
That looks like its going to be a great bike when you're done.
RobertLever is offline
Old 09-08-2013, 01:16 PM
  #34
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Thank you!

I can't decide what rear shock to do, but I'm hoping to get it anodized gold like an Ohlins (or just get a used Ohlins)... I may do the same thing with the front forks - USD forks with gold anodized legs, and black bottoms.

James
thedeatons is offline
Old 09-09-2013, 05:33 PM
  #35
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road

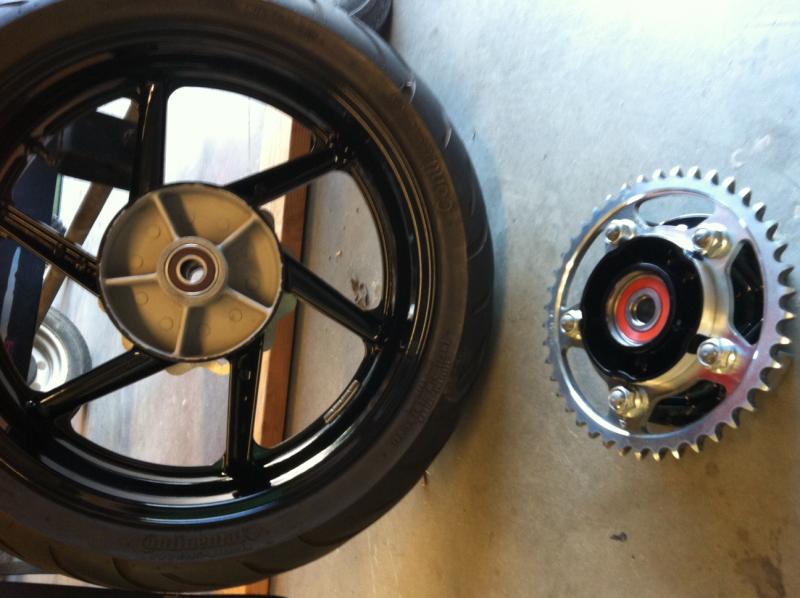

Wheel is waxed, balanced, and ready to go.

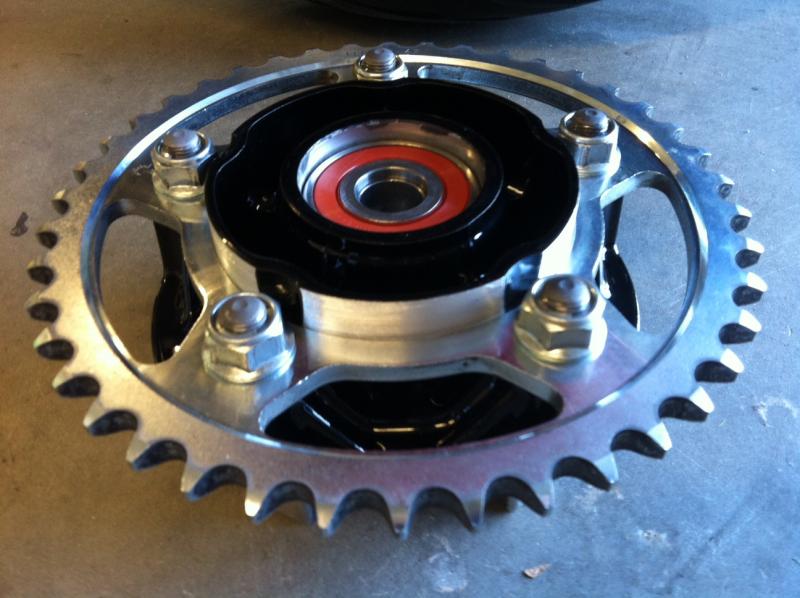

Cush drive is sanded in the sprocket area, and waiting for a new seal.


James
Attached Thumbnails James' 2001 Honda VTR1000 Build-photo-1-2.jpg   James' 2001 Honda VTR1000 Build-photo-2-2.jpg
thedeatons is offline
Old 09-09-2013, 05:40 PM
  #36
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,490
Wolverine is on a distinguished road
Curious on the gloss wheel/flat swinger look. Will have to wait and see. I personally think your Ohlins shock w/ gold slider fork would look great. Maybe anodize a pair of the danmoto rear sets...
Wolverine is offline
Old 09-09-2013, 06:07 PM
  #37
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
The theory is that the flat black frame will fade into the background, and give the red fairings a deeper red look. The gloss black wheels should pop quite a bit in comparison.

I really need to figure out what to do with the front wheel. It looks terrible. Maybe just an F2 front wheel as a temp fix....

James
thedeatons is offline
Old 09-09-2013, 09:48 PM
  #38
Junior Member
Squid

DevilHawk's Avatar

Join Date: Sep 2013
Posts: 4
DevilHawk is on a distinguished road
nice job!
DevilHawk is offline
Old 09-10-2013, 08:48 PM
  #39
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road

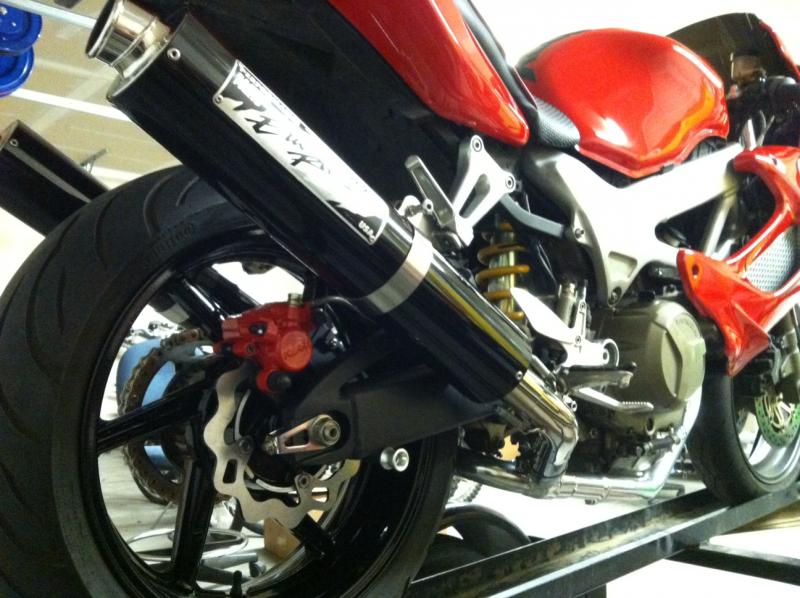

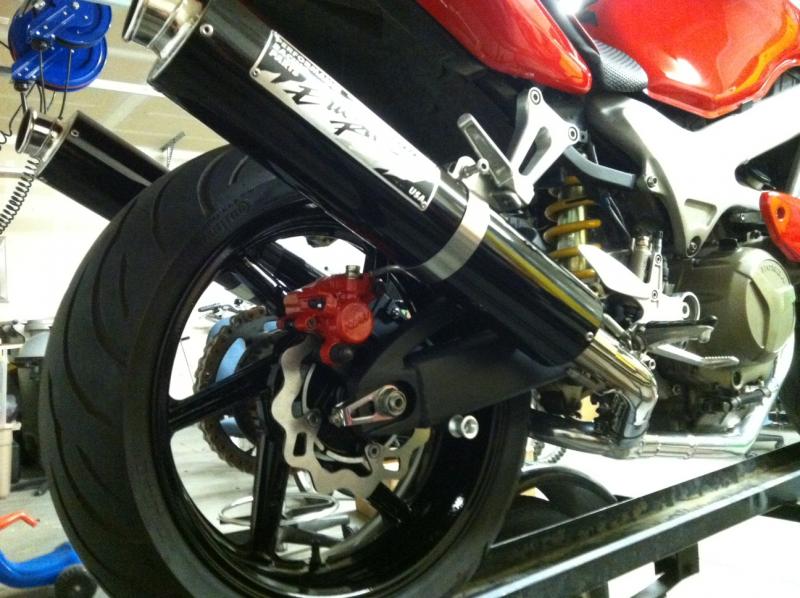

The install....
Attached Thumbnails James' 2001 Honda VTR1000 Build-photo-1-3.jpg   James' 2001 Honda VTR1000 Build-photo-2-3.jpg   James' 2001 Honda VTR1000 Build-photo-3-1.jpg   James' 2001 Honda VTR1000 Build-photo-4-1.jpg   James' 2001 Honda VTR1000 Build-photo-5-1.jpg

thedeatons is offline
Old 09-10-2013, 08:51 PM
  #40
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road

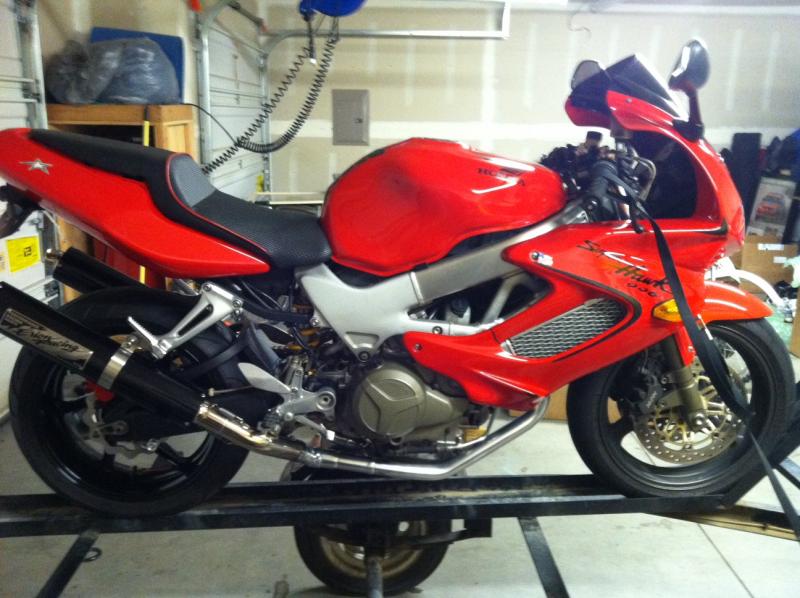

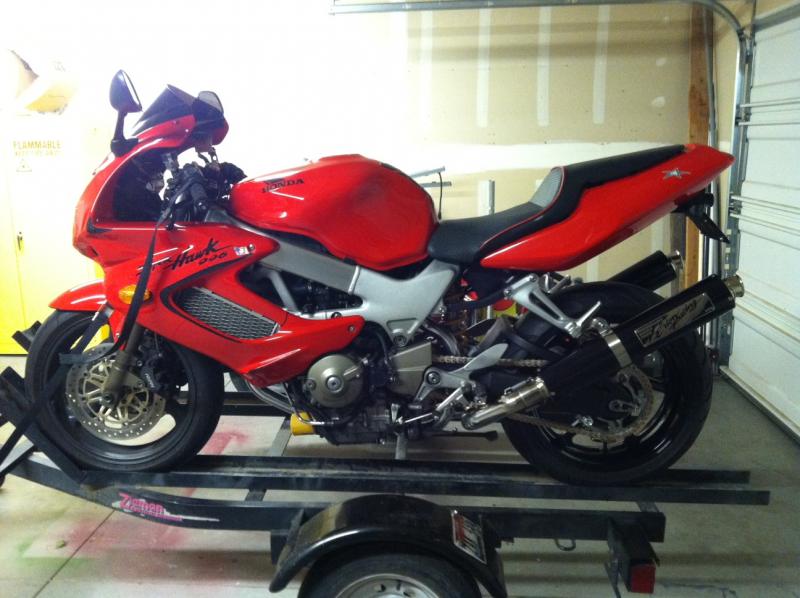

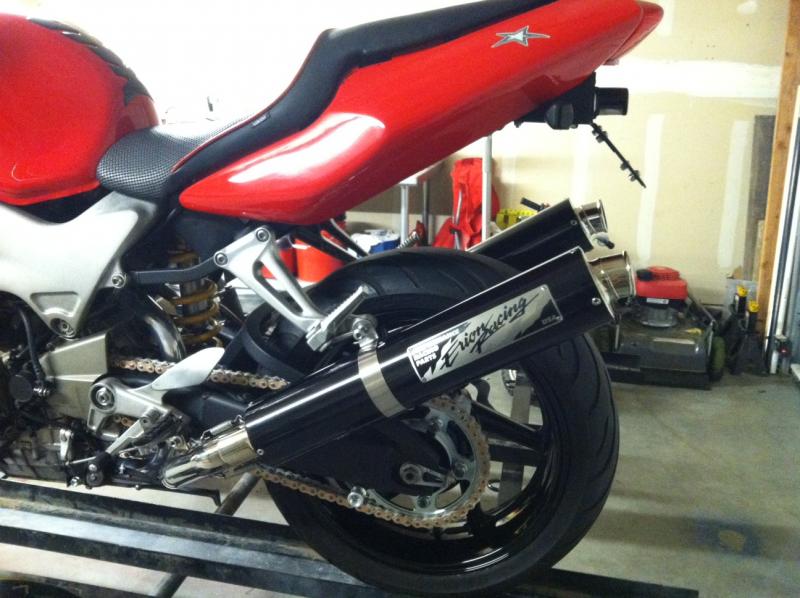

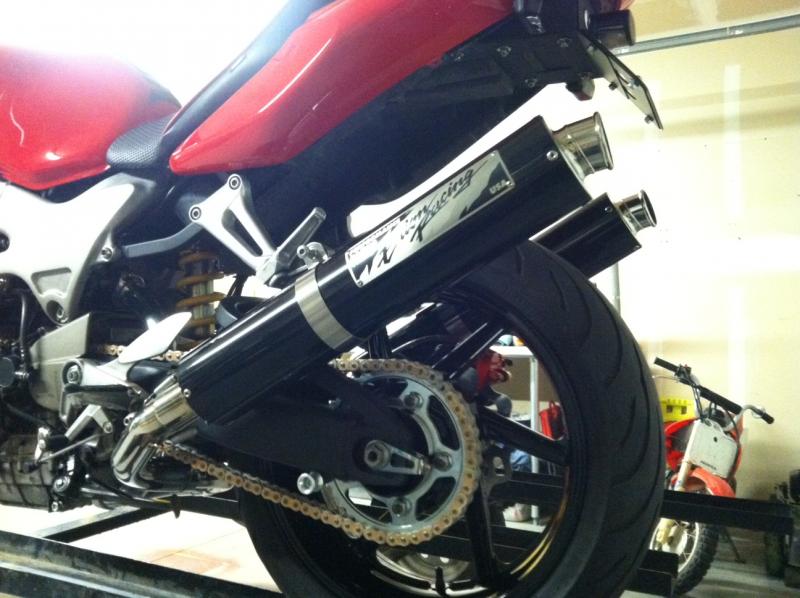

Final install...
Attached Thumbnails James' 2001 Honda VTR1000 Build-photo-1-4.jpg   James' 2001 Honda VTR1000 Build-photo-4-2.jpg   James' 2001 Honda VTR1000 Build-photo-5-2.jpg
thedeatons is offline
Old 09-13-2013, 02:59 PM
  #41
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,490
Wolverine is on a distinguished road
James, just an observation while I'm camping with friends @ a local bike week. I'm seeing my Ohlins remote reservoir near the forks on a 'Busa which are gold coated. The 2 aren't even close. I don't think it would achieve your desired look. If you want me to try to get a pic, lmk.

To comment on the above pics... with your VTR being a work in progress, I think you're on the way to have one cool *** Hawk. Excited to follow along and watch the progress. Thanks for takin' the time to post pics. You definitely peaked my interest in the possibility of doing the swinger brace. Can you share how much you have into ($$) that one mod?
Wolverine is offline
Old 09-13-2013, 03:14 PM
  #42
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Yes... Pics

(FYI - I had planned to re-anodize the forks to match)



James
thedeatons is offline
Old 09-14-2013, 08:19 AM
  #43
Senior Member
SuperSport

nnjhawk02's Avatar

Join Date: Mar 2006
Location: Pa
Posts: 674
nnjhawk02 is an unknown quantity at this point
James

Stop ******* around with the Hawk & go ride.

In I Da Ho - Winter should be about 5 mins away from now.

And love the Black Erions - I've had mine since new & they still sound good & nary dented when put down - 10 yrs ago.

Fall is Upon us go ride

Name:  RhinosVTR.jpg
Views: 244
Size:  176.4 KB
nnjhawk02 is offline
Old 09-14-2013, 01:34 PM
  #44
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Did 100 miles today with friends from church. Road from Caldwell, Idaho, to Black Canyon Reservoir, then to Horseshoe Bend, then into Eagle, then back to Caldwell.

Superhawk did well. Few things are on my list to fix before the next ride, but overall it was a great time!!!

James
thedeatons is offline
Old 11-03-2013, 01:50 AM
  #45
Senior Member
SuperBike

kenmoore's Avatar

Join Date: Mar 2012
Location: New South Wales Australia
Posts: 1,529
kenmoore is on a distinguished road
Hey James thanks for the thread.

I have just put my swingarm pieces into the welders.


Without your detailed post I would not have attempted this conversion.


I hope it turns out as good as yours.


Fingers crossed.


Keep on posting any other mods that you do, and as we say here in Oz , "Good on yer cobber"


Keep up the good work!
kenmoore is offline
Old 12-09-2013, 12:45 PM
  #46
Junior Member
Squid

Join Date: Apr 2013
Location: Connecticut
Posts: 27
curlcd is on a distinguished road
Great work fella's.

I love the custom work, question is:

Why brace the swing arm? Is the arm flexing that much, and under what conditions?
curlcd is offline
Old 12-09-2013, 12:52 PM
  #47
Senior Member
Superstock

Join Date: Apr 2007
Posts: 321
davidka is on a distinguished road
Originally Posted by curlcd View Post
Great work fella's.

I love the custom work, question is:

Why brace the swing arm? Is the arm flexing that much, and under what conditions?
And the additional concern, what does the significant amount of welding do to the heat treatment/temper of the original swing arm?
davidka is offline
Old 12-10-2013, 12:24 PM
  #48
Senior Member
MotoGP

superhawk22's Avatar

Join Date: Jan 2005
Location: Gainesville FLA.
Posts: 3,844
superhawk22 is an unknown quantity at this point
Don't be afraid of the USD swap, I went from the opposite side first, the brace swap is coming soon. I have to say the front end swap was the most noticeable change on the track of any of the mods I've done, not to mention the dramatic improvement in the front brakes that comes with it.
superhawk22 is offline
Old 12-10-2013, 12:26 PM
  #49
Senior Member
MotoGP

superhawk22's Avatar

Join Date: Jan 2005
Location: Gainesville FLA.
Posts: 3,844
superhawk22 is an unknown quantity at this point
Oh and an aftermarket shock didn't hurt either. ;-)
superhawk22 is offline
Old 12-14-2013, 05:46 AM
  #50
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,490
Wolverine is on a distinguished road
James, I have to apologize. After revisiting this thread I realize I dropped the ball on the remote reservoir/fork pics. Sorry bout that.

Not only have you inspired kenmoore:
Name:  HondaCBR900RRCBR900Swingarm1993_eBay-2013-12-14_081842.jpg
Views: 244
Size:  34.9 KB

I just picked up a used 900RR swinger for $32.13 shipped to my door! I think the recycler will give me more than that for the leftover scrap when I'm done!! Looks like a braced arm is in my future too. Thanks again for posting.
Wolverine is offline
Old 12-14-2013, 07:09 AM
  #51
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Awesome! I got a deal on mine too... I think my local recycler quoted me $10 if it was bare aluminum, no steel involved.

Enjoy the cutting and grinding!

This is probably the most difficult mod for this bike considering the cutting, alignment, amd welding involved... Makes a front end swap easy in comparison!

James
thedeatons is offline
Old 12-15-2013, 09:17 AM
  #52
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,490
Wolverine is on a distinguished road
Originally Posted by thedeatons View Post
900rr rear caliper bracket
Is it as simple as swapping the bracket?
Wolverine is offline
Old 12-15-2013, 11:14 AM
  #53
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
First install the brace and remove the original superhawk caliper bracket guide.

Then you have to grind off the caliper bracket guide from the 900rr swingarm, and weld it onto the superhawk swingarm.

During this step i used the rear axle and axle blocks to help align the caliper bracket guide. Spot weld it in place first, then slide the axle back and forth to make sure it all functions as it should, staying in alignment the entire time.

James
thedeatons is offline
Old 01-18-2014, 07:30 AM
  #54
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,255
E.Marquez is on a distinguished road
Originally Posted by thedeatons View Post
First install the brace and remove the original superhawk caliper bracket guide.

Then you have to grind off the caliper bracket guide from the 900rr swingarm, and weld it onto the superhawk swingarm.

During this step i used the rear axle and axle blocks to help align the caliper bracket guide. Spot weld it in place first, then slide the axle back and forth to make sure it all functions as it should, staying in alignment the entire time.

James
James;
Did you install a hugger? If so which one? How did it fit? would you do it again or try a different brand, modley, style.

Thanks
E.Marquez is offline
Old 03-06-2014, 08:44 PM
  #55
Senior Member
SuperSport

jscobey's Avatar

Join Date: Apr 2013
Location: Thousand Oaks, CA
Posts: 834
jscobey is on a distinguished road
love the post. great work thus far. and +1 on the USD swap. now my current venture is the 900rr brace to compliment the great front end. i went with an RC51 SP1 front end because i found the complete front end for sale. much better braking as well.

i agree that this makes the front end swap seem easy. mostly because i dont have the knowledge, tools, ability... to do the welding myself. My trouble is finding someone to do it that wont be careless about it. id really love a motorcycle enthusiast to do it as they might have a little more interest and care more about the outcome rather than just making money. and likely since they wont let me stand over their shoulder while they do it, ive got to explain it really well so i dont have to have it done twice. the brace is one thing but the caliper brackets are what concerns me in terms of having someone else do it. that will be where good explanations come into play. i love what you said about sliding the axle carrier back and forth to make sure things stay aligned. Keep up the great work. really good looking hawk!
jscobey is offline
Old 03-07-2014, 01:42 AM
  #56
Senior Member
SuperBike

kenmoore's Avatar

Join Date: Mar 2012
Location: New South Wales Australia
Posts: 1,529
kenmoore is on a distinguished road
I took my parts to a mate who is an alloy boat builder.

Like James I aligned the bracket for the caliper and marked it out exactly where it was to go.


My thoughts were that these guys weld alloy all the time so they should know what they are doing.


If you don't have boat builders find someone who welds alloy all the time.


Mine turned out O.K, and I was really happy.


Try and line everything up before you give it to them and explain that you want to keep the taper at the back of the arm where the brace sits.


That way it looks much better than a squared off look where the brace joins the swingarm at the back.


Good luck.
kenmoore is offline
Old 03-07-2014, 06:08 AM
  #57
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Thanks for the compliments! I need to update this thread, i've done so many little details that are not listed!

Maybe next year i'll work on the front end. This year i'm focusing on the few final touches on the rear end, amd some little things like a coolant bottle fix. I'll post more pics soon.

James
thedeatons is offline
Old 03-07-2014, 08:48 AM
  #58
Senior Member
Superstock

FTL900's Avatar

Join Date: Apr 2013
Location: Seattle
Posts: 250
FTL900 is on a distinguished road
James-
As long as you're touching on this thread, I have a question for you.

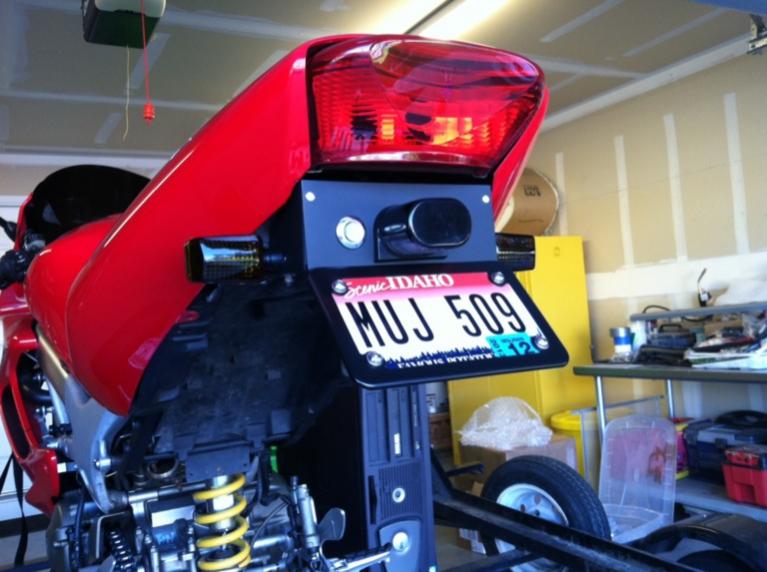

In your turn signal pic, the rear section where the seat unlocks is a black aluminum box. Mine is similar, only silver aluminum- I bought it that way.

I'm guessing that's something that a member did here, and sold? It's before my time. I'm sure it isn't stock, but whoever built it did a good job with the design.
When I owned my ZRX, a lot of guys on the forum there were manufacturing and selling mods for it, most of them very well built.
Thanks! Michael

FTL900 is offline
Old 03-07-2014, 10:24 AM
  #59
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
I think I replied about this in another thread. It's a Competition Werkes (or Lockhart Phillips) Fender Eliminator Kit. It is comprised of a 3 piece stainless steel plate setup.


I had mine powdercoated flat black so it blends in, instead of the shiny stainless...


It's a $100 kit available through any aftermarket retailer.


James
thedeatons is offline
Old 03-10-2014, 06:20 PM
  #60
Senior Member
SuperSport

jscobey's Avatar

Join Date: Apr 2013
Location: Thousand Oaks, CA
Posts: 834
jscobey is on a distinguished road
what was it that you used to give the indent for the shock? did you have your welder friend do it or did you do the indent yourself?
jscobey is offline
