James' 2001 Honda VTR1000 Build

It's about time to let everyone know what I am up too... Nothing new, just a collection of tasteful mods from across the internet.

It all started when a couple months ago my father called me and told me he picked up a new Honda Fury, so I could have his Superhawk. I shipped it from North Carolina to Boise right away, and got to work on it.

It has about 30k miles on it, and in my opinion needed some cosmetic rejuvenation. My dad rode it and did regular maintenance, and that was fine for him. I'm really a perfectionist when it comes to my bikes, and I wanted this one to be special, with a few "newer model" upgrades.

Honestly I don't even know where to start, I've done so much already.

Erion Cans - Years ago I bought black Erion cans for my dad, we met at Daytona Beach for Bike Week, and they are still on the bike. He never wanted to deal with jetting it, so when I got it I yanked the carbs and did Hawk's carb setup: (48 pilots/2 .020" shims under rear needle, 1 .020" shim under front needle/HRC style front slide) with a stock air filter (my dad had a newer one installed, so I left it there).

I bought a set of CBR600RR stick coils from Ebay, and installed those.

I removed the flywheel and had a friend lighten it according to Roger D's spec (6lb - 6-3/4 oz currently).

I installed Red Line Synthetic oil in the bike, and a Purolator Pure One oil filter. My combination of choice.

I removed the PAIR system, and installed black block-off plates. I also extended the vacuum lines to make carb syncs easier.

The bike had Goodridge stainless steel brake lines on it when my dad got it, so that was nice


Now onto the big stuff.....

I love black frames, so I yanked the rear subframe, and had it powdercoated flat black. I did the fender eliminator kit at the same time, and got a matching license plate frame. I converted 99% of the subframe bolts to stainless.

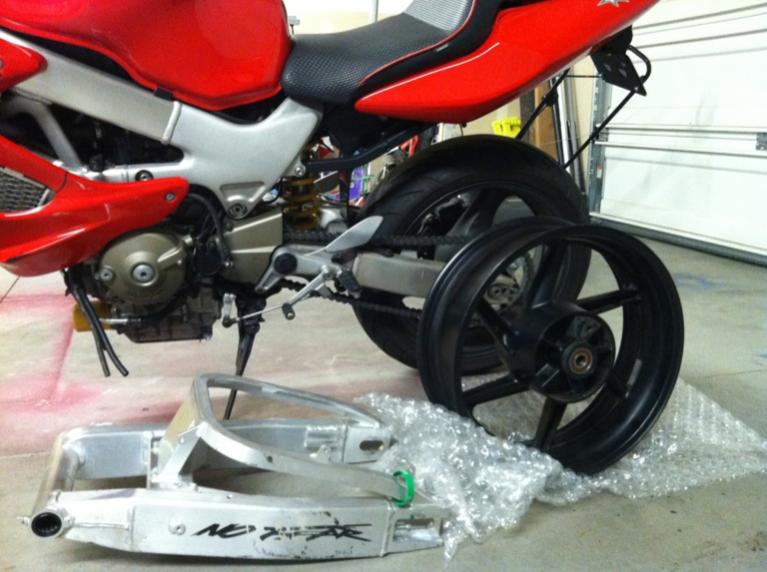

Right now the swingarm is removed, and I have a CBR900RR brace ready to mount to it. Just gotta finish sand it, have my friend weld it, then powdercoat it flat black to match the subframe.

I also have a CBR900RR rear wheel that will be powdercoated gloss black, and mounted up with new bearings/seals. I'm coating the sprocket carrier also.

I removed the rear Nissin brake caliper and disassembled it. I plan to have it powdercoated a nice, fancy red color.

In the mail is a Galfer rear Wave rotor, and a gold EK chain. My goal is a black swingarm, red caliper, gold chain. I love that combo


Eventually I'll get to the front end, not sure what I'm gonna do there yet. Maybe over the winter I'll pull the whole thing apart and get the main frame powdercoated flat black also... Right now I'm just trying to get everything back together so I can ride by late August and enjoy the fall weather here in Boise, Idaho.

One of the last things I did was pull the header pipes off and send them to Nitroplate in TN for a shiny silver finish. Can't wait to see those! While I was there I found a stripped out front header stud (the hole on the cylinder head). An M8x1.25 Keensert is on the way, so it will be repaired properly very soon.

Anyways, I will try to update this thread when I can. Right now I'm kind of "mid operation", so it looks a bit scary...

James
thedeatons is offline   Reply With Quote
Old 08-12-2013, 06:24 PM   #2
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road

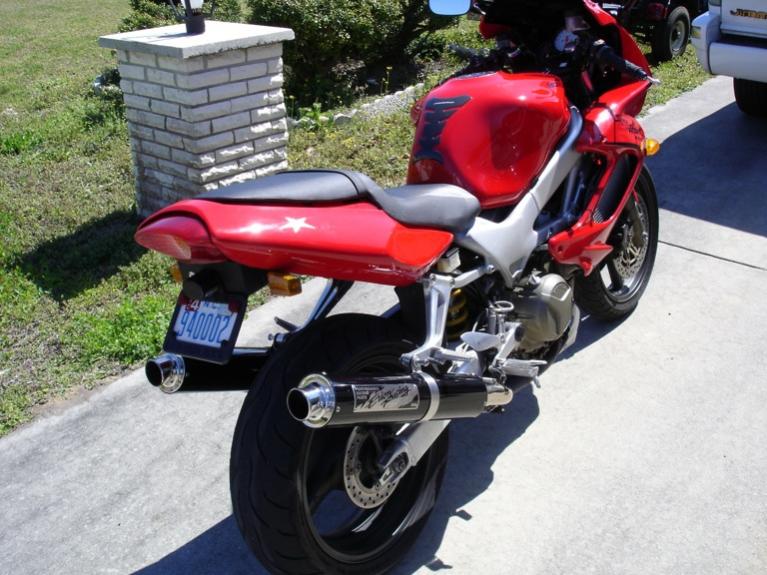

Pics from 2005, after installing the cans in Daytona Beach. Me (younger then), my dad, and my grandpa.
Attached Thumbnails
James' 2001 Honda VTR1000 Build-picture-134-large.jpg   James' 2001 Honda VTR1000 Build-picture-135-large.jpg   James' 2001 Honda VTR1000 Build-picture-136-large.jpg
thedeatons is offline   Reply With Quote
Old 08-12-2013, 06:27 PM   #3
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Pics with my then 4yr old...
Attached Thumbnails
James' 2001 Honda VTR1000 Build-img_4573-large.jpg   James' 2001 Honda VTR1000 Build-img_4574-large.jpg
thedeatons is offline   Reply With Quote
Old 08-12-2013, 06:54 PM   #4
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road

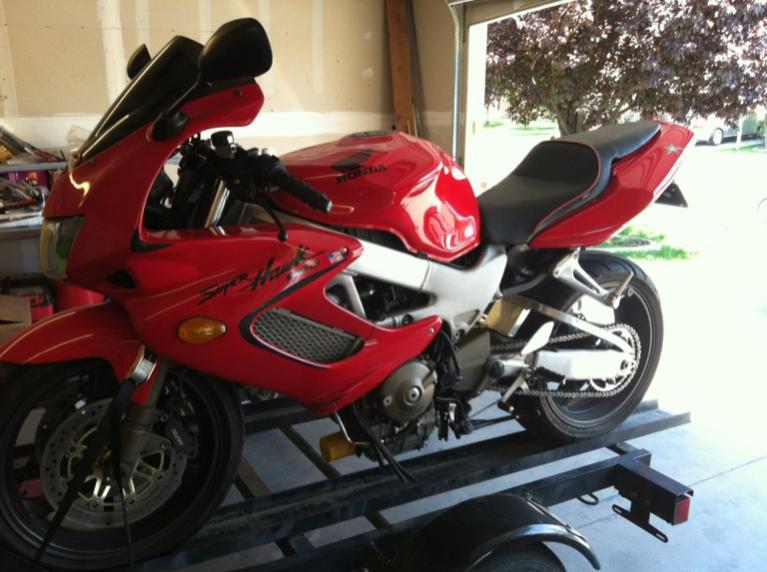

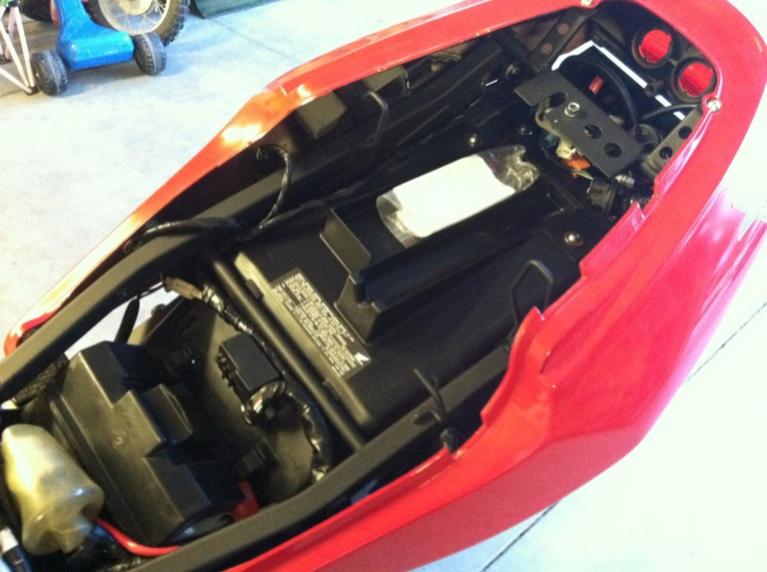

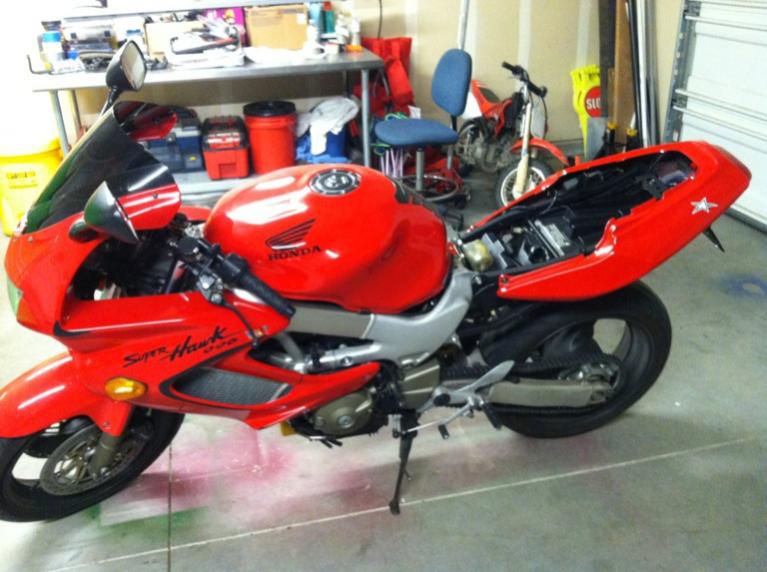

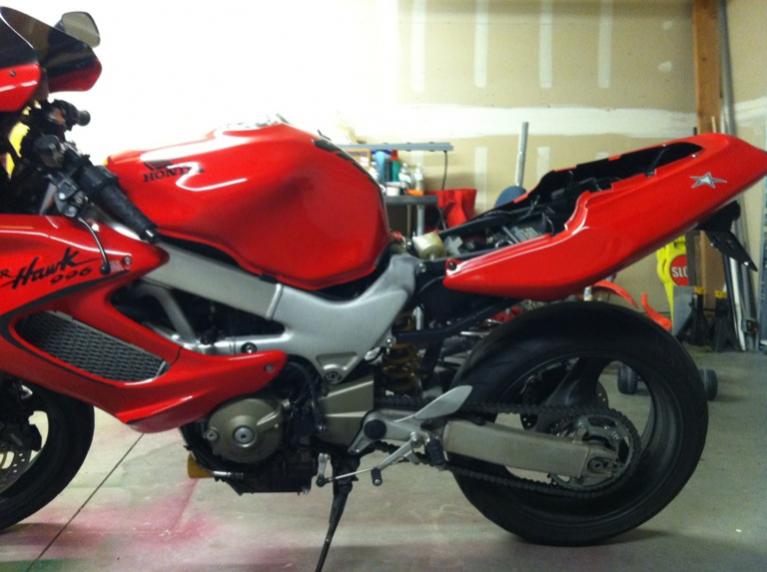

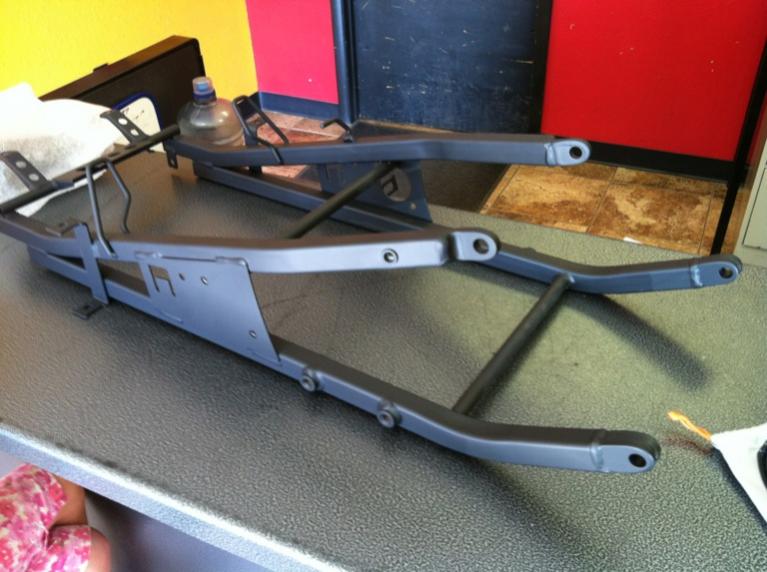

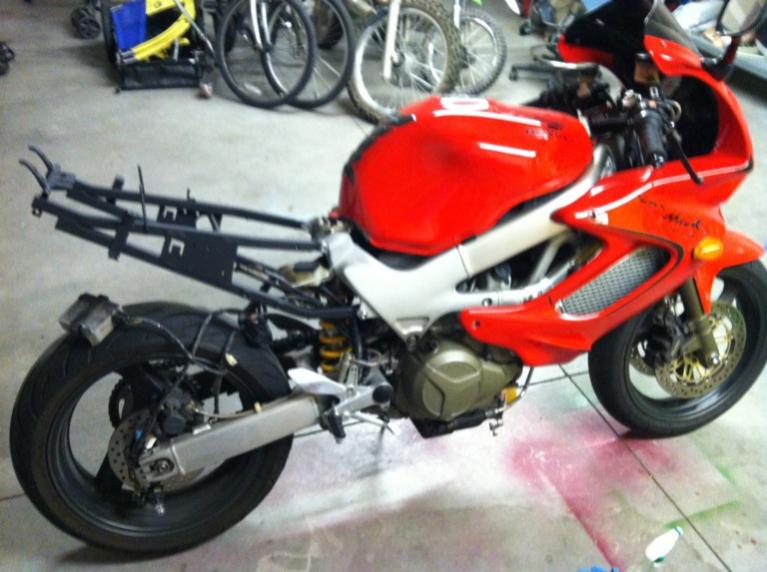

Recent pics
Attached Thumbnails
James' 2001 Honda VTR1000 Build-img_5297-large.jpg   James' 2001 Honda VTR1000 Build-img_5303-large.jpg   James' 2001 Honda VTR1000 Build-img_5304-large.jpg   James' 2001 Honda VTR1000 Build-img_5305-large.jpg   James' 2001 Honda VTR1000 Build-img_5306-large.jpg

thedeatons is offline   Reply With Quote
Old 08-12-2013, 06:55 PM   #5
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road

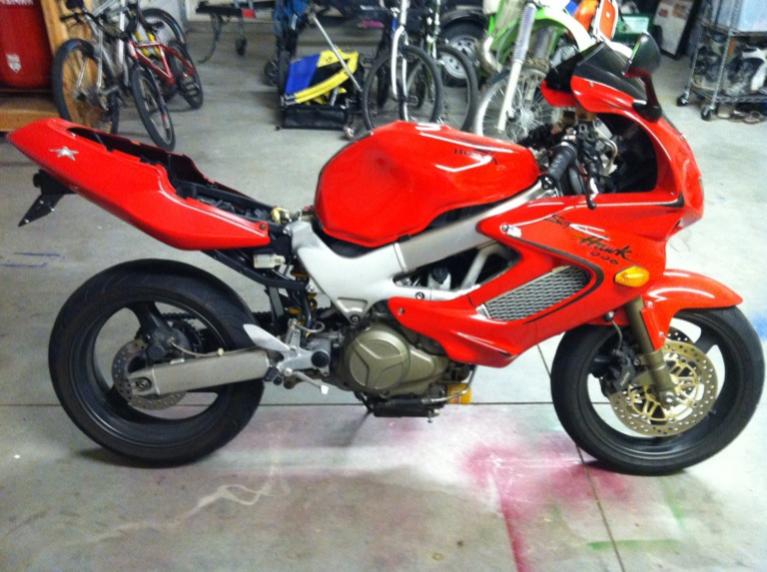

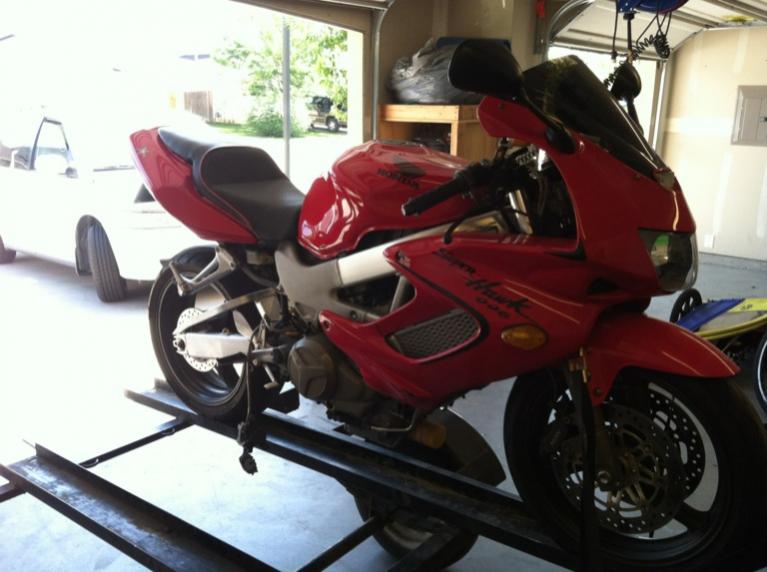

More....
Attached Thumbnails
James' 2001 Honda VTR1000 Build-img_5307-large.jpg   James' 2001 Honda VTR1000 Build-img_5314-large.jpg   James' 2001 Honda VTR1000 Build-img_5325-large.jpg   James' 2001 Honda VTR1000 Build-img_5327-large.jpg   James' 2001 Honda VTR1000 Build-img_5328-large.jpg

thedeatons is offline   Reply With Quote
Old 08-12-2013, 06:57 PM   #6
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road

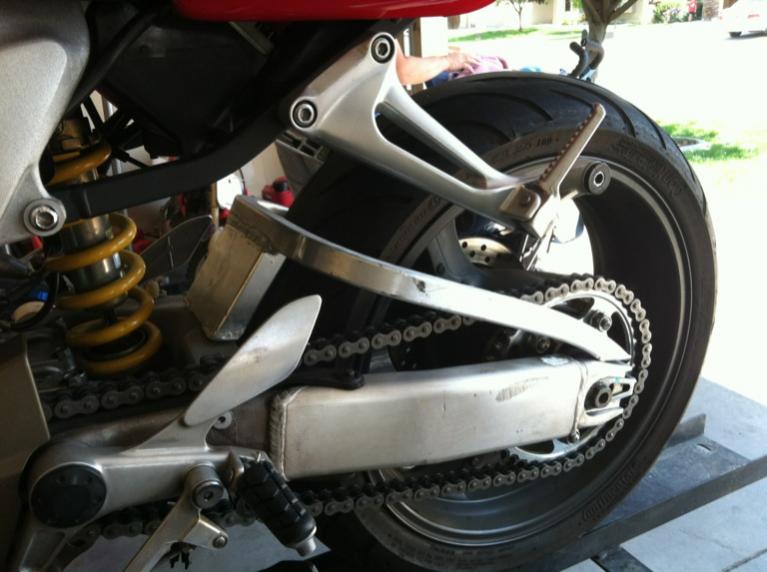

even more...
Attached Thumbnails
James' 2001 Honda VTR1000 Build-img_5329-large.jpg   James' 2001 Honda VTR1000 Build-img_5330-large.jpg   James' 2001 Honda VTR1000 Build-img_5331-large.jpg   James' 2001 Honda VTR1000 Build-img_5332-large.jpg   James' 2001 Honda VTR1000 Build-img_5333-large.jpg

thedeatons is offline   Reply With Quote
Old 08-12-2013, 06:58 PM   #7
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road

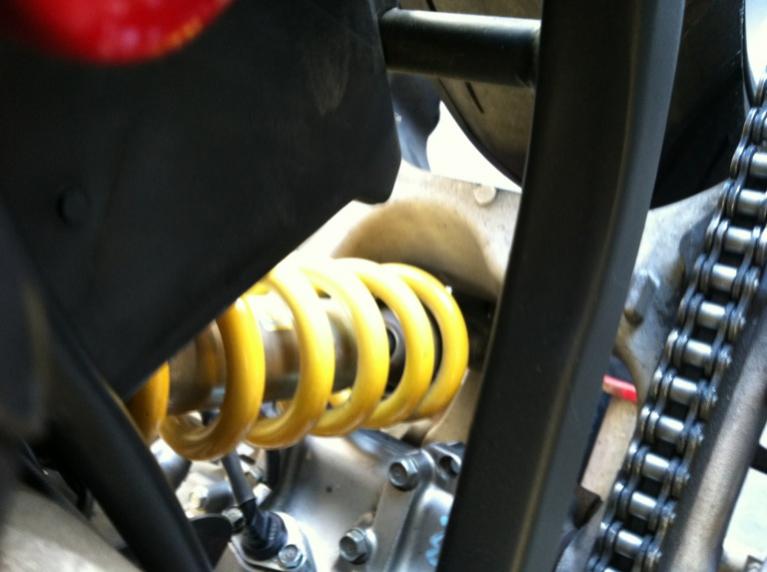

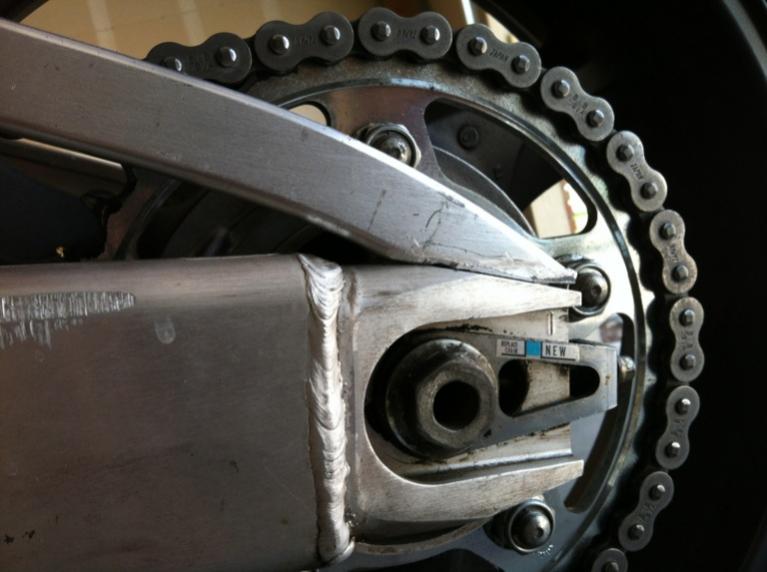

more again....
Attached Thumbnails
James' 2001 Honda VTR1000 Build-img_5334-large.jpg   James' 2001 Honda VTR1000 Build-img_5335-large.jpg   James' 2001 Honda VTR1000 Build-img_5336-large.jpg   James' 2001 Honda VTR1000 Build-img_5337-large.jpg   James' 2001 Honda VTR1000 Build-img_5338-large.jpg

thedeatons is offline   Reply With Quote
Old 08-12-2013, 07:00 PM   #8
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road

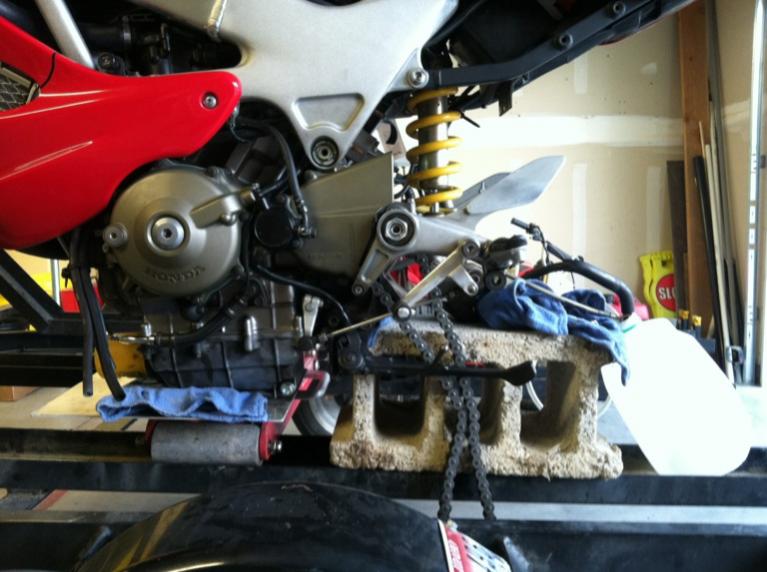

even more again...
Attached Thumbnails
James' 2001 Honda VTR1000 Build-img_5348-large.jpg   James' 2001 Honda VTR1000 Build-img_5349-large.jpg   James' 2001 Honda VTR1000 Build-img_5350-large.jpg   James' 2001 Honda VTR1000 Build-img_5351-large.jpg   James' 2001 Honda VTR1000 Build-img_5352-large.jpg

thedeatons is offline   Reply With Quote
Old 08-12-2013, 07:00 PM   #9
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road

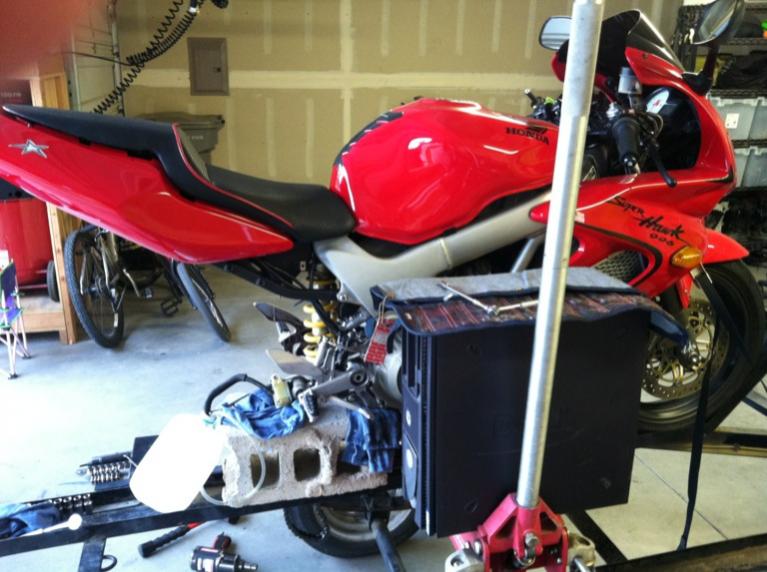

Last ones for today...
Attached Thumbnails
James' 2001 Honda VTR1000 Build-img_5353-large.jpg
thedeatons is offline   Reply With Quote
Old 08-12-2013, 07:04 PM   #10
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road

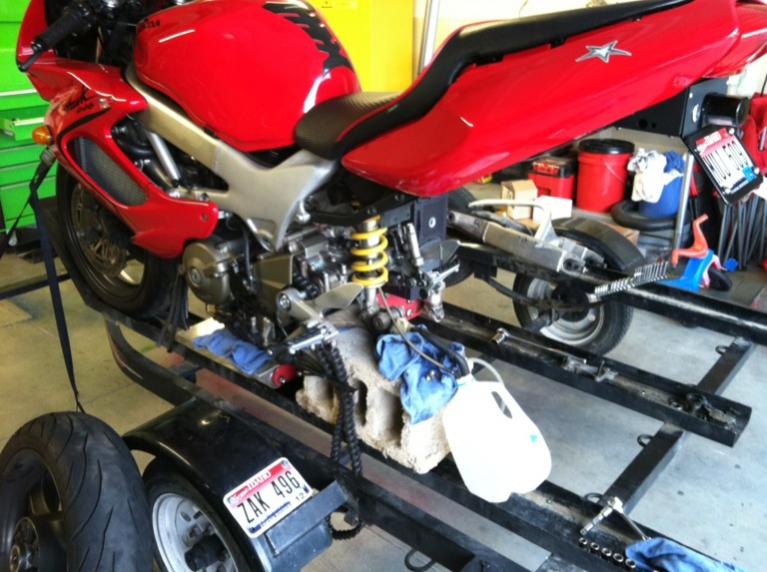

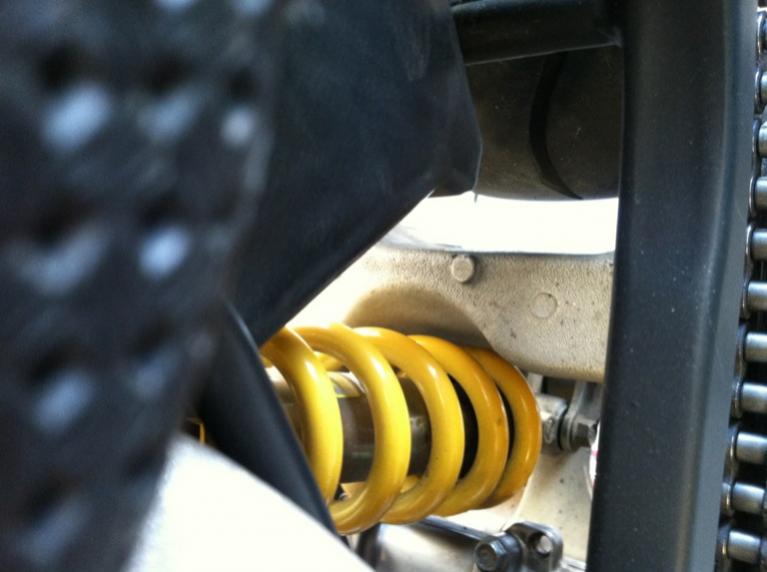

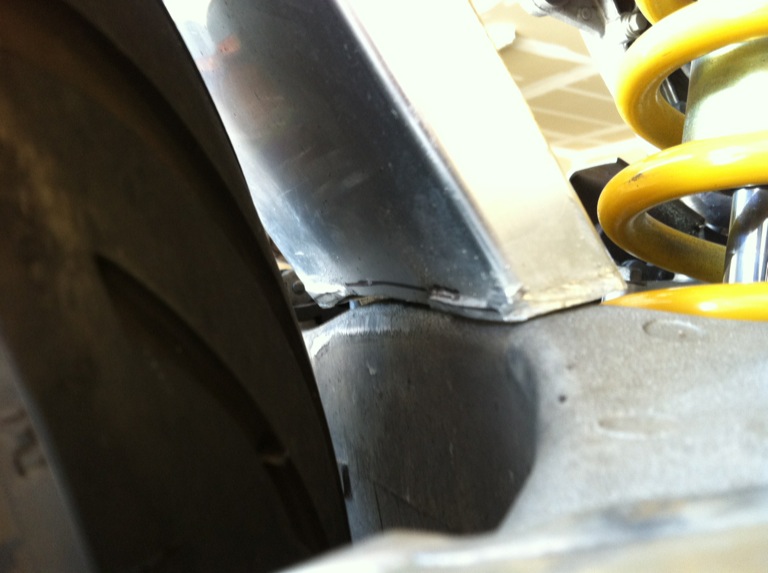

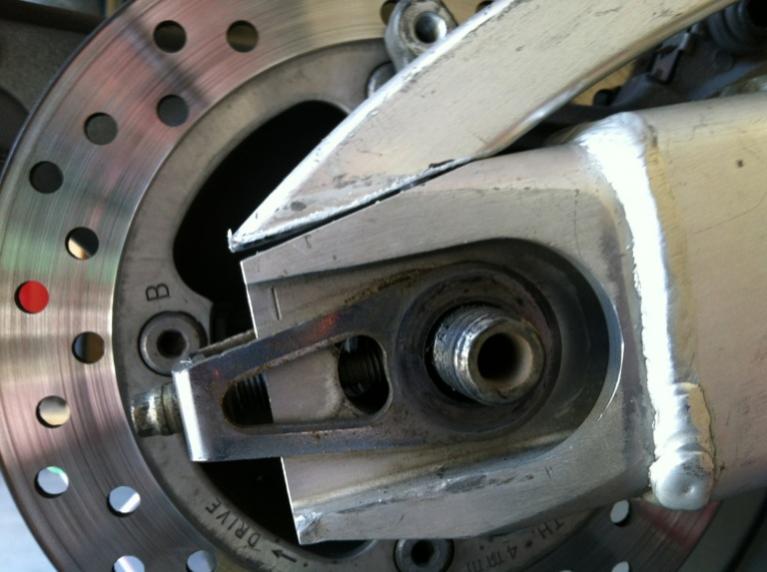

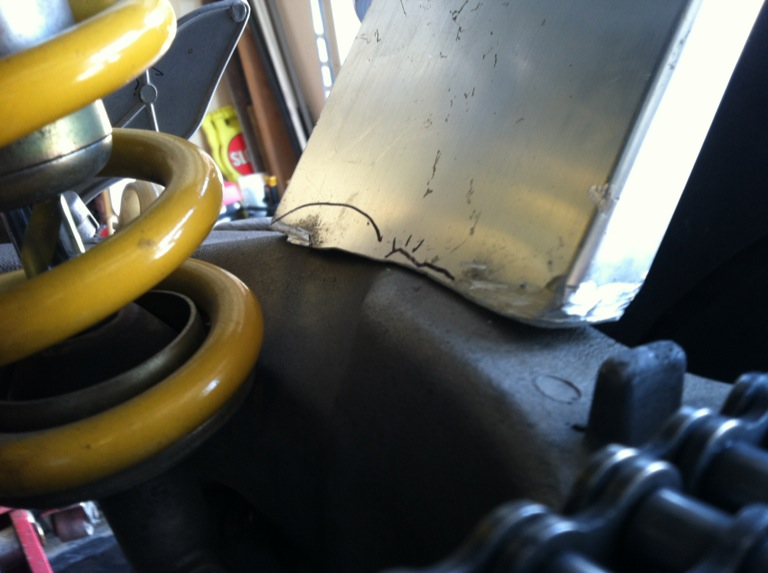

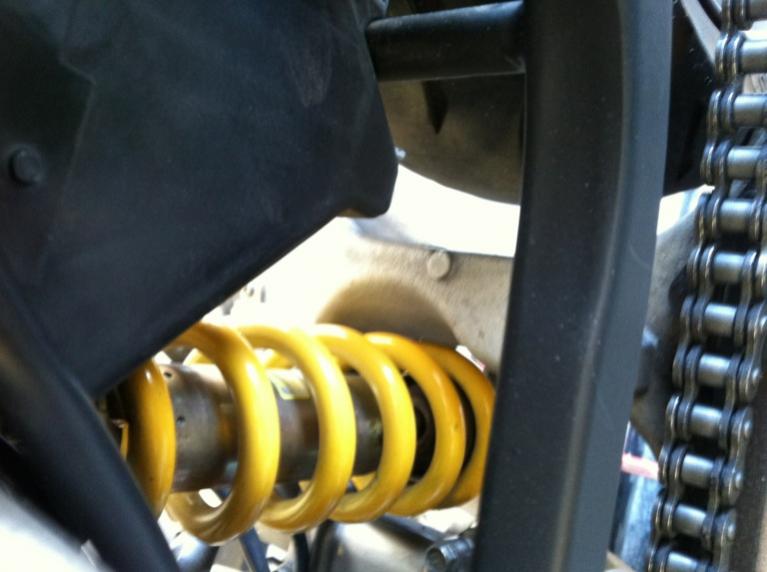

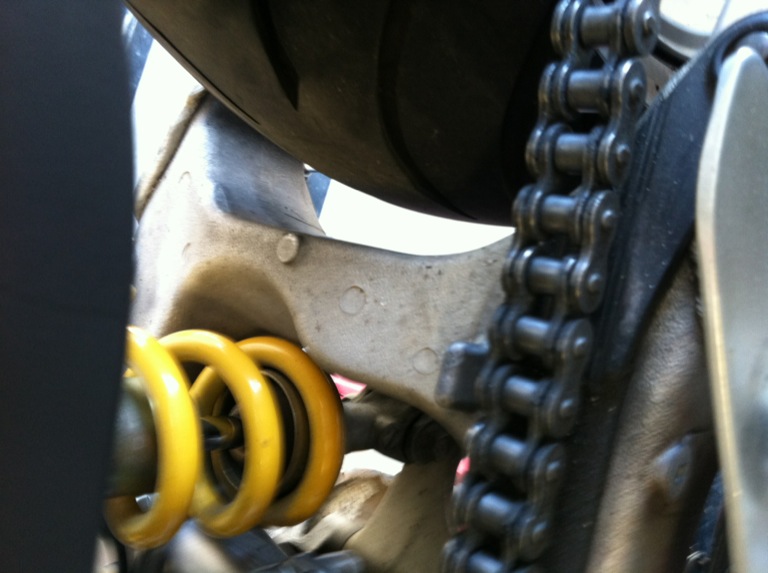

I showed all the pics of the rear shock/spring/swingarm to illustrate that there is no way the 900RR brace can really hit the shock. The tire hits the plastic undertail before the shock gets anywhere near the brace area.

In fact, from the factory the front-inside of the swingarm is hitting the yellow spring (down inside almost to the lower shock mount)... I'll flap-disc it a bit to give some clearance.

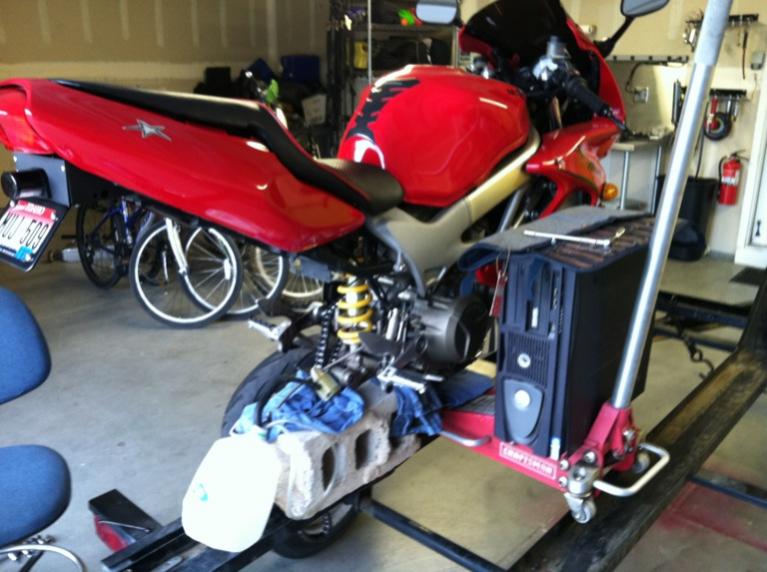

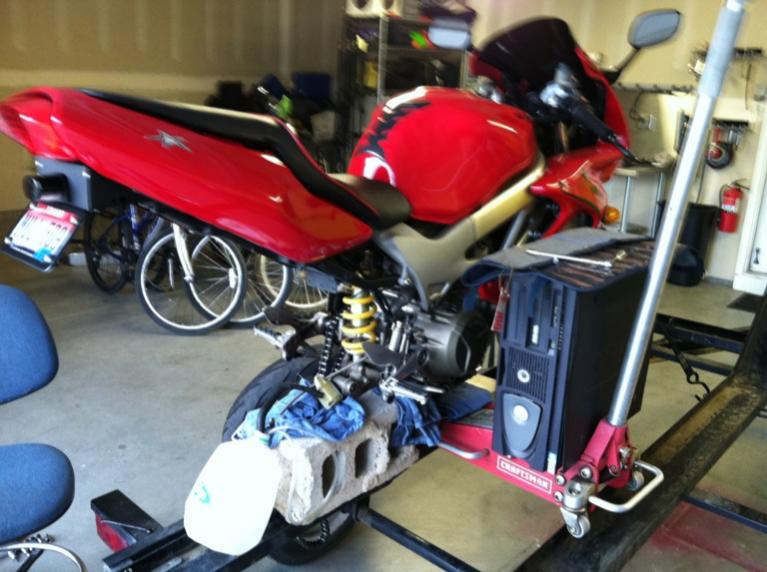

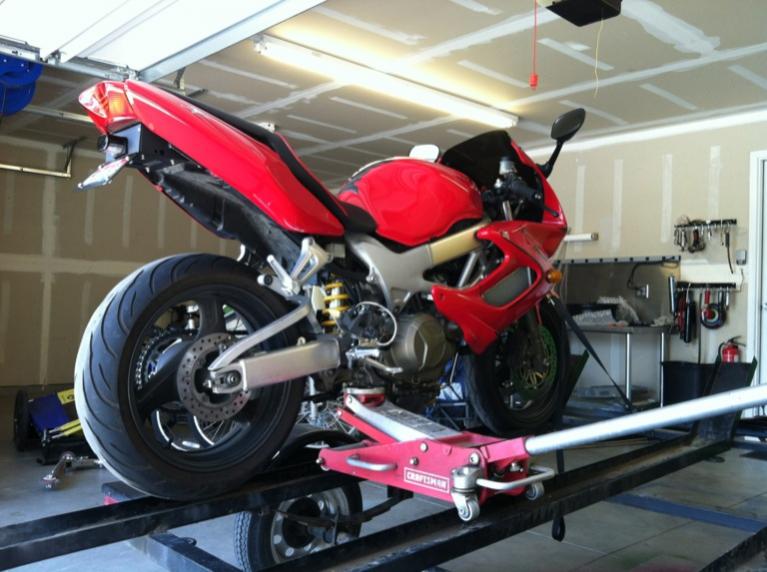

I'm a bit shamed that I am using a floor jack, on a trailer, with a Dell computer to counterweight the jack, and finally resting the dogbone of the bike on a cinder block.... sigh.... It was the only way I could remove the rear end. The good news is the front straps are really helping to triangulate everything and keep it stable.

Hopefully late next week the swingarm will be ready for reinstall

James
thedeatons is offline   Reply With Quote
Old 08-12-2013, 07:49 PM   #11
Senior Member
SuperSport

Join Date: Apr 2013
Posts: 972
jerryh is on a distinguished road
Wow nice work. Dell computers are excelkent counterweights
jerryh is offline   Reply With Quote
Old 08-18-2013, 07:20 PM   #12
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road

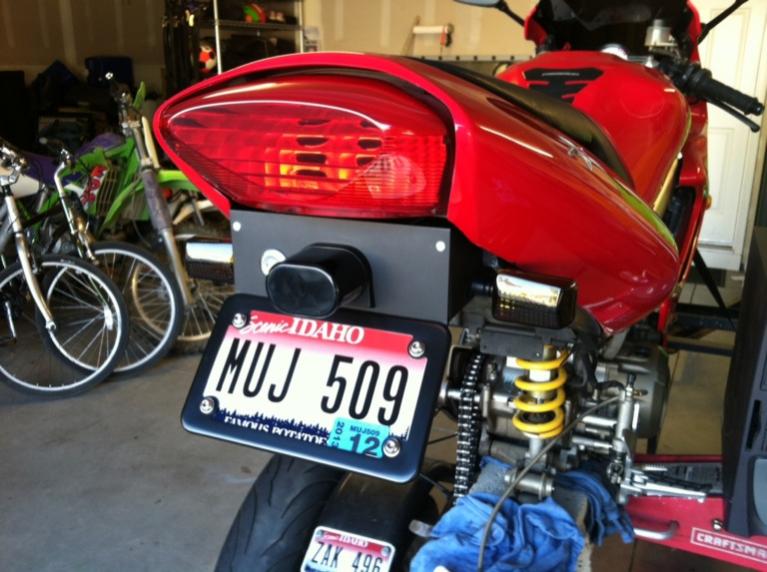

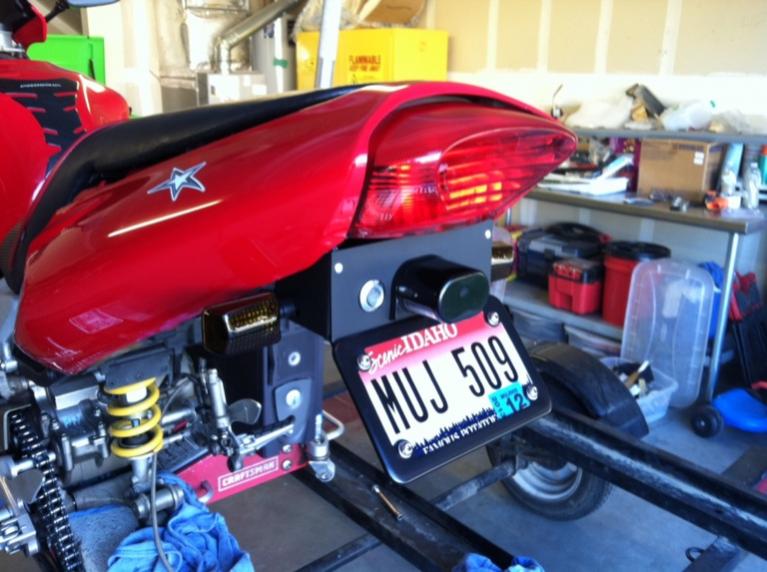

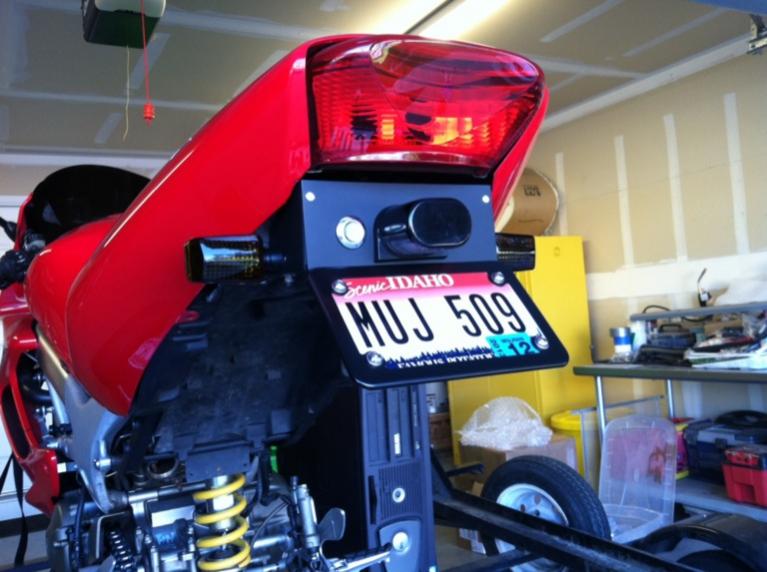

Updates! Got the new rear turn signals all soldered up, and tightened down. (LP USA Short Stalk 1)
Attached Thumbnails
James' 2001 Honda VTR1000 Build-photo-1-large.jpg   James' 2001 Honda VTR1000 Build-photo-2-large.jpg   James' 2001 Honda VTR1000 Build-photo-3-large.jpg
thedeatons is offline   Reply With Quote
Old 08-18-2013, 07:22 PM   #13
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road

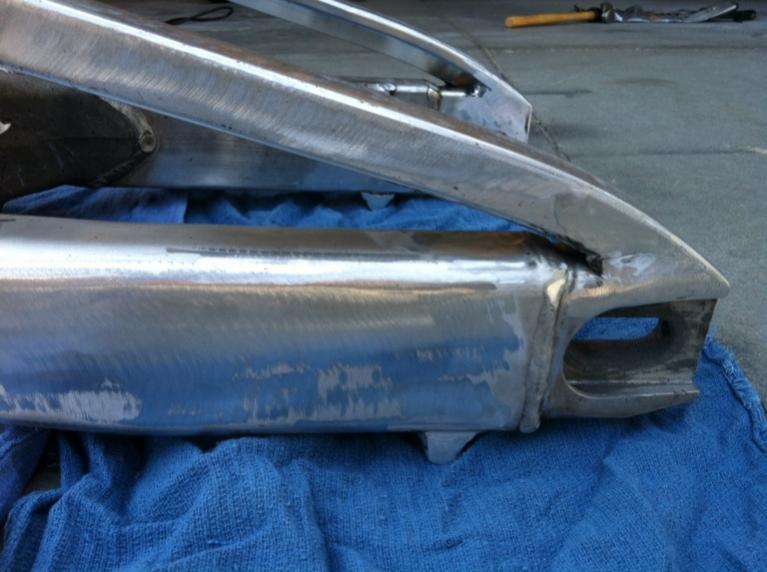

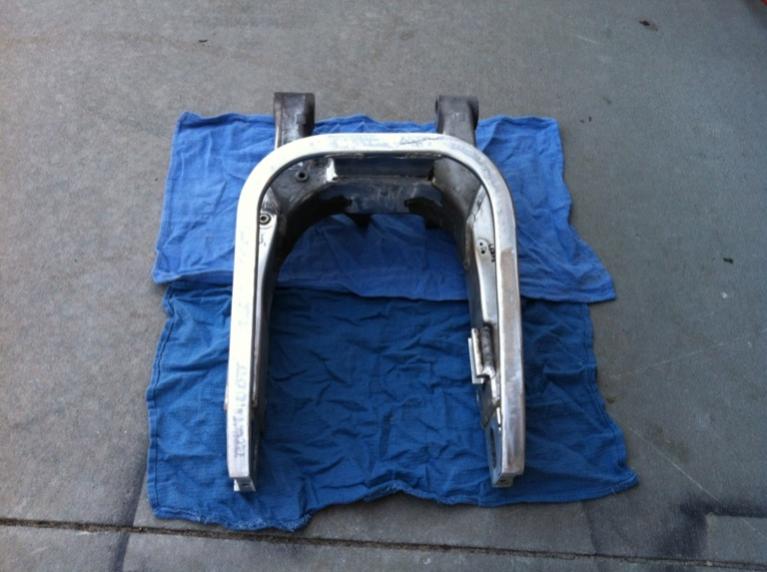

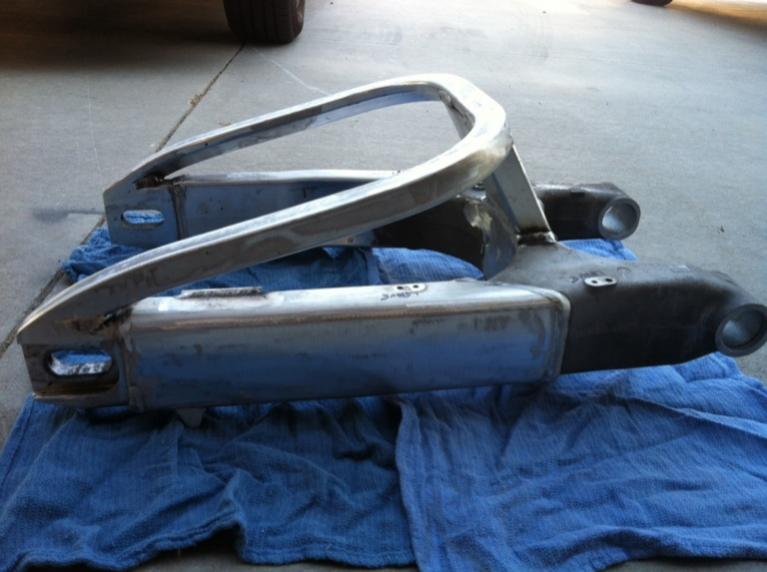

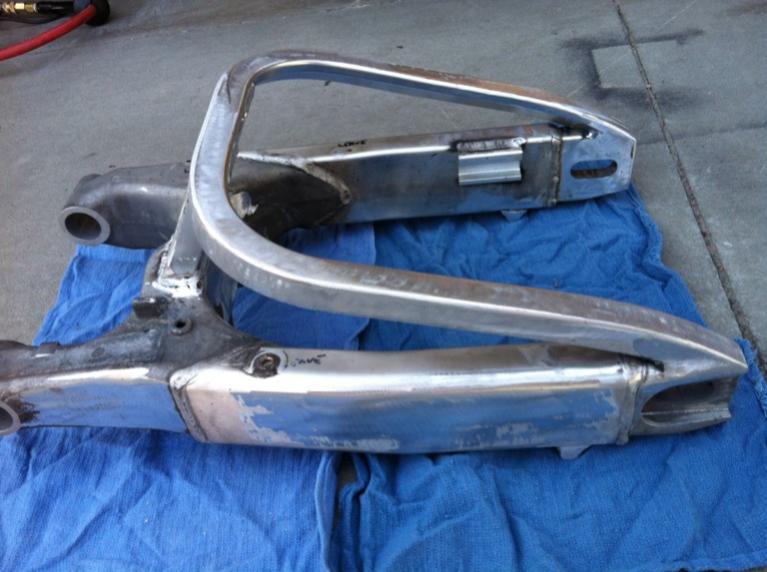

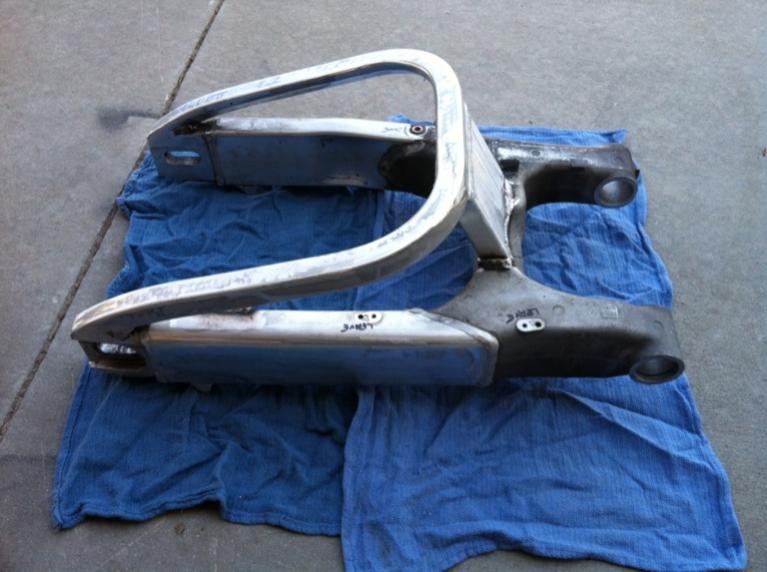

Swingarm pics.... RR brace mounted, welded. A good friend of mine used his Lincoln MIG wirefeed (aluminum, using Argon) to set this up for me. The welds looked good, but I decided to smooth them out.

Going to powdercoat tomorrow....

James
Attached Thumbnails
James' 2001 Honda VTR1000 Build-photo-1-1-large.jpg   James' 2001 Honda VTR1000 Build-photo-2-1-large.jpg   James' 2001 Honda VTR1000 Build-photo-3-1-large.jpg   James' 2001 Honda VTR1000 Build-photo-4-large.jpg   James' 2001 Honda VTR1000 Build-photo-5-large.jpg

thedeatons is offline   Reply With Quote
Old 08-18-2013, 07:36 PM   #14
Senior Member
Superstock

KCCO's Avatar

Join Date: Apr 2013
Location: SF Bay Area
Posts: 466
KCCO is on a distinguished road
Great thread! I know it can sometimes be disheartening to keep posting with no response from the community but the work looks great and it's we some to see someone do their own work instead of farm it out to a shop. Keep it up!
KCCO is offline   Reply With Quote
Old 08-18-2013, 07:48 PM   #15
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Thank you!

Just wanted to share what I have been doing. I really enjoy doing the work myself. It's a nice, small project. Dunno when I will get to the frame, maybe over the winter. I'm just super anxious to ride it at this point

Gotta start getting rid of the extra parts soon. I think a for sale thread is in order...

James
thedeatons is offline   Reply With Quote
Old 08-19-2013, 01:29 AM   #16
Senior Member
SuperBike

Join Date: Oct 2007
Location: Menifee, CA
Posts: 1,082
HRCA#1 is on a distinguished road
Nice build, I was wondering about a black subframe. I have one that I got awhile back but haven't installed yet, now I thing I will.
HRCA#1 is offline   Reply With Quote
Old 08-19-2013, 08:15 AM   #17
Senior Member
Superstock

FTL900's Avatar

Join Date: Apr 2013
Location: Seattle
Posts: 250
FTL900 is on a distinguished road
That's great!! I may be borrowing from some of your ideas!!
FTL900 is offline   Reply With Quote
Old 08-19-2013, 11:47 AM   #18
Thread Killer
SuperBike

Join Date: Apr 2013
Location: Geneseo, IL
Posts: 1,510
VTR1000F is on a distinguished road
Looking good. Now you have me thinking about a flat black subframe.

It looks like clearance will be an issue for the rear brake caliper. What are you going to do there, or am I wrong?
VTR1000F is offline   Reply With Quote
Old 08-19-2013, 01:02 PM   #19
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
900rr rear caliper bracket )

James
thedeatons is offline   Reply With Quote
Old 08-19-2013, 01:48 PM   #20
Senior Member
SuperBike

Wicky's Avatar

Join Date: Sep 2008
Location: Essex, UK
Posts: 1,543
Wicky is on a distinguished road
Are you changing out the standard CCTs?

Wicky is offline   Reply With Quote
Old 08-19-2013, 02:05 PM   #21
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
I'd like to, but dont think i have room in my budget right now...
thedeatons is offline   Reply With Quote
Old 08-19-2013, 02:20 PM   #22
Senior Member
SuperBike

Wicky's Avatar

Join Date: Sep 2008
Location: Essex, UK
Posts: 1,543
Wicky is on a distinguished road
Wicky is offline   Reply With Quote
Old 08-19-2013, 03:15 PM   #23
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Scare tactics don't work on me

The bike has 30,000 miles on it. I seriously doubt they will go out in the next 2 months before winter....

I'll do it over the winter.
thedeatons is offline   Reply With Quote
Old 08-19-2013, 03:22 PM   #24
Senior Member
SuperBike

Wicky's Avatar

Join Date: Sep 2008
Location: Essex, UK
Posts: 1,543
Wicky is on a distinguished road
Wicky is offline   Reply With Quote
Old 08-19-2013, 03:40 PM   #25
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Thanks for the warning. I used to own cannondales, so i'm familiar with the "replace it or it will break in the next 60 seconds" theory...

It's on the list, i'll get to it.

James
thedeatons is offline   Reply With Quote
Old 08-19-2013, 05:28 PM   #26
Thread Killer
SuperBike

Join Date: Apr 2013
Location: Geneseo, IL
Posts: 1,510
VTR1000F is on a distinguished road
Quote:
Originally Posted by thedeatons View Post
Scare tactics don't work on me

The bike has 30,000 miles on it. I seriously doubt they will go out in the next 2 months before winter....

I'll do it over the winter.
BOO!

My '99 has 23,584 miles and bent valves in the front head because I was going to wait until this winter to install manual cct's. No clacking. No ticking. No warning.

I bought a set of unistalled (never installed) Kreigers from a forum member just the other week for $50 shipped. Because it's looking more and more like I'm not going to get to my head replacement until this winter (sound familiar), I'll sell them to you (and only to thedeatons) for what I paid, $50 shipped if you're interested. I'll come up with a set for myself later.

PM me if you want them. If not, I hope you're luckier than I was.

Last edited by VTR1000F; 08-19-2013 at 06:51 PM. Reason: clarification
VTR1000F is offline   Reply With Quote
Old 09-07-2013, 01:13 PM   #27
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
New pics...

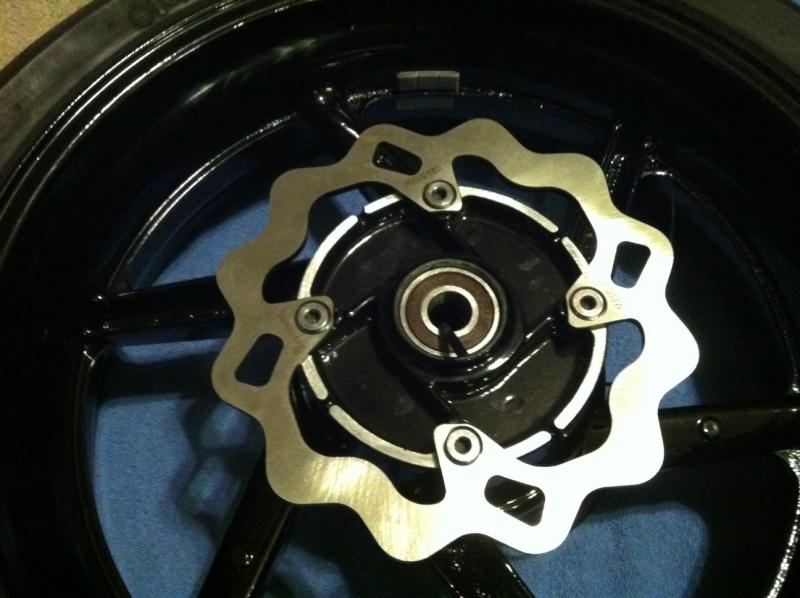

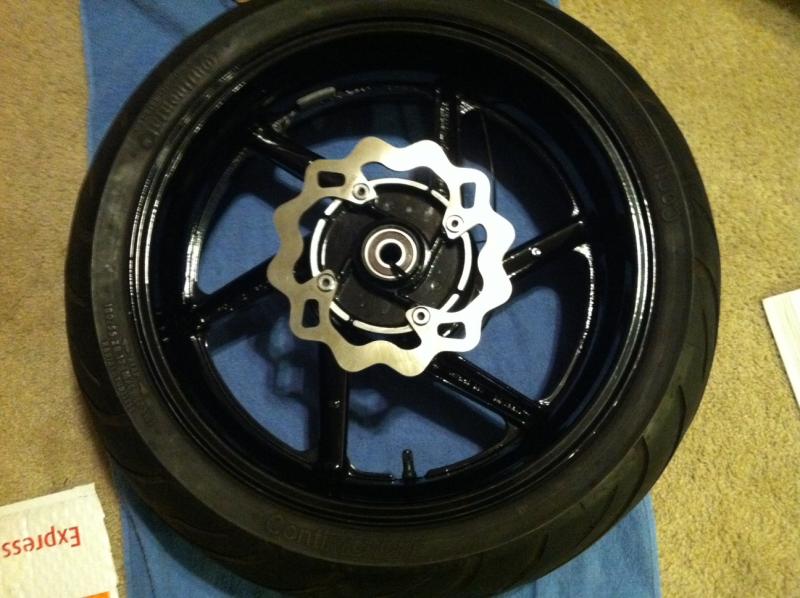

CBR900RR rear wheel, powdercoated black, with a Galfer Wave rotor.
Attached Thumbnails
James' 2001 Honda VTR1000 Build-photo-1.jpg   James' 2001 Honda VTR1000 Build-photo-2.jpg
thedeatons is offline   Reply With Quote
Old 09-07-2013, 01:17 PM   #28
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road

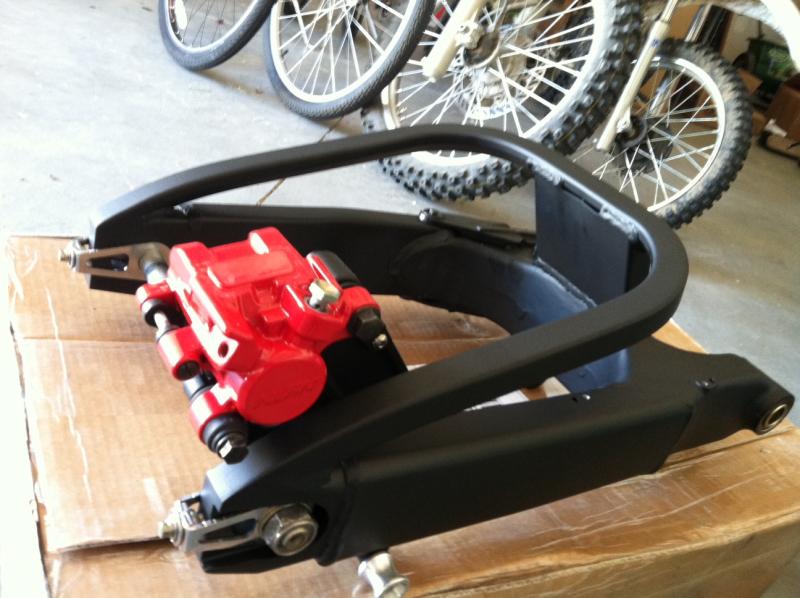

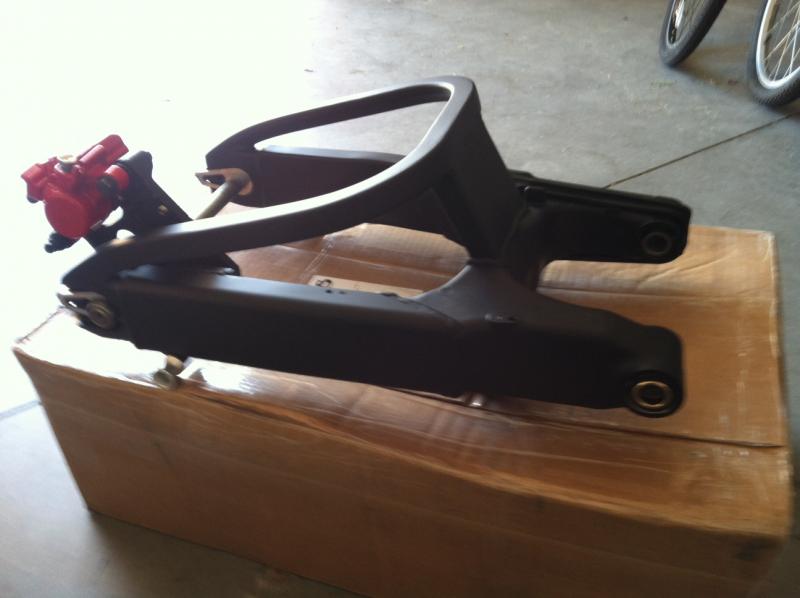

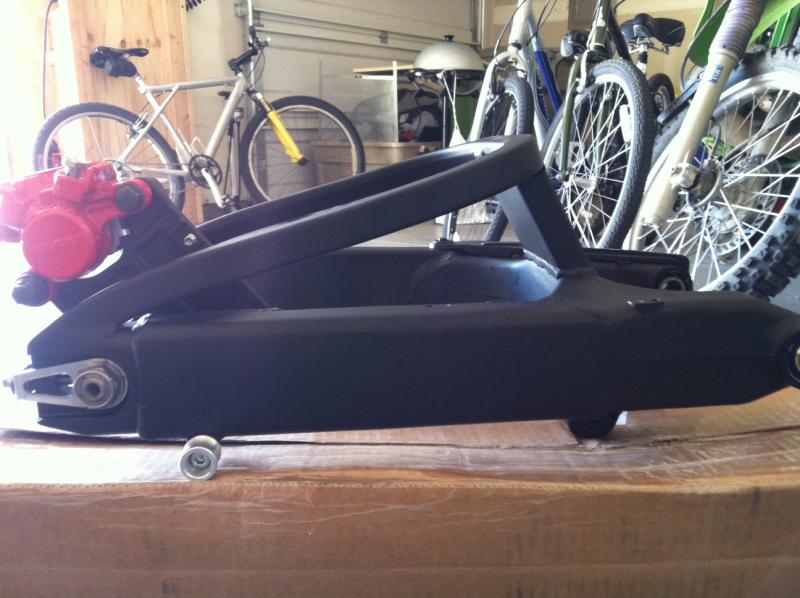

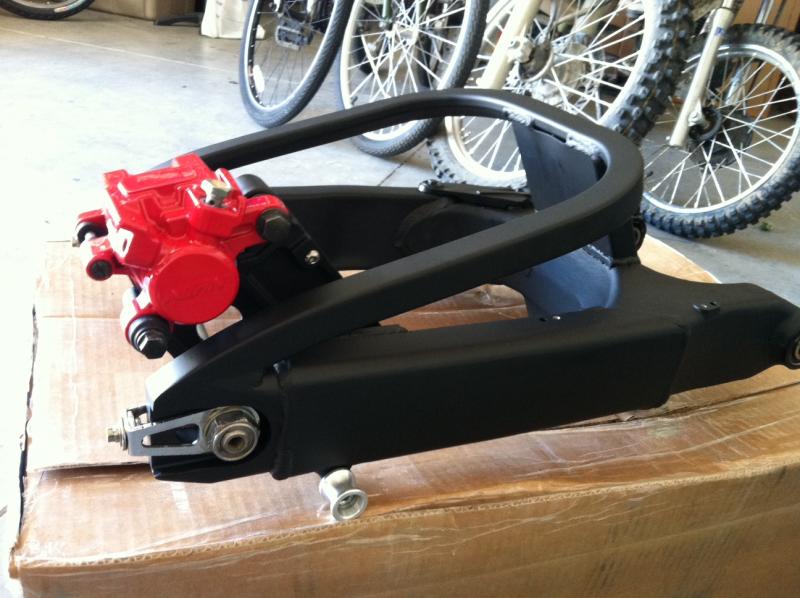

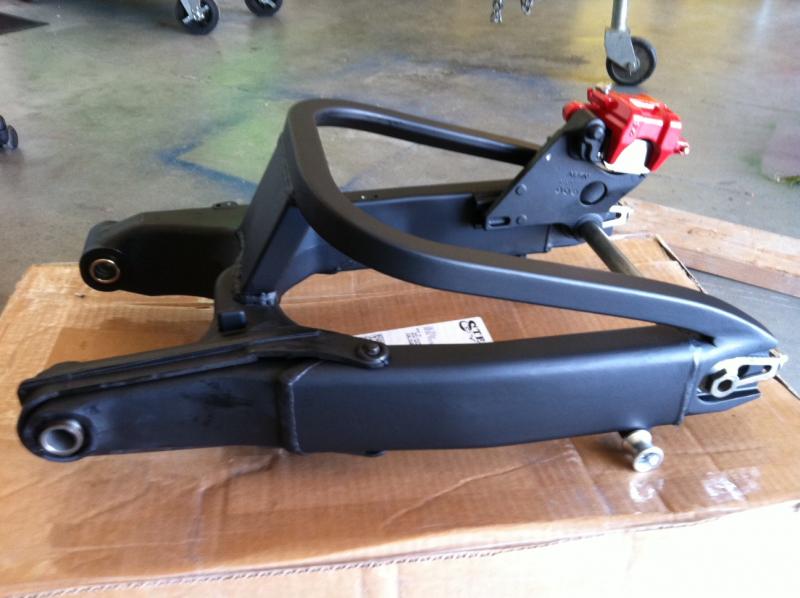

CBR900RR braced swingarm. Powdercoated flat black like the subframe. New bearings/seals. Shiny chain adjusters.

Baron Red powdercoated rear brake caliper. New seals, crush washers, bleed nipple.

CBR900RR rear brake caliper bracket. Powdercoated flat black.
Attached Thumbnails
James' 2001 Honda VTR1000 Build-photo-1-1.jpg   James' 2001 Honda VTR1000 Build-photo-2-1.jpg   James' 2001 Honda VTR1000 Build-photo-3.jpg   James' 2001 Honda VTR1000 Build-photo-4.jpg   James' 2001 Honda VTR1000 Build-photo-5.jpg

thedeatons is offline   Reply With Quote
Old 09-07-2013, 02:18 PM   #29
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,030
Wolverine is on a distinguished road
Very, very nice lookin' swinger James! I want one!
Wolverine is offline   Reply With Quote
Old 09-07-2013, 02:40 PM   #30
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Thanks! I've had these ideas kicking around in my head since I got it... There are so many things I want to do, but I decided on the rear end to start with. Over the winter I will try to do the frame.... The suspension (front & back) will come eventually. The good news is the bike doesn't need anymore power, what with the lower gearing, lightened flywheel, jetting and exhaust, so I can just tinker with other things

James
thedeatons is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
A Picture For James kenmoore General Discussion 16 12-28-2014 01:28 AM
James' For Sale Thread thedeatons Classifieds 14 09-30-2013 03:34 PM
RIP James Gandolphini Letsrideinsc Everything Else 1 06-19-2013 05:32 PM
2001 Honda VTR1000 Minneapolis sscooter Classifieds 0 02-27-2012 06:50 AM
STOLEN ***2000 Honda VTR1000 Super Hawk and 2005 Honda CBR600RR*** eersfanpilot General Discussion 17 11-15-2011 11:10 AM


Tags
1000, 98, build, de, depaired, forum, honda, james, located, pair, plates, smog, superhawk, vtr, vtr1000f

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -7. The time now is 04:21 AM.


We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
