Old 04-19-2015, 07:40 PM   #31
Senior Member
SuperBike

skokievtr's Avatar

Join Date: Jan 2007
Posts: 1,893
skokievtr is on a distinguished road
CBR600RR Coils, my result. Total investment, $30 (for 4 CBR coils and wiring harnesses & $5 for rubber grommets), and about an hours time.
Attached Thumbnails
Coil on Plug MOD-20150325_214026.jpg   Coil on Plug MOD-20150325_214044.jpg   Coil on Plug MOD-20150419_212946.jpg
skokievtr is offline   Reply With Quote
Old 04-19-2015, 07:51 PM   #32
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,634
smokinjoe73 is on a distinguished road
Skokie, I like the grommet thing you did. I did something similar with the top using some hose but the grommet is a better way to go.

Did you just pull the boots up over the coils? No grinding of the coils?
smokinjoe73 is offline   Reply With Quote
Old 04-19-2015, 08:47 PM   #33
Senior Member
SuperBike

skokievtr's Avatar

Join Date: Jan 2007
Posts: 1,893
skokievtr is on a distinguished road
Quote:
Originally Posted by smokinjoe73 View Post
Skokie, I like the grommet thing you did. I did something similar with the top using some hose but the grommet is a better way to go.

Did you just pull the boots up over the coils? No grinding of the coils?
No grinding, I kept the CBR OEM bottom rubber bit that goes over the plug. I had to buy a bag of 25 of the grommets (Granger PN 3MRN9 OR 35489-21), so I have plenty if you pay shipping. You have to cut the "flanges" off two opposite sides of the grommet flush with the OD. I slipped off the CBR OEM top rubber "sleeve" and replace it with the trimmed grommet, and cut the rubber piece shown off the VTR plug and all fits up perfecto.
skokievtr is offline   Reply With Quote
Old 04-19-2015, 09:12 PM   #34
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,634
smokinjoe73 is on a distinguished road
So its hard to see in your pic but you somehow kept the bottom rubber thing at the very bottom of the CBR coil? So you really stretched the VTR boot to get it around the coil (?)
smokinjoe73 is offline   Reply With Quote
Old 04-20-2015, 08:46 AM   #35
Senior Member
SuperBike

skokievtr's Avatar

Join Date: Jan 2007
Posts: 1,893
skokievtr is on a distinguished road
Quote:
Originally Posted by smokinjoe73 View Post
So its hard to see in your pic but you somehow kept the bottom rubber thing at the very bottom of the CBR coil? So you really stretched the VTR boot to get it around the coil (?)

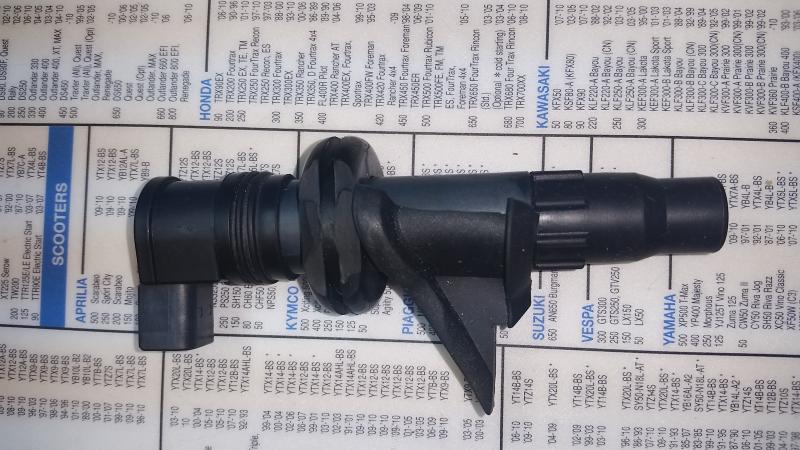

See photos. Rubber grommet & modified VTR bit not yet secured with 3M HT adhesive/sealant.
Attached Thumbnails
Coil on Plug MOD-20150420_104008.jpg   Coil on Plug MOD-20150420_104017.jpg   Coil on Plug MOD-20150420_104027.jpg
skokievtr is offline   Reply With Quote
Old 02-02-2017, 02:58 PM   #36
Member
Squid

jefejrs's Avatar

Join Date: Jun 2009
Location: Beaverton, OR
Posts: 93
jefejrs is on a distinguished road
Hey all,

Getting ready to tackle this mod over the weekend.. Reading though the posts I didn't see if anyone did any weatherproofing to the electrical connection on top. Any concerns about moisture at this connection? I would think the rear would be safe but the front cylinder seems like it could get wet? Also any concerns about soldering the different gauge wires? Resistance issues, heating etc... I hate when I cause problems fixing things that aren't broken. I seem to excel at this... thanks for any input.
jefejrs is offline   Reply With Quote
Old 02-02-2017, 07:18 PM   #37
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 3,447
E.Marquez is on a distinguished road
Quote:
Originally Posted by jefejrs View Post
Hey all,

Getting ready to tackle this mod over the weekend.. Reading though the posts I didn't see if anyone did any weatherproofing to the electrical connection on top. Any concerns about moisture at this connection? I would think the rear would be safe but the front cylinder seems like it could get wet? Also any concerns about soldering the different gauge wires? Resistance issues, heating etc... I hate when I cause problems fixing things that aren't broken. I seem to excel at this... thanks for any input.
Little bit of Dielectric silicone in the connector is all that is needed
E.Marquez is offline   Reply With Quote
Old 02-02-2017, 07:55 PM   #38
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,634
smokinjoe73 is on a distinguished road
I had a ton of arcing in heavy rain until I redid the boots. Both front and back (it was a downpour)

I think there may be another thread I put up about the diff between the 600 and 1000rr coils.

Its not as easy as it seems in the sense that you really need to make them waterproof. Even if you think you wont ride in the rain. It will lead to great unhappiness if they are not completely waterproof.
E.Marquez likes this.
smokinjoe73 is offline   Reply With Quote
Old 02-03-2017, 05:33 AM   #39
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 3,447
E.Marquez is on a distinguished road
Quote:
Originally Posted by smokinjoe73 View Post
I had a ton of arcing in heavy rain until I redid the boots. Both front and back (it was a downpour)

I think there may be another thread I put up about the diff between the 600 and 1000rr coils.

Its not as easy as it seems in the sense that you really need to make them waterproof. Even if you think you wont ride in the rain. It will lead to great unhappiness if they are not completely waterproof.
Joe as I don't doubt your observation... Im trying to understand what went wrong with yours and why it acted differently then how I did mine?

You can see pics above on how I cut up the OEM boots and installed them on the stick coils,,and it has worked perfectly in drenching rain, cold and Texas summer...
So what was different from my install on yours and what does this "re work" mean?

Last edited by E.Marquez; 02-03-2017 at 05:37 AM.
E.Marquez is offline   Reply With Quote
Old 02-03-2017, 10:20 PM   #40
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,634
smokinjoe73 is on a distinguished road
Erik you don't remember this secondary thread we had? https://www.superhawkforum.com/forum...ap-redo-33107/
E.Marquez likes this.
smokinjoe73 is offline   Reply With Quote
Old 02-04-2017, 04:25 AM   #41
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 3,447
E.Marquez is on a distinguished road
Quote:
Originally Posted by smokinjoe73 View Post
Erik you don't remember this secondary thread we had? https://www.superhawkforum.com/forum...ap-redo-33107/
Bud, I have my name embroidered on my work shirts for a reason....embroidered Upside down and backwards as well.. folks think its a logo,,,but really it is so I can remember my name.........lol
E.Marquez is offline   Reply With Quote
Old 02-04-2017, 08:40 AM   #42
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,634
smokinjoe73 is on a distinguished road
I am just glad you said shirt and not underwear.
smokinjoe73 is offline   Reply With Quote
