VTR motor picture request
07-11-2013, 06:34 PM
#1
Moderator
MotoGP
Thread Starter
Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 5,072
VTR motor picture request
Hey all, in need a picture of the superhawk motor for a project.
I'm looking for line art style of the twin. Not the parts diagram, but an assembled drawing. Can anyone help? Higher res the better. TIA
I'm looking for line art style of the twin. Not the parts diagram, but an assembled drawing. Can anyone help? Higher res the better. TIA
07-11-2013, 08:29 PM
#2
Rex Kramer-Thrill Seeker
SuperBike
Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
I know you're looking for line art, but if needed, I can take whatever picture you need of my spare engine, then maybe you can do it yourself?. It's on a stand, so I can get pretty much any angle you need. Just throwing it out there for ya.
07-12-2013, 01:37 AM
#4
Senior Member
SuperBike
Join Date: Sep 2008
Location: Essex, UK
Posts: 1,707
07-12-2013, 09:29 AM
#8
Senior Member
Superstock
Join Date: May 2012
Location: UK
Posts: 397
I have an Illustrator file I started with highly detailed layered parts of the chassis. I was intending of doing the engine as well but never got around to it.

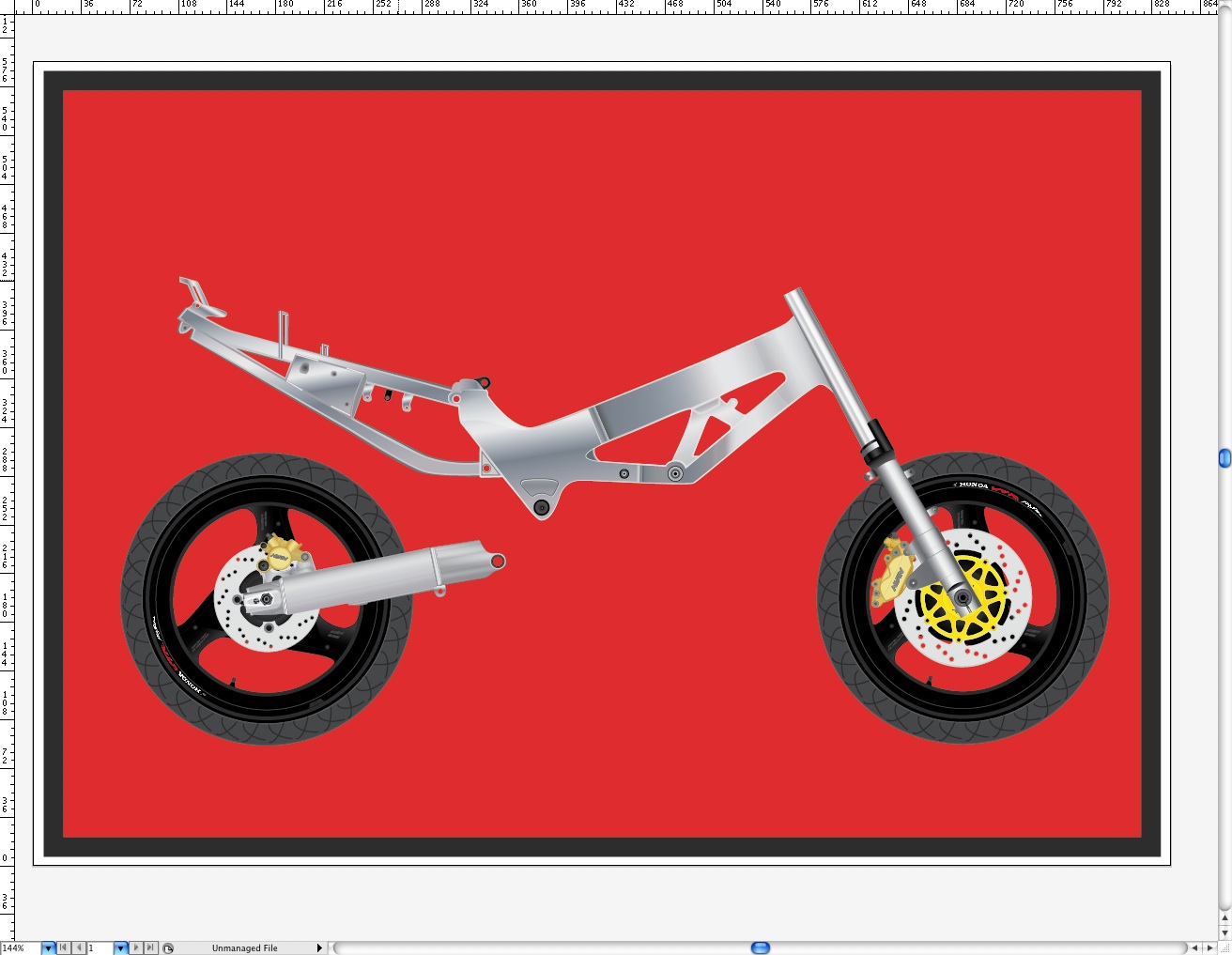

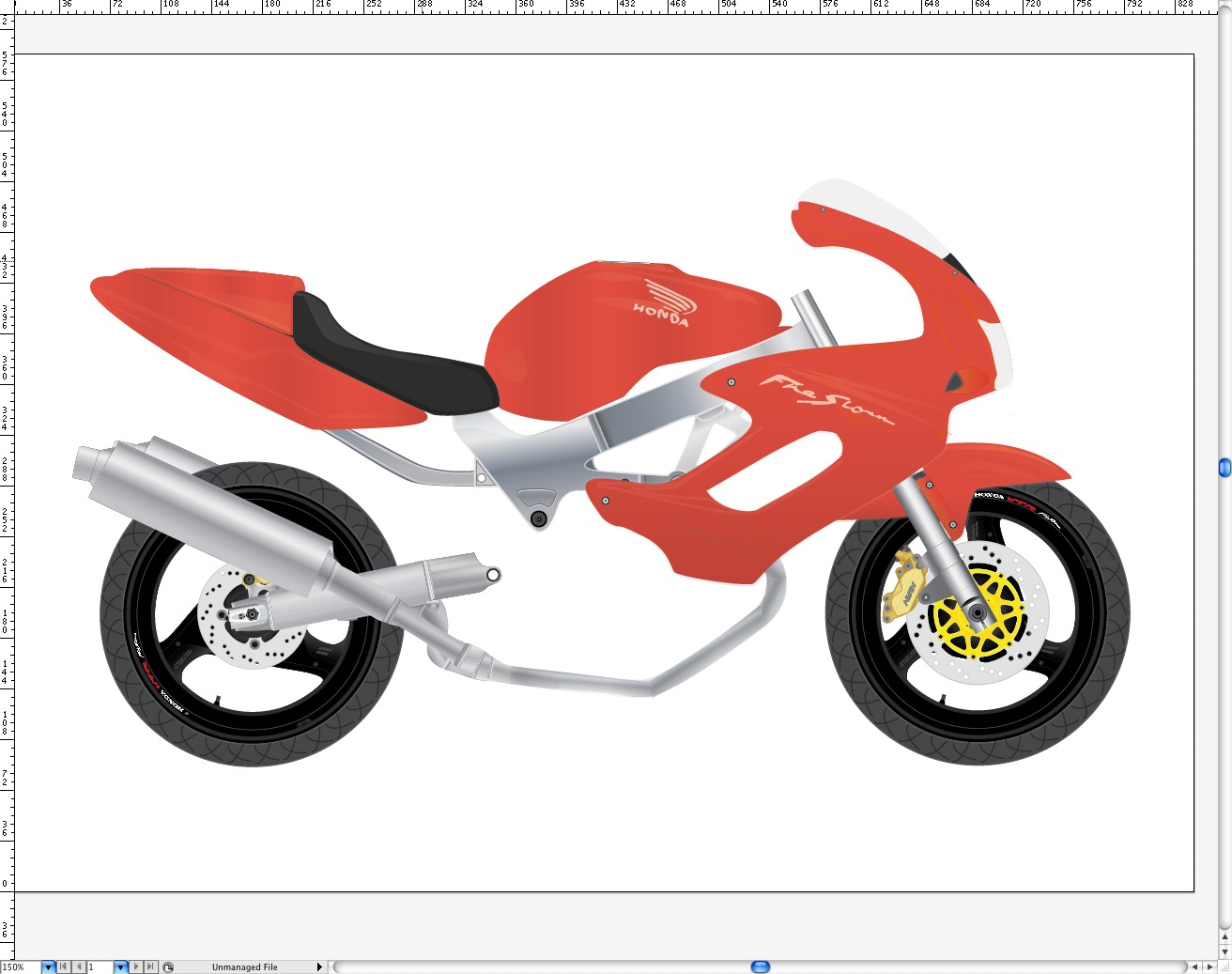

Here's jpeg of what is done so far.
I used the rear wheel as an avatar at one stage.
Maybe one day I shall get around to completing it but it's a lot of work especially when it comes to making every little nut and bolt LOL It's easier to rebuild the real thing. LOL
(:-})
Here's jpeg of what is done so far.
I used the rear wheel as an avatar at one stage.
Maybe one day I shall get around to completing it but it's a lot of work especially when it comes to making every little nut and bolt LOL It's easier to rebuild the real thing. LOL
(:-})
Last edited by cybercarl; 07-12-2013 at 09:33 AM.
