Picture request, stock header & rear shock linkage.
Can someone grab a few pics of the area between the stock header & rear shock links for me please?
I'm trying to fab a unit prolink style setup so I'll have to lower the entire shock assembly significantly but I'm not sure if there is enough space the dogbones and the exhaust collector. I'm using a CBR1000RR shock and it's not that much shorter than stock at 333mm. If there isn't I'll to switch to a different setup.

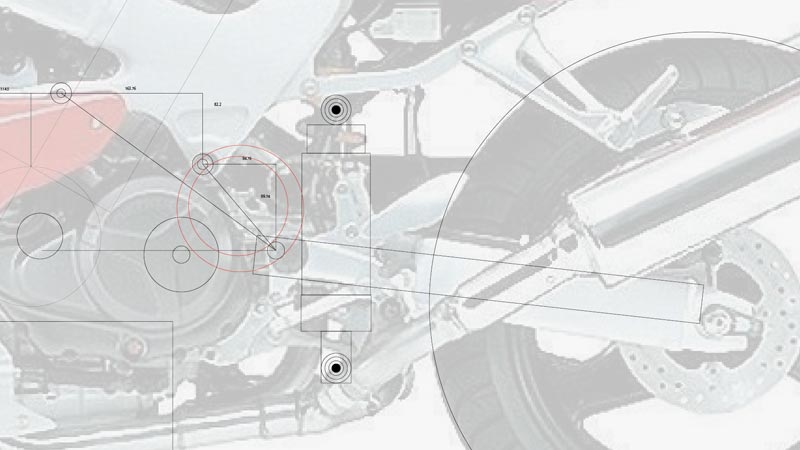

My bike is fully dismantled at the moment so all I have to go by is this lo-res pic I grabbed off google superimposed over my drawings. Doesn't look like there is a lot of space in there.
Help please.
I'm trying to fab a unit prolink style setup so I'll have to lower the entire shock assembly significantly but I'm not sure if there is enough space the dogbones and the exhaust collector. I'm using a CBR1000RR shock and it's not that much shorter than stock at 333mm. If there isn't I'll to switch to a different setup.
My bike is fully dismantled at the moment so all I have to go by is this lo-res pic I grabbed off google superimposed over my drawings. Doesn't look like there is a lot of space in there.
Help please.
