Got some unobtanium
04-04-2016, 06:59 PM
#34
Rex Kramer-Thrill Seeker
SuperBike
Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312

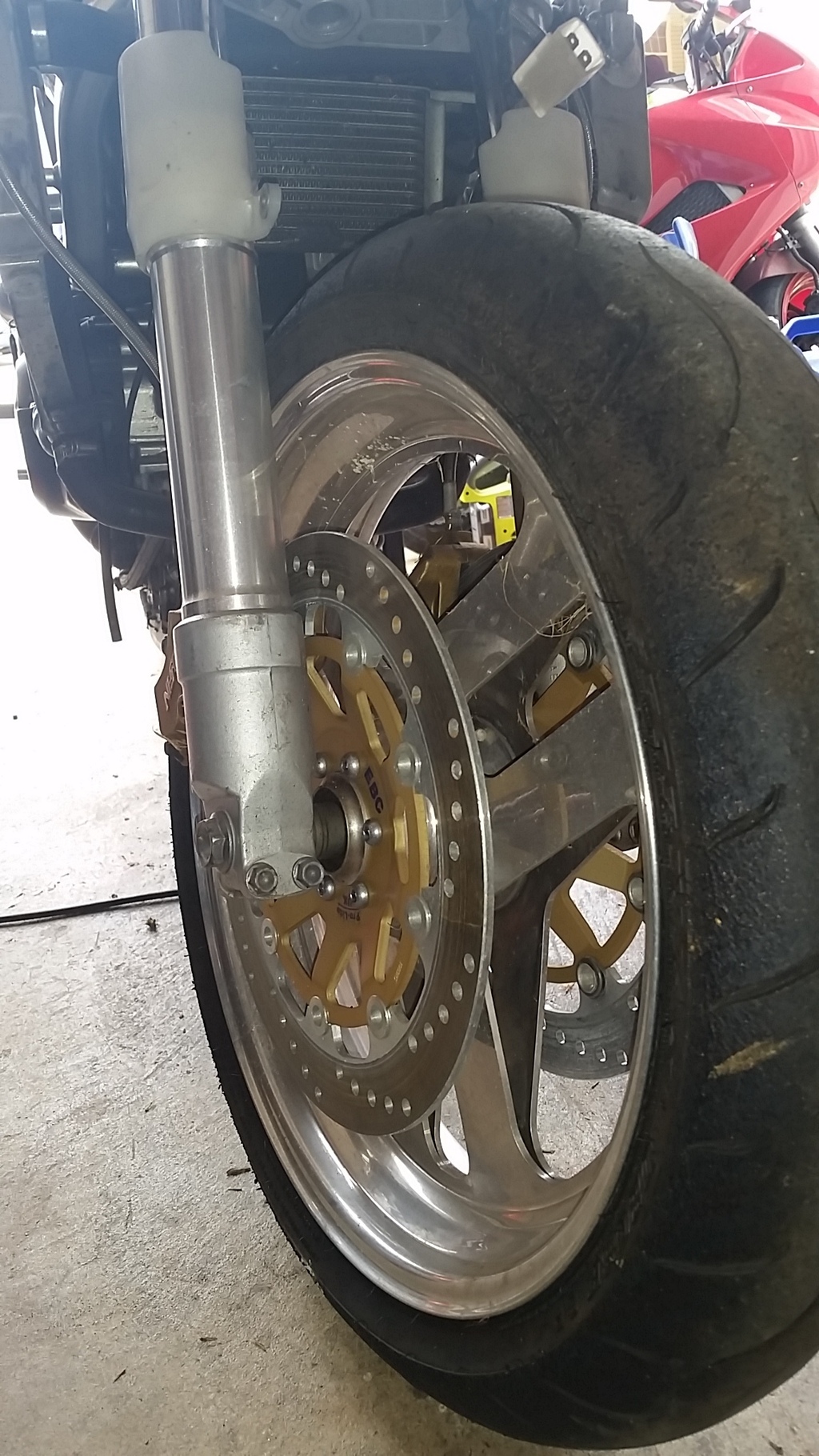

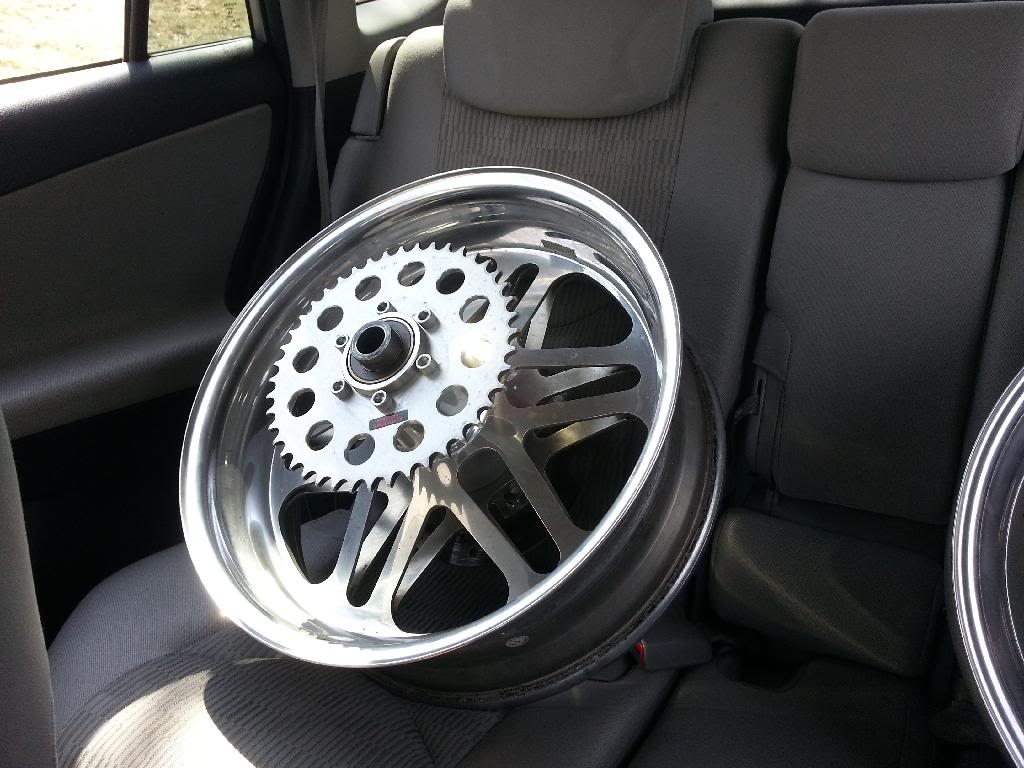

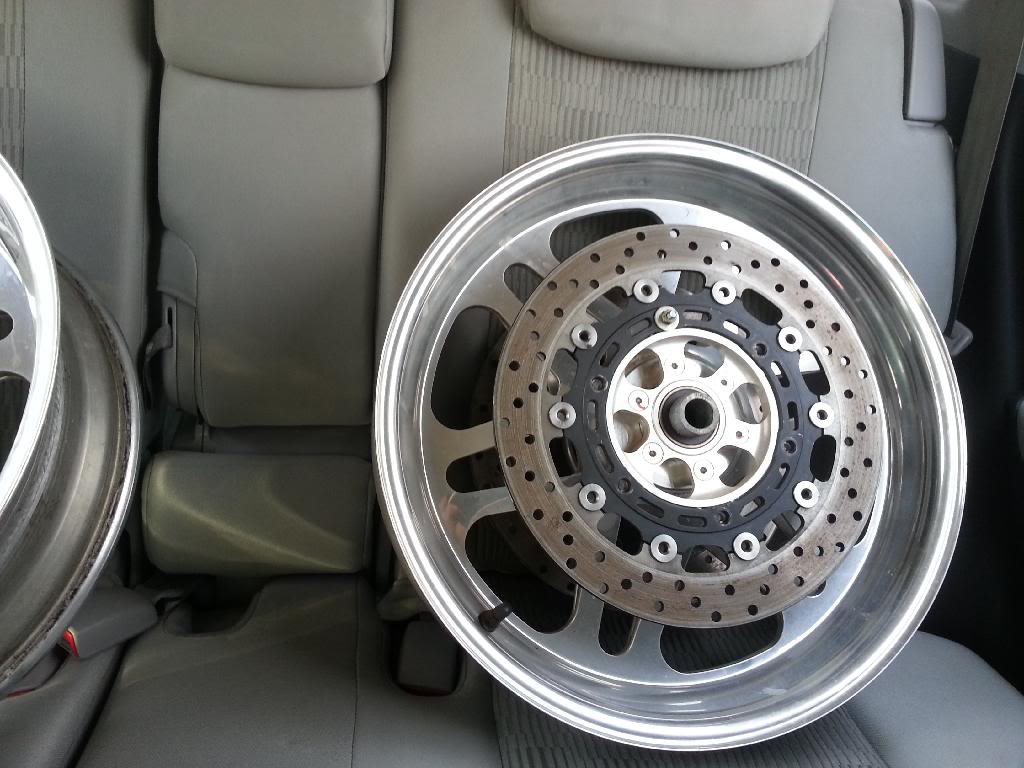

I got some similar RC Component wheels. Haven't fitted them up since the rear doesn't have a cush drive. I figured out how to fix that issue, but before I got the items to fix that issue, I got myself some 6 spokes and powder coated them. I still want to powder coat the RC Component wheels white and install them after the cush drive issue is fixed.
Did I see you mention that you are using this bike as a donor bike? Are you parting this art piece out?
Did I see you mention that you are using this bike as a donor bike? Are you parting this art piece out?
Last edited by CruxGNZ; 04-04-2016 at 07:01 PM.
04-05-2016, 12:06 AM
#36
Pew Pew...lasers
Superstock
Thread Starter
Join Date: Jun 2007
Location: Alexandria, Va.
Posts: 311
I got some similar RC Component wheels. Haven't fitted them up since the rear doesn't have a cush drive. I figured out how to fix that issue, but before I got the items to fix that issue, I got myself some 6 spokes and powder coated them. I still want to powder coat the RC Component wheels white and install them after the cush drive issue is fixed.
Did I see you mention that you are using this bike as a donor bike? Are you parting this art piece out?
Did I see you mention that you are using this bike as a donor bike? Are you parting this art piece out?
04-05-2016, 11:24 AM
#40
Pew Pew...lasers
Superstock
Thread Starter
Join Date: Jun 2007
Location: Alexandria, Va.
Posts: 311
04-05-2016, 12:28 PM
#41
Rex Kramer-Thrill Seeker
SuperBike
Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312

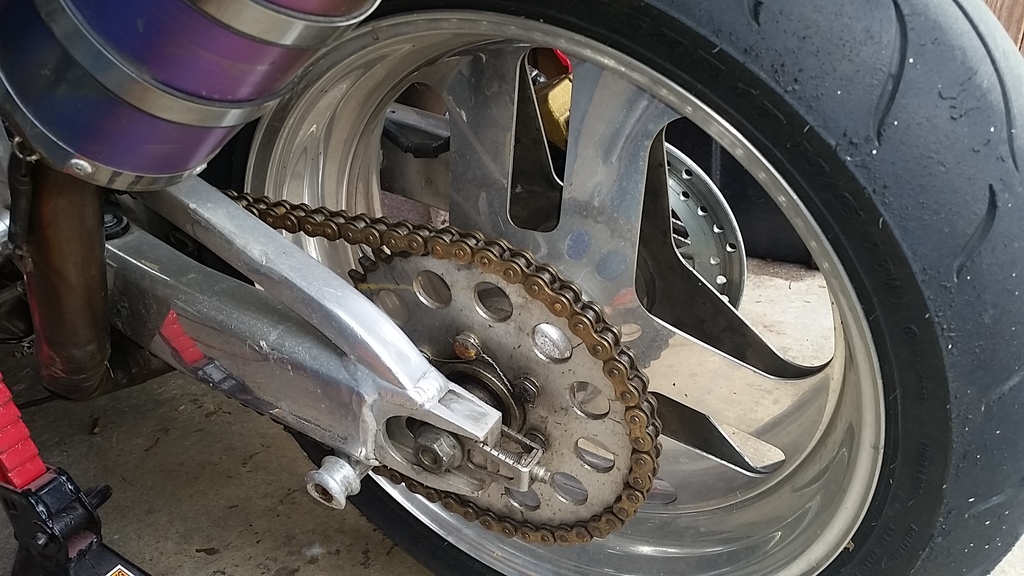

Oh yeah, I see you have no cush drive either. I figured out that Ducati cush drive parts and an adapter would fix the issue. I have the adapter penciled out, but never got all the measurements.
I actually just ran into a guy when I bought my TIG welder last month, that can make the adapter for me. He works exclusively on motorcycles too, so he was into it. I got his contact information for when I want to tackle the adapter.
The Ducati parts were this:
Ducati Monster Rear Hub Cush Drive Sprocket S006919 101B M900 TT TT1 TT2 Ahrma | eBay
and the rubber "cush" parts
http://www.ebay.com/itm/Genuine-Duca...9IJ03nC8HeyVpA
Lets see if this picture posts. The Ducati cush drive that would be adapted looks similar to the one pictured, although the one pictured below is for a single sided swingarm.
RC Component did in fact make a cush drive for thier wheels. I did spend some time searching for one and for the life of me, I couldn't find one. I was told I would be better off making one.
I actually just ran into a guy when I bought my TIG welder last month, that can make the adapter for me. He works exclusively on motorcycles too, so he was into it. I got his contact information for when I want to tackle the adapter.
The Ducati parts were this:
Ducati Monster Rear Hub Cush Drive Sprocket S006919 101B M900 TT TT1 TT2 Ahrma | eBay
and the rubber "cush" parts
http://www.ebay.com/itm/Genuine-Duca...9IJ03nC8HeyVpA
Lets see if this picture posts. The Ducati cush drive that would be adapted looks similar to the one pictured, although the one pictured below is for a single sided swingarm.
RC Component did in fact make a cush drive for thier wheels. I did spend some time searching for one and for the life of me, I couldn't find one. I was told I would be better off making one.
Last edited by CruxGNZ; 04-05-2016 at 01:49 PM. Reason: Info
04-05-2016, 12:53 PM
#42
Senior Member
SuperSport
Join Date: Apr 2014
Location: Auckland, new Zealand
Posts: 932

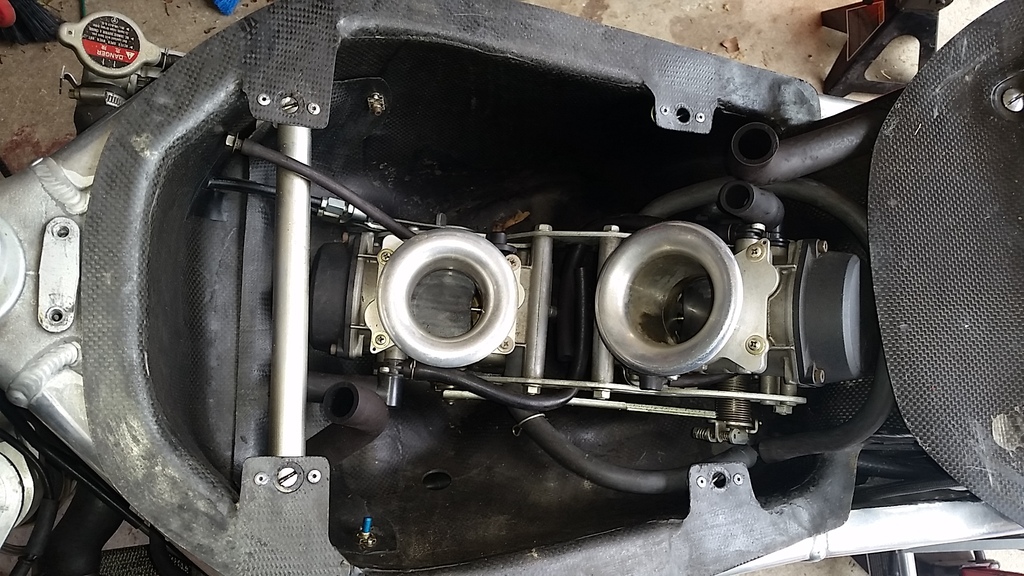

Is it a Ram air bike?
If so, if you ever have the carbs off and stripped Im sure a few would like to have close up photos and and carb setup specs...... You know, just if you are bored some day. LOL
If so, if you ever have the carbs off and stripped Im sure a few would like to have close up photos and and carb setup specs...... You know, just if you are bored some day. LOL
04-05-2016, 01:44 PM
#43
Senior Member
Back Marker
Join Date: Nov 2013
Location: Los Angeles, CA
Posts: 171
04-05-2016, 03:12 PM
#44
Pew Pew...lasers
Superstock
Thread Starter
Join Date: Jun 2007
Location: Alexandria, Va.
Posts: 311
Yes it is set up for ram air. Carbs are one thing I don't have the confidence to mess with. Plus the guy I got from said he recently did service on them. Sorry I'm a chicken ****. Hahaha.
04-06-2016, 02:18 AM
#46
Thread Killer
SuperBike
Join Date: Apr 2013
Location: Geneseo, IL
Posts: 2,017
Yeah taskmasta. Get hot. I think going into this purchase you should have recognized you owed this community a comprehensive, well documented tear down detailing every modification, component and fastener with lots and lots of pictures, a thoroughly researched history and some type of abstract of the why's and wherefores.
One does not simply buy this for themselves. Not and tell this board about it anywho.
One does not simply buy this for themselves. Not and tell this board about it anywho.
Last edited by VTR1000F; 04-06-2016 at 08:52 PM.
04-06-2016, 08:37 PM
#47
Pew Pew...lasers
Superstock
Thread Starter
Join Date: Jun 2007
Location: Alexandria, Va.
Posts: 311
Yeah taskmasta. Get hot. I think going into this purchase you should have recognized you owed this community a comprehensive, we'll documented tear down detailing every modification, component and fastener with lots and lots of pictures, a thoroughly researched history and some type of abstract of the why's and wherefores.
One does not simply buy this for themselves. Not and tell this board about it anywho.
One does not simply buy this for themselves. Not and tell this board about it anywho.
04-06-2016, 08:51 PM
#48
Thread Killer
SuperBike
Join Date: Apr 2013
Location: Geneseo, IL
Posts: 2,017
Again with this Roger Ditchfield guy. What a random segue. I've had a SuperHawk for over two years, my buddy owned it for several years before me and my screen name is VTR1000F fer crissake. Whadda ya wanna know?
The one thing I don't know, did it come as pictured or did you get any bodywork with it?
The one thing I don't know, did it come as pictured or did you get any bodywork with it?
04-08-2016, 10:28 AM
#49
Pew Pew...lasers
Superstock
Thread Starter
Join Date: Jun 2007
Location: Alexandria, Va.
Posts: 311
Some words from Rodger.
Thank you for the additional photos and info
I am almost certain that this is an ST2 racebike which definitely makes it pretty rare.
I also think that it was originally built by me in my workshop in the UK.
It would be interesting to find out how it got to the US and previous owners. If you could get that info I may be able to tell you more about it.
I am still trying to contact the guys who have the spare ram air set ups. I will get hold of them soon.
Regarding the carbs, Moriwaki made special magnesium carbs for the ST2 &ST3 complete with special jet kits. You may well have a set on your bike but not every customer bought the carbs as they were expensive. They are like gold dust and sell for far more than you have paid for the whole bike!! If you can show me some close up photos of the needles I can tell you if you have Moriwaki carbs. I am looking for markings just below the top of the needle which will read either Q, Q1 or Q2. The fact that the carbs have the Moriwaki aluminium air velocity stacks points to the fact they are Mori carbs. The Moriwaki airbox does not require an air filter. The last set of these carbs that came on the market fetched more than $2000.00 USD!!
I built four ST2 bikes that competed in the British Superbike “Production” (now Superstock) under “Holiday 18/30” sponsorship and one of these bikes is unaccounted for at the moment
Thank you for the additional photos and info
I am almost certain that this is an ST2 racebike which definitely makes it pretty rare.
I also think that it was originally built by me in my workshop in the UK.
It would be interesting to find out how it got to the US and previous owners. If you could get that info I may be able to tell you more about it.
I am still trying to contact the guys who have the spare ram air set ups. I will get hold of them soon.
Regarding the carbs, Moriwaki made special magnesium carbs for the ST2 &ST3 complete with special jet kits. You may well have a set on your bike but not every customer bought the carbs as they were expensive. They are like gold dust and sell for far more than you have paid for the whole bike!! If you can show me some close up photos of the needles I can tell you if you have Moriwaki carbs. I am looking for markings just below the top of the needle which will read either Q, Q1 or Q2. The fact that the carbs have the Moriwaki aluminium air velocity stacks points to the fact they are Mori carbs. The Moriwaki airbox does not require an air filter. The last set of these carbs that came on the market fetched more than $2000.00 USD!!
I built four ST2 bikes that competed in the British Superbike “Production” (now Superstock) under “Holiday 18/30” sponsorship and one of these bikes is unaccounted for at the moment
04-08-2016, 12:03 PM
#50
Rex Kramer-Thrill Seeker
SuperBike
Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
I just read about these special carbs. Apparently, these carbs were almost identical to stock carbs, except for the fact they were made from magnesium for light weight. I read these were mostly hand made pieces and the reason they were so expensive. I think those were Roger's words that I read on the UK site. I'll search for a link for you to read it as well.
04-08-2016, 12:12 PM
#51
Senior Member
Back Marker
Join Date: Nov 2013
Location: Los Angeles, CA
Posts: 171
I just read about these special carbs. Apparently, these carbs were almost identical to stock carbs, except for the fact they were made from magnesium for light weight. I read these were mostly hand made pieces and the reason they were so expensive. I think those were Roger's words that I read on the UK site. I'll search for a link for you to read it as well.
any closeup pictures of the carbs will tell if they were die made. I'd imagine the "handmade" sections are rather than a machine doing the through work on holes within the carb bodies like on the production Superhawk line, a single person did these sets of carbs
Last edited by ren; 04-08-2016 at 12:15 PM.
04-08-2016, 12:55 PM
#52
Rex Kramer-Thrill Seeker
SuperBike
Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
I found the information from Roger D. back on 8/28/12
The Moriwaki carbs were magnesium bodies for lightness but are identical to the production carb bodies and they had spun aluminium air stacks (funnels) instead of the plastic OEM ones. They also had different needles, slide springs (heavier) and jet sizes but that is all. They were HUGELY expensive as they were virtually hand made and I actually do have a set with additional jet and needle kit in stock but the Moriwaki Recommended Retail Price is £1250.00 GBP!!!!! It is very unlikely that I will ever sell them!!
*** Using the Standard OEM carbs with a Dynojet Kit you can achieve the same performance especially as you have already got Aluminium air stacks.
*** Using the Standard OEM carbs with a Dynojet Kit you can achieve the same performance especially as you have already got Aluminium air stacks.
