Technical Discussion Topics related to Technical Issues

SH sick!

Thread Tools

Search this Thread

Old Jul 31, 2009 | 08:01 AM
  #1
bcwood's Avatar
Thread Starter
Member
Squid

Joined: Jun 2009
Posts: 35
From: Denver, CO
bcwood is on a distinguished road
SH sick!

Went out for my ride this morning, won't start! Turns over. :-( Where do I begin?

Last edited by bcwood; Jul 31, 2009 at 08:04 AM.
Old Jul 31, 2009 | 08:15 AM
  #2
motojoe's Avatar
Sexual Daredevil
SuperSport

Joined: Sep 2005
Posts: 597
From: Mother Earth- orbiting around Charlotte, NC. But now over the border in S.C.
motojoe is an unknown quantity at this point
Power
Fuel
Fire
Compression
Old Jul 31, 2009 | 08:42 AM
  #3
Little_Horse's Avatar
2nd mouse gets the cheese
SuperBike

Joined: Jan 2008
Posts: 1,697
From: Beaverton, OR
Little_Horse is on a distinguished road
and or kill switch...
Old Jul 31, 2009 | 08:59 AM
  #4
lazn's Avatar
Senior Member
MotoGP

Joined: Mar 2007
Posts: 3,132
From: Phoenix, AZ
lazn is on a distinguished road
or side stand switch
Old Jul 31, 2009 | 09:41 AM
  #5
JamieDaugherty's Avatar
Senior Member
SuperBike

Joined: Aug 2005
Posts: 1,864
From: Fort Wayne, IN
JamieDaugherty is on a distinguished road
Kill switch ON? That was also the first thing I thought of.

The sidestand switch is easy to check: put the stand up and if the 'S' light goes out then the switch is ok. Also, with the bike in neutral and the stand down it will still start.
Old Jul 31, 2009 | 09:44 AM
  #6
swordfish's Avatar
Senior Member
SuperSport
SuperSport

Joined: May 2005
Posts: 809
From: North Wales, PA
swordfish is an unknown quantity at this point
Originally Posted by JamieDaugherty
Kill switch ON? That was also the first thing I thought of.
me too. everybody needs to check the dumbass button at some point.
Old Jul 31, 2009 | 09:48 AM
  #7
JamieDaugherty's Avatar
Senior Member
SuperBike

Joined: Aug 2005
Posts: 1,864
From: Fort Wayne, IN
JamieDaugherty is on a distinguished road
Originally Posted by swordfish
me too. everybody needs to check the dumbass button at some point.
Yeah, it's happened to us all.
Old Jul 31, 2009 | 11:49 AM
  #8
bcwood's Avatar
Thread Starter
Member
Squid

Joined: Jun 2009
Posts: 35
From: Denver, CO
bcwood is on a distinguished road
kill switch OK, cleaned air filter, replaced spark plugs, and crossing my fingers...
Old Jul 31, 2009 | 12:02 PM
  #9
bcwood's Avatar
Thread Starter
Member
Squid

Joined: Jun 2009
Posts: 35
From: Denver, CO
bcwood is on a distinguished road
No go. I don't know how to tell if its getting fuel or spark. I can tell by the sound that nothing is gonna happen, no slight sign of firing.

Last edited by bcwood; Jul 31, 2009 at 12:06 PM.
Old Jul 31, 2009 | 12:25 PM
  #10
Little_Horse's Avatar
2nd mouse gets the cheese
SuperBike

Joined: Jan 2008
Posts: 1,697
From: Beaverton, OR
Little_Horse is on a distinguished road
start by checking fuses, if the was a electrical issue as sudden as this it is a good idea to start here. Then check your kill switch and sidestand switch to make sure they actually work. You will need a multimeter if you don't have one already, its just about the only way to troubleshoot electrical issues. Start with the obvious and report back.

What I mean by that is I believe you when you say the switch is set to run, but that doesn't mean its not faulty.
Old Jul 31, 2009 | 01:00 PM
  #11
bcwood's Avatar
Thread Starter
Member
Squid

Joined: Jun 2009
Posts: 35
From: Denver, CO
bcwood is on a distinguished road
Checked spark - at least on the front cylinder - looks like its there. So that seems to rule out electrical. Checked fuses as well. So maybe a fuel problem? Funny, one of the fuel hoses was totally filled with gas when I took the tank off. Don't know if its getting to the carburetors.

Considering pushing it 7 miles to the nearest Honda dealer.
Old Jul 31, 2009 | 02:52 PM
  #12
pigwings's Avatar
Senior Member
Superstock

Joined: Dec 2004
Posts: 367
From: Independence, Oregon
pigwings
dead

did you check the main fuse? have to pull the rear plastic off............

Originally Posted by bcwood
Checked spark - at least on the front cylinder - looks like its there. So that seems to rule out electrical. Checked fuses as well. So maybe a fuel problem? Funny, one of the fuel hoses was totally filled with gas when I took the tank off. Don't know if its getting to the carburetors.

Considering pushing it 7 miles to the nearest Honda dealer.
Old Jul 31, 2009 | 05:20 PM
  #13
nuhawk's Avatar
Senior Member
MotoGP

Joined: Sep 2006
Posts: 4,138
From: Austin, Tx
nuhawk is on a distinguished road
Originally Posted by bcwood
Checked spark - at least on the front cylinder - looks like its there. So that seems to rule out electrical. Checked fuses as well. So maybe a fuel problem? Funny, one of the fuel hoses was totally filled with gas when I took the tank off. Don't know if its getting to the carburetors.

Considering pushing it 7 miles to the nearest Honda dealer.
Wait a minute, you have had the tank off?????

If yes, you need to check all your connections to the tank are proper. The most common error is people connecting the little tube to the lower nipple on the petcock without looking for the proper connection farther back. After you take the tank off a couple - three times, then you get it. It's just a vac line but it's got to be in the right hole.

she said.
Old Jul 31, 2009 | 05:38 PM
  #14
drew_c14's Avatar
Senior Member
SuperBike

Joined: Mar 2007
Posts: 2,455
From: Williamsburg, VA
drew_c14 is on a distinguished road

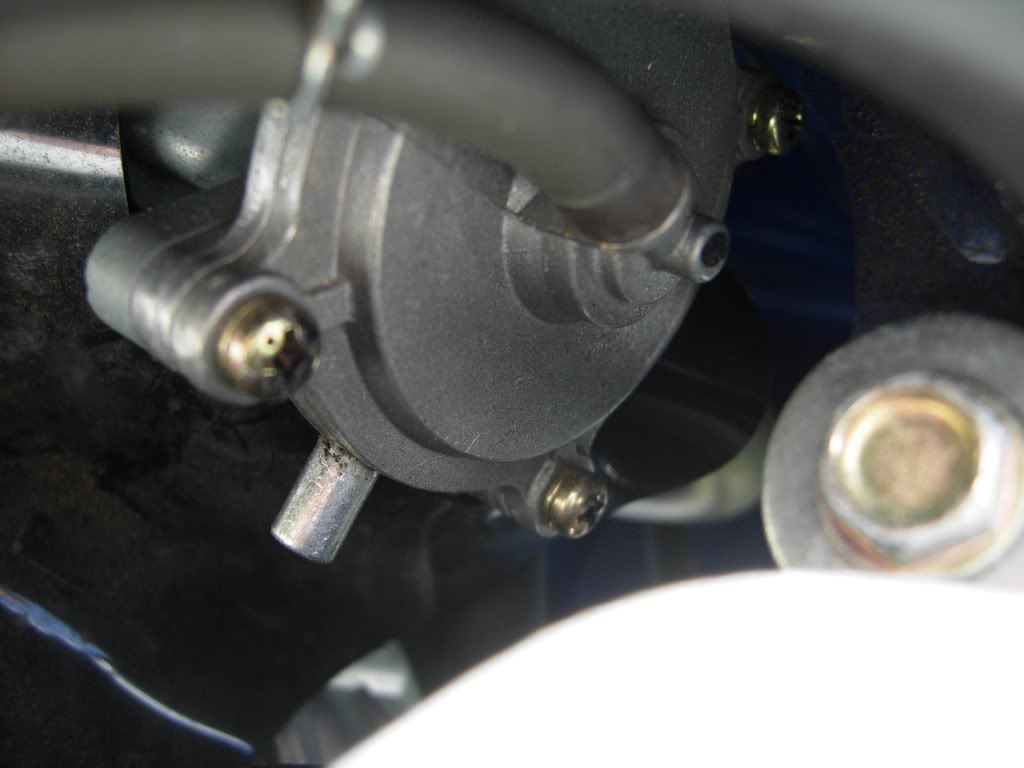

Name:  DSCN0420c.jpg
Views: 25
Size:  54.4 KB

see above post...
Old Jul 31, 2009 | 06:41 PM
  #15
bcwood's Avatar
Thread Starter
Member
Squid

Joined: Jun 2009
Posts: 35
From: Denver, CO
bcwood is on a distinguished road
Originally Posted by pigwings
did you check the main fuse? have to pull the rear plastic off............
what is the main fuse? There is a fuse box with 6 or so fuses... I've got the shop manual, and I can't even find any references to fuses...grrrrr.
Old Jul 31, 2009 | 06:43 PM
  #16
bcwood's Avatar
Thread Starter
Member
Squid

Joined: Jun 2009
Posts: 35
From: Denver, CO
bcwood is on a distinguished road
Took the tank off twice - third time since I bought it, I believe I got the tubes in the right place - yes, there's that downward pointing connection with no hose, weird.
Old Jul 31, 2009 | 07:39 PM
  #17
nuhawk's Avatar
Senior Member
MotoGP

Joined: Sep 2006
Posts: 4,138
From: Austin, Tx
nuhawk is on a distinguished road
Make sure you don't have the little hose that goes into the bottom of the tank reversed with the one that goes to the back of the petcock. They are approx the same length and diameter and could be inter changed.
Old Jul 31, 2009 | 11:32 PM
  #18
killer5280's Avatar
Senior Member
SuperBike

Joined: Aug 2004
Posts: 1,806
From: Atlanta, GA
killer5280 is on a distinguished road
Did you shut off the petcock and not turn it back on when you reinstalled the tank?
Old Aug 1, 2009 | 12:09 AM
  #19
shayne's Avatar
Senior Member
SuperSport

Joined: Dec 2005
Posts: 963
From: Sunshine Coast, Australia
shayne is on a distinguished road
Originally Posted by bcwood
what is the main fuse? There is a fuse box with 6 or so fuses... I've got the shop manual, and I can't even find any references to fuses...grrrrr.
On the left hand side of the bike, underneath the rear fairing. It is the circuit that controls the starter motor, so it is a separate fuse. I cannot recall whether it does anything else, but I would think not. If the bike is turning over then it should be ok.

If you have spark then then I would be back to fuel for a while. You need to make sure that the carbs are receiving the fuel from the tank, and there are two things that will stop that. If you have turned the petcock off then that is one possibilty. The other is that the vacuum hose mentioned above may be in the right place, but is it providing vacuum to the petcock? Check that it is. The other option is that the petcock diapragm is broken. Both of these will cut your fuel off.

Last edited by shayne; Aug 1, 2009 at 12:13 AM.
Old Aug 1, 2009 | 06:33 AM
  #20
JamieDaugherty's Avatar
Senior Member
SuperBike

Joined: Aug 2005
Posts: 1,864
From: Fort Wayne, IN
JamieDaugherty is on a distinguished road
If it was the main fuse the bike wouldn't even crank.

I'm on board with the thought that the vacuum line wasn't hooked up to the tank valve.
Old Aug 1, 2009 | 08:28 AM
  #21
bcwood's Avatar
Thread Starter
Member
Squid

Joined: Jun 2009
Posts: 35
From: Denver, CO
bcwood is on a distinguished road
I doubt that there is a hose connection problem, since it was running good for the longest time, didn't mess with anything, then suddenly crapped out. It appears to me that fuel is flowing from the petcock, cuz the tubes have gas in them.

Last edited by bcwood; Aug 1, 2009 at 06:38 PM.
Old Aug 2, 2009 | 06:37 AM
  #22
gboezio's Avatar
Senior Member
SuperSport
SuperSport

Joined: Dec 2006
Posts: 880
From: Victoriaville, Quebec, Canada
gboezio is on a distinguished road
They won't be empty even if fuel is not flowing, it will have to suck air to be filled with air, so don't assume the carbs get fuel because the hoses are filled with gas, they will be anyway.
Take a 2 $ syringe and pull vacuum on the petcock, if gas pour out, it works, and verify that the vacuum hose running to the rear cylinder is not cracked or pinched.
To check spark pull the plugs hook the wire and rest it on the frame/engine.
Compression, well you just can listen to it cranking, if it stumbles every compression (normal), otherwise it's abnormally smooth.
Old Aug 7, 2009 | 06:19 PM
  #23
bcwood's Avatar
Thread Starter
Member
Squid

Joined: Jun 2009
Posts: 35
From: Denver, CO
bcwood is on a distinguished road
had it taken to the local stealership. Turns out it was a marginal battery amperage. Would have never thought of that. They said they charged the battery and runs great.
Old Aug 7, 2009 | 06:36 PM
  #24
VTRsurfer's Avatar
Senior Member
MotoGP

Joined: May 2008
Posts: 3,452
From: San Clemente, CA
VTRsurfer is on a distinguished road
That's odd, since cranking is the first thing that would be affected by a low battery. Was it cranking at normal speed, or slow? It may ultimately be a R/R problem.

Can't argue with success though, batteries don't last forever....go out and ride it.
Old Aug 7, 2009 | 10:51 PM
  #25
bcwood's Avatar
Thread Starter
Member
Squid

Joined: Jun 2009
Posts: 35
From: Denver, CO
bcwood is on a distinguished road
Ya, it seemed to crank fine for me, and it was producing spark. I have experienced many a car battery go bad, and the first sign is it doesn't crank. I gotta quiz them more tomorrow when I pick it up.

What is an R/R?
Old Aug 7, 2009 | 11:18 PM
  #26
VTRsurfer's Avatar
Senior Member
MotoGP

Joined: May 2008
Posts: 3,452
From: San Clemente, CA
VTRsurfer is on a distinguished road
Rectifier/Regulator is a known problem on earlier VTRs. It would overheat and fail. Do a search to check it out. Easy replacement.

Rectifier is made up of 6 diodes that change the alternator output from a/c to d/c.

Regulator controls charging voltage and amps.
