Right side crankcase removal help??
07-27-2008, 03:16 PM
#1
Junior Member
Squid
Thread Starter
Join Date: Feb 2007
Posts: 17
Right side crankcase removal help??
Need instructions on how to remove right side crankcase and what else I will run into. Explanation below...
Well I started today with a project that I have done in the past on other bikes and that I thought would be fairly simple. I needed to change out my right side crankcase cover. However once I removed all of the screws and coolant began to pour out I realized this was a little different than other bikes I have done this on. I now have all of the screws out, oil drained, coolant drained and the crankcase cover will still not come off. Has anyone done this before that can walk me through what else needs to come off and what else I need to be aware of to get this compete. I have already done a search for this and have not been able to find any information. Any help will be greatly appreciated.
Thanks in advance.
Well I started today with a project that I have done in the past on other bikes and that I thought would be fairly simple. I needed to change out my right side crankcase cover. However once I removed all of the screws and coolant began to pour out I realized this was a little different than other bikes I have done this on. I now have all of the screws out, oil drained, coolant drained and the crankcase cover will still not come off. Has anyone done this before that can walk me through what else needs to come off and what else I need to be aware of to get this compete. I have already done a search for this and have not been able to find any information. Any help will be greatly appreciated.
Thanks in advance.
07-27-2008, 03:55 PM
#2
Thats Mr Dill hole to you
Superstock
Join Date: Aug 2007
Location: Sioux Falls, SD Beeeotch
Posts: 389
Need instructions on how to remove right side crankcase and what else I will run into. Explanation below...
Well I started today with a project that I have done in the past on other bikes and that I thought would be fairly simple. I needed to change out my right side crankcase cover. However once I removed all of the screws and coolant began to pour out I realized this was a little different than other bikes I have done this on. I now have all of the screws out, oil drained, coolant drained and the crankcase cover will still not come off. Has anyone done this before that can walk me through what else needs to come off and what else I need to be aware of to get this compete. I have already done a search for this and have not been able to find any information. Any help will be greatly appreciated.
Thanks in advance.
Well I started today with a project that I have done in the past on other bikes and that I thought would be fairly simple. I needed to change out my right side crankcase cover. However once I removed all of the screws and coolant began to pour out I realized this was a little different than other bikes I have done this on. I now have all of the screws out, oil drained, coolant drained and the crankcase cover will still not come off. Has anyone done this before that can walk me through what else needs to come off and what else I need to be aware of to get this compete. I have already done a search for this and have not been able to find any information. Any help will be greatly appreciated.
Thanks in advance.
This is a hacked version of how to replace the ign wheel on gregs liter bike site. I take NO
credit for any of this information.
1) Drain the coolant.
2) Drain the oil.
3) Remove the 2 top bolts for the radiator and the one from behind it.
4) Remove all coolant hoses from the water pump cover.

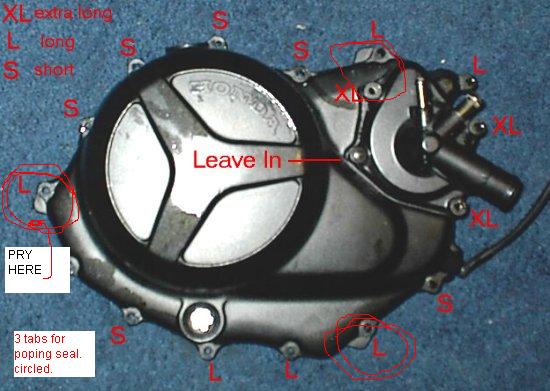

5) Loosen/remove the 16 bolts from the side cover, there's one bolt for the water pump that can stay in, it threads into to the cover, not the block. I made a note of sizes and locations at the bottom of this.

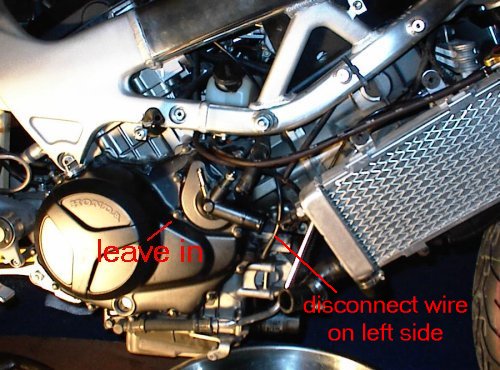

6) Follow the wire for the Pulse Alt Starter Switch to the left side, bottom of the radiator, and disconnect it.
7) Pull the wire out through the right side.
8) Pull off the right crank case cover, set it aside. Small amounts of coolant and oil will drip out, so be prepared
After doing all of that you will have to pry the cover loose from the back theres a little tab
you can get a common (flat) screwdriver under to pop the seal on the case gasket.
Carefull not to pry top hard and tweak the water pump shaft on the front of the cover.
see the attached pictures for refence. hope this helps.
Last edited by filter69; 07-27-2008 at 04:01 PM. Reason: Pic redo
01-02-2010, 05:39 AM
#4
ride it out
SuperSport
Join Date: Feb 2009
Location: NH
Posts: 745
Ok heres some info i used when i took my cover off to replace my ign advancer this will prolly help you
This is a hacked version of how to replace the ign wheel on gregs liter bike site. I take NO
credit for any of this information.
1) Drain the coolant.
2) Drain the oil.
3) Remove the 2 top bolts for the radiator and the one from behind it.
4) Remove all coolant hoses from the water pump cover.
5) Loosen/remove the 16 bolts from the side cover, there's one bolt for the water pump that can stay in, it threads into to the cover, not the block. I made a note of sizes and locations at the bottom of this.
6) Follow the wire for the Pulse Alt Starter Switch to the left side, bottom of the radiator, and disconnect it.
7) Pull the wire out through the right side.
8) Pull off the right crank case cover, set it aside. Small amounts of coolant and oil will drip out, so be prepared
After doing all of that you will have to pry the cover loose from the back theres a little tab
you can get a common (flat) screwdriver under to pop the seal on the case gasket.
Carefull not to pry top hard and tweak the water pump shaft on the front of the cover.
see the attached pictures for refence. hope this helps.
This is a hacked version of how to replace the ign wheel on gregs liter bike site. I take NO
credit for any of this information.
1) Drain the coolant.
2) Drain the oil.
3) Remove the 2 top bolts for the radiator and the one from behind it.
4) Remove all coolant hoses from the water pump cover.
5) Loosen/remove the 16 bolts from the side cover, there's one bolt for the water pump that can stay in, it threads into to the cover, not the block. I made a note of sizes and locations at the bottom of this.
6) Follow the wire for the Pulse Alt Starter Switch to the left side, bottom of the radiator, and disconnect it.
7) Pull the wire out through the right side.
8) Pull off the right crank case cover, set it aside. Small amounts of coolant and oil will drip out, so be prepared
After doing all of that you will have to pry the cover loose from the back theres a little tab
you can get a common (flat) screwdriver under to pop the seal on the case gasket.
Carefull not to pry top hard and tweak the water pump shaft on the front of the cover.
see the attached pictures for refence. hope this helps.
