Regulator Swap...ground location

Hey all,

This may be a stupid question but I'm firing it out anyways. Searched the reg/rec threads and couldn't find it. Finished my swap, yellows to yellows, pos/neg direct to battery. Does the two wire ring ground connector need to be attached to the regulator mounting bolt? I attached it back further on the subframe. Not a problem to move it back, it was just a cleaner install back there in my case.. See pics.. thanks...

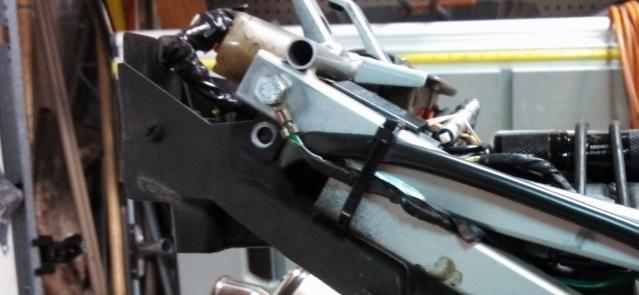

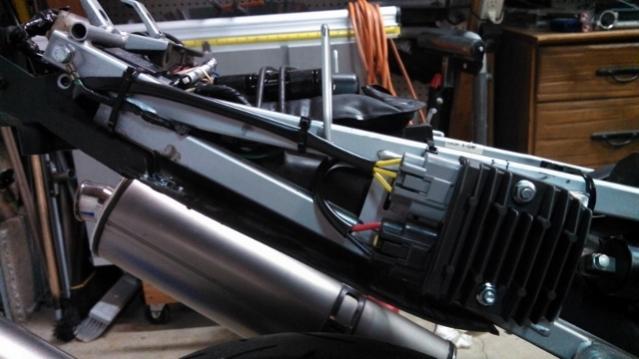

Attached Thumbnails Regulator Swap...ground location-img_20130306_174815_582-640x360-.jpg   Regulator Swap...ground location-img_20130306_174837_951-640x295-.jpg
jefejrs is offline
Old 03-06-2013, 06:53 PM
  #2
the boss
SuperBike

saige's Avatar

Join Date: Mar 2010
Location: largo,fl
Posts: 1,182
saige is on a distinguished road
i just did mine today too,just about same set up.
as long as the spot you have it in is paint free and bare metal to the loop,you will have good contact.
saige is offline
Old 03-06-2013, 07:03 PM
  #3
Senior Member
SuperBike

NHSH's Avatar

Join Date: Jul 2011
Location: South of Live Free or Die & North of Family Guy
Posts: 1,401
NHSH is on a distinguished road
Originally Posted by saige View Post
i just did mine today too,just about same set up.
as long as the spot you have it in is paint free and bare metal to the loop,you will have good contact.
+1 any spot on the frame will do, as long as you have a good contact metal to metal.
NHSH is offline
Old 03-06-2013, 08:51 PM
  #4
Senior Member
Back Marker
Thread Starter

jefejrs's Avatar

Join Date: Jun 2009
Location: Beaverton, OR
Posts: 103
jefejrs is on a distinguished road
Great...That's what I thought. Just wanted some confirmation...thanks as always...
jefejrs is offline
Old 03-07-2013, 06:37 PM
  #5
Senior Member
SuperBike

JamieDaugherty's Avatar

Join Date: Aug 2005
Location: Fort Wayne, IN
Posts: 1,836
JamieDaugherty is an unknown quantity at this point
Not ANY spot will do. I suggest running a ground to the subframe and also one straight to the battery. You'll thank me for it!
JamieDaugherty is offline
Old 03-08-2013, 06:57 AM
  #6
Senior Member
Back Marker

Tebs's Avatar

Join Date: May 2012
Location: Akron, Ohio
Posts: 230
Tebs is on a distinguished road
What a coincidence this thread came up, according to tracking, mine is scheduled to be delivered today. How long does it take it install 15 -20 mins? Does it come with a wiring diagram or is it pretty straight forward?
Tebs is offline
Old 03-08-2013, 07:14 AM
  #7
Senior Member
SuperBike

NHSH's Avatar

Join Date: Jul 2011
Location: South of Live Free or Die & North of Family Guy
Posts: 1,401
NHSH is on a distinguished road
Originally Posted by JamieDaugherty View Post
Not ANY spot will do. I suggest running a ground to the subframe and also one straight to the battery. You'll thank me for it!
Jamie, I meant any spot on the sub frame will do the job, a direct ground to the battery is always better though, the ground wires on these bikes are not the best to begin with, so if you can add ground that would be an improvement to the factory poor ground wires.
NHSH is offline
Old 03-08-2013, 11:09 AM
  #8
Senior Member
Back Marker
Thread Starter

jefejrs's Avatar

Join Date: Jun 2009
Location: Beaverton, OR
Posts: 103
jefejrs is on a distinguished road
Crap.. now I'm getting lost. My reg/rec is connected directly to battery. Are we saying to add another ground in additon to the two green ring connector? My wiring knowledge is limited to following directions. Anyone care to elaborate on adding the ground?

Tebs, I thought it was easy but it seems I may have missed a preventative step. The harnesses from EB make it pretty easy as many threads suggest. There is a crazy amount of knowledge about this issue on here. I think I may be learning!!!

Last edited by jefejrs; 03-08-2013 at 11:12 AM.
jefejrs is offline
Old 03-08-2013, 12:04 PM
  #9
Senior Member
SuperBike

NHSH's Avatar

Join Date: Jul 2011
Location: South of Live Free or Die & North of Family Guy
Posts: 1,401
NHSH is on a distinguished road
Don't get stressed over this, I think you did a good job, It's just that there is always room for improvement, the wealth of knowledge here is awesome, but it is up to you to pick and choose how far you want to go with improvements for some of us it becomes like a religion and it is contagious I may add

Did you connect the R/R ground directly to the battery?
NHSH is offline
Old 03-08-2013, 02:36 PM
  #10
Senior Member
Back Marker
Thread Starter

jefejrs's Avatar

Join Date: Jun 2009
Location: Beaverton, OR
Posts: 103
jefejrs is on a distinguished road
I have a tendency to "fix" things that are working well..and then they don't. I know this upgrade is well worth it. I had one go bad on this bike within the first year (bought new).

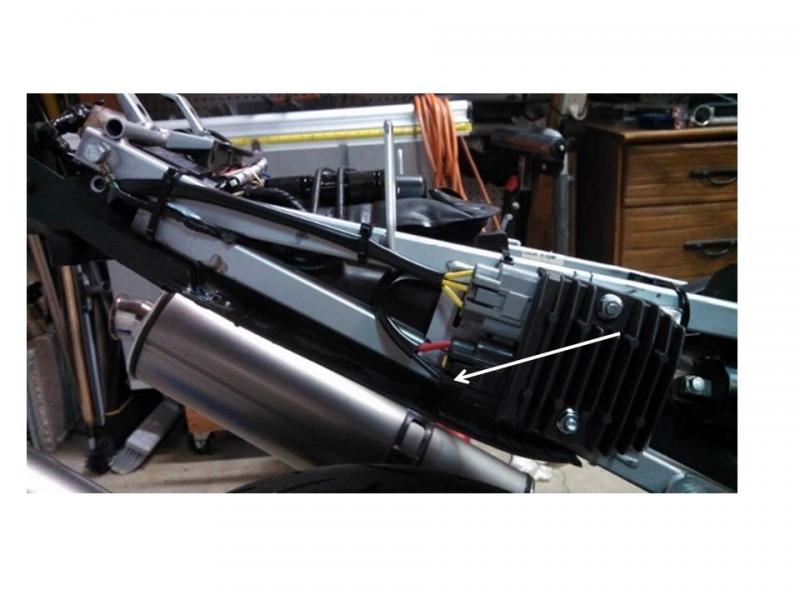

In pic I have the black wire going directly to the negative battery post. Is that considered the reg/rec's ground?
Attached Thumbnails Regulator Swap...ground location-presentation1.jpg
jefejrs is offline
Old 03-08-2013, 10:20 PM
  #11
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
Originally Posted by jefejrs View Post
I have a tendency to "fix" things that are working well..and then they don't. I know this upgrade is well worth it. I had one go bad on this bike within the first year (bought new).

In pic I have the black wire going directly to the negative battery post. Is that considered the reg/rec's ground?
Yes... You're using an Eastern Beaver Harness I take it? Then it's all done...
Tweety is offline
Old 03-08-2013, 10:29 PM
  #12
Senior Member
SuperBike

NHSH's Avatar

Join Date: Jul 2011
Location: South of Live Free or Die & North of Family Guy
Posts: 1,401
NHSH is on a distinguished road
Originally Posted by jefejrs View Post
I have a tendency to "fix" things that are working well..and then they don't. I know this upgrade is well worth it. I had one go bad on this bike within the first year (bought new).

In pic I have the black wire going directly to the negative battery post. Is that considered the reg/rec's ground?
Yes it is, you did the right thing no doubt. I can't remember from the top of my head, but I believe the other ground is for the older style R/R and is also grounding for something else. You can look up on the electrical diagram, should be one here on the forum somewhere, I believe Tweety put it in the Knowledge Base section.
NHSH is offline
Old 03-09-2013, 10:10 AM
  #13
Senior Member
Back Marker
Thread Starter

jefejrs's Avatar

Join Date: Jun 2009
Location: Beaverton, OR
Posts: 103
jefejrs is on a distinguished road
Done and done..its an EB harness..thanks all...

Now about this CCT thing.....Just kidding...
jefejrs is offline
