I screwed up! Broken brass fitting. Help?

Old 08-15-2018, 11:21 AM
  #1
Junior Member
Squid
Thread Starter

Join Date: Jul 2018
Location: New Jersey
Posts: 20
EJamesJr is on a distinguished road
I screwed up! Broken brass fitting. Help?

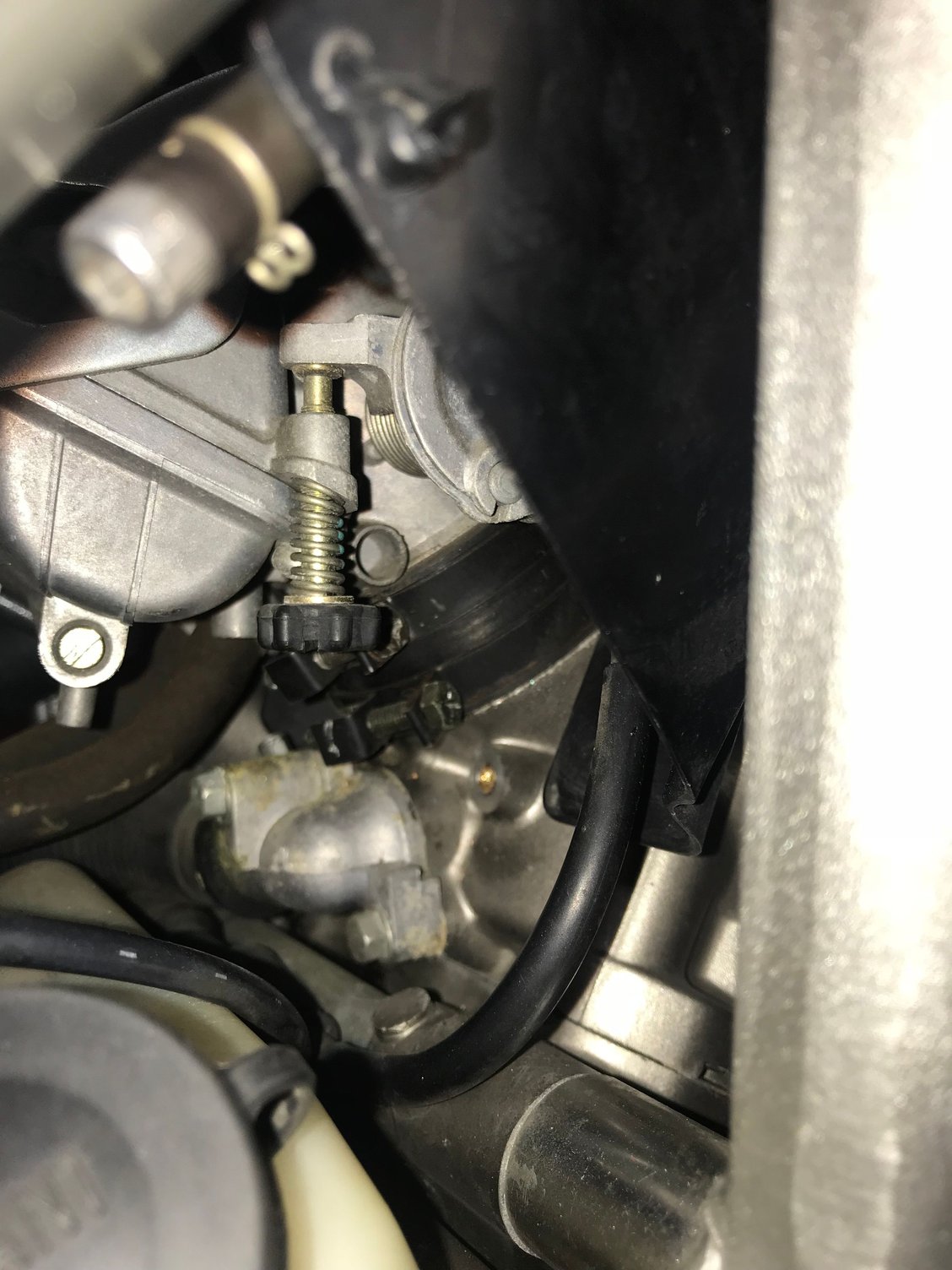

Obviously not appreciating how soft brass is relative to steel, I overtightened the brass fitting I was using to do the carb sync mod on the front cylinder and snapped it off flush with the jug. Of course, I used loctite since it was never coming out. Any suggestions?

Thoughts are to remove the carbs to access access from behind maybe to plug the rear side somehow and then use an easy out externally. Canít believe I did this.
(Posted this on VTR1000 forum as well)

EJamesJr is offline
Old 08-15-2018, 11:34 AM
  #2
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,246
E.Marquez is on a distinguished road
Remove everything you can to gain access.

Need to heat the fitting to about 250c to soften the thread lock.
That will take a LOT of heat as there is a lot materiel.....its going to take repeated heat transfer from a red hot pointed piece of steel you heat with torch, or direct flame from a size 0 torch tip.
Heat gun aint going to do it, and a pencil butane might, but it will take a while. If you have a temp gun, use it to confirm at least 200deg C before trying to extract the broken fitting.
Once its hot, you should be able to back it out with a basic extractor.
E.Marquez is offline
Old 08-15-2018, 05:12 PM
  #3
Senior Member
Back Marker

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 175
Floyd is on a distinguished road
I did the same thing! I BARELY tightened the thing and it snapped.
I ended up buying these instead of the stock ones. You just have to cut them to length and they are IMO better than the stock ones.
5mm port
Floyd is offline
Old 08-16-2018, 06:19 AM
  #4
Well take off, eh.
SuperBike

Jack Flash's Avatar

Join Date: Jun 2012
Location: QC, Canada
Posts: 1,166
Jack Flash is on a distinguished road
Hmmmm. I see a new 'fitting' project......

Good luck removing it.
Jack Flash is offline
Old 08-16-2018, 08:36 AM
  #5
Junior Member
Squid
Thread Starter

Join Date: Jul 2018
Location: New Jersey
Posts: 20
EJamesJr is on a distinguished road

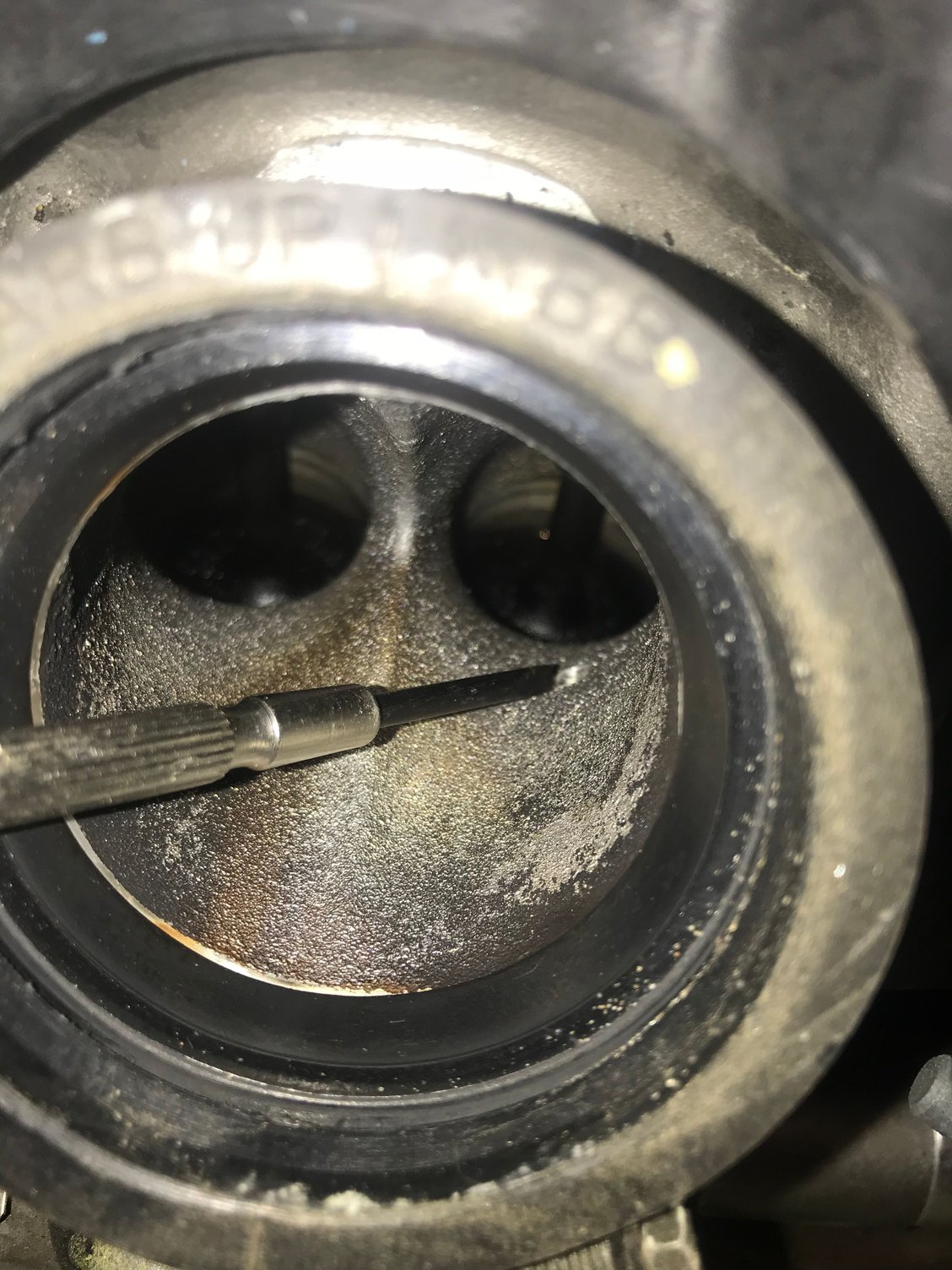

Removed the carbs to find that the threaded port is accessible from the inside. Plenty

of room on top. Feeling better now. Going to try heat and easy out as suggested.
EJamesJr is offline
Old 08-16-2018, 10:02 AM
  #6
Thread Killer
SuperBike

Join Date: Apr 2013
Location: Geneseo, IL
Posts: 1,626
VTR1000F is on a distinguished road
Originally Posted by Jack Flash View Post
Hmmmm. I see a new 'fitting' project......

Good luck removing it.
What kind of business are you operating Mr. Flash? Why have you been trickling various 'fittings' onto the market over the years? Seems like an evil ploy to ratchet up the profit margin for your wares. Any reputable vendor would offer a comprehensive 'fitting' kit. Stop ignoring our model.
VTR1000F is offline
Old 08-16-2018, 01:39 PM
  #7
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,246
E.Marquez is on a distinguished road
Originally Posted by VTR1000F View Post
What kind of business are you operating Mr. Flash? Why have you been trickling various 'fittings' onto the market over the years? Seems like an evil ploy to ratchet up the profit margin for your wares. Any reputable vendor would offer a comprehensive 'fitting' kit. Stop ignoring our model.
Its Sir Flash to you
E.Marquez is offline
Old 08-17-2018, 07:33 AM
  #8
Junior Member
Squid
Thread Starter

Join Date: Jul 2018
Location: New Jersey
Posts: 20
EJamesJr is on a distinguished road
Was able to back out the broken fitting with heat (butane) and an easy out. Retapped hole for good measure. No filings into valves. So relieved! Carb sync mod completed.

Thanks E. Marquez!!! And others for advice.
EJamesJr is offline
Old 08-17-2018, 05:12 PM
  #9
Senior Member
Back Marker

Floyd's Avatar

Join Date: Sep 2017
Location: FL
Posts: 175
Floyd is on a distinguished road
Great! I wouldnt put anything on the threads personally. My little stud just twisted out with a pick when it broke.
Floyd is offline
