Help with rear brake noise when moving backwards

Old 04-20-2016, 03:34 PM
  #1
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Help with rear brake noise when moving backwards

See video...


James
thedeatons is offline
Old 04-20-2016, 04:05 PM
  #2
VTR virgin
Superstock

Cadbury64's Avatar

Join Date: Mar 2015
Location: Auckland, New Zealand
Posts: 406
Cadbury64 is on a distinguished road
My VFR800 makes practically the same noise, which is just a resonance through the pads going in the opposite to normal direction. Unless you're planning on a stunting career with a lot of backwards riding, I wouldn't worry about it. Does the brake feel normal when you use it?
Cadbury64 is offline
Old 04-20-2016, 04:19 PM
  #3
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Yah the brake is fine, just an annoying noise.

A friend told me to add more lube behind the pads... I considered filing a slight taper onto the leading edge of the pads...

Just annoying when backing up in parking lots

James
thedeatons is offline
Old 04-20-2016, 05:33 PM
  #4
Well take off, eh.
SuperBike

Jack Flash's Avatar

Join Date: Jun 2012
Location: QC, Canada
Posts: 1,165
Jack Flash is on a distinguished road
Sounds like a bad Charlie Brown episode when the teacher talks to him.
Jack Flash is offline
Old 04-20-2016, 06:41 PM
  #5
That one guy
Back Marker

Meier Link's Avatar

Join Date: Jun 2015
Location: Broken Arrow
Posts: 225
Meier Link is on a distinguished road
Fire the trumpet player. He sucks. Problem solved.

I'm assuming the pad isn't worn at the back more then the front.

Last edited by Meier Link; 04-20-2016 at 06:43 PM.
Meier Link is offline
Old 04-20-2016, 08:36 PM
  #6
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
The pads shouldn't be worn at all... I installed them last year and haven't used them since...

James
thedeatons is offline
Old 04-20-2016, 09:07 PM
  #7
Rex Kramer-Thrill Seeker
SuperBike

CruxGNZ's Avatar

Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
CruxGNZ is on a distinguished road
Just throw some grease on there.
CruxGNZ is offline
Old 04-20-2016, 09:10 PM
  #8
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
My friend mentioned that, that the pads are resonating in the caliper. He mentioned he installs disc brake quiet gel for pads, then lets it setup for 15 minutes so the gel doesn't get scraped off during installation/use. He said the stuff he uses sets up and turns into a rubbery material...

Anyway, i'm thinking about trying that...

James
thedeatons is offline
Old 04-20-2016, 09:10 PM
  #9
Rex Kramer-Thrill Seeker
SuperBike

CruxGNZ's Avatar

Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
CruxGNZ is on a distinguished road
I had that happen once and the pads and rotor surface were glazed. I was able to fix it with some 200 grit sandpaper to the pads and rotor. It was an old bike, so I didn't care if it hurt the parts, but it worked.
CruxGNZ is offline
Old 04-21-2016, 07:32 AM
  #10
Senior Member
SuperBike

NHSH's Avatar

Join Date: Jul 2011
Location: South of Live Free or Die & North of Family Guy
Posts: 1,387
NHSH is on a distinguished road
Originally Posted by CruxGNZ View Post
I had that happen once and the pads and rotor surface were glazed. I was able to fix it with some 200 grit sandpaper to the pads and rotor. It was an old bike, so I didn't care if it hurt the parts, but it worked.
That's kinda like the resonance you create when you move the finger on a glass of wine

You can use more fine sand paper and apply it lightly with even pressure on the surfaces, but generally that would fix it.
NHSH is offline
Old 04-21-2016, 09:15 AM
  #11
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,915
smokinjoe73 is on a distinguished road

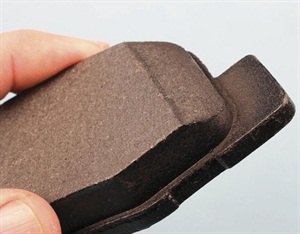

So the fix for this is to chamfer the pads in the direction of the issue. Meaning the leading edge while going backward. Remove the pads and sand them with like 110 grit paper at a 45* angle. You are trying to make a beveled edge as the rotor slides onto the pads.

Many pads come with this design. You can even just carefully use concrete to do this. Once you chamfer them this issue will stop.

Doesn't have to be this dramatic. Any bit of this type of angle will work.
Attached Thumbnails Help with rear brake noise when moving backwards-m-b06-1-1.jpg
smokinjoe73 is offline
Old 04-21-2016, 09:25 AM
  #12
Senior Member
SuperBike

Wicky's Avatar

Join Date: Sep 2008
Location: Essex, UK
Posts: 1,632
Wicky is on a distinguished road
I said to the doctor, 'It hurts when I do this' [raises arm]. He said, 'Well, don't do it.'
Wicky is offline
Old 04-21-2016, 09:51 AM
  #13
ren
Senior Member
Back Marker

Join Date: Nov 2013
Location: Los Angeles, CA
Posts: 170
ren is on a distinguished road
I should not have watched that with headphones and loud volume.. hahaha that was unexpected
ren is offline
Old 04-21-2016, 09:54 AM
  #14
Rex Kramer-Thrill Seeker
SuperBike

CruxGNZ's Avatar

Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
CruxGNZ is on a distinguished road
Originally Posted by thedeatons View Post
My friend mentioned that, that the pads are resonating in the caliper. He mentioned he installs disc brake quiet gel for pads, then lets it setup for 15 minutes so the gel doesn't get scraped off during installation/use. He said the stuff he uses sets up and turns into a rubbery material...

Anyway, i'm thinking about trying that...

James
Advance Auto has a spray can for the back of brake pads. Works great on automotive brake pads. I haven't had to use it on motorcycle pads yet.

I would chamfer the pads like Smokin' mentions and then put that spray or gel on the back of the pad.

Supprised Steve hasn't yet made a comment about you going backwards with a motorcycle
CruxGNZ is offline
Old 04-21-2016, 10:34 AM
  #15
Thread Killer
SuperBike

Join Date: Apr 2013
Location: Geneseo, IL
Posts: 1,612
VTR1000F is on a distinguished road
Well, not everyone can spin the rear wheel and do a 180 out of a parking space like me. All on just the rear tire, of course.
VTR1000F is offline
Old 04-21-2016, 10:38 AM
  #16
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,915
smokinjoe73 is on a distinguished road
I am not a fan of adding gook of any kind anywhere mechanical that I don't need to. Brakes being top of the list.

Just makes it more likely it will get onto friction surface or rotor. Have seen it happen.
smokinjoe73 is offline
Old 04-21-2016, 12:47 PM
  #17
Rex Kramer-Thrill Seeker
SuperBike

CruxGNZ's Avatar

Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
CruxGNZ is on a distinguished road
That spray is intended for the back of the pad. It dries and doesn't stay a "gook".

Some manufacturers of brake pads are including backing plates with that anti-squeal stuff already applied.

Last edited by CruxGNZ; 04-21-2016 at 12:51 PM.
CruxGNZ is offline
Old 04-21-2016, 04:54 PM
  #18
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road

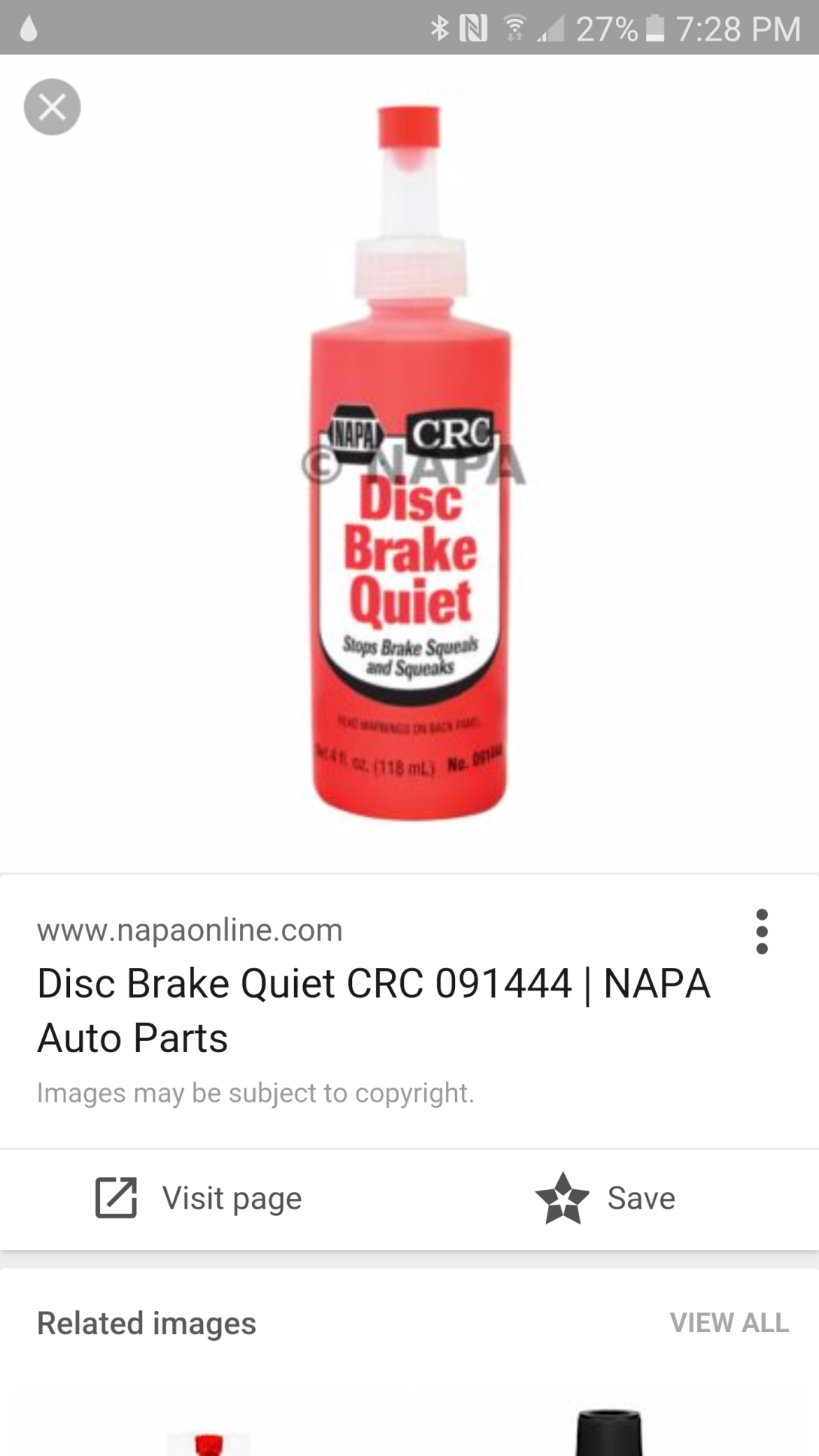

A friend of mine recommended this. Not a spray.

He lets it set up for 15 minutes which makes it jelly-like.

James
Attached Thumbnails Help with rear brake noise when moving backwards-image.png
thedeatons is offline
Old 04-21-2016, 05:53 PM
  #19
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,217
E.Marquez is on a distinguished road
Originally Posted by thedeatons View Post
A friend of mine recommended this. Not a spray.

He lets it set up for 15 minutes which makes it jelly-like.

James
I have used that on car disk brake pads for many years, it works well.
On your issue.....
Honestly I think the pistons are not retracting as designed, likely old hard seals.
If you're positive its not that, then the taper on the rear edge (leading edge in reverse) should fix the issue.
I have never needed pad adhesive on a bike to tame pad noise
E.Marquez is offline
Old 04-21-2016, 05:56 PM
  #20
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
New seals... Brakes operates great... I do notice the fluid is all the way up to the plug on my reservoir delete hose.... I think i topped it off during the cold winter, now it is 80 out... Hmmm... Likely a mistake.

I don't recall whether it was making the noise before topping off the fluid...

James
thedeatons is offline
Old 04-23-2016, 05:02 PM
  #21
Senior Member
SuperBike
Thread Starter

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
Fixed! Well... For now.

Went out early this morning and rechecked it cold... No noise... Hmm...

Well, I took it apart anyway. Chamfered the rear pads front and back, deglazed them, then started the bike and hit the rotor with 320 while it was spinning, then cleaned everything off.

Also cleaned the pad backing plates and reapplied Permatex disc brake quiet, amd let it setup until it dried (about 15-20 min).

Reinstalled everything.

Oh and I also pulled all the brake pad pins, sanded and regreased them.

Will probably let a little fluid out of the rear reservoir also since it is all the way full... May not be letting the piston retract fully...

James
