Free power ground mod
Looking for an up date from NZSpokes or anyone else that has done the additional ground to the ignition control unit as touched on in the What did you do today threadhttps://www.superhawkforum.com/forums/general-discussion-30/what-did-you-do-your-superhawk-today-27276/page40/
Post 1181.
Is this take off point for the additional ground?
Post 1181.
Is this take off point for the additional ground?
03-02-2015, 11:03 AM
#3
Senior Member
SuperSport
Join Date: Apr 2014
Location: Auckland, new Zealand
Posts: 932
Looking for an up date from NZSpokes or anyone else that has done the additional ground to the ignition control unit as touched on in the What did you do today threadhttps://www.superhawkforum.com/forums/general-discussion-30/what-did-you-do-your-superhawk-today-27276/page40/
Post 1181.
Is this take off point for the additional ground?
Attachment 18398
Post 1181.
Is this take off point for the additional ground?
Attachment 18398
Seems to start much better and just feels cleaner. Hard to put a finger on it exactly but the bike does feel better. No its not a 50bhp boost but mid feels better.
03-02-2015, 12:30 PM
#7
Well take off, eh.
SuperBike
Join Date: Jun 2012
Location: QC, Canada
Posts: 1,201
Before going out and moding something like this. better run a voltage test before, and, after. Running too much voltage may end up cooking everything on the bike in the long run.
When engineers design the bike, wiring resistance is factored in to arrive at the right voltage to each component. The best example of this is when your R/R fails. It begins to dump high voltage to the battery, and kills it.
When engineers design the bike, wiring resistance is factored in to arrive at the right voltage to each component. The best example of this is when your R/R fails. It begins to dump high voltage to the battery, and kills it.
03-02-2015, 12:32 PM
#8
Senior Member
Back Marker
Join Date: Oct 2014
Posts: 189
How can shortening a path to ground by all of 2' make a difference in how a bike (especially a carbureted bike) runs? Not being a nay-sayer, but I just don't get it. How much resistance is there that you are reducing? Where's Tweety when you need him?
03-02-2015, 12:35 PM
#9
Senior Member
SuperBike
Thread Starter
Join Date: Sep 2010
Location: Bisbee, AZ
Posts: 1,873
Yes, that one also. The post I indicated was with the link to the video.

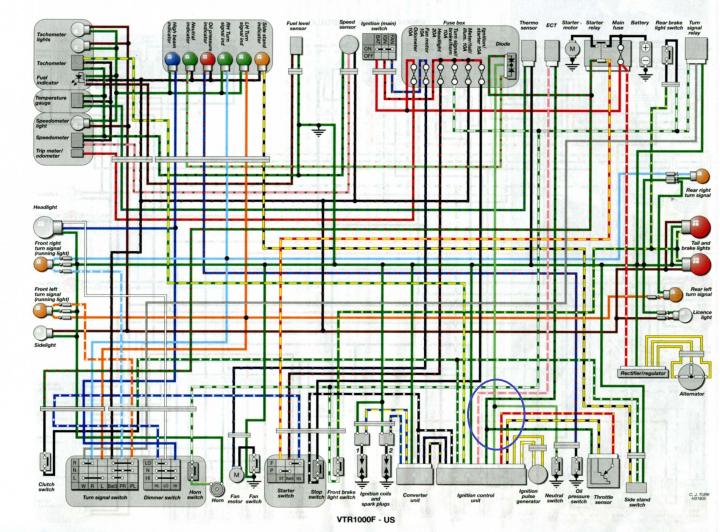

Did you use the ground wire that is circled in blue in the posted diagram? I didn't think to mention the circle in the first post.
Did you use the ground wire that is circled in blue in the posted diagram? I didn't think to mention the circle in the first post.
03-02-2015, 01:21 PM
#10
Senior Member
SuperSport
Join Date: Apr 2014
Location: Auckland, new Zealand
Posts: 932
I will take a pic when I get time. But yes it was a green wire on both boxes. and the remaining green wire I put to earth on the frame as well.
03-02-2015, 01:35 PM
#11
Senior Member
SuperBike
SuperBike
Join Date: Feb 2013
Posts: 1,509
Yes where is Tweety
If this actually helps something then i'm in... Anyone have any hard evidence? I'm a Navy trained Electronics Technician, so I understand the mechanica behind what this should do, but i realize there are Superhawk veterans who may know something i don't
James
If this actually helps something then i'm in... Anyone have any hard evidence? I'm a Navy trained Electronics Technician, so I understand the mechanica behind what this should do, but i realize there are Superhawk veterans who may know something i don't
James
03-02-2015, 02:20 PM
#12
Senior Member
SuperSport
Join Date: Apr 2014
Location: Auckland, new Zealand
Posts: 932
Before going out and moding something like this. better run a voltage test before, and, after. Running too much voltage may end up cooking everything on the bike in the long run.
When engineers design the bike, wiring resistance is factored in to arrive at the right voltage to each component. The best example of this is when your R/R fails. It begins to dump high voltage to the battery, and kills it.
When engineers design the bike, wiring resistance is factored in to arrive at the right voltage to each component. The best example of this is when your R/R fails. It begins to dump high voltage to the battery, and kills it.
03-02-2015, 06:21 PM
#15
Senior Member
Superstock
Join Date: Dec 2014
Location: Dallas, TX
Posts: 283
I am no electrician but I did take a BMW course in trouble shooting K bike electrical systems. I spent two days in a class room poring over graphs and schematics until my head swam with it all. At the end the instructor said, "most of the problems with find will be from corrosion." He was right. Every point of connection, every spade connector, crimped wire or joint is subject to corrosion. It's not the distance of the run, it's the resistance of the wire and the connector that does the trick. Adding a new ground run does nothing but insure a good "earth" and that can't hurt anything.
03-02-2015, 07:18 PM
#16
Senior Member
Back Marker
Join Date: Oct 2014
Posts: 189
I understand that adding a better ground can't hurt anything. I would like to know how much resistance there was between the "stock" ground wire and how much there is in the "mod" ground wire.
I also understand that if you have corroded connections, or multiple connections, it might make a difference in how bright your headlight burns - but more power, or smoother power? How? More voltage to the coils? Longer spark duration? Might get better results from cleaning the mounting points behind the coils? Cleaning the spade connectors in the original harness?
I also understand that if you have corroded connections, or multiple connections, it might make a difference in how bright your headlight burns - but more power, or smoother power? How? More voltage to the coils? Longer spark duration? Might get better results from cleaning the mounting points behind the coils? Cleaning the spade connectors in the original harness?
03-02-2015, 07:24 PM
#17
Senior Member
Superstock
Join Date: Dec 2014
Location: Dallas, TX
Posts: 283
I understand that adding a better ground can't hurt anything. I would like to know how much resistance there was between the "stock" ground wire and how much there is in the "mod" ground wire.
I also understand that if you have corroded connections, or multiple connections, it might make a difference in how bright your headlight burns - but more power, or smoother power? How? More voltage to the coils? Longer spark duration? Might get better results from cleaning the mounting points behind the coils? Cleaning the spade connectors in the original harness?
I also understand that if you have corroded connections, or multiple connections, it might make a difference in how bright your headlight burns - but more power, or smoother power? How? More voltage to the coils? Longer spark duration? Might get better results from cleaning the mounting points behind the coils? Cleaning the spade connectors in the original harness?
03-03-2015, 12:04 AM
#18
Out of my mind, back in 5
MotoGP
Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Yes where is Tweety
If this actually helps something then i'm in... Anyone have any hard evidence? I'm a Navy trained Electronics Technician, so I understand the mechanica behind what this should do, but i realize there are Superhawk veterans who may know something i don't
James
If this actually helps something then i'm in... Anyone have any hard evidence? I'm a Navy trained Electronics Technician, so I understand the mechanica behind what this should do, but i realize there are Superhawk veterans who may know something i don't
James
I'm here, I'm here...
Well... First of all, Sorry Jack Flash... But I have to call bullshit on the "correct voltage" through resistance in the wiring... A stock wiring harness on any bike 80-present, is a mess of least cost solutions, that doesn't include much forethought at all... In a perfect world, what you say is true... In the world of big business, the almighty dollar is king...
There are wires feeding multiple parts, just spliced together with a simple crimp over three-four-five wires, where the simplest calculation ever will tell you that you are in fact creating a hot spot by doing that, since the one wire feeding it all is barely able to supple the wattage needed without catching fire...
For example an automotive headlight bulb like the H4 used on the Superhawk, should be run at a voltage between 13.2 and 14.2 Volts for greatest efficiency and light output vs lifespan. But on a stock harness, with me doing my best to chase down any imperfections, corrosion or whatever, i simply couldn't feed enough through the harness to get that voltage, no matter what... I had a voltage drop of nearly 2.5 V over the wiring to the bulb from the battery and R/R... And that is simply not normal...
Ie, in effect, the R/R and battery should need to supply ~16V to even push the bulb up to spec... And at that point, the ECU would be on the limit of frying, as it is spec'ed to work from 12-15.5V, and on a better path... (Normal operating voltage is supposed to be 13.2-13.8 or 13.5 +/- 0.3V, and the ECU should work on a wider "safe" range...)
Will you get more horsepower fiddling with your wiring harness? I highly doubt it...
But is it completely safe to beef up the ground side of the wiring... There is no possibility of damage what-so-ever from over voltage or otherwise... On the live side of the wiring, there is a small possibility of doing damage if you just go about it nilly-*****, but it's about the same as winning the lottery...
Most likely you will gain about as much from getting the correct gauge on some path's as you loose on others by over sizing the wire and inducing resistance that way...
As a Summary... Even though you won't gain HP, it is entirely possible to free up some horses you should have if you combine a few things...
One, go through the ground circuits... Beef them up, but most importantly clean any terminals, remove corrosion, and then seal them with the proper grease for protecting electric components....
Two, run a relay harness to the headlight to give it the correct voltage, and remove that large load from the rest of the system, which then becomes a whole lot better balanced...
Three, upgrade the R/R and the wiring to it... A mosfet R/R isn't just more reliable than the stock R/R... It's also more stable, feeding the correct voltage at a larger span of input voltage and surrounding temperature, making everything in your bike's electronic system from bulbs, to ECU live longer...
Four, swap the archaic ignition coils for stick on coils, see the other threads for details on this mod...
If you do ALL of these things... In order of importance from the top... Then, you will definitely see a cleaner spark and better combustion than before... And, unless your bike was in absolute showroom condition to begin with, odds are you will have gained a few horses, albeit barely measurable on a dyno...
I did that, and i could barely see a measurable, repeatable difference on the dyno... But then again, I'm fairly sure my coils and the plug wires on them was in less than tip-top condition at the time, since my bike had gone from starting easily to being a bitch to start, and running rough, which was my reason for doing it in the first place...

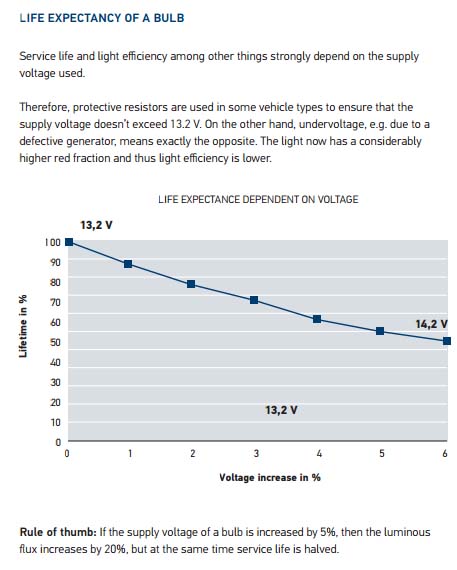

Taken from a .pdf file on Hella's site...
Last edited by Tweety; 03-03-2015 at 03:18 AM.
03-03-2015, 02:12 AM
#19
Senior Member
SuperSport
Join Date: Apr 2014
Location: Auckland, new Zealand
Posts: 932
I would agree with Tweety. Im not trained in sparky stuff so will bow to other that will know way more than I.
But from what I know from the headlights I figured this may work. And it does. As Tweety said and I said its not going to find heaps. But my bike just starts and runs a little better for it. And for what? A bit of wire and some connectors.
These bikes are not showroom fresh. Going through the wiring and cleaning earths etc can only help.
But from what I know from the headlights I figured this may work. And it does. As Tweety said and I said its not going to find heaps. But my bike just starts and runs a little better for it. And for what? A bit of wire and some connectors.
These bikes are not showroom fresh. Going through the wiring and cleaning earths etc can only help.
03-05-2015, 09:05 AM
#20
Senior Member
SuperBike
Thread Starter
Join Date: Sep 2010
Location: Bisbee, AZ
Posts: 1,873
Pulled the ICU to ID the terminal used, JAE MX23 Female Terminal. Plan was to extract the stock ground wire and splice it into a new heavier gauge wire run directly to the battery. While I had things opened up I measured the resistance of the stock ground wire from the connector to the battery, to a clean point on the frame, engine and to the ground to the body of the R/R. I had the same results at each point ~.8 ohms. This project is on hold till I finish some other more important projects. Not saying someone shouldn't do this, as in it's not worth it, but I'm going to hold off. My bike is corrosion free everywhere I've wrenched on it. Maybe one of the advantages of living where water, when it does happen, disappears before your eyes.
04-01-2015, 08:53 PM
