Egad! I dropped my bike

Original story here

Well boys and girls; after 1 year and 5 days one of the moments I have most feared has happened. I dropped my bike. This was completely and totally my fault. After spending last week prepping and completing my chain and sprocket install I decided to swap my front wheel bearings. Loaded with hubris and new tools I placed my bike for the first time ever on a front fork stand and removed the wheel. Did you catch my mistake there? I used a front fork stand and not a center stand! I partially removed the front axel and slump,,, crash! The damage so far does not appear too major and my frame slider and tail fairing took the brunt of the damage. Looks like it really is time for the tail fairing to go. Good news is that the bike is paid off next month. After everything was said and done I cleaned my bike like never before and she is looking fantastic.

YouTube - ‪Yikes I dropped my motorcycle!‬‏



Post fall; I purposely have her leaned over.


This tail has been burned and stress cracked. Time for a new sub frame and tail fairing.
geekonamotorcycle is offline
Old 06-11-2011, 11:06 PM
  #2
Senior Member
SuperSport
Thread Starter

geekonamotorcycle's Avatar

Join Date: Jan 2011
Location: Tampa Florida
Posts: 521
geekonamotorcycle is on a distinguished road
On a serious note. I cleaned every part of of my bike of baked on oil etc and when test running the bike I noticed oil leaking from the oil filler cap and down the right engine cover. Oil level is a little lower than it should be, but why would oil leak from there? the O-Ring looks ok...
Also what are y'alls experiences with motorcycle jacks? the kind that lift by the oil pan. Do they damage the bike? how does Honda want us to lift these.
geekonamotorcycle is offline
Old 06-11-2011, 11:10 PM
  #3
K30
Member
Squid

K30's Avatar

Join Date: Apr 2011
Location: Washington State
Posts: 84
K30 is on a distinguished road
Whenever I've had to have a wheel off, I use a chain hoist with a loop of rope around the triple clamp. It looks a little ungainly, but it works great as long as your ceiling can support it.
K30 is offline
Old 06-11-2011, 11:11 PM
  #4
Senior Member
SuperSport
Thread Starter

geekonamotorcycle's Avatar

Join Date: Jan 2011
Location: Tampa Florida
Posts: 521
geekonamotorcycle is on a distinguished road
That seems popular, but I should have posted that I dont have the ability to do that.
geekonamotorcycle is offline
Old 06-11-2011, 11:51 PM
  #5
Senior Member
Back Marker

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
I use a Pitbull stand in front, which has a pin that goes in the middle of the triple.
superh1998 is offline
Old 06-12-2011, 05:35 AM
  #6
motokraft
Back Marker

motokraft's Avatar

Join Date: Jan 2009
Location: dublin ireland
Posts: 111
motokraft is on a distinguished road

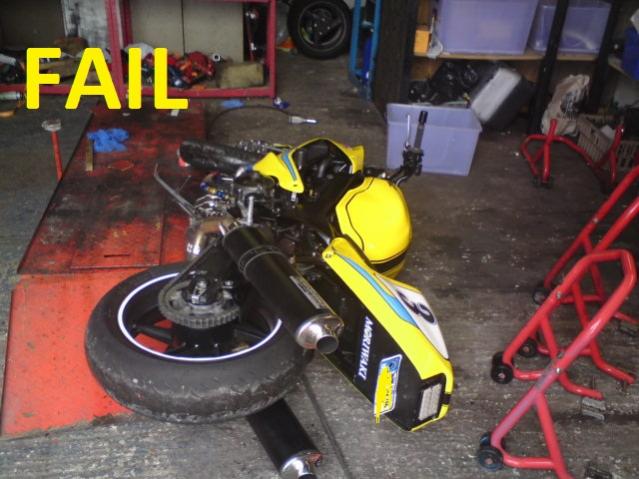

snap

after 5 years of bikes up and down everyday i ran at the ramp with the stand down on my own freshly painted bike (sure if you didnt laugh youd cry )

and im in bed now after busting my back picking it up as i more or less only can use one shoulder
doh!! hehe
Attached Thumbnails Egad! I dropped my bike-fone-171.jpg
motokraft is offline
Old 06-12-2011, 06:05 AM
  #7
Senior Member
SuperSport

zmaniv's Avatar

Join Date: Jun 2008
Location: San Diego
Posts: 916
zmaniv is on a distinguished road
Originally Posted by motokraft View Post
snap

after 5 years of bikes up and down everyday i ran at the ramp with the stand down on my own freshly painted bike (sure if you didnt laugh youd cry )

and im in bed now after busting
my back picking it up as i more or less only can use one shoulder

At least you got it in VTROM before you dropped it
doh!! hehe
zmaniv is offline
Old 06-12-2011, 06:32 AM
  #8
evil man of nothing
MotoGP

captainchaos's Avatar

Join Date: Jan 2006
Location: Boynton Beach, FL
Posts: 4,215
captainchaos is on a distinguished road
Originally Posted by geekonamotorcycle View Post
Also what are y'alls experiences with motorcycle jacks? the kind that lift by the oil pan. Do they damage the bike? how does Honda want us to lift these.
When you say motorcycle jacks do you mean the ones with the 2 wide contact points that lift by the frame? They won't work on this bike because it doesn't have a a full frame like a cruiser does. As far a lifting by the oil pan I've done it plenty of times with a car jack and a rubber pad or piece of wood with no problem after I remember reading the service manual actually recommending it. But please be careful and do it along with some other form of support as was previously stated like hanging from the ceiling by the triple and using a rear stand. On another note, if ever removing the swingarm and wondering how to support the bike afterwards I've also found it very helpful to slide in two axles (I have a spare just for this), each halfway into the engine and support on jackstands. Again you can never be too careful getting to that point if jacking by the oil pan and use extra support of some form by hanging from above by the subframe, etc. I've been guilty plenty times of rushing and taking a chance to get stuff done, but if you ever have doubts about stuff like how well the bike is supported chances are you probably should look for a better way-your fairings will thank you.

Last edited by captainchaos; 06-12-2011 at 06:42 AM.
captainchaos is offline
Old 06-12-2011, 06:42 AM
  #9
Senior Member
SuperBike

Thumper's Avatar

Join Date: Jul 2004
Posts: 1,015
Thumper is an unknown quantity at this point
Gotta use a rear stand first then a front stand or well place blocks against oil pan and a jack. Only time i lift front without a rear stand first is if it is a bike stand that has pin up in the triple tree.
Thumper is offline
Old 06-12-2011, 07:15 AM
  #10
Senior Member
SuperSport

thetophatflash's Avatar

Join Date: Jan 2005
Location: Nooksack WA
Posts: 831
thetophatflash
My Woodcraft front stand uses a pin, but they still say to use only with a rear stand in place.
thetophatflash is offline
Old 06-12-2011, 08:26 AM
  #11
Senior Member
MotoGP

lazn's Avatar

Join Date: Mar 2007
Location: Phoenix, AZ
Posts: 3,132
lazn is on a distinguished road
Coulda been worse. You can fix that rear fairing with some plastic welding if you choose.
lazn is offline
Old 06-12-2011, 08:57 AM
  #12
Senior Member
SuperBike

Wicky's Avatar

Join Date: Sep 2008
Location: Essex, UK
Posts: 1,638
Wicky is on a distinguished road
Used a small jack with a bit of wood under the oil pan to get the front end raised, and secured under home-made frame. With the rear end fastened secure in a rear stand.

Wicky is offline
Old 06-12-2011, 02:35 PM
  #13
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,931
smokinjoe73 is on a distinguished road
The problem wasnt the stand. At racetracks around the world there are guys working on bikes using those fork stands. You should however also have it on a swinarm stand to solidify it. And yeah ANY time you walk or roll your bike the sidestand should be up. Its a good habit to be in. They can crush your feet, tip the bike, etc.
smokinjoe73 is offline
Old 06-13-2011, 02:07 AM
  #14
SportTouring
Superstock

Onomea's Avatar

Join Date: Aug 2006
Location: Hawaii
Posts: 274
Onomea is on a distinguished road
Sorry to hear about your mishap. Rear swingarm stand for me was a first purchase
decision over a front end stand. Creats a lot of stability, and yes I always leave my
side stand down. I used an old surplus hospital hoist to raise the front(attached to the triple clamp to raise it. A rear swingarm stand is a good first investment.
Onomea is offline
Old 06-13-2011, 06:43 AM
  #15
Junior Member
Squid

Join Date: Apr 2011
Location: The Woods of SE PA
Posts: 14
V4Jeff is on a distinguished road
Geek, since I picked my VTR up it has always had a little seepage around the oil fill cap, esp after a long hot ride. Asked the local bike shop and they said it could be normal because of the v-twin design (heavy compression etc). I actually did replace my O-ring and still, seepage. Can anyone confirm this? Sorry to hear about the layover. Never had it happen to me yet but I find rear stand really helps with balance when wrenching.

BTW, this is my first post. Have been following you guys and this forum for months and have been very helpful! Will put pix of my new Hawk after my planned photo shoot tomorrow

-Jeff
V4Jeff is offline
