Converter unit wires
#1
Converter unit wires

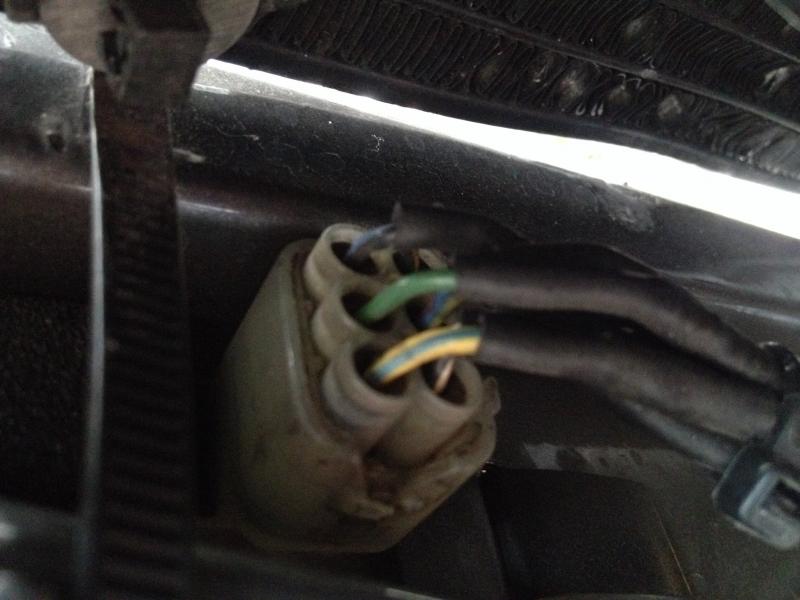

Made a mistake and lost wire order on my wiring harness plug that goes into converter unit.
Here's what I think is right and plugged in now.
Clip side
Nothing. Blue/yellow stripe. Nothing
Black/blue stripe. Green. Yellow blue stripe
Pictures or confirmation on your bike would be great. I've been scouring forums and can't quite get a good enough look. Want to be real sure to not fry my stuff.
Thanks
Here's what I think is right and plugged in now.
Clip side
Nothing. Blue/yellow stripe. Nothing
Black/blue stripe. Green. Yellow blue stripe
Pictures or confirmation on your bike would be great. I've been scouring forums and can't quite get a good enough look. Want to be real sure to not fry my stuff.
Thanks
Last edited by bzera; 05-21-2014 at 05:29 PM.
#3
Ok sorry thought that was good enough. When I went to do it I had a hard time telling difference between black yellow and black white. White look to be on same row of 3.
Here's what I think is right and plugged in now.
Clip side
Nothing. Blue/yellow stripe. Nothing
Black/blue stripe. Green. Yellow blue stripe
Also has anybody soldered connections directly to the connectors on the converter unit? Seems very fragile from what I've read.
So any confirmation or pictures would be great. Got conflicting info from another thread I read. I have a 99 hawk
Here's what I think is right and plugged in now.
Clip side
Nothing. Blue/yellow stripe. Nothing
Black/blue stripe. Green. Yellow blue stripe
Also has anybody soldered connections directly to the connectors on the converter unit? Seems very fragile from what I've read.
So any confirmation or pictures would be great. Got conflicting info from another thread I read. I have a 99 hawk
#4
If you mean not use a connector dont do it. Unless you are stranded on a trip you should track down the proper connector or at least individual plugs. Try molex or corsa websites. One of them has that plug.
#12
Yea at the very base of the plug on the wiring harness I had an exposed possibly burnt wire. I had it all hooked up but decided to secure it better but forgot I had to keep the plug or wiring there to know order.
Lol I even kept it around just incase I needed to check wire order until I tried to "rebuild it"
Lol I even kept it around just incase I needed to check wire order until I tried to "rebuild it"
#13

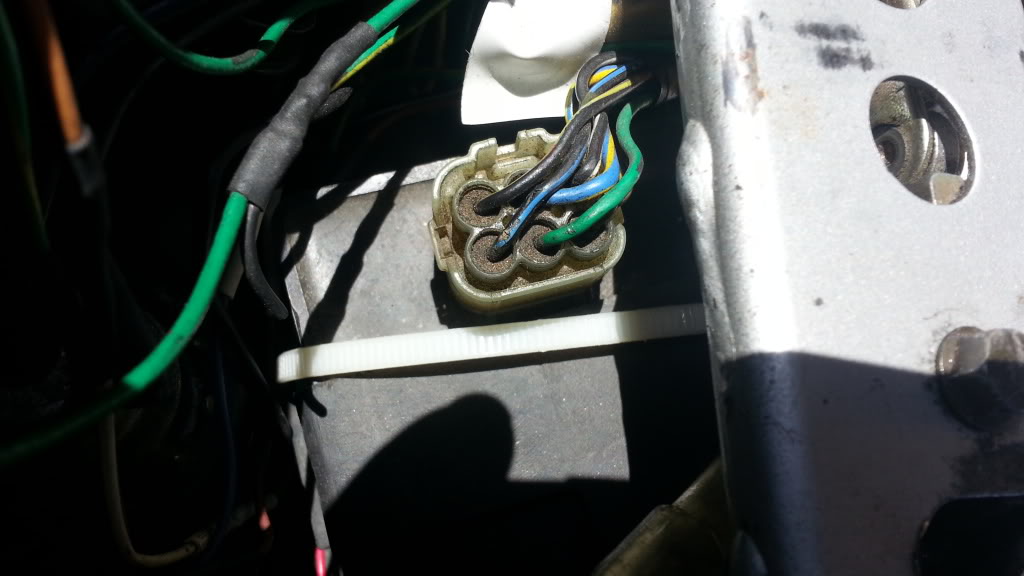

Ok got a picture from my 1998 and wrote down the wires in order.
In the orientation shown in the picture:
wires top row-------1 2 3
the plug------------O O O
--------------------O O O
wires bottom row----3 5 6
1. Black w/yellow tracer
2. Blue w/yellow
3. Black w/white
4. Black w/blue
5. Green
6. Yellow w/blue
Hope this helps.
In the orientation shown in the picture:
wires top row-------1 2 3
the plug------------O O O
--------------------O O O
wires bottom row----3 5 6
1. Black w/yellow tracer
2. Blue w/yellow
3. Black w/white
4. Black w/blue
5. Green
6. Yellow w/blue
Hope this helps.
Last edited by rick; 05-22-2014 at 02:19 PM.
