CBR600RR fork swap finally

Old 09-23-2017, 06:05 PM
  #1
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,898
smokinjoe73 is on a distinguished road
CBR600RR fork swap finally

So yeah after owning this front end for a couple years and not having time I finally pulled the trigger on the job.

06 CBR600RR forks brakes and wheel. Got the whole setup for like $400.

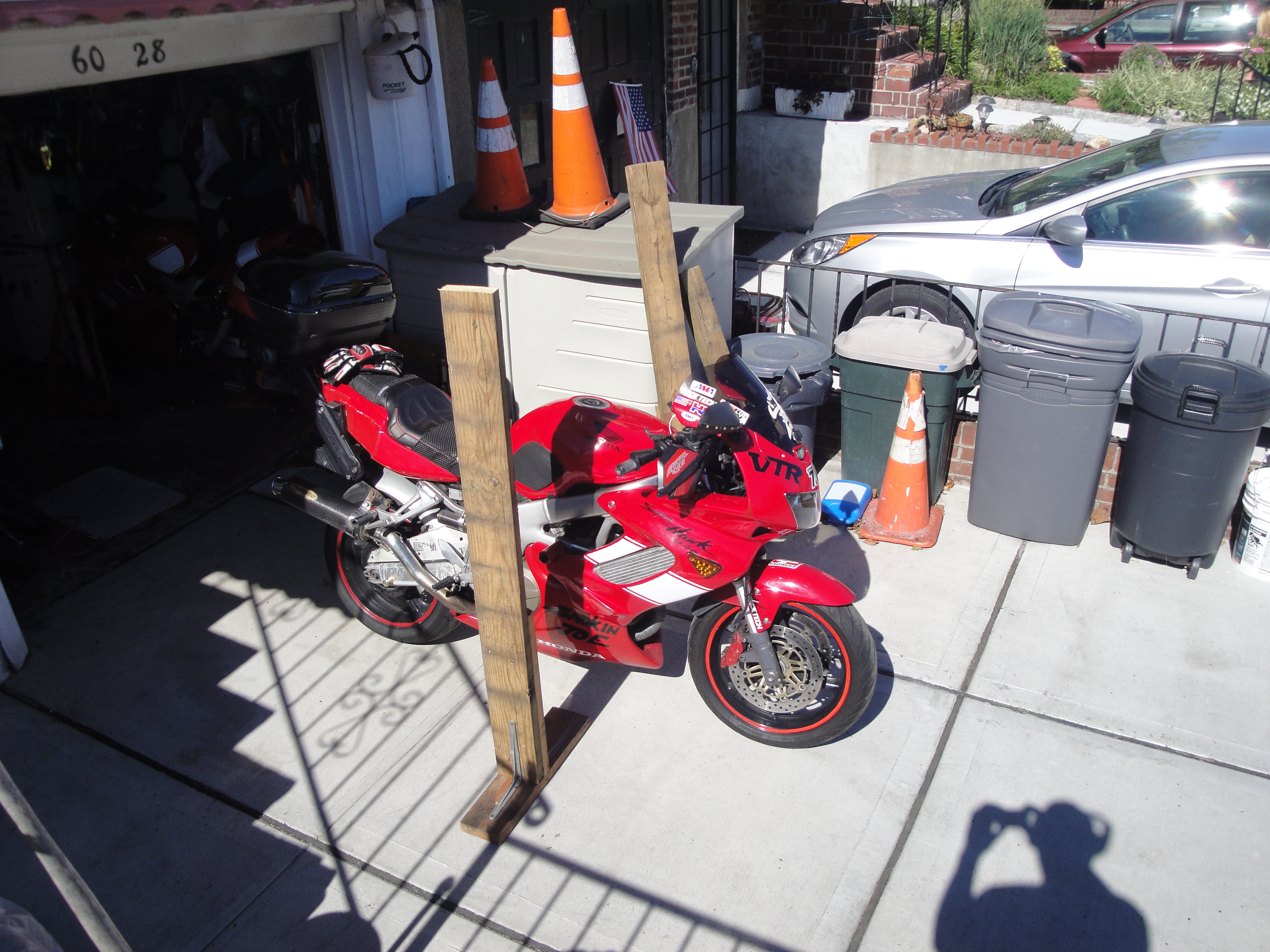

Had to quickly build a gantry crane out of 2x6 from my yard.

Used apex risers with 4" riser I stole from my single sided swingarm hawk. I put the ducati 900ss bars on there last week.

It went really well. Put in new pads since I didn't trust the old oil soaked ones in there even though they had tons of meat on em.

So this is a super easy swap and there are no spacers to machine, line up issues, etc. It also kept the same bike geometry and front ride height as stock so wont make you do any adjustments.

The steering head bearings and even the nuts and adjusters are the same as the stock hawk stuff so I just reused them. Here are some pics.

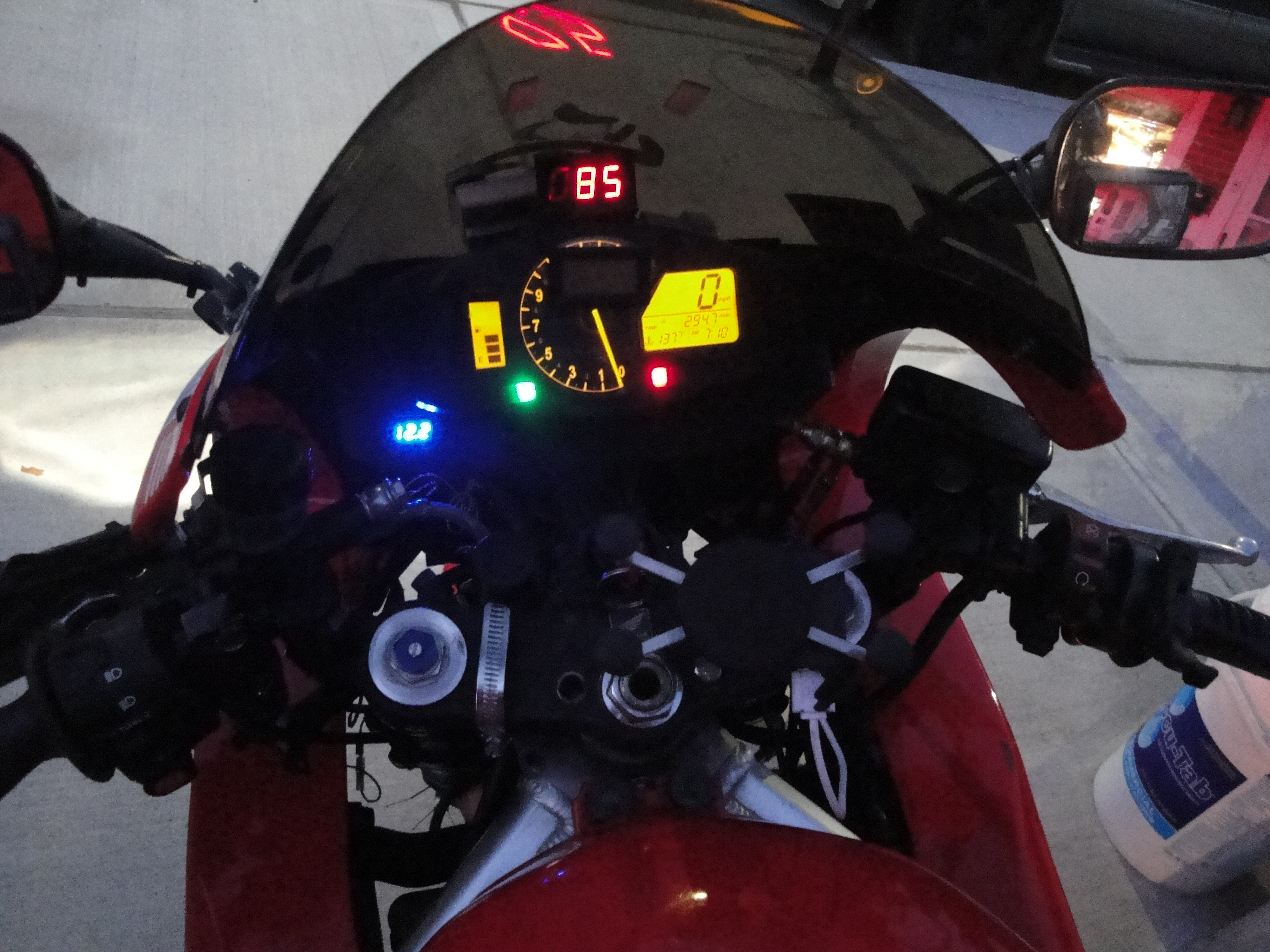

Now this bike has 600RR forks and dash on it. Havent bedded the brakes in yet and not sure how much I trust the front tire yet but only went around the block for the shakedown. Already feels better than the stock forks and now I may need to rebuild or adjust my Penske since now I notice harshness back there.

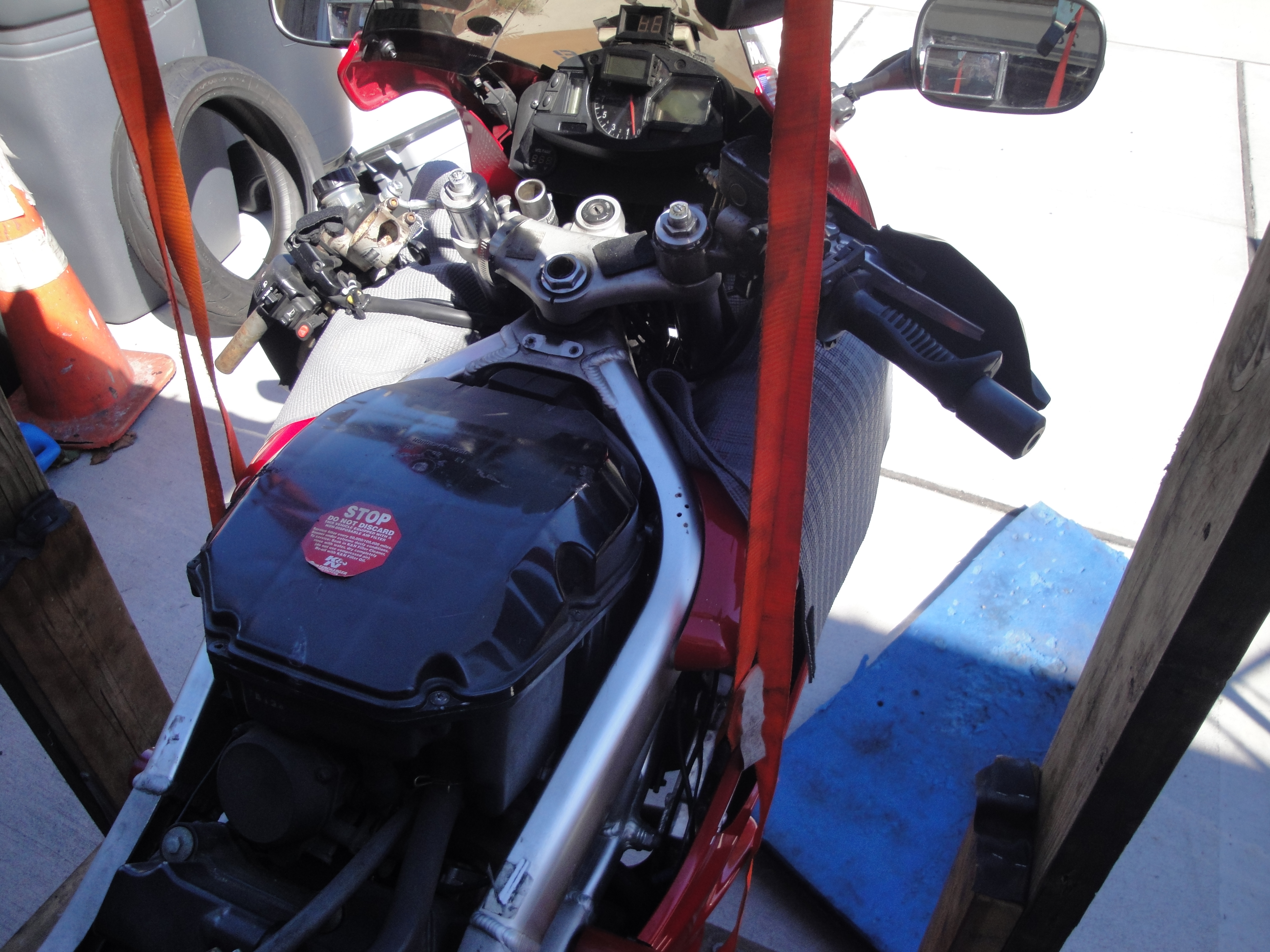

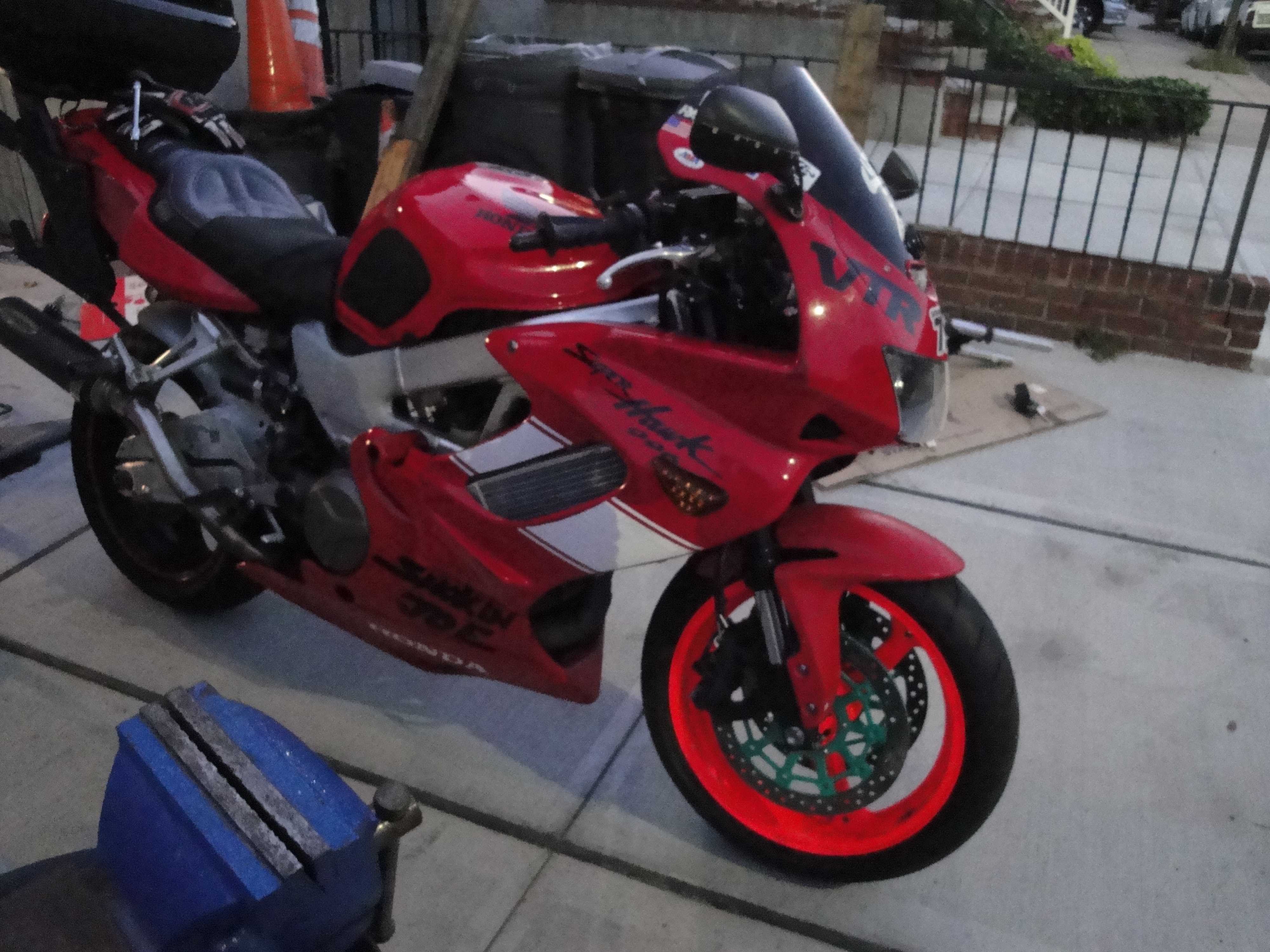

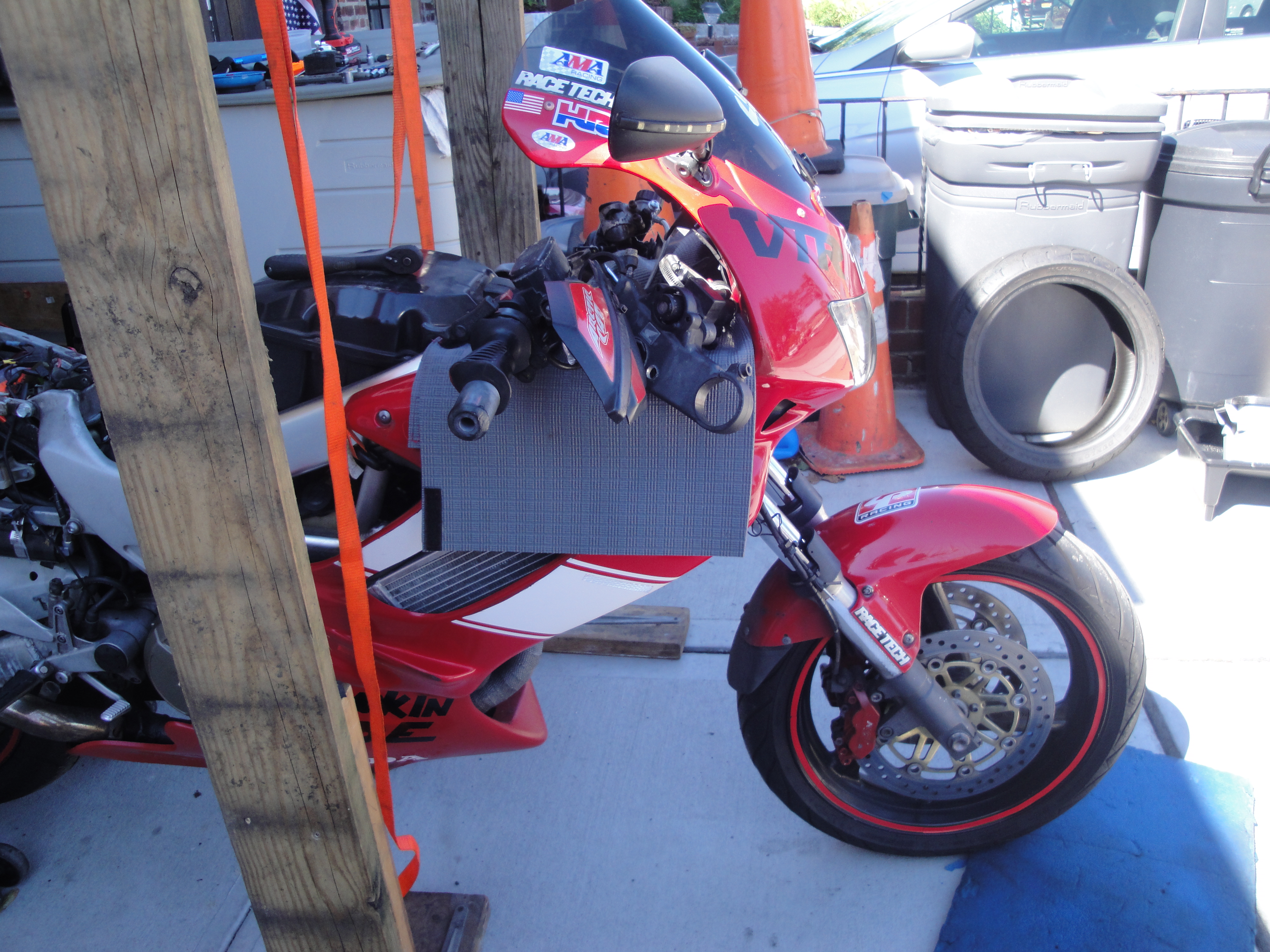

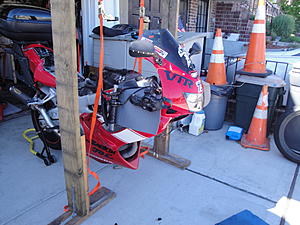

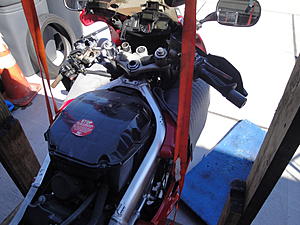

Attached Thumbnails CBR600RR fork swap finally-dsc09114.jpg   CBR600RR fork swap finally-dsc09118.jpg   CBR600RR fork swap finally-dsc09120.jpg   CBR600RR fork swap finally-dsc09122.jpg   CBR600RR fork swap finally-dsc09125.jpg

CBR600RR fork swap finally-dsc09128.jpg

Last edited by smokinjoe73; 09-23-2017 at 09:16 PM.
smokinjoe73 is offline
Old 09-23-2017, 06:13 PM
  #2
Senior Member
SuperBike

kenmoore's Avatar

Join Date: Mar 2012
Location: New South Wales Australia
Posts: 1,523
kenmoore is on a distinguished road
Looking good smokin,

Now you are one of the boys Ha Ha !
kenmoore is offline
Old 09-23-2017, 06:56 PM
  #3
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,898
smokinjoe73 is on a distinguished road
Well, yeah for the daily bike. The B bike had me in the club years ago but its too nice to ride the way I like to ride.

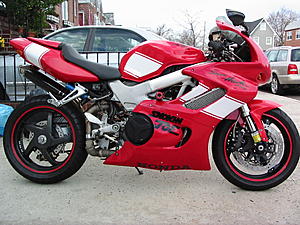

Attached Thumbnails CBR600RR fork swap finally-sss11.28.11-005.jpg
smokinjoe73 is offline
Old 09-24-2017, 06:23 AM
  #4
Senior Member
Back Marker

fabiostar's Avatar

Join Date: Jan 2017
Posts: 153
fabiostar is on a distinguished road
nice work.. now just so iv got this right,2006 cbr forks? and yokes? using storm wheel and discs?
fabiostar is offline
Old 09-24-2017, 06:27 AM
  #5
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,898
smokinjoe73 is on a distinguished road
No the whole thing is 600rr. Triples, tubes wheel brakes etc. I used apex riser bars with a 4" rise but could've used the 900ss 3" rise bars. I wanted a comfortable ride.

The usd cbr forks are not that expensive anymore plus it bolts right up. You need to use different brake lines depending on how high you go with the bars.
smokinjoe73 is offline
Old 09-24-2017, 06:35 AM
  #6
Senior Member
SuperBike

xeris's Avatar

Join Date: Sep 2010
Location: Bisbee, AZ
Posts: 1,453
xeris is on a distinguished road
Did the 600RR steering stem require different bearings?
xeris is offline
Old 09-24-2017, 07:55 AM
  #7
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,446
Wolverine is on a distinguished road
Originally Posted by smokinjoe73 View Post
The usd cbr forks are not that expensive anymore plus it bolts right up. You need to use different brake lines depending on how high you go with the bars.
This is a subject I've wondered about but never asked. My Heli's all but bump fairing at max lock (turns on high beam switch) and I did not need longer lines. How do you go further, are you cutting plastic?
Wolverine is offline
Old 09-24-2017, 01:27 PM
  #8
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,898
smokinjoe73 is on a distinguished road
The apex bars are infinitely(approx.) adjustable so you can work around clearance. I also have handguards so that limits my steering lock but keeps my hands warm.
smokinjoe73 is offline
Old 09-25-2017, 10:17 AM
  #9
2/97 VTR
Back Marker

Kelevra's Avatar

Join Date: Sep 2008
Location: EMPIRE STATE
Posts: 204
Kelevra is on a distinguished road
Nice work for sure! So higher bars are a necessity to clear the body work?
Kelevra is offline
Old 09-25-2017, 12:44 PM
  #10
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,898
smokinjoe73 is on a distinguished road
Higher than stock yes but I wanted similar to my heli bars. Lower than 4" rise would clear bodywork but be more race replica feeling.
smokinjoe73 is offline
Old 09-25-2017, 07:58 PM
  #11
2/97 VTR
Back Marker

Kelevra's Avatar

Join Date: Sep 2008
Location: EMPIRE STATE
Posts: 204
Kelevra is on a distinguished road
Gotcha Joe. My ZX-14R is my commuter/distance/Upstate burner bike, so I just have the VTR for local burning, and Sunday rides. I'd like the most aggressive bars possible. The current aftmkt clip-ons are nice and low, but I have to do 3 pt turns to get it turned in the middle of the road, haha.
Kelevra is offline
