Braced Swingarm
Has anyone done or seen a braced swingarm swap? Got the rear half of my bike torn down and keep thinking that a swingarm change might be an interesting mod.What problems are there? Shock linkage? Alignment? Any thoughts or suggestions greatly appreciated. Cheers....
steve.g is offline
Reply
Old 12-03-2008, 12:20 PM
  #2
ole dirty bastard
SuperSport

hawxter996's Avatar

Join Date: Jul 2004
Location: my house
Posts: 975
hawxter996 is an unknown quantity at this point
Originally Posted by steve.g
Has anyone done or seen a braced swingarm swap? Got the rear half of my bike torn down and keep thinking that a swingarm change might be an interesting mod.What problems are there? Shock linkage? Alignment? Any thoughts or suggestions greatly appreciated. Cheers....

no.....nobody has ever seen anything like that around here.



there has been a few.
hawxter996 is offline
Reply
Old 12-03-2008, 12:29 PM
  #3
Senior Member
SuperBike

trinc's Avatar

Join Date: Feb 2007
Location: Portland, Oregon
Posts: 1,051
trinc is on a distinguished road
do a search on 900rr - thats the brace they are using iirc - cutting & welding it to the stock swingarm.

tim
trinc is offline
Reply
Old 12-03-2008, 12:34 PM
  #4
Senior Member
Superstock
Thread Starter

steve.g's Avatar

Join Date: May 2008
Location: S.Dak USA
Posts: 347
steve.g is on a distinguished road
Originally Posted by hawxter996
no.....nobody has ever seen anything like that around here.



there has been a few.
Duh...!!! I know,me stupid,lazy bastard.... Nice bike,nice idea...
steve.g is offline
Reply
Old 12-03-2008, 12:41 PM
  #5
ole dirty bastard
SuperSport

hawxter996's Avatar

Join Date: Jul 2004
Location: my house
Posts: 975
hawxter996 is an unknown quantity at this point
Originally Posted by steve.g
Duh...!!! I know,me stupid,lazy bastard.... Nice bike,nice idea...
just busting your chops!

welcome to the site.

and yes 900rr is brace used.
hawxter996 is offline
Reply
Old 12-03-2008, 12:50 PM
  #6
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,631
mikstr is on a distinguished road
I recall reading of one chap using a brace fron an early R1 too. I haven't donc the brace yet but am still thinking (lusting?) about it....
mikstr is offline
Reply
Old 12-03-2008, 02:22 PM
  #7
Senior Member
Back Marker

MC Leather's Avatar

Join Date: Nov 2008
Posts: 129
MC Leather is on a distinguished road
Mine has the 900rr brace added and filled in on right, plus a bunch more metal added.
MC Leather is offline
Reply
Old 12-04-2008, 02:41 AM
  #8
Member
Squid

VTR steve's Avatar

Join Date: Jul 2007
Location: Manchester UK
Posts: 56
VTR steve is on a distinguished road

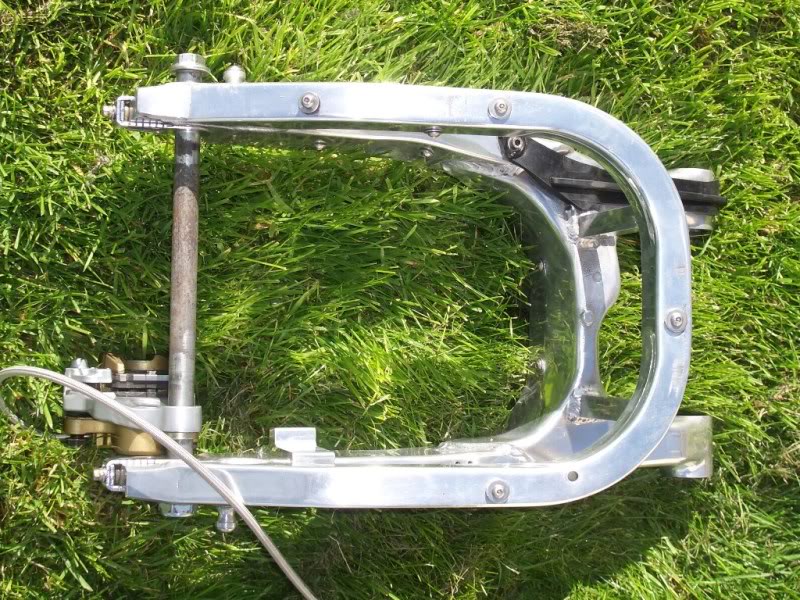

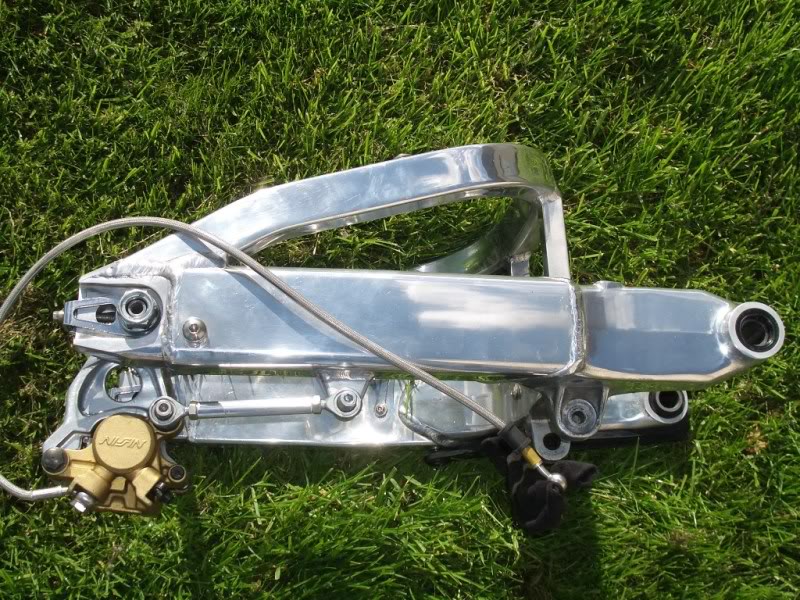

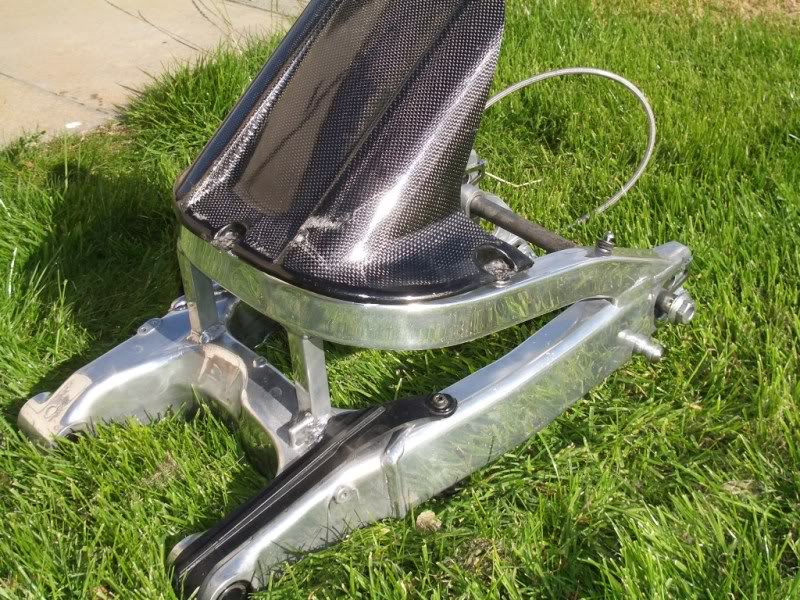

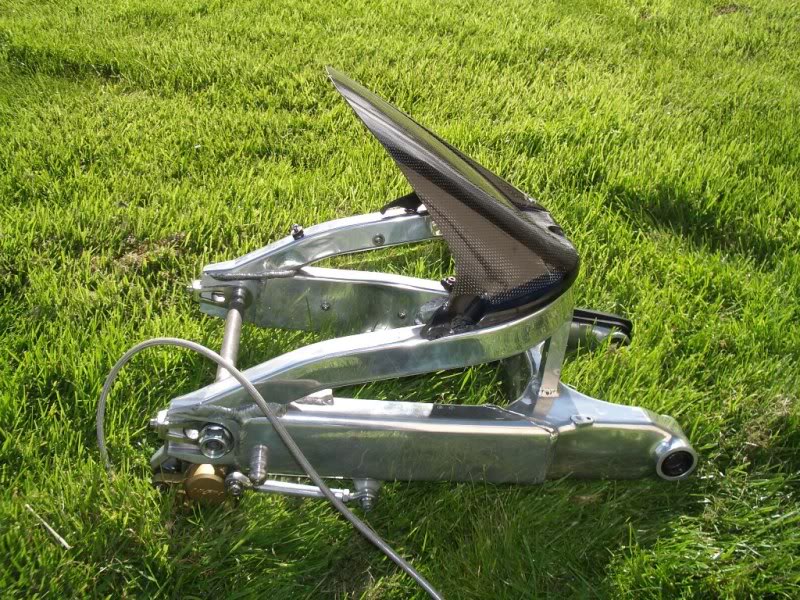

Have a look at this one. The guy used an early R1 brace and under slung the caliper looks really good. I am in the middle of doing one using the 900rr brace.

Name: swingarm.jpg Views: 972 Size: 189.7 KB

Name: swingarm2.jpg Views: 836 Size: 197.3 KB

Name: swingarm3.jpg Views: 966 Size: 201.7 KB

Name: swingarm4.jpg Views: 905 Size: 192.5 KB
VTR steve is offline
Reply
Old 12-04-2008, 04:52 AM
  #9
ole dirty bastard
SuperSport

hawxter996's Avatar

Join Date: Jul 2004
Location: my house
Posts: 975
hawxter996 is an unknown quantity at this point
very nicely done!
hawxter996 is offline
Reply
Old 12-04-2008, 05:46 AM
  #10
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,631
mikstr is on a distinguished road
Very nice job. Not sure what the advantage is with the caliper relocation though other than the bling factor. The final piece of the puzzle would be to powdercoat it black, mmmmmmmmmmmmmmmmmmmmm
mikstr is offline
Reply
Old 12-04-2008, 05:49 AM
  #11
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,631
mikstr is on a distinguished road
Just a quick question or those who have braced arms on their VTRs: can you feel any difference when riding the bike (and be honest now )?

thanks
mikstr is offline
Reply
Old 12-04-2008, 07:03 AM
  #12
Senior Member
Superstock
Thread Starter

steve.g's Avatar

Join Date: May 2008
Location: S.Dak USA
Posts: 347
steve.g is on a distinguished road
Thanks for the pics VTR Steve.Nice idea,nicely done. I'm gonna do some sketches when I get home,see what I think. Oh,bye the way.Which side of Manchester are you from...Red or Blue?
steve.g is offline
Reply
Old 12-04-2008, 07:35 AM
  #13
Fastest Color
SuperBike

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by mikstr
Just a quick question or those who have braced arms on their VTRs: can you feel any difference when riding the bike (and be honest now )?

thanks
Mik, you can tell a difference! Honestly, that's why I did it...running down the interstate highway at 70 mph (never faster) the stock rear end felt loose and I didn't like it, so I put on the 900rr braced swingarm and all the looseness is gone! It's like magic bro
RC
Attached Images
Last edited by FL02SupaHawk996; 12-04-2008 at 07:37 AM. Reason: spell
FL02SupaHawk996 is offline
Reply
Old 12-04-2008, 07:51 AM
  #14
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,631
mikstr is on a distinguished road
Taunting me huh? lol You do realize you're making it ever more difficult for me to talk myself out of this....
mikstr is offline
Reply
Old 12-04-2008, 07:55 AM
  #15
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
Originally Posted by mikstr
Very nice job. Not sure what the advantage is with the caliper relocation though other than the bling factor. The final piece of the puzzle would be to powdercoat it black, mmmmmmmmmmmmmmmmmmmmm
Well apart from the almighty bling factor the ony real reason would be that the brace is in the way of the caliper mount, so the VTR bracket won't fit, and likely the brace from the donor R1 didn't either...

When you use the 900RR brace it's usually possible to use that bracket... I think atleast?

I'll never find out at this rate as I by pure accident (yeah right!) bougth a swingarm from an 929 instead... So I'm going to attempt to force those two parts to co-exist instead... I think I need loads of therapy... altough my shrinks say it's ok with theraputic work, like knitting... So I guess I'm alright...
Tweety is offline
Reply
Old 12-04-2008, 07:56 AM
  #16
Fastest Color
SuperBike

FL02SupaHawk996's Avatar

Join Date: Jul 2007
Location: Lithia, FL
Posts: 2,091
FL02SupaHawk996 is on a distinguished road
Originally Posted by mikstr
Taunting me huh? lol You do realize you're making it ever more difficult for me to talk myself out of this....
Sorry, mods are fun

However, I'd do it again in a minute! In fact, I have an the old 2002 swingarm that I can sell ya so you don't have to look for one to brace up if you want it
RC
FL02SupaHawk996 is offline
Reply
Old 12-04-2008, 08:31 AM
  #17
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,631
mikstr is on a distinguished road
Food for thought
mikstr is offline
Reply
Old 04-01-2009, 07:24 AM
  #18
Senior Member
Superstock
Thread Starter

steve.g's Avatar

Join Date: May 2008
Location: S.Dak USA
Posts: 347
steve.g is on a distinguished road

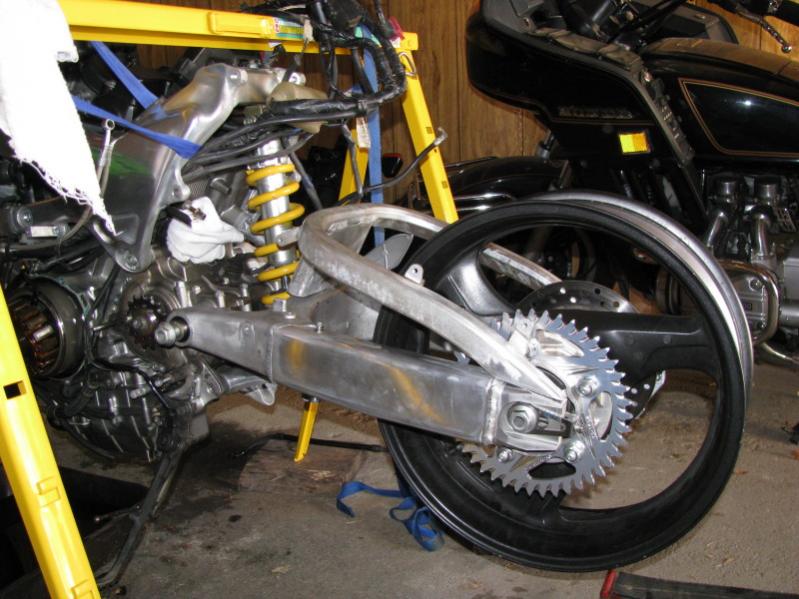

Got my swingarm done.Welded a 900rr brace on and modified the tab to accept a 900rr caliper mount.Pic is a mock up before welding.Will post some completed pics when I get home....(stuck in NJ right now...no freight!)
Attached Thumbnails Braced Swingarm-swingarm2.jpg
steve.g is offline
Reply
Old 04-01-2009, 07:31 AM
  #19
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,631
mikstr is on a distinguished road
Yep, looks just like mine before I had it welded. I have since had it powdercoated and am just waiting on getting it on the bike. Looking forward to it
mikstr is offline
Reply
Old 04-01-2009, 07:32 AM
  #20
evil man of nothing
MotoGP

captainchaos's Avatar

Join Date: Jan 2006
Location: Boynton Beach, FL
Posts: 4,484
captainchaos is on a distinguished road
Nice job!
captainchaos is offline
Reply
Old 04-01-2009, 07:38 AM
  #21
Senior Member
Superstock
Thread Starter

steve.g's Avatar

Join Date: May 2008
Location: S.Dak USA
Posts: 347
steve.g is on a distinguished road
Originally Posted by mikstr
Yep, looks just like mine before I had it welded. I have since had it powdercoated and am just waiting on getting it on the bike. Looking forward to it
What did you do for caliper mount? I cut off the original channel inside the swingarm (for the SHK caliper mount plate) and welded on the channel from the 900rr swingarm and used that mount plate. The caliper now sits high enough to clear the brace and looks cool.Also had to change the brake line,used a custom HEL 2" longer than stock.
steve.g is offline
Reply
Old 04-01-2009, 07:45 AM
  #22
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,631
mikstr is on a distinguished road
I also cut the old channel and had the one from the 900RR arm welded in its place (also picked up a 900RR caliper bracket). I had not had everything assembled yet but it seems this is the standard procedure used by those who have added the brace.
mikstr is offline
Reply
Old 04-01-2009, 07:50 AM
  #23
Senior Member
Superstock
Thread Starter

steve.g's Avatar

Join Date: May 2008
Location: S.Dak USA
Posts: 347
steve.g is on a distinguished road
Originally Posted by mikstr
I also cut the old channel and had the one from the 900RR arm welded in its place (also picked up a 900RR caliper bracket). I had not had everything assembled yet but it seems this is the standard procedure used by those who have added the brace.
Did exactly the same....Everything fitted fine... Will post completed pics when I get home
steve.g is offline
Reply
