Aftermarket Hiflo air filter does not fit

Thread Tools

Search this Thread

Old Dec 5, 2018 | 05:51 PM
  #1
niteridder64's Avatar
Thread Starter
Member
Squid

Joined: May 2009
Posts: 66
From: Tampa, FL
niteridder64 is on a distinguished road
Aftermarket Hiflo air filter does not fit

I purchased an aftermarket Hiflo HFA 1909. The application guide says it fits all Hawks. I tried to install it but it would not fit in the recesses around the perimeter of the lower or upper airbox. Close enough that is is for this bike but I just could not force it in the groove all the way around, it was just a little too small even if I were to leave it in the sun. Has any one else experienced this or had had luck w/other brands?
Old Dec 6, 2018 | 10:59 AM
  #2
kenmoore's Avatar
Senior Member
SuperBike

Joined: Mar 2012
Posts: 1,544
From: New South Wales Australia
kenmoore is on a distinguished road
I have used hi flow many times and never had a problem.

Maybe the filter is faulty, or the wrong one is in the box .

I always mod mine by cutting the baffle plate off.
Old Dec 6, 2018 | 11:45 AM
  #3
niteridder64's Avatar
Thread Starter
Member
Squid

Joined: May 2009
Posts: 66
From: Tampa, FL
niteridder64 is on a distinguished road
Is the original honda filter a cleanable one or throw away?
Old Dec 6, 2018 | 02:10 PM
  #4
Wicky's Avatar
Senior Member
SuperBike

Joined: Sep 2008
Posts: 1,707
From: Essex, UK
Wicky is on a distinguished road
Give it a blow with an air hose to tide you over tilll you get a correctly new un. But no they aren't washable like K&N - and no I don't recommend a K&N even though I've got one fitted and haven't had to buy a new filter for over 60,000 miles :-)
Old Dec 6, 2018 | 06:14 PM
  #5
superhawk138's Avatar
Member
Squid

Joined: Sep 2011
Posts: 32
superhawk138 is on a distinguished road
I recently received the Hiflofiltro as well. The filter I got fit somewhat ok into the airbox but the lid didn't fit like OEM. I dremeled down a small section until I got the lid to fit. This will get me by for a while but next filter I'll buy OEM again.

Last edited by superhawk138; Dec 7, 2018 at 01:49 PM. Reason: auto correct filled with the wrong words
Old Dec 7, 2018 | 05:29 AM
  #6
Wolverine's Avatar
Moderator
MotoGP

Joined: Jul 2007
Posts: 5,213
From: Gettysburg, Pa
Wolverine is on a distinguished road
I've recently experienced the same issue. I had to do some serious wrestling to get it in there. Best advice I can give is to spray the perimeter with silicone and warm the airbox and filter edge a little with a heat gun or hair dryer. Then mine was able to be forced into place.
It will be the last HiFlo air filter I will ever buy.

On a side note, my boss (at the motorcycle shop where I work) bought one for his Blackbird. I installed it last week and it fit no problem.

Last edited by Wolverine; Dec 8, 2018 at 06:59 AM.
Old Dec 7, 2018 | 01:31 PM
  #7
ACE VenTRa's Avatar
Senior Member
SuperSport

Joined: Jul 2018
Posts: 565
ACE VenTRa is on a distinguished road
I have used Hi-Flo for many years on all of my personal bikes as well as hundreds of customer bikes. They normally work without issue, though the quality is a bit off sometimes, so I would say that it is quite possible you have a factory error, or a mis-packaged filter. I'd try another one and return the old one.
Old Dec 8, 2018 | 02:58 AM
  #8
niteridder64's Avatar
Thread Starter
Member
Squid

Joined: May 2009
Posts: 66
From: Tampa, FL
niteridder64 is on a distinguished road
I called the company that makes or maybe distributes the Hiflo filters and they want me to take pics, no problem. The company I bought it from sent me a return label and I ordered an Emgo, I'll see how that works.
Old Dec 8, 2018 | 03:36 AM
  #9
Wicky's Avatar
Senior Member
SuperBike

Joined: Sep 2008
Posts: 1,707
From: Essex, UK
Wicky is on a distinguished road
Originally Posted by niteridder64
I called the company that makes or maybe distributes the Hiflo filters and they want me to take pics, no problem. The company I bought it from sent me a return label and I ordered an Emgo, I'll see how that works.
Could you share the pic here as well for reference.
Old Dec 8, 2018 | 06:56 AM
  #10
Wolverine's Avatar
Moderator
MotoGP

Joined: Jul 2007
Posts: 5,213
From: Gettysburg, Pa
Wolverine is on a distinguished road
Originally Posted by niteridder64
I called the company that makes or maybe distributes the Hiflo filters and they want me to take pics, no problem. The company I bought it from sent me a return label and I ordered an Emgo, I'll see how that works.

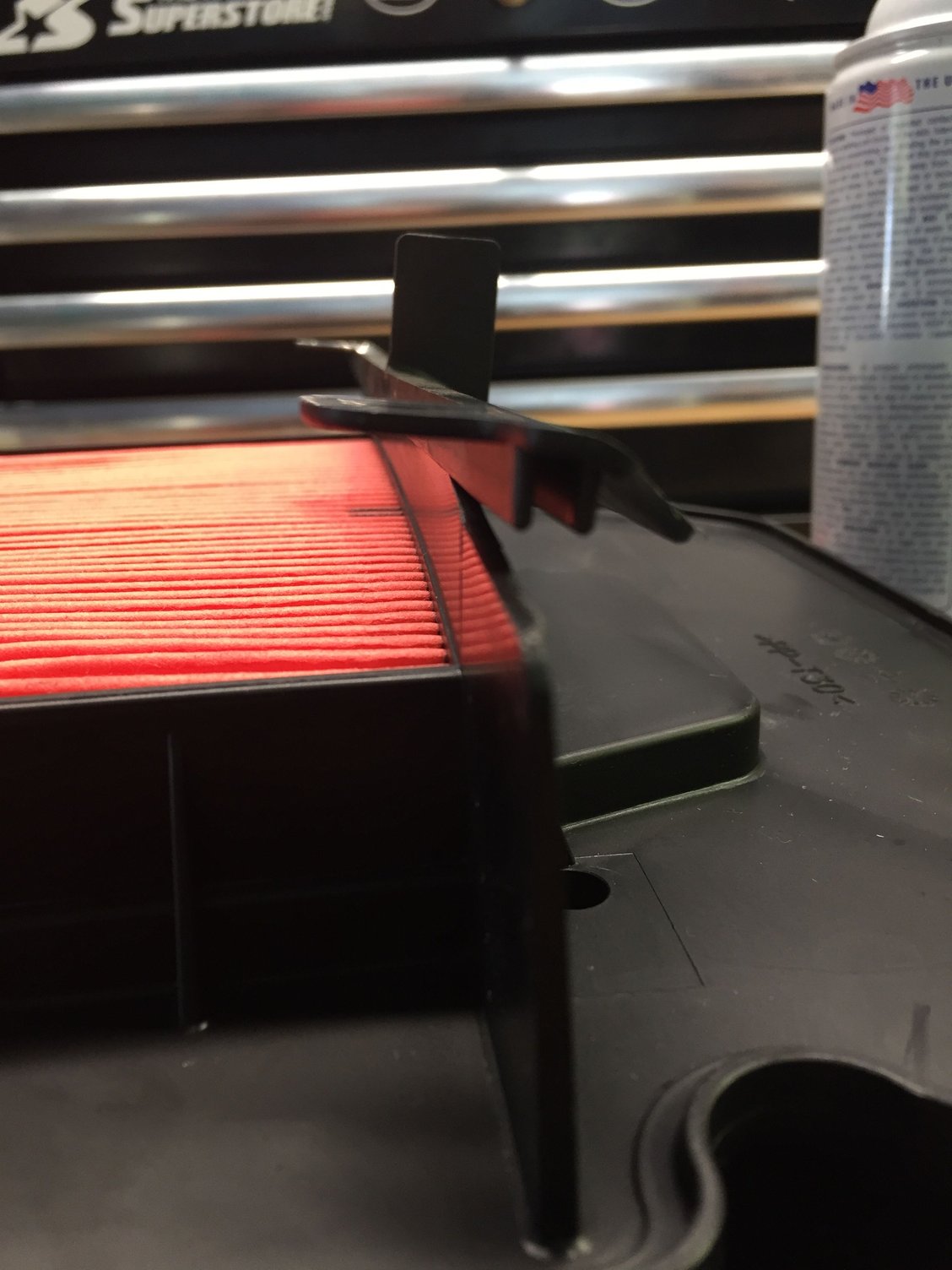

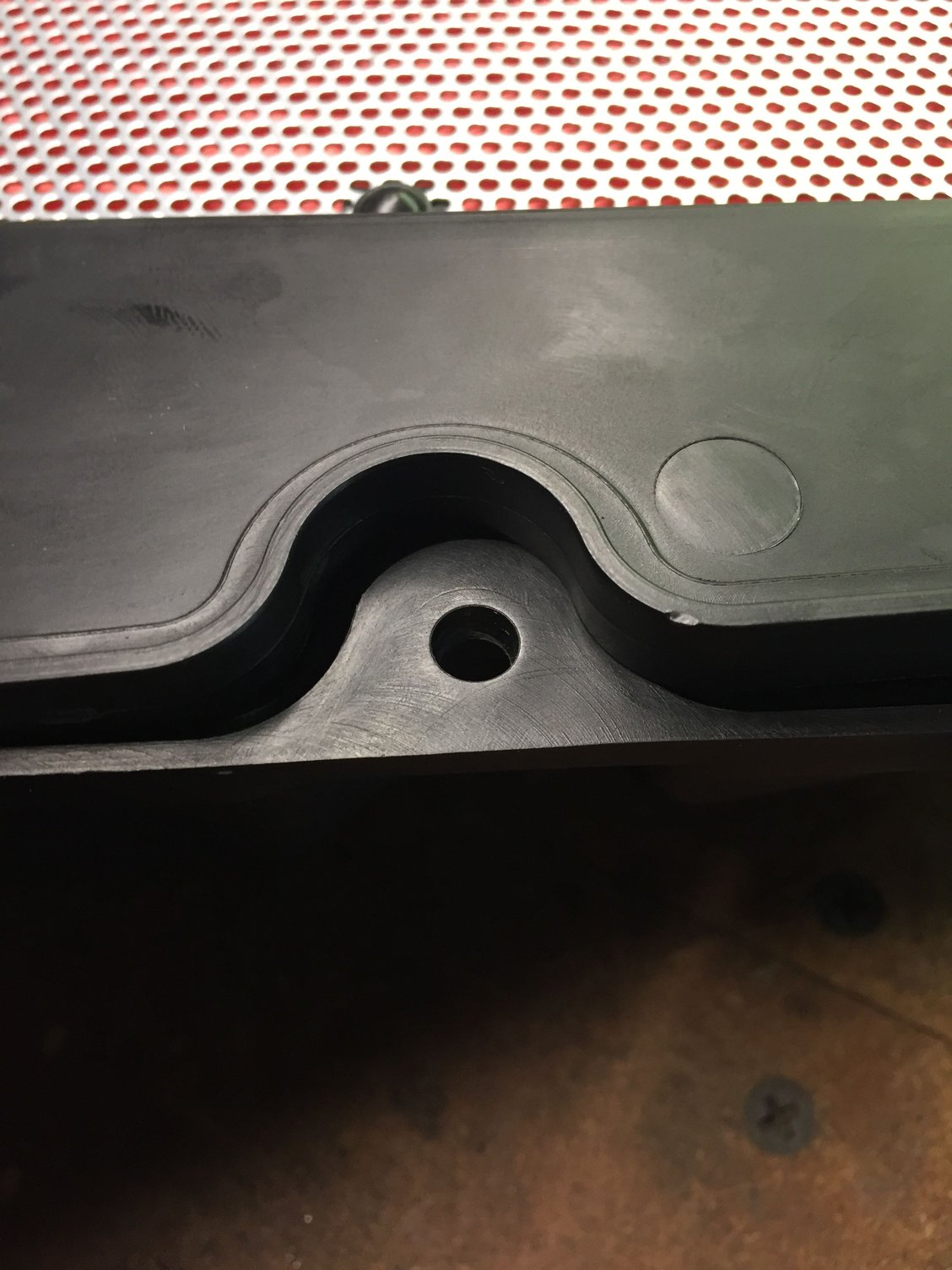

This shows the piece from the airbox lid siting on one side and the warp of the HiFlo filter. Hard to see with a picture.


I have a LOT of experience using HiFlo products.


I reached out to HiFlo on social media and got no reply.
Old Dec 9, 2018 | 02:15 AM
  #11
niteridder64's Avatar
Thread Starter
Member
Squid

Joined: May 2009
Posts: 66
From: Tampa, FL
niteridder64 is on a distinguished road
I never got the chance to take a pic of the Hiflo. I got the Emgo to my door very quickly and stuck it in to see if it fit and it was perfect. I installed the upper airbox to check that as well and inst. screws when I realized I forgot to snap a few of the Hiflo, just did not feel like taking it apart. My situation looked very similar to the pics Wolverine took. Installed new plugs and she runs just as good as before, mission accomplished.
Old Dec 9, 2018 | 07:29 AM
  #12
Wolverine's Avatar
Moderator
MotoGP

Joined: Jul 2007
Posts: 5,213
From: Gettysburg, Pa
Wolverine is on a distinguished road
Thumbs up

Originally Posted by niteridder64
I never got the chance to take a pic of the Hiflo. I got the Emgo to my door very quickly and stuck it in to see if it fit and it was perfect. I installed the upper airbox to check that as well and inst. screws when I realized I forgot to snap a few of the Hiflo, just did not feel like taking it apart. My situation looked very similar to the pics Wolverine took. Installed new plugs and she runs just as good as before, mission accomplished.
Just send them mine.
