Wide Band Fuel Air Meter, as good as Dyno?
Giday guys,

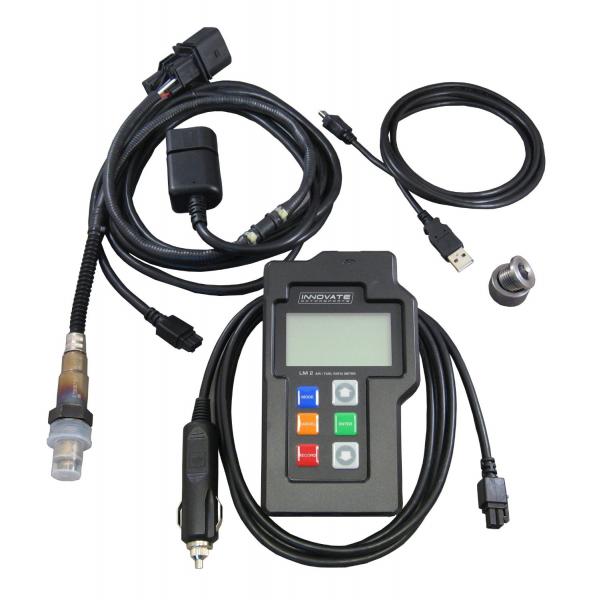

Im wanting to ask the 'veterans' here opinion on AFM tools in conjunction or instead of using a Dyno run. Not just a basic AFM tool but ones with the data loging capability such as the Innovate Motorsports LM-2 units.
From what I can tell it essentially used the same principle to 'map' fuel/air delivery across the rev range. It just excludes the rear wheel Hp out of the graph.
Now correct me if Im wrong but if fuel/air are being delivered effectively that should equate to optimal performance, right?
Additionally the graphed lines will tell a tuner, even a back yard one exactly where the flat-spot or under/over fueling is occurring as the lines cross or diverge, thus indicating which jet/screw position or potentially items further upstream (i.e. filter) or down stream (i.e. exhaust) is causing issues.
Happy to hear from anyone who's used them and can talk with authority on the use of for tuning purposes.
Plus! for $230 for a AFM its far more cost effective than the usual $700 we pay for Dyno runs (at least here in Australia).
Your thoughts gentlemen
Im wanting to ask the 'veterans' here opinion on AFM tools in conjunction or instead of using a Dyno run. Not just a basic AFM tool but ones with the data loging capability such as the Innovate Motorsports LM-2 units.
From what I can tell it essentially used the same principle to 'map' fuel/air delivery across the rev range. It just excludes the rear wheel Hp out of the graph.
Now correct me if Im wrong but if fuel/air are being delivered effectively that should equate to optimal performance, right?
Additionally the graphed lines will tell a tuner, even a back yard one exactly where the flat-spot or under/over fueling is occurring as the lines cross or diverge, thus indicating which jet/screw position or potentially items further upstream (i.e. filter) or down stream (i.e. exhaust) is causing issues.
Happy to hear from anyone who's used them and can talk with authority on the use of for tuning purposes.
Plus! for $230 for a AFM its far more cost effective than the usual $700 we pay for Dyno runs (at least here in Australia).
Your thoughts gentlemen
