Speigler Brake Line Upgrade Question

Old 05-29-2014, 01:14 PM
  #1
Member
Squid
Thread Starter

Join Date: Apr 2014
Location: Williamsburg, Virginia
Posts: 103
ssscottyyy is on a distinguished road
Speigler Brake Line Upgrade Question

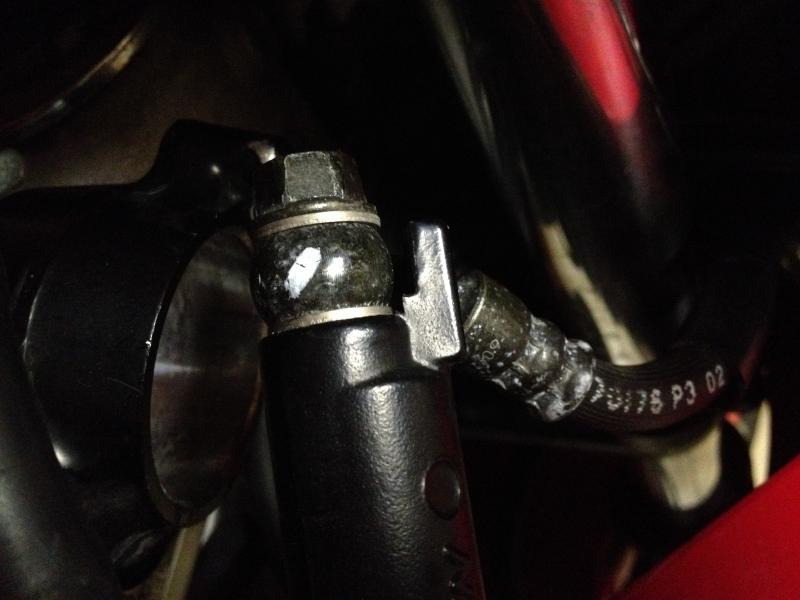

I am having clearance issues installing my Speigler lines. The metal tab on the brake lever perch thing is in the way...I'm most likely going to grind that part off. Is that normal for installing aftermarket brake lines on stock clipons?

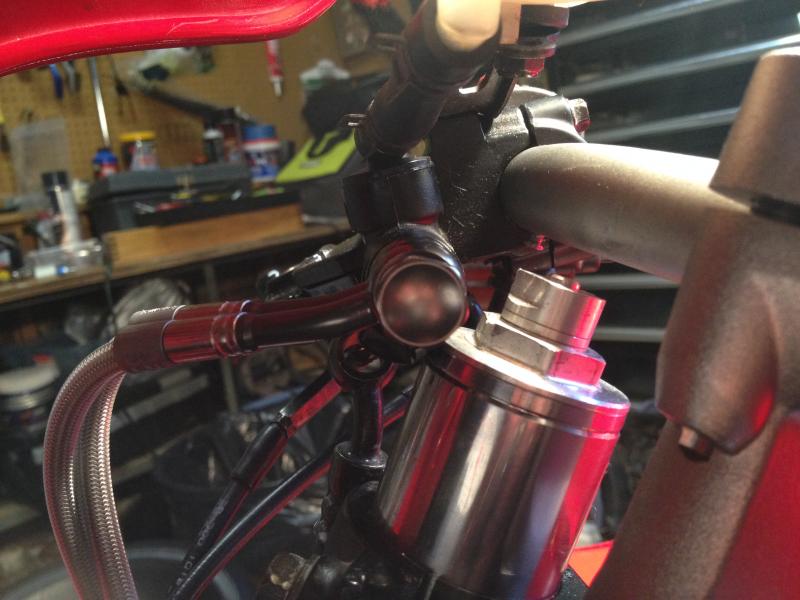

The second picture is when I was trying to add FZ1 bar and clamps, but the same situation applies with the stock clipons which I'm going back to for right now because the pinch bolt on the triple would be in the way, so the lines would have to be on the other side of that metal tab.
Attached Thumbnails Speigler Brake Line Upgrade Question-2014-05-29-00.46.32.jpg   Speigler Brake Line Upgrade Question-2014-05-21-17.26.53.jpg
ssscottyyy is offline
Old 05-29-2014, 01:30 PM
  #2
Senior Member
SuperSport

thetophatflash's Avatar

Join Date: Jan 2005
Location: Nooksack WA
Posts: 831
thetophatflash
I've got Speigler lines and didn't have to grind any thing for purposes of installation.
thetophatflash is offline
Old 05-29-2014, 01:46 PM
  #3
Member
Squid
Thread Starter

Join Date: Apr 2014
Location: Williamsburg, Virginia
Posts: 103
ssscottyyy is on a distinguished road
Originally Posted by thetophatflash View Post
I've got Speigler lines and didn't have to grind any thing for purposes of installation.
Did you rotate your brake lever and such upward/toward you more to make more room? I find that brake lever position uncomfortable for my wrists to reach.

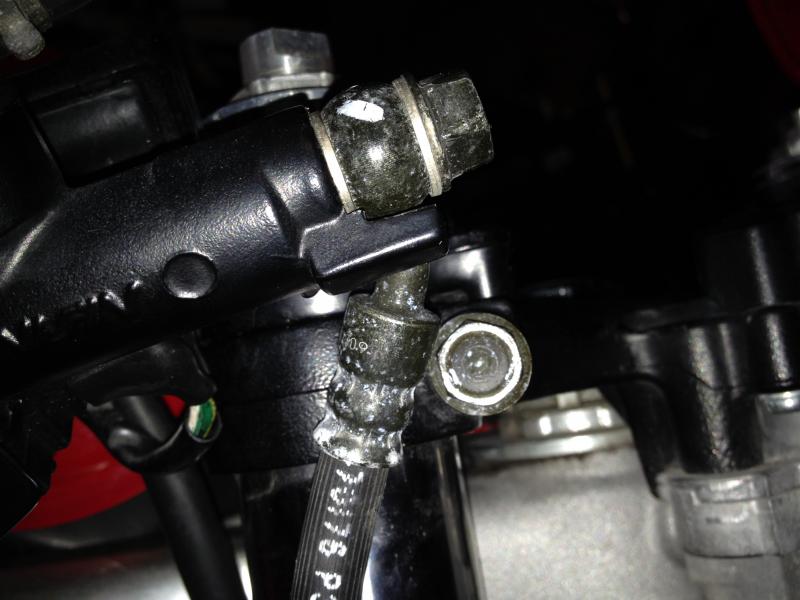

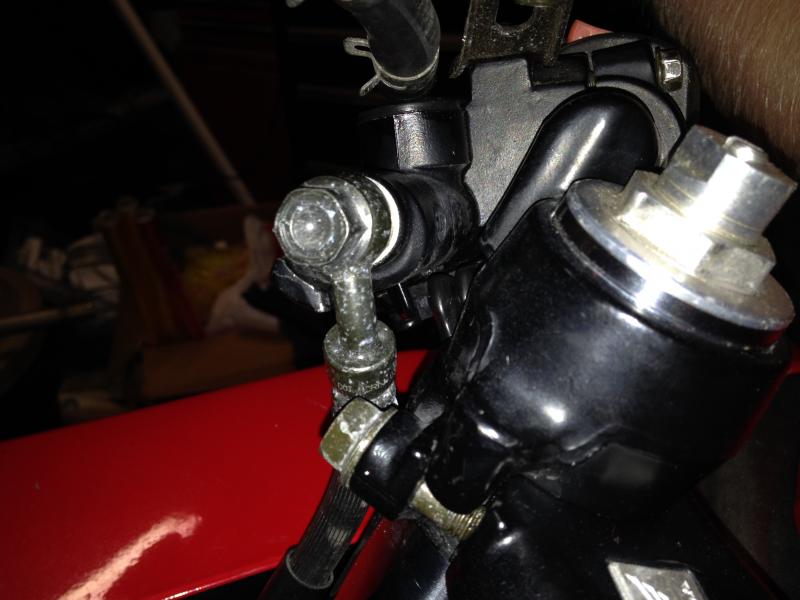

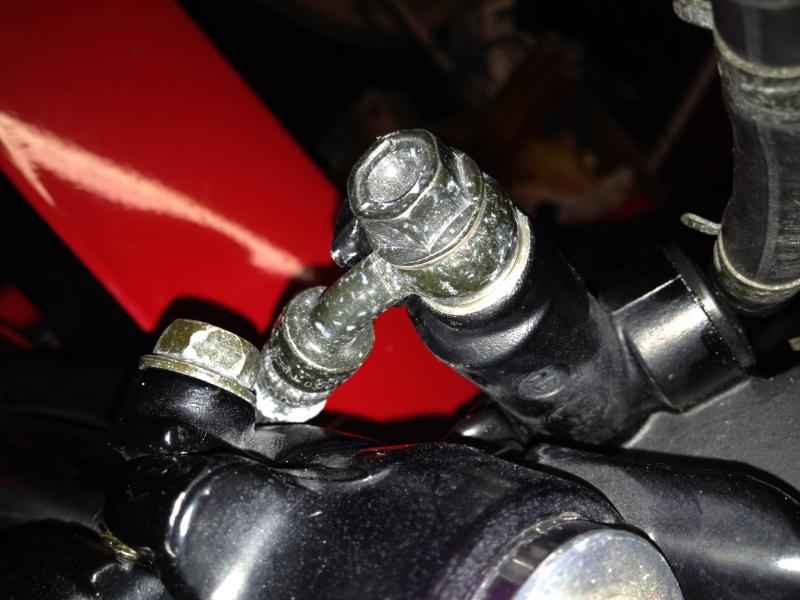

Attached are better pictures of how the stock line looks with the clearance of the little metal tab next to the banjo bolt and the clearance of the pinch bolt on the upper triple/fork area.
Attached Thumbnails Speigler Brake Line Upgrade Question-2014-05-29-16.41.44.jpg   Speigler Brake Line Upgrade Question-2014-05-29-16.42.04.jpg   Speigler Brake Line Upgrade Question-2014-05-29-16.40.59.jpg
ssscottyyy is offline
Old 05-29-2014, 04:13 PM
  #4
Member
Squid
Thread Starter

Join Date: Apr 2014
Location: Williamsburg, Virginia
Posts: 103
ssscottyyy is on a distinguished road
Never mind. I guess I spoke too soon. Went ahead and tried to install the new lines and everything seems to be OK. Just have the brake lever not as low as I'm 100% comfortable with, that's all. But I'm good now, no worries!!
ssscottyyy is offline
Old 05-29-2014, 05:16 PM
  #5
Senior Member
SuperSport

thetophatflash's Avatar

Join Date: Jan 2005
Location: Nooksack WA
Posts: 831
thetophatflash
My brake lever is at the same angle as with stock lines. No change needed.
thetophatflash is offline
Old 05-29-2014, 05:24 PM
  #6
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,479
Wolverine is on a distinguished road
I had to grind a little of my tab as well. (pics here)
Wolverine is offline
Old 05-29-2014, 06:11 PM
  #7
Member
Squid
Thread Starter

Join Date: Apr 2014
Location: Williamsburg, Virginia
Posts: 103
ssscottyyy is on a distinguished road
Originally Posted by Wolverine View Post
I had to grind a little of my tab as well. (pics here)
Yeah I have a feeling if I want to be 100% comfortable I'll have to do the same. I've got VFR bars and risers on the way though so maybe the added height will make the current angle of the levers just the way I like it.
ssscottyyy is offline
Old 05-29-2014, 06:49 PM
  #8
Senior Member
SuperSport

thetophatflash's Avatar

Join Date: Jan 2005
Location: Nooksack WA
Posts: 831
thetophatflash
Originally Posted by Wolverine View Post
I had to grind a little of my tab as well. (pics here)
Pics link not working.
thetophatflash is offline
Old 05-29-2014, 10:21 PM
  #9
Member
Squid
Thread Starter

Join Date: Apr 2014
Location: Williamsburg, Virginia
Posts: 103
ssscottyyy is on a distinguished road
Originally Posted by thetophatflash View Post
Pics link not working.
Just put a : after the http...link fixed. https://www.superhawkforum.com/forum...59-95-a-31507/
ssscottyyy is offline
