Penske shock/sidestand question

So I just put a penske shock on. I have the ride ht dialed pretty much all the way up. Now the sidestand is nowhere near long enuff. Even before with the shock shimmed it would tilt alot but now its on its ear!

Does anyone else have this problem? Do I have to lower both ends? Or do I just need a plate to move the stand lower?

Thanks guys.
smokinjoe73 is offline
Old 04-06-2011, 06:09 PM
  #2
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,561
mikstr is on a distinguished road
I have a similar problem (due to shimming of rear). Unfortunately, I have looked extensively for a longer stand but to no avail. All the adjustable ones only go shorter....
mikstr is offline
Old 04-06-2011, 07:24 PM
  #3
Senior Member
Back Marker

BluStreak's Avatar

Join Date: Dec 2008
Location: Lunenburg, MA
Posts: 116
BluStreak is on a distinguished road
I bought a Jamie Daugherty modified rear cbr600F4 piece and he redid my valves on my front shock and added progressive rate springs. After re-setting the sag post installation, the rear end came up substantially. Now I have to use a !" pine block under the side-stand and it still a pretty good lean. Seems like correcting the rear suspension also means raising up the rear end of the bike! I'm sure lots of folks could use a solution if you find one! Good luck.
BluStreak is offline
Old 04-06-2011, 07:49 PM
  #4
Senior Member
SuperBike

cliby's Avatar

Join Date: Jul 2005
Location: MN
Posts: 1,547
cliby is on a distinguished road
dude how much did you lengthen the shock over stock eye-to-eye length? I raised mine about 8mm if I recall (penske shock) and no problem. do you also have a higher profile tire? Or is it possible the side stand mount is bent? I don't think you should have problems - I don't know where the front of my bike is relative to stock anymore - its quite possilbe that it is lower than stock (its a rc51 front end) but I thought I tried to put it to stock height after I replaced.
cliby is offline
Old 04-06-2011, 07:57 PM
  #5
Senior Member
Back Marker

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
Yep,
I have the same problem after new front and rear suspension.
The front is higher, as well as the rear.
I have read about a few people that added material to the bottom of the stand.
Hopefully someone can come up with an easy, aesthetically pleasing solution.

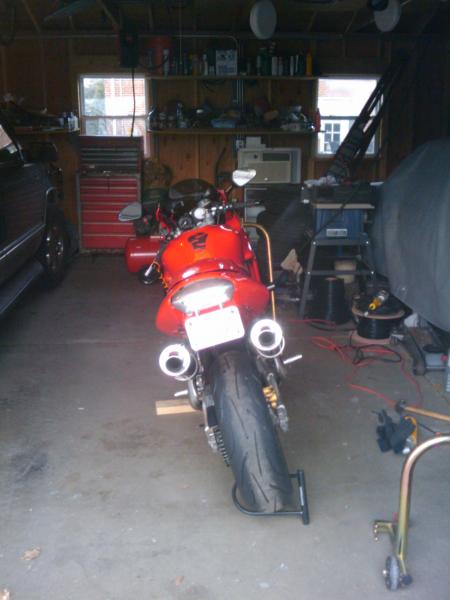

This is what mine now looks like:

Penske shock/sidestand question-2011-03-20-18.24.13.jpg

Last edited by superh1998; 04-06-2011 at 08:00 PM.
superh1998 is offline
Old 04-06-2011, 08:54 PM
  #6
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,934
smokinjoe73 is on a distinguished road
OK so I guess when I make a fix plate I will make more than one.
smokinjoe73 is offline
Old 04-06-2011, 09:02 PM
  #7
Senior Member
Back Marker

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
Please do!
I don't know how much you need, but I need somewhere between 3/4 and 1 inch (probably closer to 1).

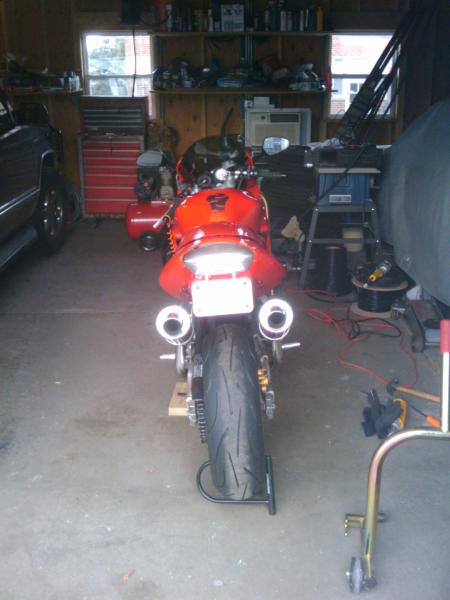

This is what it looks like with 1.5 inches:

Penske shock/sidestand question-2011-03-20-18.23.48.jpg

Last edited by superh1998; 04-06-2011 at 09:09 PM.
superh1998 is offline
Old 04-06-2011, 09:37 PM
  #8
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,934
smokinjoe73 is on a distinguished road
Yeah that is pretty much what mine looks like. I can only park on a hill. I have been parking on a 2x3.
smokinjoe73 is offline
Old 04-07-2011, 03:20 PM
  #9
Senior Member
SuperBike

JamieDaugherty's Avatar

Join Date: Aug 2005
Location: Fort Wayne, IN
Posts: 1,836
JamieDaugherty is an unknown quantity at this point
Easy fix: lower the front! The shock on my bike is +10-12mm and it sits just fine on the side stand. That said, it leans over a tad more than I would like too. Depending on the front end you are running you can lower the front a bit which will help. I've thought about welding on a plate under the side stand foot but it's never really been an issue so I've not worried about it.
JamieDaugherty is offline
Old 04-07-2011, 04:14 PM
  #10
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,934
smokinjoe73 is on a distinguished road
OK Jamie so how much fork above the triple/ whats the distance lower triple to axle. I have stock forks on this bike & figure with the high rear that lowering the fron would turn it on its nose.
smokinjoe73 is offline
Old 04-07-2011, 05:38 PM
  #11
Senior Member
Back Marker

Join Date: Jun 2009
Location: Sudbury ON
Posts: 155
D VTR RIDER is on a distinguished road
I raised the forks 10mm with no worries and the back is shimmed 7mm. For piece of mind, I always carry around a small side stand puck to support the load of the bike so it doesn't dig into the ground or pavement. I never worry about the lean.
D VTR RIDER is offline
Old 04-07-2011, 06:47 PM
  #12
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,934
smokinjoe73 is on a distinguished road
Yeah but my issue is that I dont know how much shows above the triples in stock form.

Anyone?
smokinjoe73 is offline
Old 04-07-2011, 07:00 PM
  #13
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
There is a groove around the forkleg where a "lock ring" is supposed to sit... That ring sits above the clip-on in stock configuration... Starting from that point should make it easy to figure out...
Tweety is offline
Old 04-07-2011, 07:33 PM
  #14
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,934
smokinjoe73 is on a distinguished road
Tweety, yes if I had stock clip ons but I have helibars which I believe are larger.
smokinjoe73 is offline
Old 04-07-2011, 09:18 PM
  #15
Out of my mind, back in 5
MotoGP

Tweety's Avatar

Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Tweety is on a distinguished road
Then you just need the measurement of the stock clip-on clamp... I'll measure next time I'm in the shop...
Tweety is offline
Old 04-19-2011, 08:26 AM
  #16
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,934
smokinjoe73 is on a distinguished road

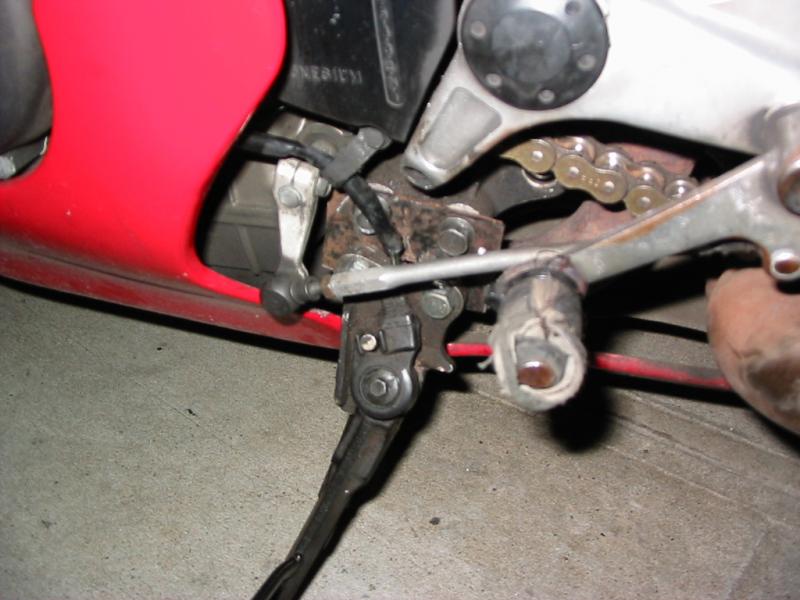

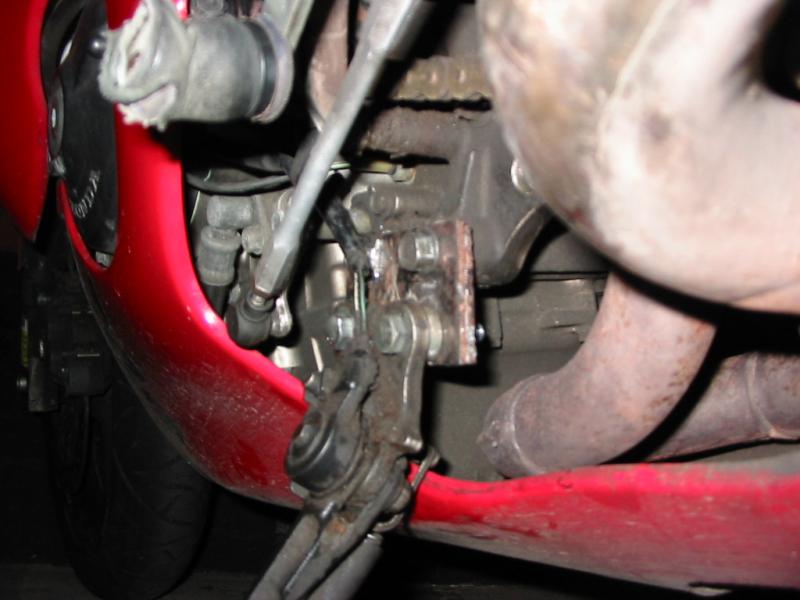

OK so I solved the problem by hacking some steel plates and drilling them and putting spacers. Here is a pic but it was alot of work with hand tool so I cant mass produce them.
The bike leans the exact right amount now so all is well.
Attached Thumbnails Penske shock/sidestand question-sidestand-013.jpg   Penske shock/sidestand question-sidestand-011.jpg
smokinjoe73 is offline
Old 04-19-2011, 09:34 AM
  #17
Member
Squid

mrmhrm9598's Avatar

Join Date: Mar 2011
Posts: 46
mrmhrm9598 is on a distinguished road
I saw some adjustable side stands on ebay today. Here is the link.

SuperHawk 1998 Adjustable Kick Side Stand Kickstand NEW | eBay
mrmhrm9598 is offline
Old 04-19-2011, 09:42 AM
  #18
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,934
smokinjoe73 is on a distinguished road
Yeah but I think that they only adjust shorter not longer, thus my afternoon of cutting and grinding.
smokinjoe73 is offline
Old 04-19-2011, 10:26 AM
  #19
Senior Member
SuperBike

Old Yeller's Avatar

Join Date: Apr 2010
Location: Big Lick
Posts: 1,090
Old Yeller is on a distinguished road
Originally Posted by smokinjoe73 View Post
OK so I solved the problem by hacking some steel plates and drilling them and putting spacers. Here is a pic but it was alot of work with hand tool so I cant mass produce them.
The bike leans the exact right amount now so all is well.
Great idea. I'm starting on mine tonight.

Any idea if it reduces the lean angle any?
Old Yeller is offline
Old 04-19-2011, 10:55 AM
  #20
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,934
smokinjoe73 is on a distinguished road
Yes substantially. I was worried about tipover before but not now. I wish I would've taken before and after pics but its too much work to swap back just for the pic
smokinjoe73 is offline
Old 04-19-2011, 11:31 AM
  #21
Senior Member
Back Marker

ninjagoalie's Avatar

Join Date: Jan 2011
Location: Sunny Central Illinois
Posts: 160
ninjagoalie is on a distinguished road
looks good! Do you notice the stand wanting to move around at all while riding?
ninjagoalie is offline
Old 04-19-2011, 11:49 AM
  #22
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,561
mikstr is on a distinguished road
Originally Posted by smokinjoe73 View Post
Yeah but I think that they only adjust shorter not longer,
seems I read that someplace before..... (like the 2nd post)......
mikstr is offline
Old 04-19-2011, 12:14 PM
  #23
Senior Member
Back Marker

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
I was thinking more along the lines of having a friend add some material to the bottom of the stand by welding it.
I have seen on another website, a member drilled 2 holes in the part that contacts the ground and added metal there and countersunk 2 screws from the bottom of the stand through the original piece and the new material.
superh1998 is offline
Old 04-19-2011, 12:22 PM
  #24
Senior Member
SuperBike

Old Yeller's Avatar

Join Date: Apr 2010
Location: Big Lick
Posts: 1,090
Old Yeller is on a distinguished road
Originally Posted by smokinjoe73 View Post
Yes substantially. I was worried about tipover before but not now. I wish I would've taken before and after pics but its too much work to swap back just for the pic
Sorry, I wasn't clear. I was asking about corner clearance.

I can't understand...I knew exactly what I meant.
Old Yeller is offline
Old 04-19-2011, 12:30 PM
  #25
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,934
smokinjoe73 is on a distinguished road
Oh, that lean angle. It seems pretty tucked up in there since it kind of goes strait down about 1" or so. Hope to not find out but I would go on the track with this stand anyway.
smokinjoe73 is offline
Old 05-20-2011, 06:50 PM
  #26
Senior Member
Back Marker

superh1998's Avatar

Join Date: Mar 2009
Location: chicago
Posts: 181
superh1998 is on a distinguished road
Well, my side stand is now the perfect height and the lean angle is back to normal. I needed 1/2" of length added to it.
I have a friend from work who is an unbelievable welder hook me up.
I brought him my stand and the stand from my parts bike.

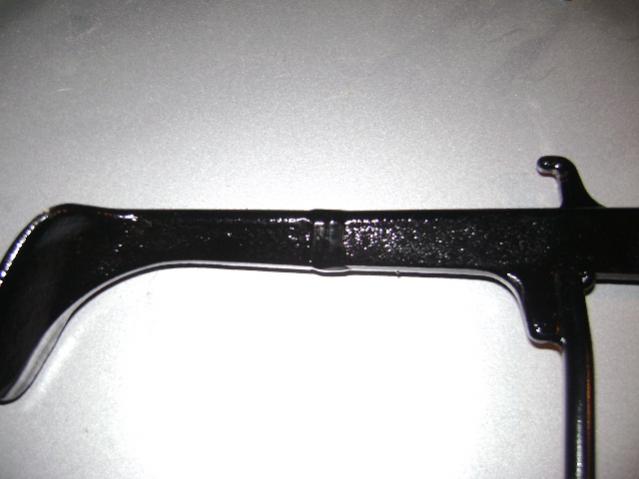

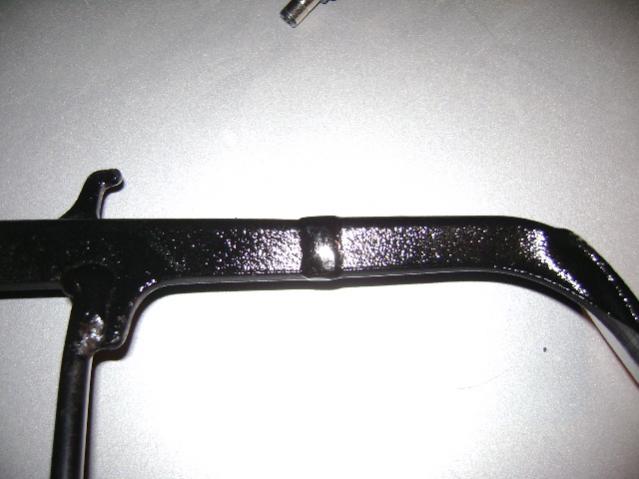

This is what he came up with:
Penske shock/sidestand question-dsc03458.jpg

Penske shock/sidestand question-dsc03459.jpg

Last edited by superh1998; 05-20-2011 at 06:54 PM.
superh1998 is offline
Old 05-20-2011, 09:55 PM
  #27
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,934
smokinjoe73 is on a distinguished road
Very nice sano job. I would persue that if I thought it would let me do a stand flip again, I miss that.
smokinjoe73 is offline
Old 05-22-2011, 06:04 AM
  #28
Senior Member
SuperBike

JamieDaugherty's Avatar

Join Date: Aug 2005
Location: Fort Wayne, IN
Posts: 1,836
JamieDaugherty is an unknown quantity at this point
Originally Posted by superh1998 View Post
Well, my side stand is now the perfect height and the lean angle is back to normal. I needed 1/2" of length added to it.
I have a friend from work who is an unbelievable welder hook me up.
I brought him my stand and the stand from my parts bike.
This is what he came up with:
That is super sweet, nice work!
JamieDaugherty is offline
Old 05-27-2011, 07:00 AM
  #29
WWTDD
Back Marker

Seattle_SuperHawk's Avatar

Join Date: Apr 2010
Location: Everett WA
Posts: 245
Seattle_SuperHawk is on a distinguished road
I added my Jamie D F4 shock and now need to modify the sidestand as well...no biggie, just wondering if extending the shock 1" or 1 1/4" if it will make contact with the chain. Eye balled it last night and that seems to be my only concern. Anyone ??
Seattle_SuperHawk is offline
Old 05-27-2011, 07:04 AM
  #30
Senior Member
MotoGP
Thread Starter

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,934
smokinjoe73 is on a distinguished road
See, this is a waste of resources. I posted pics of my mod in this very thread. I quick look would help you visualize that the stand isn't near the chain. Take a look, if you get around to it. (or do a search)
