Go Back  SuperHawk Forum > 1997+ VTR1000F SuperHawk > Modifications - Performance
New light weight flywheel in the making >

New light weight flywheel in the making

Modifications - Performance Discuss aftermarket and DIY performance modifications

New light weight flywheel in the making

Old 02-16-2013, 01:50 PM
  #1
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,131
E.Marquez is on a distinguished road
New light weight flywheel in the making

This one starts out at 7lb 5 1/4 oz

I've been asked to take it as far as i can

Steel fly's first thing in the morning.
Attached Thumbnails New light weight flywheel in the making-ru-flywheel-start-wt-sm.jpg
E.Marquez is online now
Old 02-16-2013, 02:26 PM
  #2
Senior Member
SuperBike

Join Date: Oct 2007
Location: Menifee, CA
Posts: 1,082
HRCA#1 is on a distinguished road
Damn Erik don't tease us!!
HRCA#1 is offline
Old 02-16-2013, 02:38 PM
  #3
Senior Member
SuperSport

thetophatflash's Avatar

Join Date: Jan 2005
Location: Nooksack WA
Posts: 828
thetophatflash
Do you expect to test the limit to the failure point?
thetophatflash is offline
Old 02-16-2013, 02:55 PM
  #4
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,131
E.Marquez is on a distinguished road
Originally Posted by thetophatflash View Post
Do you expect to test the limit to the failure point?

Well , no .....
I DONT

Now the owner of this one might


No really, nothing to fail.
I'm not cutting on anything that can "fail" just the weight itself. in diameter and thickness.
E.Marquez is online now
Old 02-19-2013, 05:36 AM
  #5
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,131
E.Marquez is on a distinguished road
Small update

Had an air line reel detonate yesterday in the garage Spent the better part of the day running around looking for a replacement air hose reel and took some time to update the 1/2 black pipe air run with a new filter.

Anyway..

Got started on the flywheel.
Of note, this is the first one I have had in my hands that did NOT have a factory balancing hole machined in the weight.
Name:  990DA43C-6777-4341-AC62-04D35CA55537-3436-0000039192D77880_zps5b0b0556.jpg
Views: 140
Size:  286.6 KB

Name:  D601C55E-2BF5-4799-8EE4-7151A5D62A5F-3436-000003918C9BB0A3_zps8a1c6b70.jpg
Views: 141
Size:  269.0 KB

Made the first few cuts last night.. will finish up this morning and weigh it.

Name:  D9F1F1EF-A83B-4F10-A5D5-4E1F51C7E534-3436-0000039172BAF040_zps818660a8.jpg
Views: 134
Size:  243.2 KB
E.Marquez is online now
Old 02-19-2013, 06:22 AM
  #6
Senior Member
SuperBike

NHSH's Avatar

Join Date: Jul 2011
Location: South of Live Free or Die & North of Family Guy
Posts: 1,373
NHSH is on a distinguished road
Originally Posted by E.Marquez View Post
Had an air line reel detonate yesterday in the garage Spent the better part of the day running around looking for a replacement air hose reel and took some time to update the 1/2 black pipe air run with a new filter.
Erik, maybe you been visited by some gremlins at night
NHSH is offline
Old 02-19-2013, 06:24 AM
  #7
Senior Member
SuperBike

NHSH's Avatar

Join Date: Jul 2011
Location: South of Live Free or Die & North of Family Guy
Posts: 1,373
NHSH is on a distinguished road
Originally Posted by E.Marquez View Post

Got started on the flywheel.
Of note, this is the first one I have had in my hands that did NOT have a factory balancing hole machined in the weight.
Naturally balanced
NHSH is offline
Old 02-19-2013, 04:29 PM
  #8
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,131
E.Marquez is on a distinguished road
And we is done




Name:  E8E8C8E1-3CEB-492B-86E2-0AC58C03F662-3874-000003C89B059ACE_zpseb3743b1.jpg
Views: 134
Size:  300.9 KB

Name:  02E73615-06CF-4C57-A266-30CFBB2989E6-3874-000003C8930E2B81_zpse777f1f1.jpg
Views: 135
Size:  201.0 KB

Coming in at 6lb 1/4oz
for a reduction of 1lb 4oz from the starting weight.

I have some ideas on reducing further, but will try them on one of my spares first.

This one gets boxed up in a few minutes and will be on it's way to the owner first thing in the morning.

Last edited by E.Marquez; 02-19-2013 at 08:30 PM.
E.Marquez is online now
Old 02-20-2013, 07:04 AM
  #9
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,131
E.Marquez is on a distinguished road
Name:  A7790C05-8B68-41B2-A4F2-D5A2C9747CA1-3874-000004A460F69D75_zpsa306a509.jpg
Views: 134
Size:  204.6 KB

On it's way home
E.Marquez is online now
Old 03-11-2019, 12:16 PM
  #10
Moderator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,131
E.Marquez is on a distinguished road

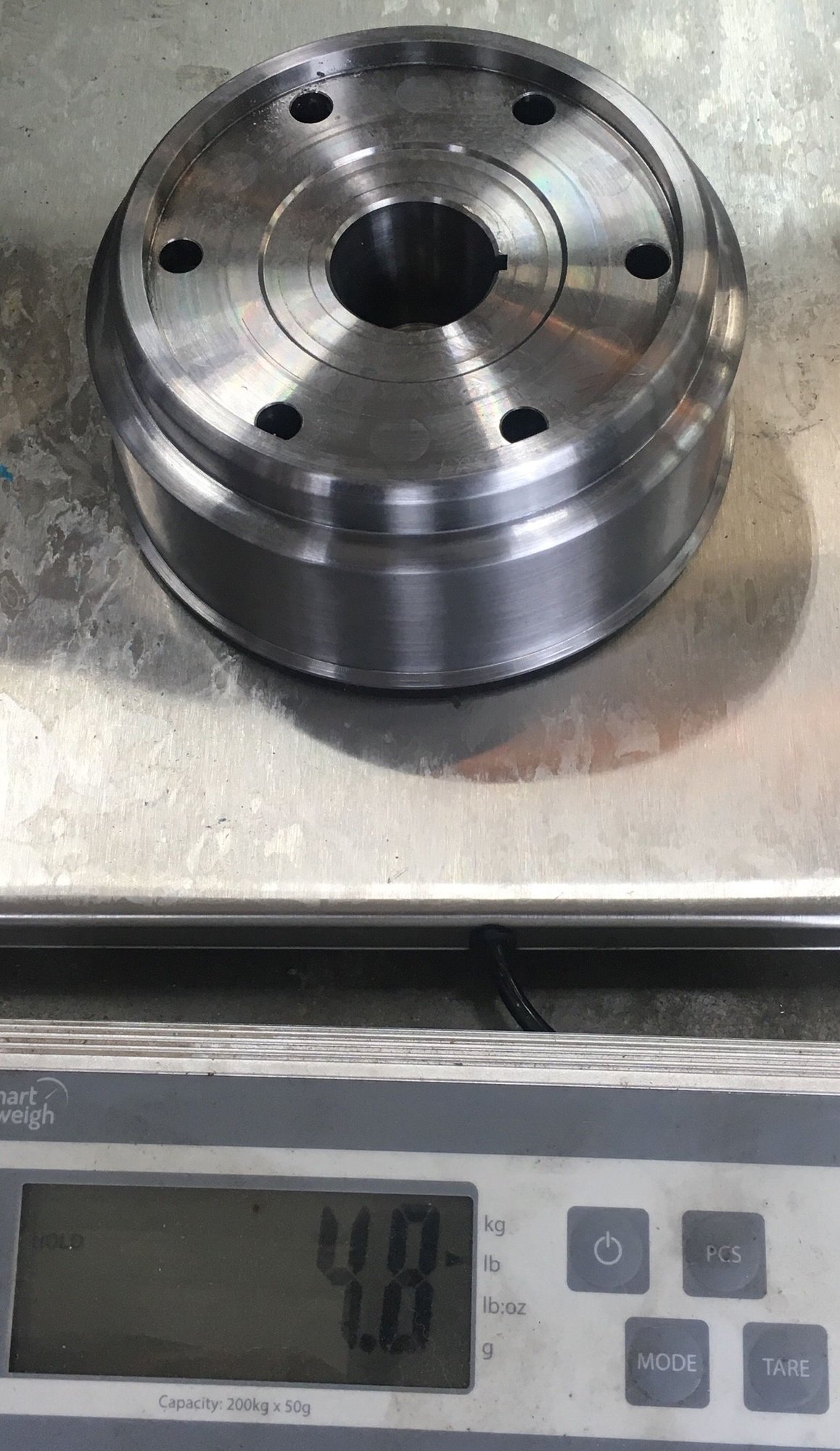

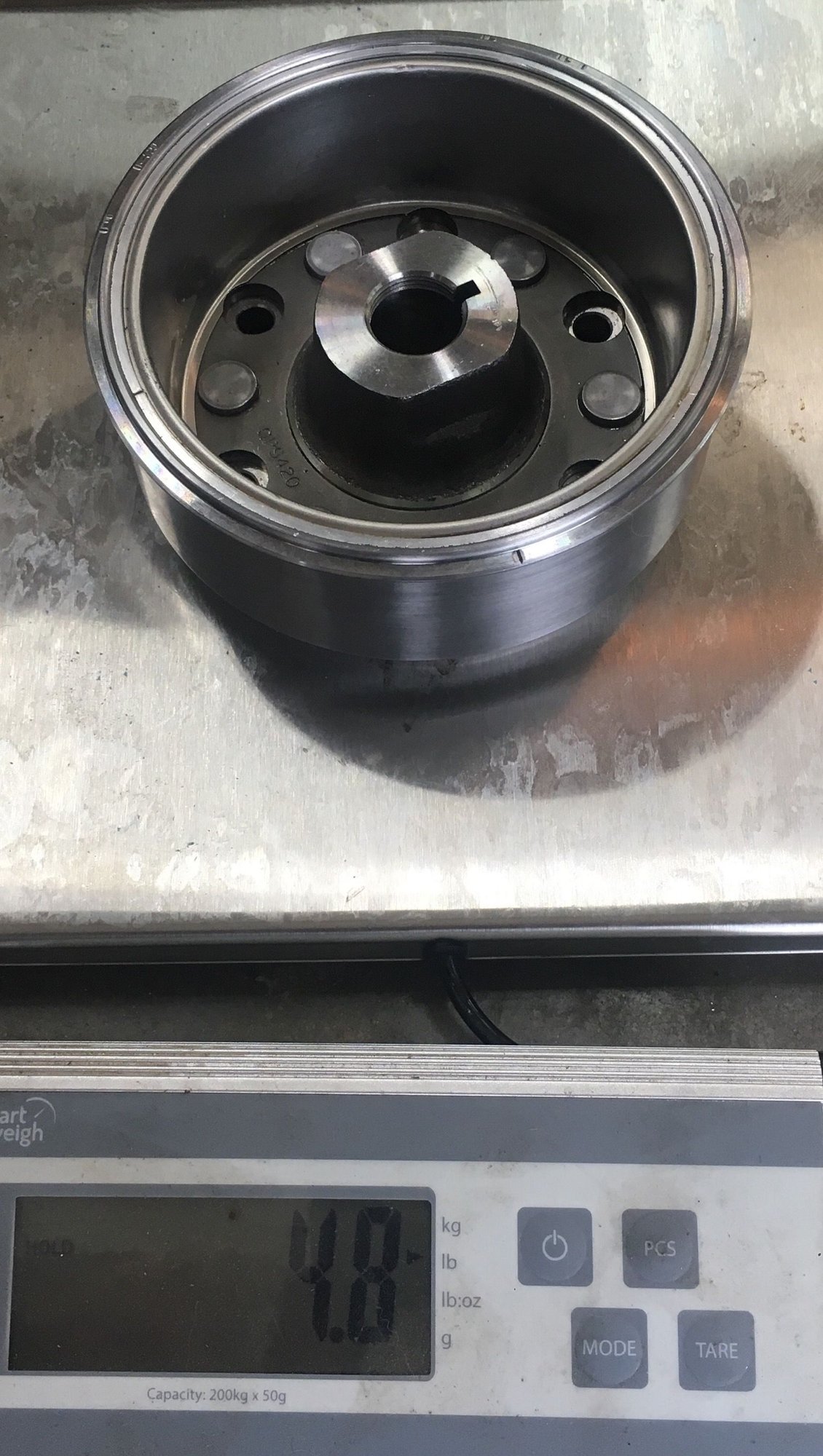

Another rider enjoying the revs






started at 7 lbs. 4 oz. finished 4 lbs. 8 oz.
E.Marquez is online now
Old 03-15-2019, 08:48 PM
  #11
Senior Member
Superstock

CaryDG's Avatar

Join Date: Sep 2013
Location: Costa Mesa, CA
Posts: 254
CaryDG is on a distinguished road
Eric, You did a great job on my flywheel a while back. I also removed the springs and "extra" gear from the anti-rattle gear to lessen the reciprocating mass a bit more. Didn't really notice a change, but that was 8k miles ago and why not? I kinda' like mechanical noise. Now I'm thinking Titanium bolts for the starter gear as well. Maybe a Titanium retainer nut for the flywheel as well. Is there any weight to be saved on the starter gear?
I just ordered a set of Titanium nuts and bolts for the engine cases, brakes, axles, forks, triple clamp Etc. As they say, "A gram saved is about $100 spent" LOL
CaryDG is offline
