Improve my lighting.

Old 06-11-2016, 10:15 AM
  #1
Senior Member
Back Marker
Thread Starter

barrysuperhawk's Avatar

Join Date: Jun 2004
Location: Springpatch, Flatland, Illinois
Posts: 104
barrysuperhawk
Improve my lighting.

Hey guys, I have a 1999 Superhawk and I need to improve my lighting. The biggest part of my problem is that the reflector inside my headlight is trash. About half of the shiny coating has come off. mostly on the bottom, so my low beam is currently brighter than the high. Obviously I could just buy a new headlight assembly and a new bulb, but I got to thinking that if I were going to experiment with modifying, maybe I should try first on a trash headlight. Since my reflector is junk, most any drop in LED is going to suck just as bad. What I was considering is getting a stand alone LED light like this:
7inch 70W Round CREE LED Spot Driving Light Work Offroad 4WD Ute ATV Boat Lamp | eBay
and somehow cutting the back of the headlight housing to fit. This does not seem to be the most elegant solution, and has it's own problems when it comes to hi-lo and oncoming traffic being blinded.
One other Idea I had is to coat the inside with lightstrip like this:
16 4ft 5M Warm White 5630 SMD 300LED Waterproof IP65 Flexible Strip Light 12V60W | eBay
and wire some of them to high and some to low, but I don't think I get the distance lighting.

So, here I am looking for ideas, and I have pretty much a clean slate to work with. Remember the rule of Stupid ideas. If it is Stupid, but it works, it isn't stupid...
barrysuperhawk is offline
Old 06-11-2016, 11:18 AM
  #2
Who are you?
SuperSport

Join Date: Aug 2009
Location: Las Vegas, NV
Posts: 731
Just_Nick is on a distinguished road
No, it's still stupid. I could weld my wheels on if I stripped/broke a lug, but it's still stupid even though it works.

Why not take it apart and add one or two HID projectors? You could remove the reflective coating and paint the backing black.

Last edited by Just_Nick; 06-11-2016 at 11:20 AM.
Just_Nick is offline
Old 06-11-2016, 07:01 PM
  #3
Member
Squid

DeLoreanBoy's Avatar

Join Date: May 2016
Posts: 32
DeLoreanBoy is on a distinguished road
I see OE headlights in good used condition on ebay for under 100 bucks all the time.
DeLoreanBoy is offline
Old 06-11-2016, 07:09 PM
  #4
Rex Kramer-Thrill Seeker
SuperBike

CruxGNZ's Avatar

Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
CruxGNZ is on a distinguished road
Originally Posted by Just_Nick View Post
Why not take it apart and add one or two HID projectors? You could remove the reflective coating and paint the backing black.
Like this.

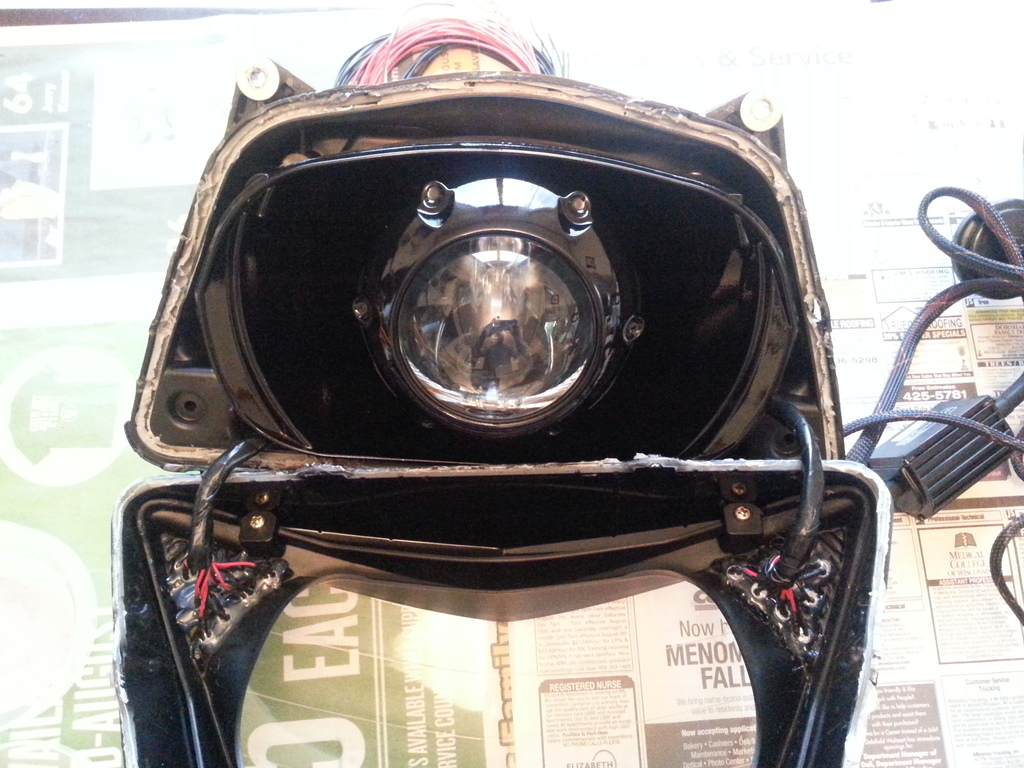

Name:  20150802_192116.jpg
Views: 16
Size:  326.1 KB

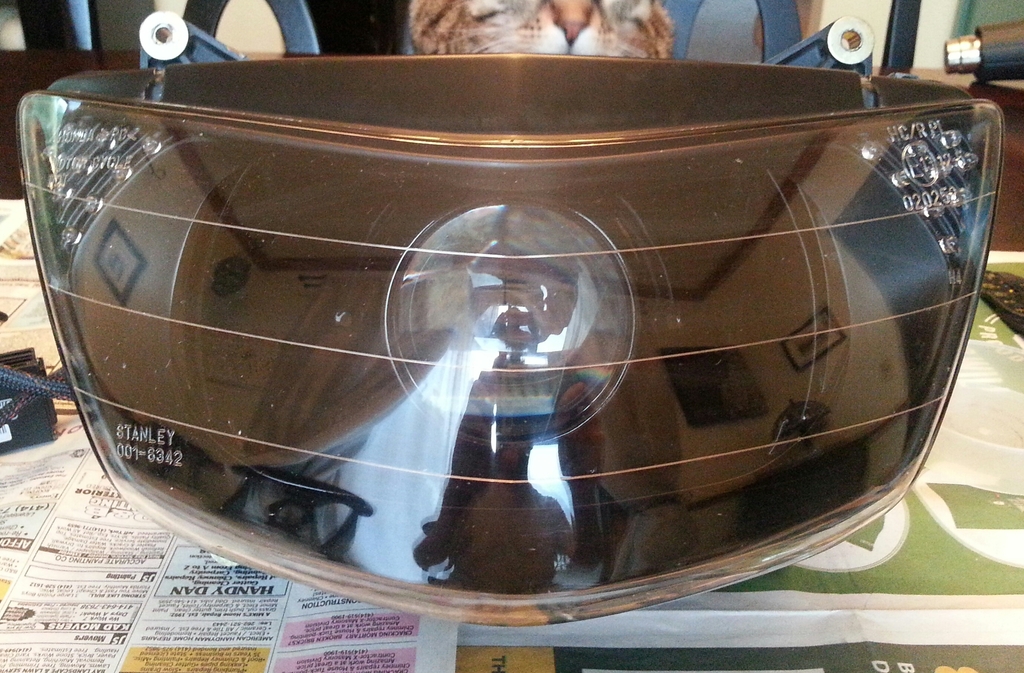

Name:  20150802_192623-1.jpg
Views: 16
Size:  556.6 KB
CruxGNZ is offline
Old 06-12-2016, 10:21 AM
  #5
Senior Member
Back Marker
Thread Starter

barrysuperhawk's Avatar

Join Date: Jun 2004
Location: Springpatch, Flatland, Illinois
Posts: 104
barrysuperhawk
Originally Posted by CruxGNZ View Post
Like this.


Okay that looks awesome, don't misunderstand my comment about stupid, think of it as a poorly placed to Signature rather than an invitation for stupid comments.

Back to that headlight though, that is awesome. I don't think I'm opposed to hid, I was just more thinking that led was the new hotness. But mostly I just want to be able to see at night.

Originally Posted by DeLoreanBoy View Post
I see OE headlights in good used condition on ebay for under 100 bucks all the time.
I see that as an opportunity to spend a hundred bucks on replacing something that I already have and still being in the dark versus taking that same hundred bucks and putting it towards improving what I have...

Last edited by barrysuperhawk; 06-12-2016 at 10:25 AM.
barrysuperhawk is offline
Old 06-12-2016, 06:00 PM
  #6
Member
Squid

DeLoreanBoy's Avatar

Join Date: May 2016
Posts: 32
DeLoreanBoy is on a distinguished road
Originally Posted by barrysuperhawk View Post


I see that as an opportunity to spend a hundred bucks on replacing something that I already have and still being in the dark versus taking that same hundred bucks and putting it towards improving what I have...
Sorry, I was under the impression your current light was damaged by the reflective coating coming off. I wasn't aware that it was not working for you even when new.


The biggest part of my problem is that the reflector inside my headlight is trash. About half of the shiny coating has come off. mostly on the bottom, so my low beam is currently brighter than the high.
DeLoreanBoy is offline
Old 06-13-2016, 06:40 AM
  #7
Senior Member
SuperBike

Join Date: Feb 2013
Posts: 1,509
thedeatons is on a distinguished road
I don't think LEDs are there yet. They might be cool for turn signals and taillights, but their jobs are very different than a headlight. HID is a great option for a headlight if you are moving away from stock setup.

James
thedeatons is offline
Old 06-19-2016, 09:51 AM
  #8
Senior Member
Back Marker
Thread Starter

barrysuperhawk's Avatar

Join Date: Jun 2004
Location: Springpatch, Flatland, Illinois
Posts: 104
barrysuperhawk
Originally Posted by DeLoreanBoy View Post
Sorry, I was under the impression your current light was damaged by the reflective coating coming off. I wasn't aware that it was not working for you even when new.
You are correct, my stock headlight reflector is junk, and I need to do something with it. However, even in the best of times, my stock headlight has never been more than what I considered adequate (barely). I guess my attempt at a brief reply on my phone failed...

It seems that since I need to replace or repair my headlight anyway, I can go back to stock, which is easiest but was never particularly bright, or I can improve with LED/HID/something else. I would dearly love to have a much brighter solution out front.
barrysuperhawk is offline
Old 06-19-2016, 06:39 PM
  #9
Rex Kramer-Thrill Seeker
SuperBike

CruxGNZ's Avatar

Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
CruxGNZ is on a distinguished road
Originally Posted by barrysuperhawk View Post
You are correct, my stock headlight reflector is junk, and I need to do something with it. However, even in the best of times, my stock headlight has never been more than what I considered adequate (barely). I guess my attempt at a brief reply on my phone failed...

It seems that since I need to replace or repair my headlight anyway, I can go back to stock, which is easiest but was never particularly bright, or I can improve with LED/HID/something else. I would dearly love to have a much brighter solution out front.
If your reflector is failing, then buy a HID from https://www.theretrofitsource.com/ It is not that expensive and very easy to do. It is almost plug & play. There are installations done on this forum. All you need to do is use the search function. Pretty much any question you have, you can ask in the search bar and get an answer.
CruxGNZ is offline
Old 06-19-2016, 09:52 PM
  #10
Senior Member
Back Marker
Thread Starter

barrysuperhawk's Avatar

Join Date: Jun 2004
Location: Springpatch, Flatland, Illinois
Posts: 104
barrysuperhawk

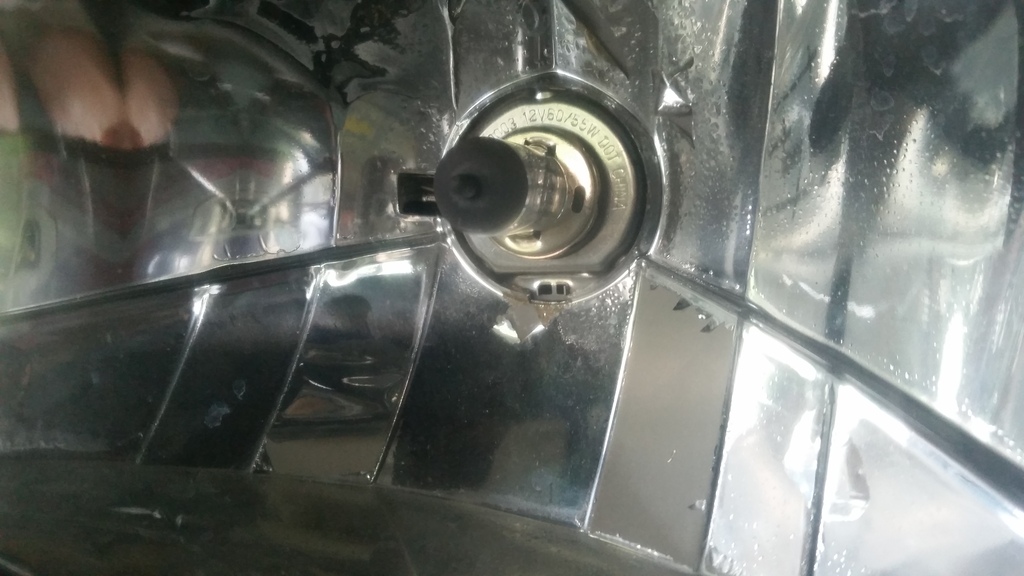

Here's a couple of pics of what is going on.
Name:  20160619_135947.jpg
Views: 18
Size:  191.7 KB
Name:  20160619_135957.jpg
Views: 21
Size:  194.4 KB
barrysuperhawk is offline
Old 06-21-2016, 04:43 AM
  #11
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,446
Wolverine is on a distinguished road
Originally Posted by CruxGNZ View Post
If your reflector is failing, then buy a HID. It is not that expensive and very easy to do. It is almost plug & play. .
Do they sell replacement reflectors? If the reflective layer is bubbling or pealing and failing, a replacement bulb, be it HID or conventional or LED, will not fix the main issue here.

I say replace it or do the projector mod.
Wolverine is offline
