Dyno Run

Old 07-12-2011, 12:44 PM
  #1
Junior Member
Squid
Thread Starter

triplespeed's Avatar

Join Date: Jun 2010
Location: New Jersey, USA
Posts: 27
triplespeed is on a distinguished road
Dyno Run

2003 VTR1000F Super Hawk

Only mod:
- LeoVince SBK Evo II Dual Alum Slip Ons

Stock jetting (and everything else)...

Another guy with an '03 and Jardines + jet kit got about 5 more HP & Torque on the same dyno on the same day

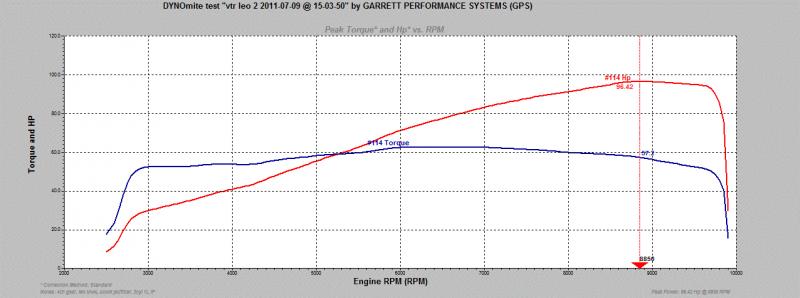

Attached Thumbnails Dyno Run-graph-dd-vtr-leo-2-2011-07-09-%40-15-03-50.jpg
triplespeed is offline
Old 07-12-2011, 12:47 PM
  #2
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,561
mikstr is on a distinguished road
torque "curves" don`t come much flatter than that! congrats
mikstr is offline
Old 07-12-2011, 01:20 PM
  #3
Senior Member
SuperBike

Old Yeller's Avatar

Join Date: Apr 2010
Location: Big Lick
Posts: 1,090
Old Yeller is on a distinguished road
hard to read the numbers. what was max torque?
Old Yeller is offline
Old 07-12-2011, 01:42 PM
  #4
Junior Member
Squid
Thread Starter

triplespeed's Avatar

Join Date: Jun 2010
Location: New Jersey, USA
Posts: 27
triplespeed is on a distinguished road
Originally Posted by Old Yeller View Post
hard to read the numbers. what was max torque?
Peak torque appears to be about 62 ft lbs at about 6,000 RPM

Peak HP shown as 96.42 HP (with 57.2 ft lbs) at 8.850 RPM

I was a bit surprised by how flat the torque curve appeared, especially with a stock bike modified only with LeoVince slip-on mufflers.
triplespeed is offline
Old 07-12-2011, 02:03 PM
  #5
Senior Member
Superstock

pwshadow's Avatar

Join Date: May 2010
Location: Colorado
Posts: 338
pwshadow is on a distinguished road
The hawk has a great engine. It suprises a lot of people. That torque curve is why it is so fun to ride compared to a 4 banger.
pwshadow is offline
Old 07-12-2011, 03:47 PM
  #6
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,561
mikstr is on a distinguished road
Actually, there are a good number of multis that have flat torque curves. Ever seen the one from a Speed Triple? Tuning, not cylinder configuration (or grouping), determines the power distribution.....
mikstr is offline
Old 07-13-2011, 08:43 AM
  #7
Senior Member
SuperBike

Old Yeller's Avatar

Join Date: Apr 2010
Location: Big Lick
Posts: 1,090
Old Yeller is on a distinguished road
Actually....and I may be incorrect in this....but I believe torque values have more to do with valve size, cams, and stroke, don't they?
Old Yeller is offline
Old 07-13-2011, 08:53 AM
  #8
Senior Member
MotoGP

mikstr's Avatar

Join Date: Apr 2005
Location: Montreal
Posts: 5,561
mikstr is on a distinguished road
All of the above, plus cam timing, port shape, ignition timing curve, fueling,....

Many, many variables interacting together. The only effect that cylinder configuration can have is in terms of its effect on scavenging, for example (hence the multitide of balance chambers and the like one finds on exhaust systems, for example)....

To automatically assume a V engine is "torquier" (in the true sense of the word, as in actual torque product, not seat-of-the-pants feeeling) than an inline is ill-founded nonsense.....
