Modifications - Performance Discuss aftermarket and DIY performance modifications

Custom Moto GP Pipes

Old 11-07-2008, 03:13 PM
  #1
Senior Member
SuperSport
Thread Starter

Hotbrakes's Avatar

Join Date: Aug 2007
Location: Fredericksburg, VA
Posts: 714
Hotbrakes is on a distinguished road
Custom Moto GP Pipes

Made some new pipes today thanks to my friends at the local shop. I cut stock mufflers off, dropped a baffle from a set of Lasers in, and the shop cut some end caps. The baffle is like the far one pictured but bigger, the closest baffle pictured was too loud. I ended up drilling a few holes in the baffle once installed to improve the sound and hopefully decrease the back pressure a little. The test ride before said drilling felt good, but I think some power was restricted hence the holes. They sound great now, before the holes the sound wasn't too loud but sounded kinda funny and hard to describe. I may paint them later and possible just the tips from the weld back but that'll be another day. Enjoy!
Name:  IMG_0789.jpg
Views: 24
Size:  60.4 KB
Name:  IMG_0786.jpg
Views: 23
Size:  68.6 KB
Name:  IMG_0787.jpg
Views: 18
Size:  64.2 KB
Name:  IMG_0788.jpg
Views: 14
Size:  62.5 KB
Oh yeah, the shop only charged me $25. Excuse the dirt too.
Hotbrakes is offline
Old 11-07-2008, 04:12 PM
  #2
Senior Member
SuperBike

RickB's Avatar

Join Date: Sep 2005
Location: Buffalo, NY
Posts: 1,572
RickB is on a distinguished road
Thats interesting... How is the sound?
RickB is offline
Old 11-07-2008, 04:17 PM
  #3
Member
Squid

grasshoppermouse's Avatar

Join Date: May 2008
Location: MI
Posts: 50
grasshoppermouse is on a distinguished road
looks loud
grasshoppermouse is offline
Old 11-07-2008, 04:48 PM
  #4
Honducati
SuperSport

jbaxx's Avatar

Join Date: Oct 2006
Location: Anaheim, CA
Posts: 809
jbaxx is on a distinguished road
Cool idea! How 'bout a profile view?
jbaxx is offline
Old 11-07-2008, 05:17 PM
  #5
Senior Member
SuperSport
Thread Starter

Hotbrakes's Avatar

Join Date: Aug 2007
Location: Fredericksburg, VA
Posts: 714
Hotbrakes is on a distinguished road
Originally Posted by RickB View Post
Thats interesting... How is the sound?
Deeper now, but not throaty like cans. Before the holes it had an annoying medium pitched sound like a small loud four stroke.

Originally Posted by jbaxx View Post
Cool idea! How 'bout a profile view?
I'll take one in the daylight, maybe after a bath.
Hotbrakes is offline
Old 11-07-2008, 05:19 PM
  #6
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,479
Wolverine is on a distinguished road
I'll bet that is WICKED LOUD!!

Your neighbors are gonna hate you.
Wolverine is offline
Old 11-07-2008, 05:52 PM
  #7
Senior Member
SuperBike

L8RGYZ's Avatar

Join Date: Nov 2004
Location: Richmond, Virginia
Posts: 1,315
L8RGYZ is an unknown quantity at this point
Cool look. Look forward to hearing them.

Hey is your avatar the pic I took @ Crabtree?
L8RGYZ is offline
Old 11-07-2008, 08:13 PM
  #8
Senior Member
MotoGP

Join Date: May 2008
Location: San Clemente, CA
Posts: 3,447
VTRsurfer is on a distinguished road
Unique look, but I'll bet it's almost as loud as an uncorked Chevy Small Block.
My 62 year old ears could not handle that.
VTRsurfer is offline
Old 11-07-2008, 08:26 PM
  #9
Member
Squid

Join Date: Aug 2008
Posts: 45
RI-redhawk is on a distinguished road
We need a sound clip!!!
RI-redhawk is offline
Old 11-07-2008, 08:31 PM
  #10
Senior Member
MotoGP

nuhawk's Avatar

Join Date: Sep 2006
Location: Austin, Tx
Posts: 4,138
nuhawk is on a distinguished road
Originally Posted by VTRsurfer View Post
Unique look, but I'll bet it's almost as loud as an uncorked Chevy Small Block.
My 62 year old ears could not handle that.
I'm with ya there! I'm also unsure of what this does for the power curve and carb mix. I do know that these are very critical for the Superhawk.

You can do a lot with local shops when you're doing these kinds of mods. I had a local shop bend and weld a mid-pipe for the VFR so I could put a hi-mount D&D where I wanted it. They charged me $70 bucks and bought them a case of beer.

My little sewing machine now sounds like a Nascar racer. Just not as loud.

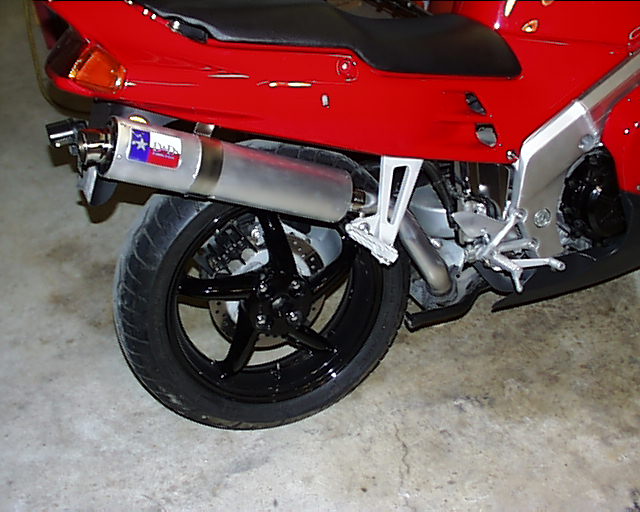

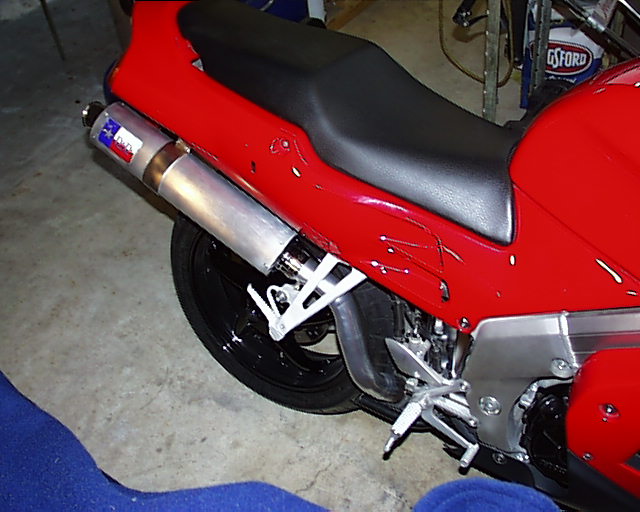

Attached Thumbnails Custom Moto GP Pipes-cheap-middie.jpg   Custom Moto GP Pipes-cheap-middie-2.jpg
nuhawk is offline
Old 11-07-2008, 08:35 PM
  #11
Senior Member
MotoGP

nuhawk's Avatar

Join Date: Sep 2006
Location: Austin, Tx
Posts: 4,138
nuhawk is on a distinguished road
OOps I'm sorry! The second picture makes it looks like that the VFR has dual exhaust. It doesn't - the Superhawk is parked closely beside the VFR and the exhaust tip shown in the backround is the right side Jardine on the Superhawk.
nuhawk is offline
Old 11-09-2008, 04:46 AM
  #12
Senior Member
SuperSport
Thread Starter

Hotbrakes's Avatar

Join Date: Aug 2007
Location: Fredericksburg, VA
Posts: 714
Hotbrakes is on a distinguished road
I did a 250 mile test ride yesterday in the mountains and the noise is about the same as a pair of TBR cans but not as deep. Nobody behind me complained, I can hear the bike but it all but fades away at speed while cruising. Power feels good, maybe slightly less on top so I may add a couple more holes.
Hotbrakes is offline
Old 11-09-2008, 09:28 AM
  #13
Moderator
MotoGP

Wolverine's Avatar

Join Date: Jul 2007
Location: Gettysburg, Pa
Posts: 4,479
Wolverine is on a distinguished road
Originally Posted by nuhawk View Post
My little sewing machine now sounds like a Nascar racer. Just not as loud.
Can we please get some sound clips on these 2 machines? I'm dyin' to hear the music! I've alway liked the sound of the viffer w/ loud pipes.
Wolverine is offline
Old 11-10-2008, 08:40 AM
  #14
Junior Member
Squid

Join Date: Dec 2007
Location: Germany
Posts: 2
eule is on a distinguished road
Very nice.
eule is offline
Old 11-29-2008, 04:19 PM
  #15
Senior Member
SuperSport
Thread Starter

Hotbrakes's Avatar

Join Date: Aug 2007
Location: Fredericksburg, VA
Posts: 714
Hotbrakes is on a distinguished road
Here's another pic of the whole bike in its natural habitat.
Name:  IMG_0808.jpg
Views: 17
Size:  82.0 KB
The pipes really aren't that loud. Quiter than TBR's, maybe a tad louder than Jardines. I'm still wondering about the power, I think it gained a lot down low which is great on the street, but definitely thinking it lost some top end. Guess I'll drill a couple more holes.
Hotbrakes is offline
Old 12-25-2008, 03:35 AM
  #16
Member
Squid

Woodytick's Avatar

Join Date: Sep 2008
Location: Killeen, Fort Hood
Posts: 75
Woodytick is on a distinguished road
did you have to re-jet after putting these on?
Woodytick is offline
