VTR1000 with a difference
01-12-2010, 01:53 PM
#61
Out of my mind, back in 5
MotoGP
Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Considering your handiness with other tools... You could go the budget route and order 8 LFP cells from eBay and soldering them up for a pack...
I'm tempted myself... Should come to less than £50 for the cells... And bits of wire and shrinkwrap is cheap... And if you go this route, the pack could be made in several different ways to fit in very oddly spaced holes...
I'm tempted myself... Should come to less than £50 for the cells... And bits of wire and shrinkwrap is cheap... And if you go this route, the pack could be made in several different ways to fit in very oddly spaced holes...
01-12-2010, 02:16 PM
#62
Senior Member
Back Marker
Thread Starter
Join Date: Sep 2009
Location: Liverpool, UK
Posts: 133
Ok I'm all ears now! I like the idea of making my own Battery.
The existing Battery is fucked anyway so that sounds like it could be just
the ticket.
I ran a Trike once with 2 Batteries, one of them went **** up and took out
the other one with it.
Could the same thing happen with these things? Has anyone used one
long term?
The existing Battery is fucked anyway so that sounds like it could be just
the ticket.
I ran a Trike once with 2 Batteries, one of them went **** up and took out
the other one with it.
Could the same thing happen with these things? Has anyone used one
long term?
01-12-2010, 03:06 PM
#63
Senior Member
Back Marker
Thread Starter
Join Date: Sep 2009
Location: Liverpool, UK
Posts: 133
Tweet, Are these the type of thing you are thinking of?
http://cgi.ebay.co.uk/5PCS-New-A123-...item3358cf2bdd
http://cgi.ebay.co.uk/5PCS-New-A123-...item3358cf2bdd
01-12-2010, 03:19 PM
#64
Senior Member
MotoGP
Join Date: Mar 2007
Location: Phoenix, AZ
Posts: 3,132
Tweet, Are these the type of thing you are thinking of?
http://cgi.ebay.co.uk/5PCS-New-A123-...item3358cf2bdd
http://cgi.ebay.co.uk/5PCS-New-A123-...item3358cf2bdd
01-12-2010, 03:36 PM
#65
Senior Member
Back Marker
Thread Starter
Join Date: Sep 2009
Location: Liverpool, UK
Posts: 133
Back to updating pictures:-
After I had thrown all my toys out of the crib I decided to have a break from the VTR and help a guy out who had bought a total deathtrap of a Trike.
It was a welcome distraction. Here some before, during and after photos.
After I had thrown all my toys out of the crib I decided to have a break from the VTR and help a guy out who had bought a total deathtrap of a Trike.
It was a welcome distraction. Here some before, during and after photos.
Last edited by Trikeopath; 01-18-2010 at 09:58 AM.
01-12-2010, 03:45 PM
#66
Senior Member
Back Marker
Thread Starter
Join Date: Sep 2009
Location: Liverpool, UK
Posts: 133
We got about 4 weeks work done then he ran out of funds so I was back on the VTR again.
Which was good because my head was busting with ideas again.
I had a set of yokes (trees) that I had started making for another bike partly made so I decided to try them on the VTR.
It took nearly a full afternoon drinking beer and drilled holes last summer to get them roughed out.
Which was good because my head was busting with ideas again.
I had a set of yokes (trees) that I had started making for another bike partly made so I decided to try them on the VTR.
It took nearly a full afternoon drinking beer and drilled holes last summer to get them roughed out.
01-12-2010, 04:50 PM
#67
Senior Member
MotoGP
Join Date: Mar 2007
Location: Phoenix, AZ
Posts: 3,132
So many trikes running around AZ, and all deathtraps in my opinion..
That's one way to make a triple.. If you have the time I guess. So about how wide will you be making the front of the VTR? That looks over 10 inches in the pics, but it is always hard to gauge.
That's one way to make a triple.. If you have the time I guess. So about how wide will you be making the front of the VTR? That looks over 10 inches in the pics, but it is always hard to gauge.
01-12-2010, 05:45 PM
#69
Out of my mind, back in 5
MotoGP
Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
4 of them should work... Ie it makes a 12V pack, and 2,3Ah should be enough to crank the VTR on a good day... However I kind of doubt all days are good and with only 4 cells you will sooner or later run out of juice... Two sets of 4 in paralell gives you 4,6Ah... That should be enough to crank the VTR on a very, very bad day...
01-12-2010, 05:47 PM
#70
Out of my mind, back in 5
MotoGP
Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
We got about 4 weeks work done then he ran out of funds so I was back on the VTR again.
Which was good because my head was busting with ideas again.
I had a set of yokes (trees) that I had started making for another bike partly made so I decided to try them on the VTR.
It took nearly a full afternoon drinking beer and drilled holes last summer to get them roughed out.
Which was good because my head was busting with ideas again.
I had a set of yokes (trees) that I had started making for another bike partly made so I decided to try them on the VTR.
It took nearly a full afternoon drinking beer and drilled holes last summer to get them roughed out.
01-13-2010, 04:34 AM
#74
Senior Member
Back Marker
Thread Starter
Join Date: Sep 2009
Location: Liverpool, UK
Posts: 133

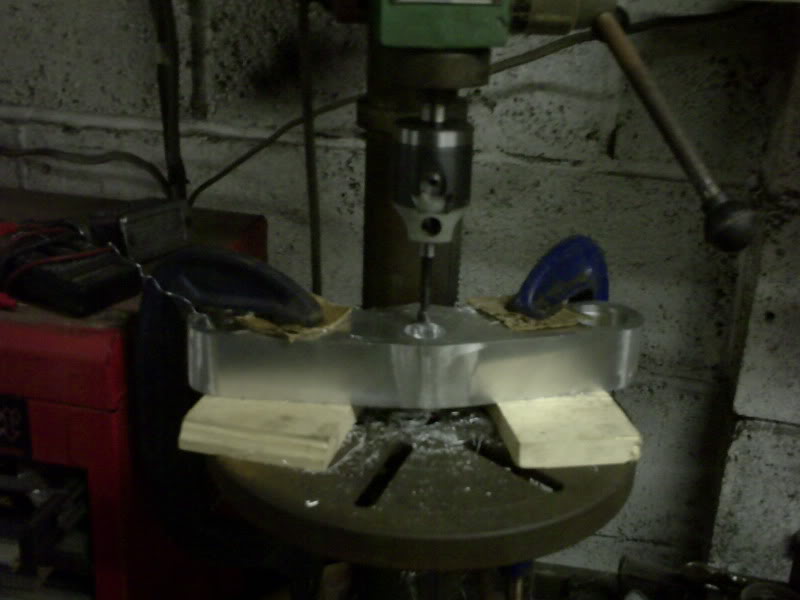

I spent a few hours on Filing all the Drill marks out and I've now run a
Boring Head through them for the Stem.
I put the vernier in the bottom picture to give you an idea of scale.
Boring Head through them for the Stem.
I put the vernier in the bottom picture to give you an idea of scale.
01-13-2010, 04:47 AM
#76
Senior Member
Back Marker
Thread Starter
Join Date: Sep 2009
Location: Liverpool, UK
Posts: 133
This piece of Stainless will be the boss for holding the Stem in the bottom yoke and the 2 front wheel spacers.
You have to think ahead a bit when making small parts on the lathe and get the most out of the piece of metal you cut.
You have to think ahead a bit when making small parts on the lathe and get the most out of the piece of metal you cut.
. At least you won't need to worry about them breaking. I can't believe the patience you have to build those that way.
01-13-2010, 11:52 AM
#83
Senior Member
SuperSport
Join Date: Jun 2005
Posts: 524
"The yokes have stainless internal fork clamps because I don't want slots in them for the pinch bolts"
Could you elaborate a bit on that ?
Awesome build btw, and even though you're not worried about the radiator, I am curious as to the inventive solution I'm sure you will come up with.......
I wonder if you could forego a radiator alltogether and use the ample amount of plumbing/frame tubing as a cooling device ?
It certainly looks like you'd have enough volume, and the frame gets hot anyway from contact with the engine at the mounts.
Kai Ju
Could you elaborate a bit on that ?
Awesome build btw, and even though you're not worried about the radiator, I am curious as to the inventive solution I'm sure you will come up with.......
I wonder if you could forego a radiator alltogether and use the ample amount of plumbing/frame tubing as a cooling device ?
It certainly looks like you'd have enough volume, and the frame gets hot anyway from contact with the engine at the mounts.
Kai Ju
01-13-2010, 11:54 AM
#84
Senior Member
Back Marker
Thread Starter
Join Date: Sep 2009
Location: Liverpool, UK
Posts: 133
Nope, could have been but it all went side ways.
I left school at 16 with a GCSE in maths. Never went back for the re-sits because I was offered a part time job in a small Bike shop and I thought
I would be a mechanic eventually.
Spent 4 years on the parts desk with the boss promising he would upgrade me to the workshop. When he eventually did, the mechanic who was
meant to train me had turned aloholic so most of the time I was winging it on haynes manuals.
After another 2 years of that, getting palmed off with boring insurance work for **** money and no bonus, a bloke in the pub offered me a £300 a
week job in his factory if I got a forklift licence. He even paid for the test for me. I was Shift manager for a good while but times have got hard so
the management are back on the shop floor now which means I'm back on the Machines.
Gives me more time to play with this stuff but alot less cash.
I left school at 16 with a GCSE in maths. Never went back for the re-sits because I was offered a part time job in a small Bike shop and I thought
I would be a mechanic eventually.
Spent 4 years on the parts desk with the boss promising he would upgrade me to the workshop. When he eventually did, the mechanic who was
meant to train me had turned aloholic so most of the time I was winging it on haynes manuals.
After another 2 years of that, getting palmed off with boring insurance work for **** money and no bonus, a bloke in the pub offered me a £300 a
week job in his factory if I got a forklift licence. He even paid for the test for me. I was Shift manager for a good while but times have got hard so
the management are back on the shop floor now which means I'm back on the Machines.
Gives me more time to play with this stuff but alot less cash.
Last edited by Trikeopath; 01-13-2010 at 11:58 AM.
01-13-2010, 12:00 PM
#85
Senior Member
Back Marker
Thread Starter
Join Date: Sep 2009
Location: Liverpool, UK
Posts: 133
"The yokes have stainless internal fork clamps because I don't want slots in them for the pinch bolts"
Could you elaborate a bit on that ?
Awesome build btw, and even though you're not worried about the radiator, I am curious as to the inventive solution I'm sure you will come up with.......
I wonder if you could forego a radiator alltogether and use the ample amount of plumbing/frame tubing as a cooling device ?
It certainly looks like you'd have enough volume, and the frame gets hot anyway from contact with the engine at the mounts.
Kai Ju
Could you elaborate a bit on that ?
Awesome build btw, and even though you're not worried about the radiator, I am curious as to the inventive solution I'm sure you will come up with.......
I wonder if you could forego a radiator alltogether and use the ample amount of plumbing/frame tubing as a cooling device ?
It certainly looks like you'd have enough volume, and the frame gets hot anyway from contact with the engine at the mounts.
Kai Ju
01-13-2010, 02:51 PM
#86
Administrator
World Champion
Join Date: Dec 2004
Location: Fulton, MO
Posts: 105,287
Yeah, I'm curious what clamps the forks too.
BTW, on the rear fender and swinger, you will want to do fit-up with a new tire and also account for tire growth at speed. Give 2cm minimum for tire growth.
BTW, on the rear fender and swinger, you will want to do fit-up with a new tire and also account for tire growth at speed. Give 2cm minimum for tire growth.
01-14-2010, 02:58 AM
#87
Senior Member
Back Marker
Thread Starter
Join Date: Sep 2009
Location: Liverpool, UK
Posts: 133

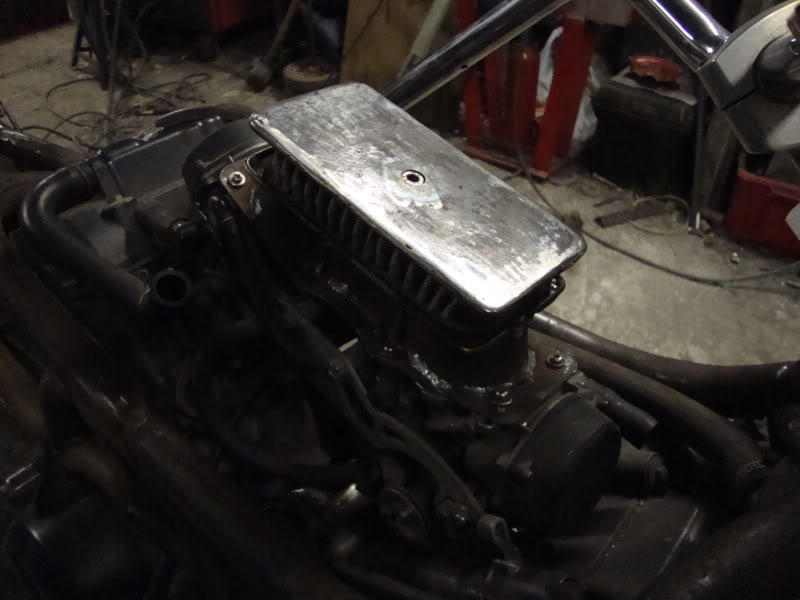

Next up was the Air box.
I know I'll only be able to run a small tank so the Standard Airbox can't be used.
I have played around with a few ideas of how to do this but thought I'd try this way first.
The Carbs have 8 screws to hold the stock filter on so I used these to mount 2 plates and tacked in a bridge between them.
The rest I just made up as I went along.
This is a peice of plate rolled to go around the ventury. The flat plate in front will end up the same for the other Carb.
I know I'll only be able to run a small tank so the Standard Airbox can't be used.
I have played around with a few ideas of how to do this but thought I'd try this way first.
The Carbs have 8 screws to hold the stock filter on so I used these to mount 2 plates and tacked in a bridge between them.
The rest I just made up as I went along.
This is a peice of plate rolled to go around the ventury. The flat plate in front will end up the same for the other Carb.
01-14-2010, 03:09 AM
#88
Senior Member
Back Marker
Thread Starter
Join Date: Sep 2009
Location: Liverpool, UK
Posts: 133
After a lot of filing, the ends are fitted and the whole thing was welded up and cut to size.
I cut 2 more plates to sandwich the filter.
I'll have to stick it on a dyno and a gas tester before I make the finished fuel Tank to make sure it works ok. If I have any trouble I have a Webber carb off a car that I seem to be able to get anything to run on.
I also have an Eaton SuperCharger but it's way too early in the day to be thinking about that just yet. (might save that for it's next incarnation)
I cut 2 more plates to sandwich the filter.
I'll have to stick it on a dyno and a gas tester before I make the finished fuel Tank to make sure it works ok. If I have any trouble I have a Webber carb off a car that I seem to be able to get anything to run on.
I also have an Eaton SuperCharger but it's way too early in the day to be thinking about that just yet. (might save that for it's next incarnation)
