Modifications - Cosmetic Discuss aftermarket and DIY cosmetic modifications

Photos- repaired Hawk

Thread Tools

Search this Thread

Old Feb 20, 2008 | 07:43 AM
  #1
Chitownson's Avatar
Thread Starter
Senior Member
Back Marker

Joined: Dec 2006
Posts: 113
Chitownson is on a distinguished road
Photos- repaired Hawk

Some of the members know I crashed in November, screwing up the left side of my bike. One of the local residents who helped me off the pavement was kind enough to pick up all my busted plastic off the road and stick the pieces in my tank bag. After my shoulder started to heal, I went to my local motorcycle salvage yard. They wanted hundreds for plastics that were almost as busted up as mine was; so I went to Harbor Freight and bought a package of plastic welding rods for $5.00 and fixed my own busted plastics. (If you take the plastic panels off and look at the stampings on them, they will have the part #, an L or R for left or right and whether it's ABS plastic. You have to use ABS rods with ABS panels, etc.)

The ABS welding rods were pretty easy to work with (like solder) and can fill smaller holes, etc. I just used a soldering gun with a big flat tip, held the broken plastic panels together with C-clamps and fixed the broken pieces by using the ABS rods the same way you would use solder. I was actually able to create replacement mounting tabs using the rods for tabs that were broken off or damaged. I reused every single busted body panel (including some that were in multiple pieces) using this method and the results were better and stronger than I expected.Then it was on to fiberglass filler, 3M Acryl Green from an auto body supply store to fill in the minor scratches, etc. primed and painted.

I sprayed the bike a dark gunmetal gray with 4 coats of clear over Firestorm decals I ordered from the UK instead of Superhawk badges. (I deleted the Honda badges.) I spent a total of $300 to fix the bike including clutch basket, shifter and misc. parts and supplies.

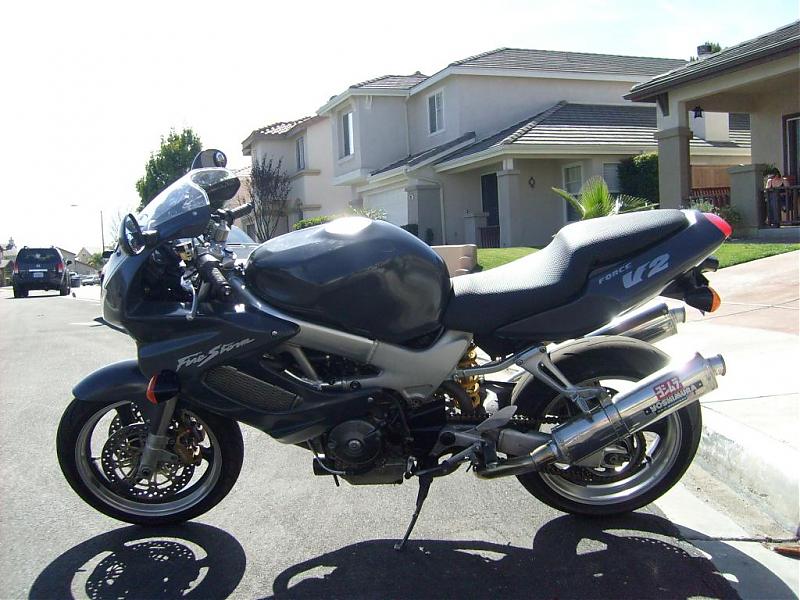

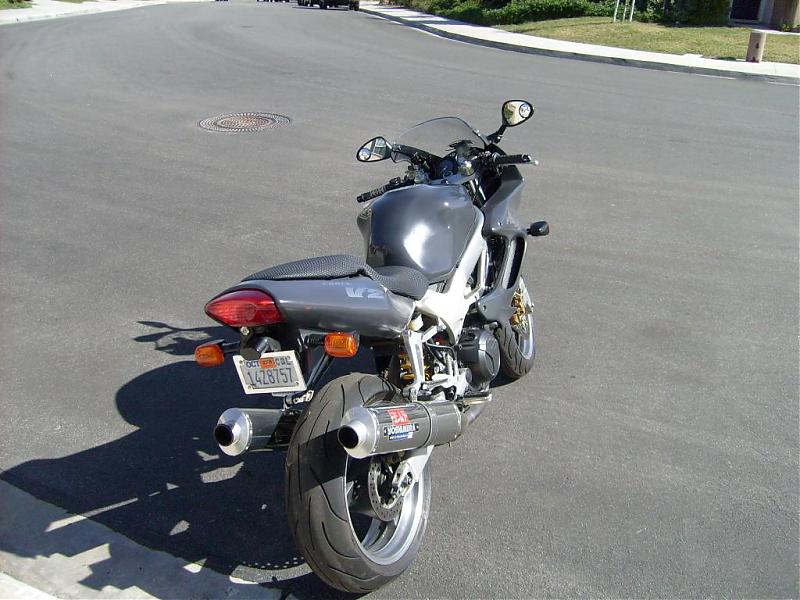

Attached is the results.
Attached Thumbnails Photos- repaired Hawk-s7300012.jpg   Photos- repaired Hawk-s7300014.jpg
Old Feb 20, 2008 | 07:59 AM
  #2
Hawk9807's Avatar
Moderatio est Figmentum
Superstock

Joined: Jul 2007
Posts: 427
From: Covington, Georgia
Hawk9807 is on a distinguished road
Outstanding job... It looks great.
Old Feb 20, 2008 | 07:59 AM
  #3
joshuatest's Avatar
OUCH... MY A$$ HURTS!!!
SuperSport

Joined: Dec 2007
Posts: 707
From: Elba, Ny
joshuatest is an unknown quantity at this point
Looks good man...

very nice work.
Old Feb 20, 2008 | 09:57 AM
  #4
Smileyhawk's Avatar
Junior Member
Squid

Joined: Jan 2008
Posts: 27
From: Bay Area, CA
Smileyhawk is on a distinguished road
Wow, that looks great! I've rehabilitated a few damaged SH's (one was my fault, the others were rescues from someone else's bad), and it feels really good to get them back together and on the road again. Keep up the good work! By the way, I'm in Concord, CA, where are you?
Old Feb 20, 2008 | 12:41 PM
  #5
AZZKIKER's Avatar
Senior Member
SuperSport

Joined: Aug 2004
Posts: 731
From: MICHIGAN
AZZKIKER is an unknown quantity at this point
your hard work paid off.
Old Feb 20, 2008 | 01:29 PM
  #6
pigwings's Avatar
Senior Member
Superstock

Joined: Dec 2004
Posts: 367
From: Independence, Oregon
pigwings
Nice. And good tip about plastic welding rods.
Old Feb 20, 2008 | 08:17 PM
  #7
Hawkrider's Avatar
Administrator
World Champion

Joined: Dec 2004
Posts: 105,287
From: Fulton, MO
Hawkrider will become famous soon enoughHawkrider will become famous soon enough
Stealthy. Very nice.
Old Feb 20, 2008 | 08:40 PM
  #8
skokievtr's Avatar
RUNLEVELZERO #99
SuperBike

Joined: Jan 2007
Posts: 2,219
From: Skokie
skokievtr is on a distinguished road
Originally Posted by Chitownson
Some of the members know I crashed in November, screwing up the left side of my bike. One of the local residents who helped me off the pavement was kind enough to pick up all my busted plastic off the road and stick the pieces in my tank bag. After my shoulder started to heal, I went to my local motorcycle salvage yard. They wanted hundreds for plastics that were almost as busted up as mine was; so I went to Harbor Freight and bought a package of plastic welding rods for $5.00 and fixed my own busted plastics. (If you take the plastic panels off and look at the stampings on them, they will have the part #, an L or R for left or right and whether it's ABS plastic. You have to use ABS rods with ABS panels, etc.)

The ABS welding rods were pretty easy to work with (like solder) and can fill smaller holes, etc. I just used a soldering gun with a big flat tip, held the broken plastic panels together with C-clamps and fixed the broken pieces by using the ABS rods the same way you would use solder. I was actually able to create replacement mounting tabs using the rods for tabs that were broken off or damaged. I reused every single busted body panel (including some that were in multiple pieces) using this method and the results were better and stronger than I expected.Then it was on to fiberglass filler, 3M Acryl Green from an auto body supply store to fill in the minor scratches, etc. primed and painted.

I sprayed the bike a dark gunmetal gray with 4 coats of clear over Firestorm decals I ordered from the UK instead of Superhawk badges. (I deleted the Honda badges.) I spent a total of $300 to fix the bike including clutch basket, shifter and misc. parts and supplies.

Attached is the results.
I have only one word to say to you, "plastics"! (The Graduate, 1967)

Besides my engineering degree (industrial/manufacturing/materials development, advanced composites & alloys, structural), I also have a minor in polymer science. I cut my teeth so to speak at Convair (aerospace manufacturing, now long gone) starting back in 76. Carbon fiber stuff was supposed to be down to a buck per pound by now but a little thing called the 1st (then 2nd) oil embargo changed all that...
Old Feb 21, 2008 | 04:46 AM
  #9
98honda's Avatar
Senior Member
Back Marker

Joined: Oct 2007
Posts: 130
98honda is on a distinguished road
looks good man
Old Feb 21, 2008 | 09:52 AM
  #10
RickB's Avatar
Senior Member
SuperBike

Joined: Sep 2005
Posts: 1,572
From: Buffalo, NY
RickB is on a distinguished road
Looks good, great job on the repairs!
