Pappy Goes Cafe.
09-24-2011, 05:49 PM
#31
Senior Member
Back Marker
Thread Starter
Join Date: Sep 2011
Location: Australia
Posts: 139

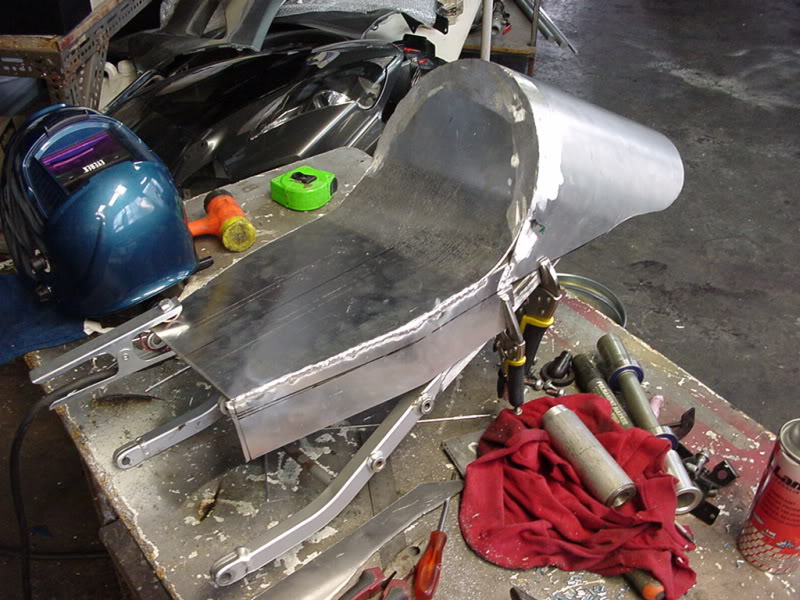

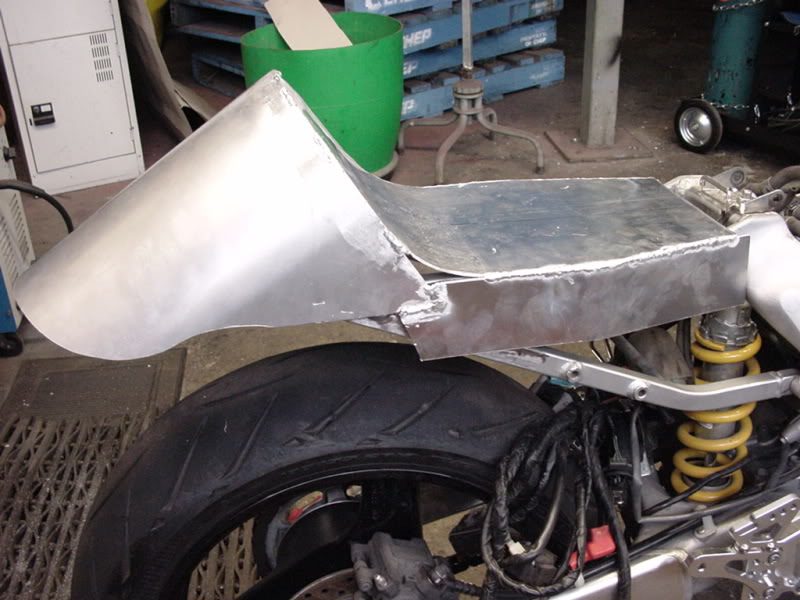

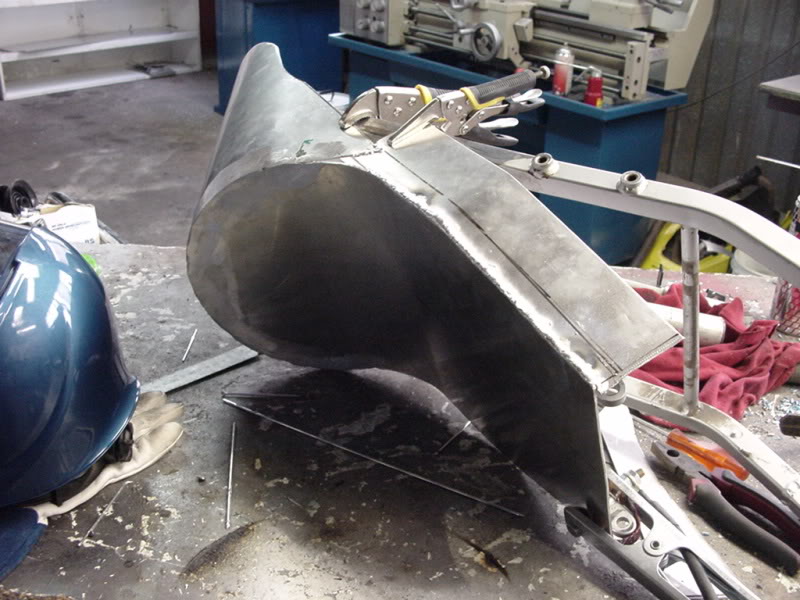

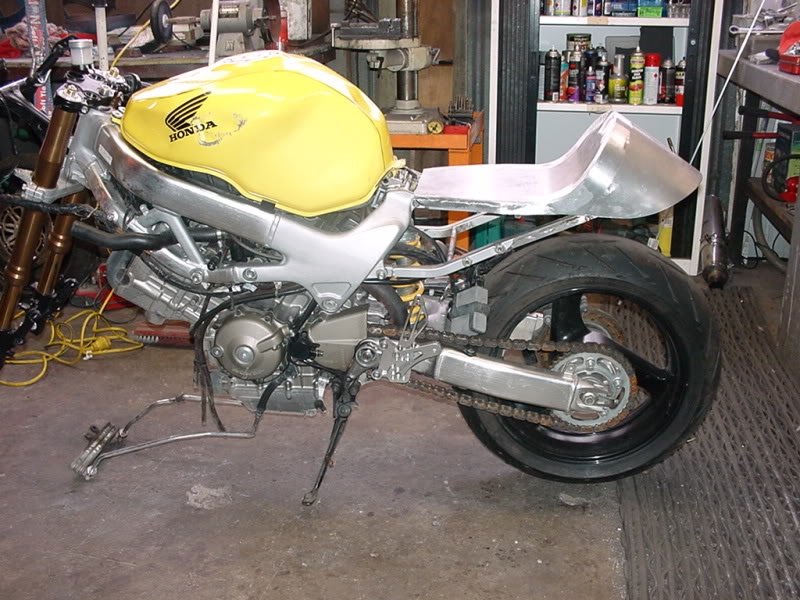

Seat welded up and now sitting on the frame,, starting to like it a little more. I think I will screw the tail light to it and see how it comes up..
Any criticism is welcome , I have only beer to give me inspiration, I am flying blind here boys!!
Any criticism is welcome , I have only beer to give me inspiration, I am flying blind here boys!!
Last edited by PappySmears; 09-24-2011 at 06:04 PM.
09-24-2011, 09:39 PM
#34
MandownMertech
Superstock
Join Date: Sep 2011
Location: Sacramento / NorcaL
Posts: 289
can't wait to see this painted and with a seat pad. I kind of wanna say don't have the tail dip down at the rear (i know you have it somewhat mimicking a fender and following that line)
I love my hawk semi naked and fighterish but never would have though to legitimately cafe it (i've still gotta finish my cb550 restomod/cafe)
I love my hawk semi naked and fighterish but never would have though to legitimately cafe it (i've still gotta finish my cb550 restomod/cafe)
09-27-2011, 09:39 PM
#36
Senior Member
Back Marker
Join Date: Apr 2011
Posts: 201
09-28-2011, 09:18 PM
#40
2nd mouse gets the cheese
SuperBike
Join Date: Jan 2008
Location: Beaverton, OR
Posts: 1,697
Actually not true, it can be done with a teardrop mallet and a beater bag, then once its roughed out to the desired shape you can hammer and dolly it pretty smooth with a lot of patience. Its not easy but neither is the english wheel. I usually beat the shape I want then english wheel it smooth.
09-28-2011, 10:08 PM
#41
Senior Member
Back Marker
Thread Starter
Join Date: Sep 2011
Location: Australia
Posts: 139

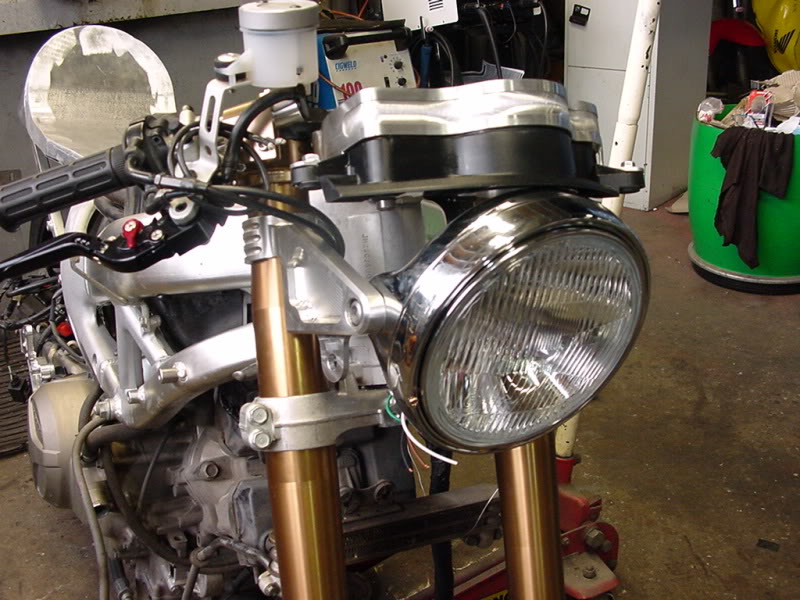

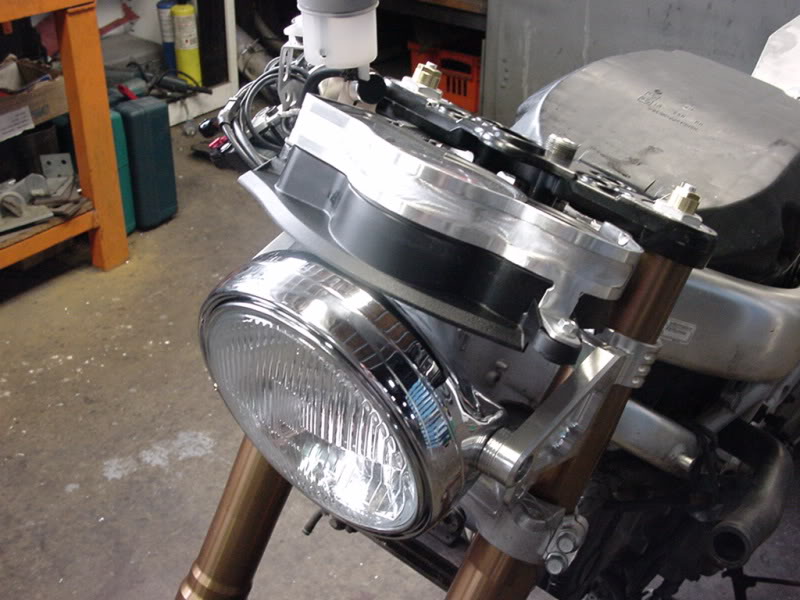

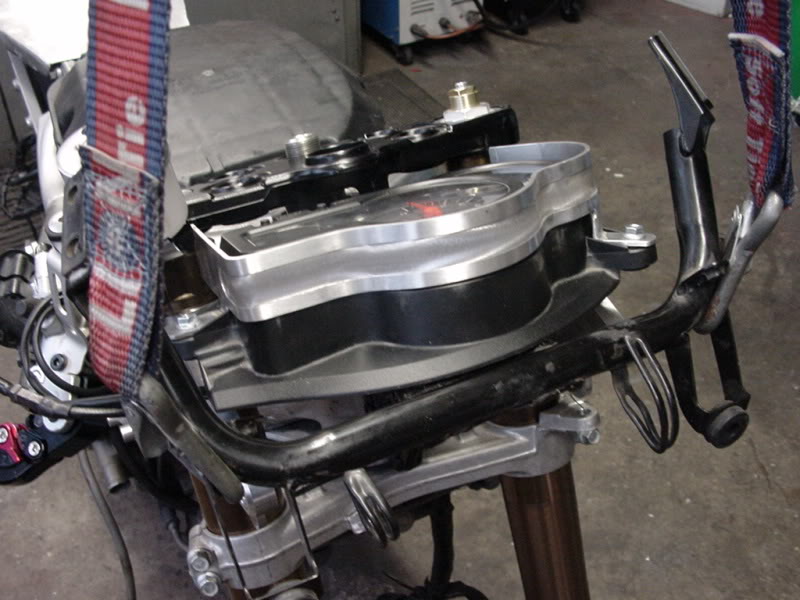

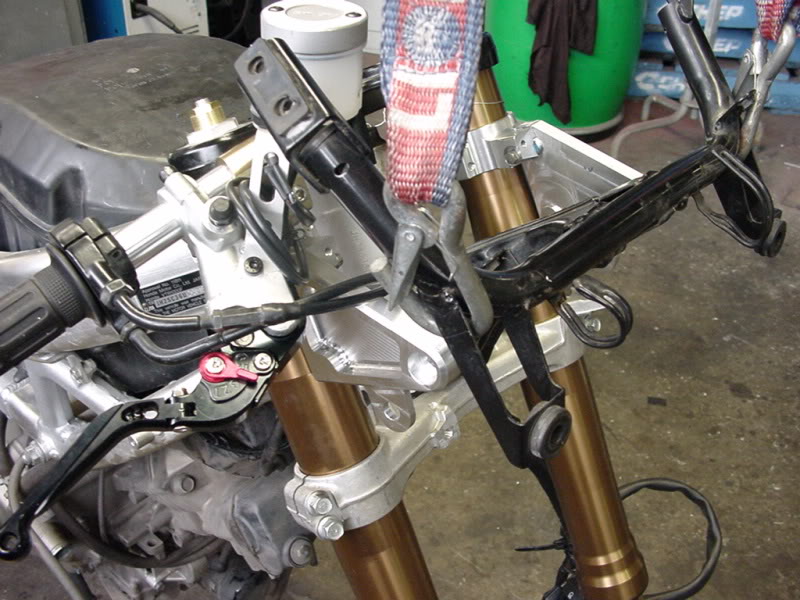

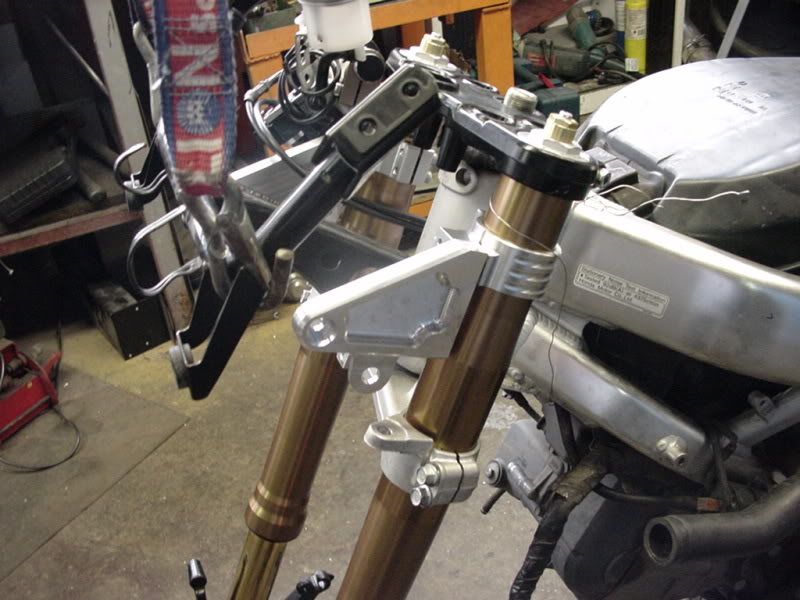

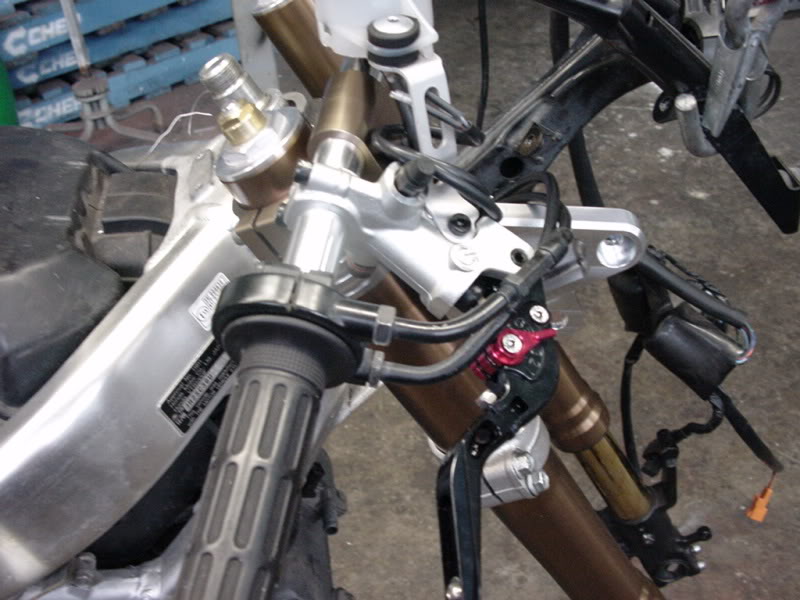

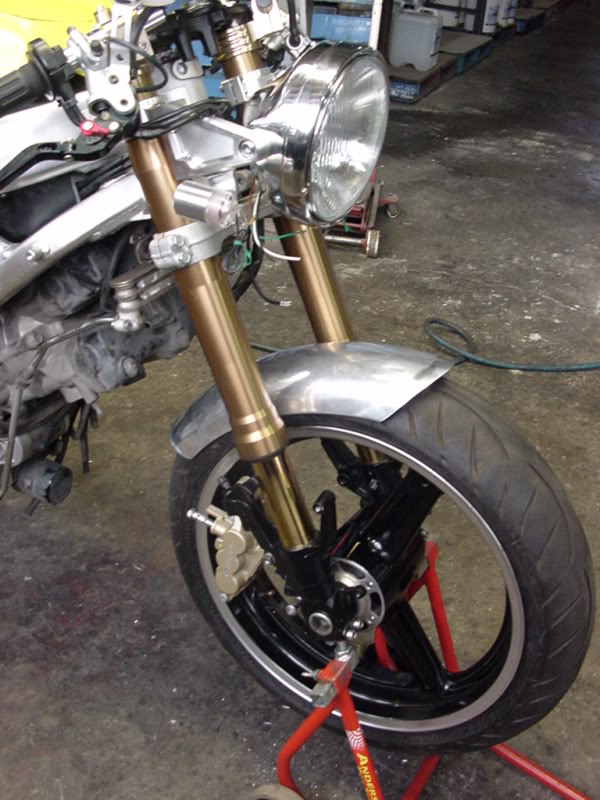

In doing this bike in "Cafe Racer" style I want to put Ye Ol 7" chrome headlight on the front.. Now the problem being that they dont make headlamp fork clamps to go around the 50mm 2" Hayabusa front end I am bolting up to it.

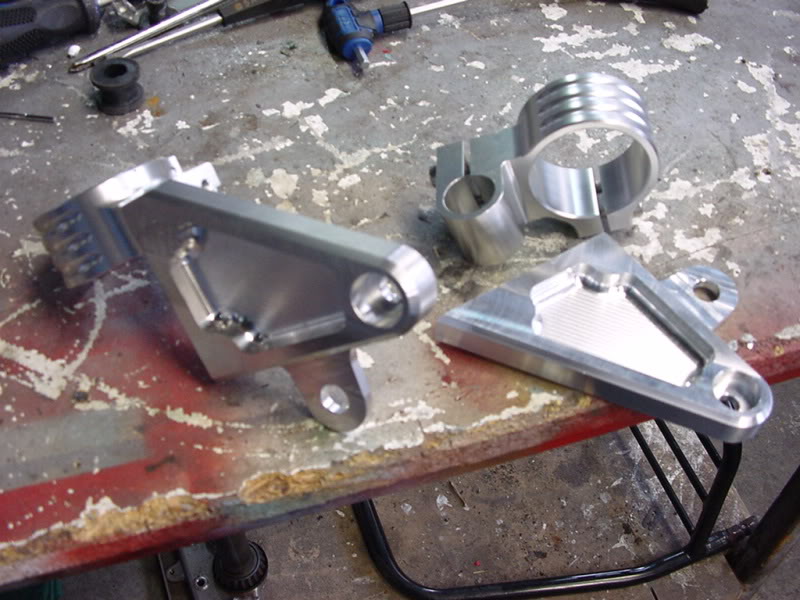

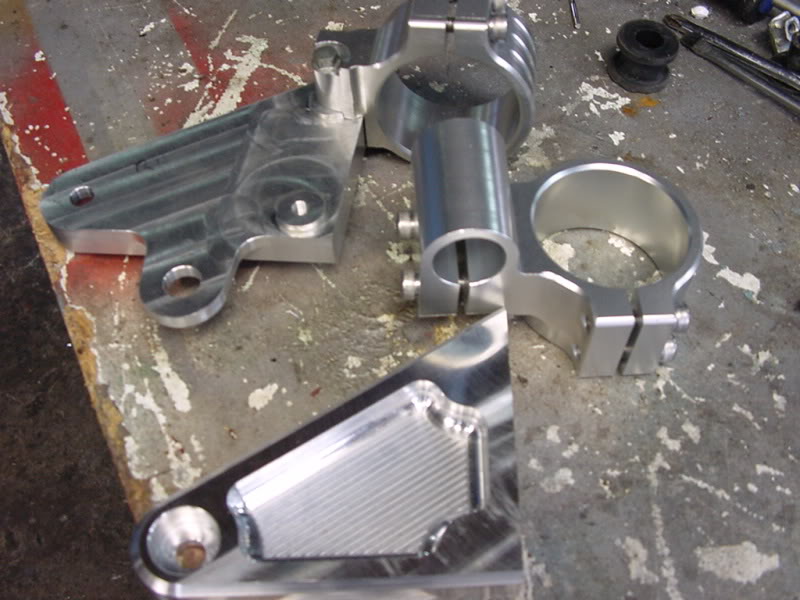

So I bought a set of cheap Chinese 50mm clip on bars and a gsx headlamp ears and milled them so they bolted together.
One side done!
So I bought a set of cheap Chinese 50mm clip on bars and a gsx headlamp ears and milled them so they bolted together.
One side done!
09-30-2011, 12:08 AM
#46
Head Scratcher
Back Marker
Join Date: Jun 2008
Location: Corvallis, Oregon
Posts: 202
I really like where this is going. After I switched to my 929 front end, I had the same issue with mounting the 7" round headlight. The solution I came up with was using hydraulic hose clamps (already had the brackets for the headlight). $19 fix but doesn't look anywhere as nice as yours.
09-30-2011, 04:06 PM
#47
Good Root
Squid
Squid
Join Date: Jul 2009
Location: Shoebox
Posts: 87
09-30-2011, 07:31 PM
#50
Senior Member
Back Marker
Thread Starter
Join Date: Sep 2011
Location: Australia
Posts: 139

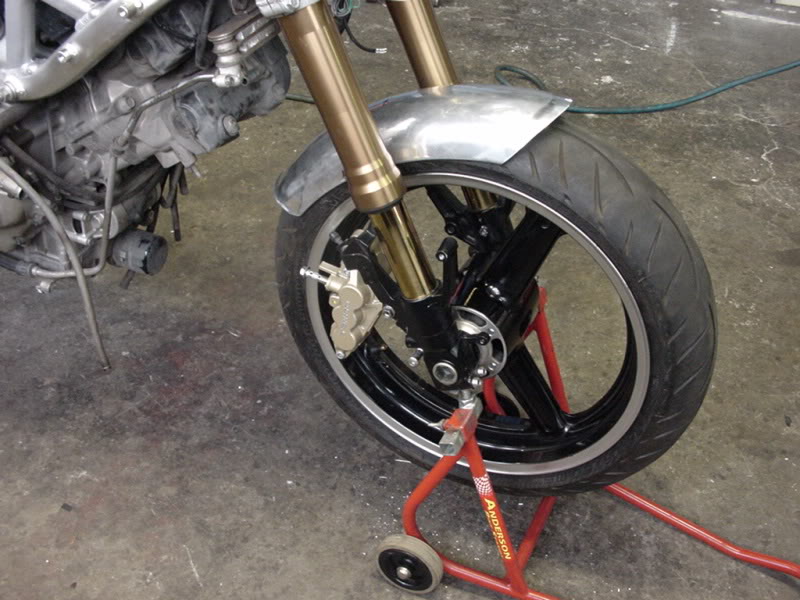

That front wheel is just the VTR one sitting in there it has a huge dent in the rim from impact damage. The interesting thing is the disc spacing is identical to the Busa, however a little snag is that the busa rotors are 320mm.
10-02-2011, 02:17 AM
#51
erno
Back Marker
Join Date: Apr 2009
Location: Australia
Posts: 226
Last edited by erno; 10-02-2011 at 02:22 AM.
10-03-2011, 09:41 PM
#53
Senior Member
Back Marker
Thread Starter
Join Date: Sep 2011
Location: Australia
Posts: 139

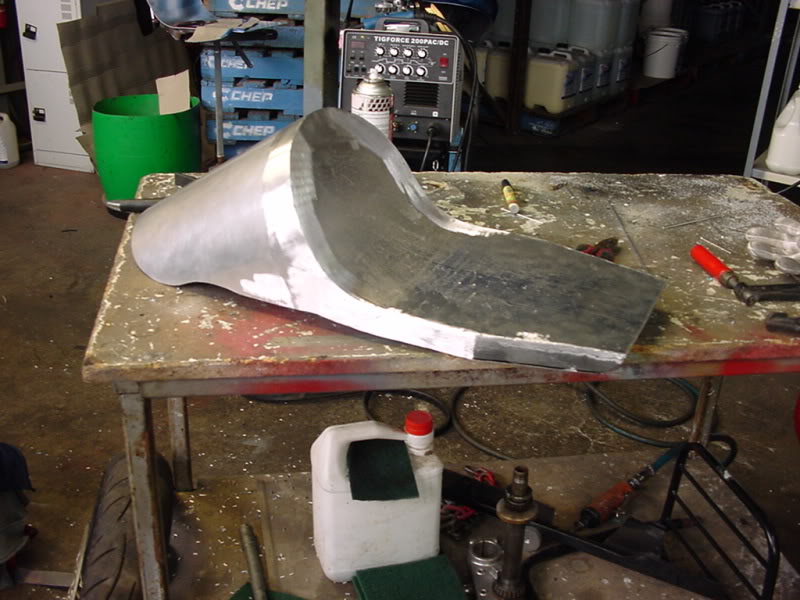

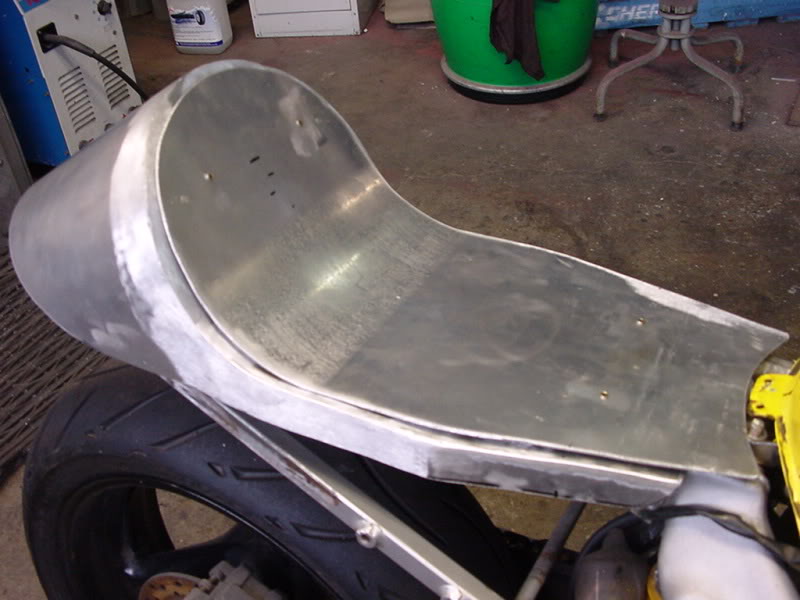

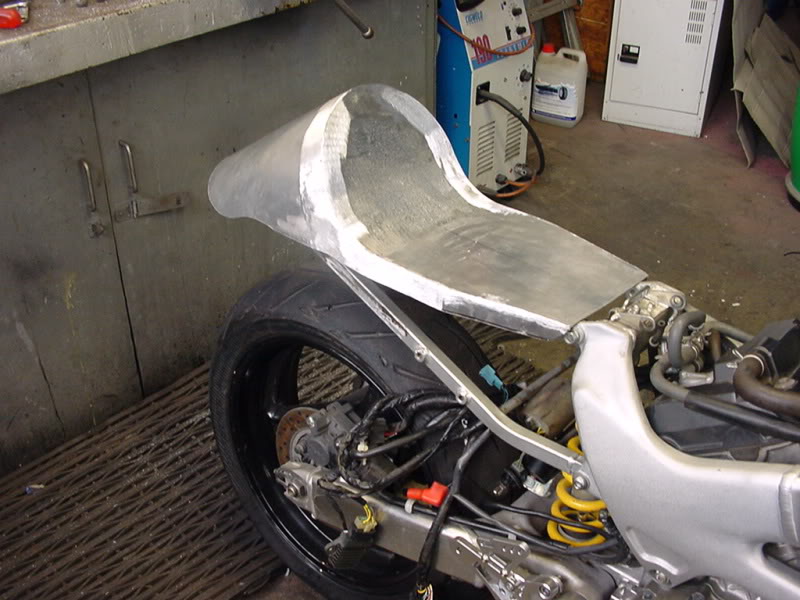

Well I have now cut out the seat pan, and mounted it ready for the upholster to put a nice bit of foam and covering to. I have to say, I am not a metal fabricator, and this is my first go at making a cafe seat,,, and let me tell you it will be my last, as I have had a gut full of cutting and shaping, and I still have to make an under carriage!!
10-11-2011, 01:10 PM
#55
Senior Member
Back Marker
Thread Starter
Join Date: Sep 2011
Location: Australia
Posts: 139
Actually not true, it can be done with a teardrop mallet and a beater bag, then once its roughed out to the desired shape you can hammer and dolly it pretty smooth with a lot of patience. Its not easy but neither is the english wheel. I usually beat the shape I want then english wheel it smooth.
Anyway, bottom line is I am not a very patient sorta guy!
10-11-2011, 06:50 PM
#59
Senior Member
Back Marker
Thread Starter
Join Date: Sep 2011
Location: Australia
Posts: 139
No Mate it was only the top bearings that was different. So I took the honda bearing and the top Busa bearing down to the bearing shop and asked for one with the inside to match the Busa stem and the outside to match the Honda frame............ Presto!
10-12-2011, 09:12 AM
#60
Senior Member
MotoGP
Join Date: Mar 2007
Location: Phoenix, AZ
Posts: 3,132
FYI: All ***** will do that for you over the phone and ship you the bearings you need if you don't have access to a local shop. But if you have a local shop that is usually quicker. (just say, I am putting X triples on Y frame, sell me the bearings I need)
