Modifications - Cosmetic Discuss aftermarket and DIY cosmetic modifications

Naked VTR

Old 02-15-2013, 05:58 PM
  #1
Junior Member
Squid
Thread Starter

Join Date: May 2012
Posts: 28
red02vtr is on a distinguished road
Naked VTR

Anyone have any pics of a VTR with just the front fairing removed, leaving the headlight and gauges intact?

Been pondering this look on mine for awhile, just not super pysched about pulling the fairing off and then putting it back on without cracking anything.
red02vtr is offline
Old 02-15-2013, 06:03 PM
  #2
El Cheapo
Back Marker

cat0020's Avatar

Join Date: Jun 2006
Location: NW of Philly.
Posts: 202
cat0020 is on a distinguished road
cat0020 is offline
Old 02-15-2013, 06:21 PM
  #3
Junior Member
Squid
Thread Starter

Join Date: May 2012
Posts: 28
red02vtr is on a distinguished road
Sorry, meant the stock gauges and stock headlight. Looks like all the colored fairing pieces would come right off around it all.
red02vtr is offline
Old 02-15-2013, 06:40 PM
  #4
Senior Member
SuperBike

scottiemann's Avatar

Join Date: Feb 2007
Location: boston
Posts: 1,252
scottiemann is on a distinguished road
The headlight is mounted to the fairing via 4 bolts. If you were to take off the plastics the fairing stay bracket and guages would stay but the headlight would stay with the plastics...

I'm going naked because towards the end of last season I wrecked my bike and f*****d up the plastics... I'm making a custom
Headlight from the bixenon internals of a BMW headlight and some custom bodywork in the form of a belly pan and radiator shrouds.
scottiemann is offline
Old 02-15-2013, 06:45 PM
  #5
Senior Member
SuperBike

scottiemann's Avatar

Join Date: Feb 2007
Location: boston
Posts: 1,252
scottiemann is on a distinguished road
If you go to the members rides section there are a lot... a ton of naked VTRs on this site and many good writeups for their builds...

In the cosmetic mods section you'll find various gauge assemblies retrofitted as well as headlight assemblies...

There's also writeups and info regarding options instead of having the side mount radiators...
scottiemann is offline
Old 02-15-2013, 06:50 PM
  #6
Senior Member
SuperBike

scottiemann's Avatar

Join Date: Feb 2007
Location: boston
Posts: 1,252
scottiemann is on a distinguished road
It is fairly simple to remove the whole front fairings... 4 fairing bolts 2 on each side, 4 mirror nuts. You may or may not have a small bracket on the insides where the radiators are, displace that. Pull the whole thing forward about 6 inches and unplug all 4 lights and then pull the whole thing off and your left with the fairing stay and gauges... good luck
scottiemann is offline
Old 02-16-2013, 01:17 AM
  #7
Senior Member
SuperSport

supermarto's Avatar

Join Date: Aug 2007
Location: Tarpon Springs, FL
Posts: 524
supermarto is on a distinguished road
I understand perfectly well what you're after... here's an old photo floating around on the innerwebs for a long time of a black VTR as you describe. I like the look. So much so that when I suffered a mild crash, I ran it like that for a few years. Mine is the red one. Light and surround held on with four heavy duty zip ties, what else?
Attached Thumbnails Naked VTR-2006_10_09_bikepics-697692-800.jpg   Naked VTR-img00375.jpg
supermarto is offline
Old 02-16-2013, 05:08 AM
  #8
Junior Member
Squid
Thread Starter

Join Date: May 2012
Posts: 28
red02vtr is on a distinguished road
The last two were exactly what I'm looking for, thanks.

Also, thanks for the info that the headlight is attached.
red02vtr is offline
Old 03-03-2013, 09:03 PM
  #9
Crash
Superstock

COLE's Avatar

Join Date: Jan 2008
Location: nashville
Posts: 309
COLE is on a distinguished road
it is just zipped tied on so I could go riding, it would take some modding to make permanent. The side fairings suppose to hold headlight and center fairing in place
Attached Thumbnails Naked VTR-img_20120326_204413.jpg
COLE is offline
Old 03-04-2013, 08:34 AM
  #10
Senior Member
SuperBike

L8RGYZ's Avatar

Join Date: Nov 2004
Location: Richmond, Virginia
Posts: 1,315
L8RGYZ is an unknown quantity at this point
Looks pretty cool COLE.
L8RGYZ is offline
Old 03-05-2013, 07:48 AM
  #11
Junior Member
Squid

Join Date: Mar 2013
Location: Ixonia, WI
Posts: 6
smredrider73 is on a distinguished road
I just joined the forum today...and am wondering how to post a new thread? I had turned my SuperHawk in a "streetfigher"... I removed the entire front fairing, made a custom aluminum bracket that bolted to the forks, and mounted a FatBob headlight assembly (I like the FatBob light, because high and low are both on no matter what). I'm looking for interest to sell the assembly. I went partially back to stock. Trimmed the fairing, and put on ProTaper FatBars.... anyone interested? I can post pics...(if I can figure out how!!) thanks, smredrider73
smredrider73 is offline
Old 03-05-2013, 07:59 AM
  #12
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,867
7moore7 is on a distinguished road
In the upper left, under site navigation, click on the "forum" or "homepage" link. Then click on the forum category you'd like to post in ("classifieds" would be a good place to start if you're selling something) Then, once you're in the category, at the top of the thread posts, there is a button for "new thread". And you're off!
7moore7 is offline
Old 03-05-2013, 08:00 AM
  #13
Junior Member
Squid

Join Date: Mar 2013
Location: Ixonia, WI
Posts: 6
smredrider73 is on a distinguished road
great, thanks!!
smredrider73 is offline
Old 05-06-2013, 04:13 PM
  #14
Moderator
MotoGP

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,170
E.Marquez is on a distinguished road
Originally Posted by GIVER-A-TWIST View Post
No idea what you intended to post or link... but what you ended up with is this
http://mail.aol.com/37709-111/aol-6/...Inbox&partId=1
E.Marquez is offline
Old 05-06-2013, 04:38 PM
  #15
Dances with Guardrails
Squid

icepick's Avatar

Join Date: Apr 2007
Location: Knoxville, TN
Posts: 88
icepick is on a distinguished road
SharkSkinz offers a headlight mounting bracket that will mount the headlight directly to the front subframe. It is a couple of pieces of aluminum bent/welded properly for an easy fit, you just have to drill a couple of holes.

That said, it would be very simple to DIY with some aluminum, a vice, a drill, hacksaw, file, and a few eyeball measurements. I want to make sure you are aware of that option in case someone wants to represent that buying a kit with all the hard work done for you is a stupid waste of money. They're $42 now, I think I paid $30. Me, a couple hours on Saturday are easily worth $50, so pulling something out of a box and bolting it up is worth it to me. You may not value your Saturday morning as much as I do, so YMMV.

Here's the link for you to throw money away should you decide to be as stupid as I apparently am.

HEADLIGHT BRACKETS (VTR1000)
icepick is offline
Old 05-08-2013, 09:45 AM
  #16
Junior Member
Squid

Join Date: Oct 2012
Posts: 6
GIVER-A-TWIST is on a distinguished road
GIVER-A-TWIST is offline
Old 05-08-2013, 09:46 AM
  #17
Junior Member
Squid

Join Date: Oct 2012
Posts: 6
GIVER-A-TWIST is on a distinguished road
HOPEFULLY IT WORKED THIS TIME
GIVER-A-TWIST is offline
Old 08-09-2016, 07:54 PM
  #18
Member
Squid

Join Date: May 2014
Location: Raleigh, North Carolina
Posts: 32
andrewvophoto is on a distinguished road

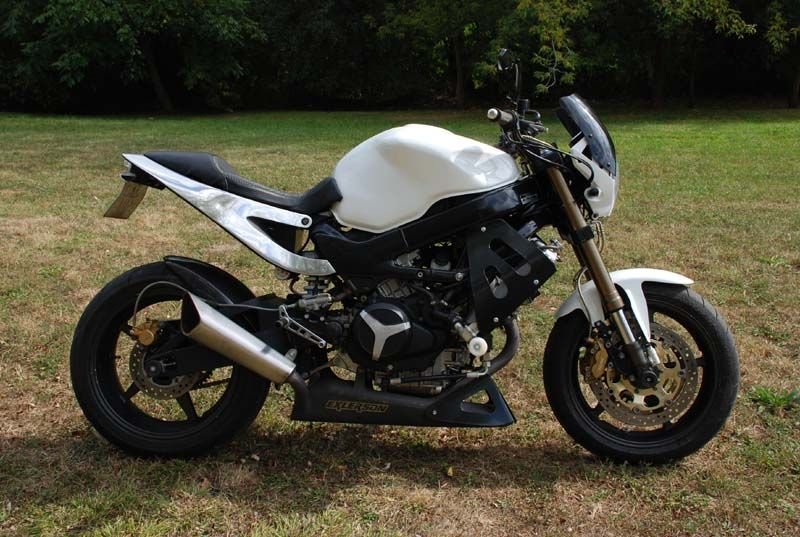

no fairings

thinking of going back to it...

back when the bike had no fairings

<img id="lbImage" class="grey" style="opacity: 1;" src="https://btenoir.files.wordpress.com/2014/10/image.jpeg" width="817" height="613">
andrewvophoto is offline
Old 03-02-2019, 01:27 PM
  #19
Member
Squid

Join Date: Feb 2019
Posts: 43
VTRsquid is on a distinguished road
Originally Posted by supermarto View Post
I understand perfectly well what you're after... here's an old photo floating around on the innerwebs for a long time of a black VTR as you describe. I like the look. So much so that when I suffered a mild crash, I ran it like that for a few years. Mine is the red one. Light and surround held on with four heavy duty zip ties, what else?
I really like this look with the side fairings off and the headlight, cluster and screen still in place.
Did the windscreen need to be trimmed to work like that? I dont have the VTR in my possession yet to have a look, due to extraneous circumstances, will be picking it up next week.
Also, do these bikes overheat more with the side fairings removed?
VTRsquid is offline
Old 03-02-2019, 03:07 PM
  #20
Senior Member
SuperBike

NHSH's Avatar

Join Date: Jul 2011
Location: South of Live Free or Die & North of Family Guy
Posts: 1,377
NHSH is on a distinguished road
Nice, another revival of a dead thread
No, they do not overheat with fairings off.
NHSH is offline
Old 03-02-2019, 03:10 PM
  #21
Member
Squid

Join Date: Feb 2019
Posts: 43
VTRsquid is on a distinguished road
Originally Posted by NHSH View Post
Nice, another revival of a dead thread
No, they do not overheat with fairings off.
Thats what dead threads are for!
cheers, good to know!
VTRsquid is offline
