Coolant Resevoir re-location?

Old 03-01-2014, 08:29 PM
  #1
Member
Superstock
Thread Starter

Join Date: Jul 2009
Location: Snohomish, WA.
Posts: 285
Upland111 is on a distinguished road
Coolant Resevoir re-location?

I wanted to re-locate my coolant reservoir, for more clearance to my thumb screws. I did a search, and could not find anything, but I find it hard to believe it has not been done.
It looks like the only location that would work is right above the oil filter, but it would take a homemade reservoir.
Appreciate your feedback.
Upland111 is offline
Old 03-01-2014, 09:15 PM
  #2
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,898
smokinjoe73 is on a distinguished road
Wow, guess its not so hard to believe.

I always have used like a poland spring (old sturdy one) or a gatorade bottle for a blow by on racebikes. The wierd shape of the stocker seems like it would be hard to fit anywhere.

There is a bunch of room under the seat if you hacksaw the plastic tray.
smokinjoe73 is offline
Old 03-01-2014, 09:41 PM
  #3
Member
Superstock
Thread Starter

Join Date: Jul 2009
Location: Snohomish, WA.
Posts: 285
Upland111 is on a distinguished road
That's a good thought. Although if I chose a location under the seat, I would prefer to fabricate some type of "window", possibly cut out of clear Plexiglas so I could observe a level at a glance. W/O having to remove the seat that is.
I'll have to take a look tomorrow..... Thanks
Upland111 is offline
Old 03-02-2014, 05:42 AM
  #4
Senior Member
MotoGP

smokinjoe73's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,898
smokinjoe73 is on a distinguished road
So the other blank space I use on racebikes is the space next to the headlight behind the front fairing.
smokinjoe73 is offline
Old 03-02-2014, 05:55 AM
  #5
Member
Squid

TAMPAHAWK68's Avatar

Join Date: Mar 2013
Location: Tampa, FL
Posts: 51
TAMPAHAWK68 is on a distinguished road
I'd keep the reservoir location below the radiator cap, if not..your not going to like the outcome.
I've been pondering relocating it as well, for better air circulation

Last edited by TAMPAHAWK68; 03-02-2014 at 05:57 AM.
TAMPAHAWK68 is offline
Old 03-02-2014, 08:24 AM
  #6
Senior Member
Back Marker

MOONSTER's Avatar

Join Date: Apr 2009
Location: San Antonio, Tx.
Posts: 181
MOONSTER is on a distinguished road
Yes, location for the resevoir is important, concur must be kept below the radiator cap, or overflow of the radiator. Having worked on many different engine applications as a generator tech, have witnessed what can go wrong with this issue.

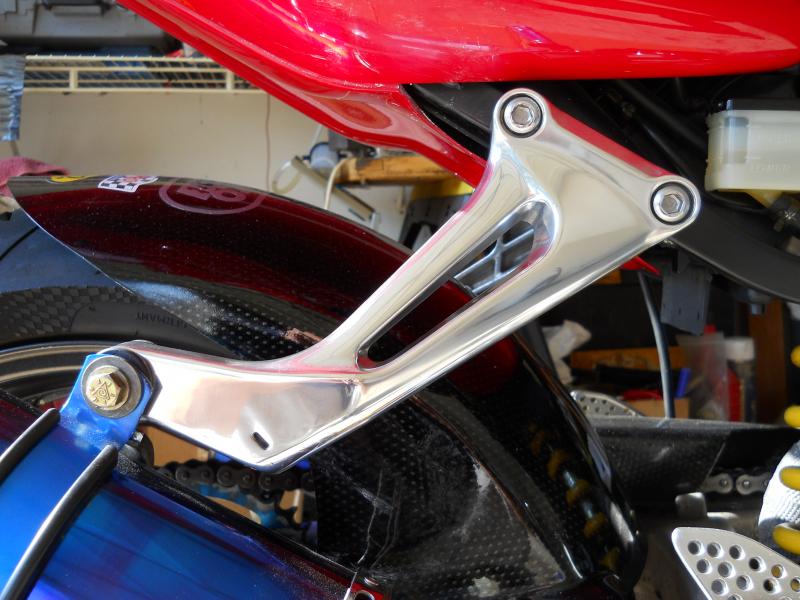

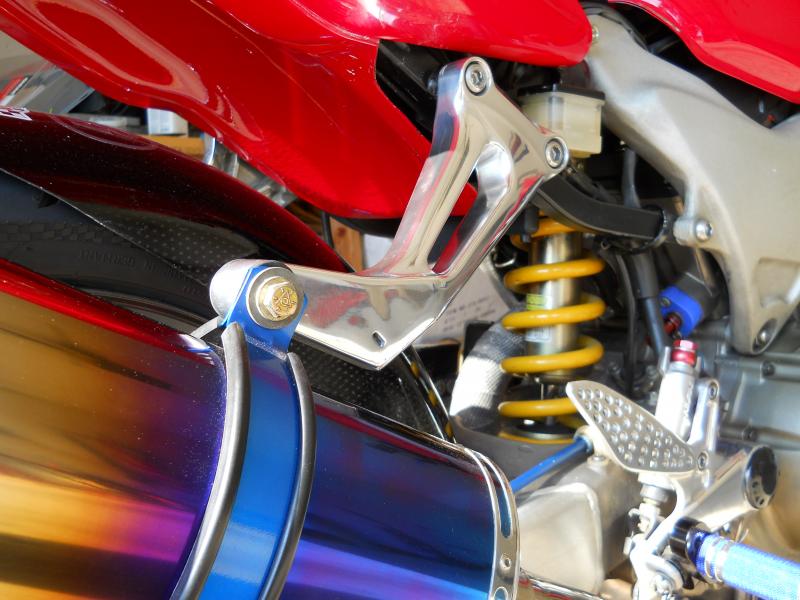

One possiblity I see, would be behind the rear shock, in between the rear wheel. Not sure you'd be able to use the stock resevoir though. Would take some closer examination. Maybe a round tank, with proper fittings. Just keep in mind, that you need clearance when swingarm fully compressed.

If the little mud flap is removed, could be uses as a possible mounting tab.
Just my 2 cents worth. Picture maybe shows area.
Attached Thumbnails Coolant Resevoir re-location?-dscn0497.jpg   Coolant Resevoir re-location?-dscn0498.jpg
MOONSTER is offline
Old 03-02-2014, 02:18 PM
  #7
Senior Member
Back Marker

sjscicluna's Avatar

Join Date: Jul 2012
Location: Melbourne, Australia
Posts: 143
sjscicluna is on a distinguished road
Originally Posted by MOONSTER View Post
Yes, location for the resevoir is important, concur must be kept below the radiator cap, or overflow of the radiator. Having worked on many different engine applications as a generator tech, have witnessed what can go wrong with this issue.

One possiblity I see, would be behind the rear shock, in between the rear wheel. Not sure you'd be able to use the stock resevoir though. Would take some closer examination. Maybe a round tank, with proper fittings. Just keep in mind, that you need clearance when swingarm fully compressed.

If the little mud flap is removed, could be uses as a possible mounting tab.
Just my 2 cents worth. Picture maybe shows area.
i was thinking between rear shock and motor
sjscicluna is offline
Old 03-02-2014, 06:07 PM
  #8
Rex Kramer-Thrill Seeker
SuperBike

CruxGNZ's Avatar

Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
CruxGNZ is on a distinguished road
Originally Posted by sjscicluna View Post
i was thinking between rear shock and motor
Pretty good chance it will melt though.
CruxGNZ is offline
Old 03-02-2014, 07:00 PM
  #9
Member
Superstock
Thread Starter

Join Date: Jul 2009
Location: Snohomish, WA.
Posts: 285
Upland111 is on a distinguished road

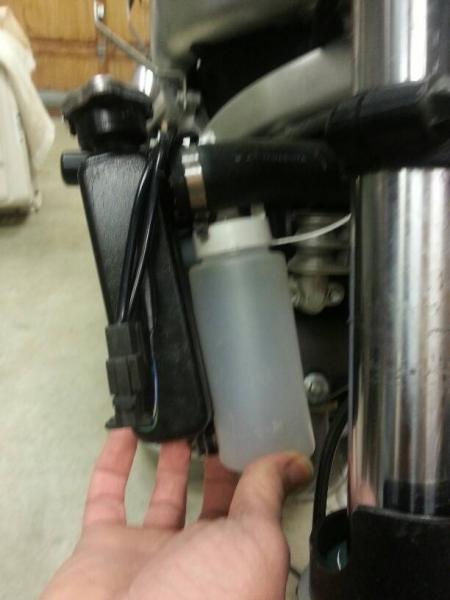

I was looking for a 8oz plastic bottle that had 1oz graduations, but take a look at the following pic and let me know what you think.
It seems obvious, but how about right in front of the fan on the left radiator, just behind the filler cap?
Shown is what I believe to be a 6oz container.
You could use what is now the overflow tube that feeds the current location tied into the existing vent tube. Then route a new overflow tube to the bottom of the container, onto a nipple epoxied off the bottom of the bottle.
Coolant Resevoir re-location?-vtr-coolant-resevoir1.jpg


Not sure about fairing clearance though.....

Last edited by Upland111; 03-02-2014 at 07:11 PM.
Upland111 is offline
Old 03-03-2014, 05:52 AM
  #10
Member
Squid

TAMPAHAWK68's Avatar

Join Date: Mar 2013
Location: Tampa, FL
Posts: 51
TAMPAHAWK68 is on a distinguished road
Curious to see what you come up with, I have been looking at that as well. I am looking at removing everything under the tank, airbox, coolant tank, ect.
I'm looking at making my tank out of tubing, will give me more flexibility in being able to design an adequate size reservoir and be able to hide it inside the fairing..looking for suitable materials for project at the moment.

Last edited by TAMPAHAWK68; 03-03-2014 at 06:27 AM.
TAMPAHAWK68 is offline
Old 03-03-2014, 06:07 AM
  #11
Rex Kramer-Thrill Seeker
SuperBike

CruxGNZ's Avatar

Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
CruxGNZ is on a distinguished road
Originally Posted by TAMPAHAWK68 View Post
Curious to see what you come up with, I have been looking at that as well. I am looking at removing everything under the tank, airbox, coolant tank, ect.
Permanently? The bike runs like crap if you're planning on running pod filters. You will want to leave the airbox there. It takes up a lot of space, but it's necessary. Some of us are actually making the airbox volume larger (post filter).
CruxGNZ is offline
Old 03-03-2014, 06:32 AM
  #12
Member
Squid

TAMPAHAWK68's Avatar

Join Date: Mar 2013
Location: Tampa, FL
Posts: 51
TAMPAHAWK68 is on a distinguished road
Originally Posted by CruxGNZ View Post
Permanently? The bike runs like crap if you're planning on running pod filters. You will want to leave the airbox there. It takes up a lot of space, but it's necessary. Some of us are actually making the airbox volume larger (post filter).
No pod filters...custom stack/filter mod..still in R/D stages at the moment

I have another idea on a reservoir...If the swingarm tubes are sealed at both ends...could turn one side into a reservoir?????

Last edited by TAMPAHAWK68; 03-03-2014 at 10:33 AM.
TAMPAHAWK68 is offline
Old 03-03-2014, 02:16 PM
  #13
Junior Member
Squid

Join Date: Oct 2012
Location: Ireland
Posts: 15
macdee is on a distinguished road
loydie used the hrc coolant bottle here this was a test bottle

Last edited by macdee; 03-03-2014 at 02:28 PM.
macdee is offline
Old 03-22-2014, 09:22 PM
  #14
Rex Kramer-Thrill Seeker
SuperBike

CruxGNZ's Avatar

Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
CruxGNZ is on a distinguished road
Just to keep the threads together:
Click here
CruxGNZ is offline
Old 03-22-2014, 09:28 PM
  #15
Rex Kramer-Thrill Seeker
SuperBike

CruxGNZ's Avatar

Join Date: Jan 2011
Location: Brookfield, WI
Posts: 2,312
CruxGNZ is on a distinguished road
Originally Posted by TAMPAHAWK68 View Post
No pod filters...custom stack/filter mod..still in R/D stages at the moment

I have another idea on a reservoir...If the swingarm tubes are sealed at both ends...could turn one side into a reservoir?????
Sorry, just saw this. Can you? Yes. Should you? No. Why? Uprgrade your grey matter on "unsprung weight".

I'd still like to see your idea on the custom velocity stack/filter mod. It would be neat to see what you're thinking.
CruxGNZ is offline
