Another naked firestorm

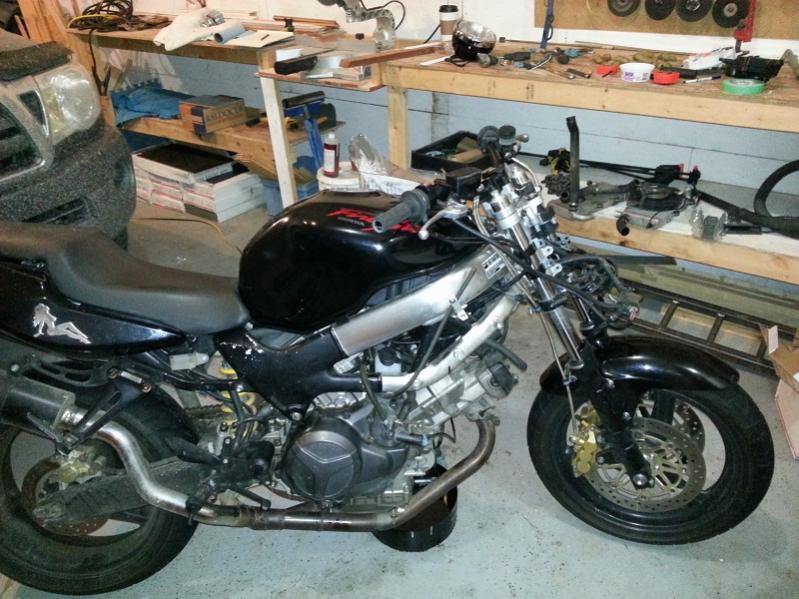

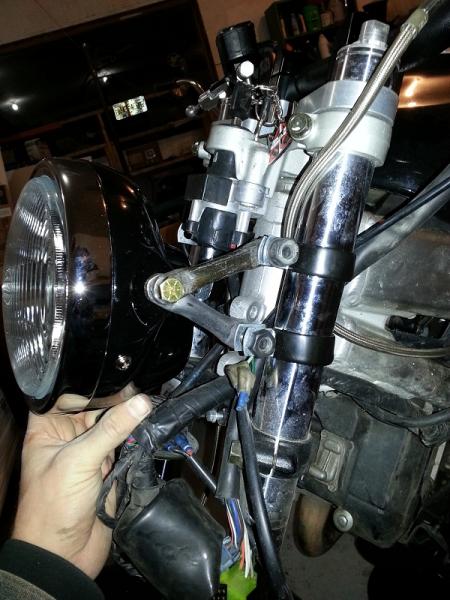

So I bought this bike in 2009. it was my first streetbike, way too big for me, i didn't even have a license, but i wasn't going to let anything get in the way of me having it. The guy i bought it from was kinda a shady character with a binder full of transfer papers, and a garage full of harleys.
Anyway I rode it for a season and the cct's decided to help me make an unscheduled stop on the side of the highway. Lucky for me my soon to be in-laws lived nearby and helped me recover my baby.
Another stroke of luck. My aforementioned father in law just so happens to be a heavy duty mechanic, automotive mechanic, and a motorcycle enthusiast since his early teens. Long story short he helped me rebuild the bike in one of those "instant garage" type tents on the farm and i've been riding it happily for that last couple years.
Not too long ago i found out about "streetfighters".... SO AWESOME! now I've gotta have one. That's why i started this thread. I spent a bunch of money on ebay and some of my stuff has started showing up. sv1000 rad, zx6 oil cooler ($11 I love ebay!), 7" round headlight and turns. So naturally after my 12 hour shifts at work i come home and fiddle with my bike. here's some pics of where i'm at.
Looking forward to feedback and help from all the guys on here
Attached Thumbnails Another naked firestorm-20131024_193501.jpg   Another naked firestorm-20131027_182912.jpg
quillinsmat is offline
Old 10-30-2013, 05:23 PM
  #2
Member
Squid
Thread Starter

quillinsmat's Avatar

Join Date: Aug 2013
Posts: 44
quillinsmat is on a distinguished road

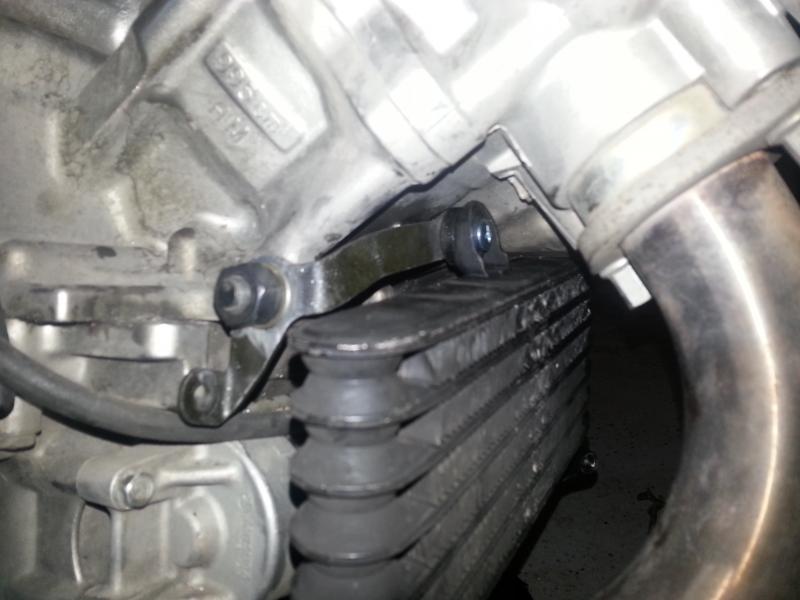

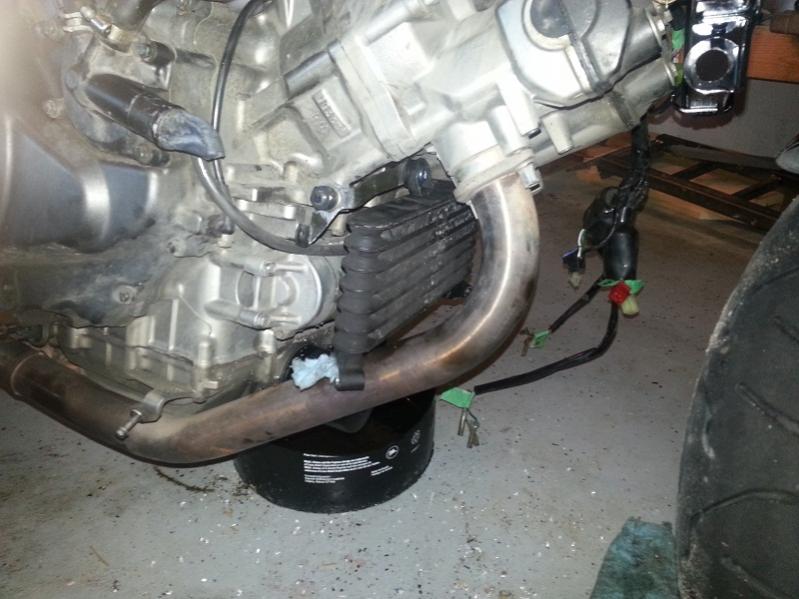

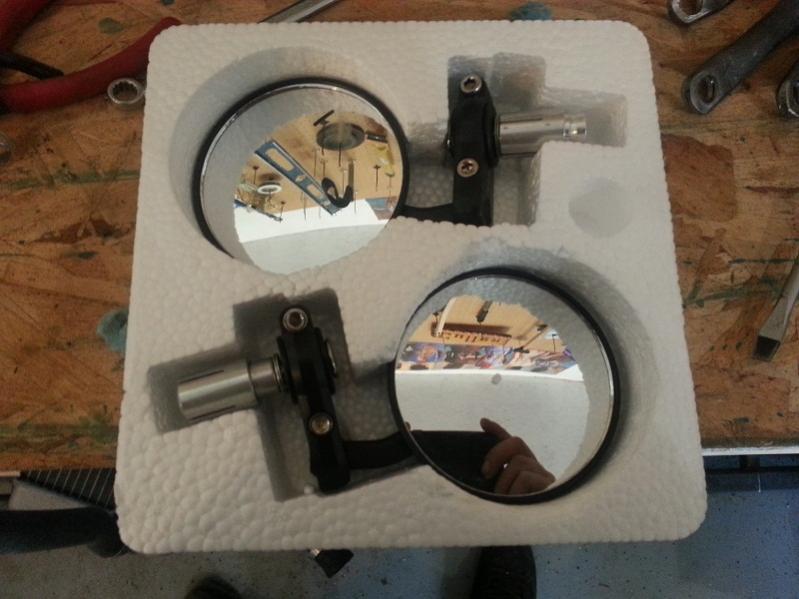

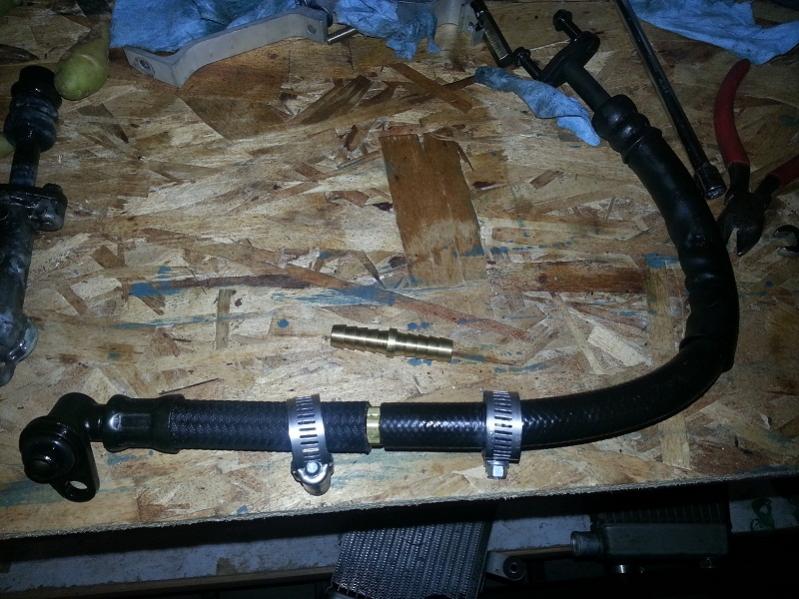

made a little progress today , I measured up space for the oil cooler and came up with a bracket using one of the old radiator support brackets and one of those little dowel hole looking things on the front of the motor. I decided to use hose splices to get the desired length rather than cutting and brazing or going the stainless braided route like kai ju. Mostly just cause i'm cheap and impatient. waiting for parts from ebay vs five minutes to the parts store... parts store wins. I do like the look of those braided lines though. Maybe one day.

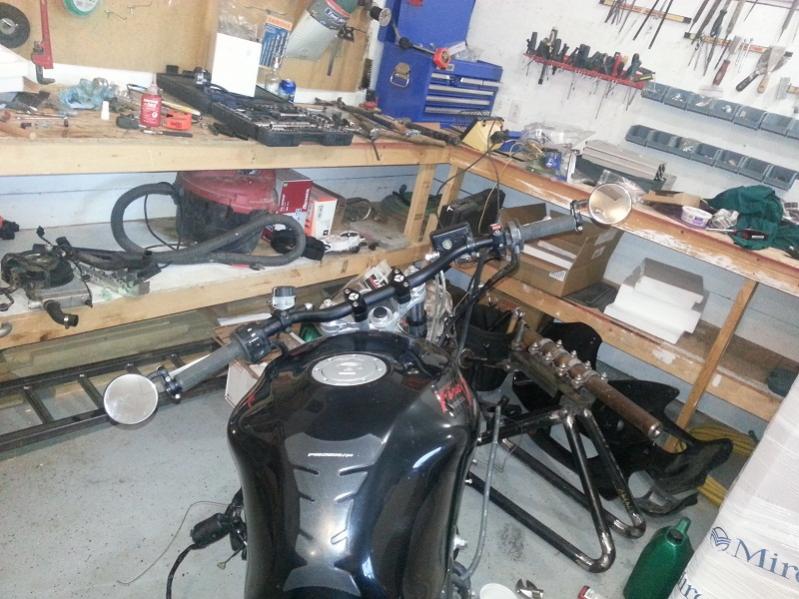

I also mocked up the position for the sv1000 rad with some hay wire and mounted some bar end mirrors
Attached Thumbnails Another naked firestorm-20131030_163700.jpg   Another naked firestorm-20131030_163718.jpg   Another naked firestorm-20131030_162246.jpg   Another naked firestorm-20131030_150545.jpg   Another naked firestorm-20131030_164434.jpg

quillinsmat is offline
Old 10-30-2013, 05:30 PM
  #3
Senior Member
Superstock

RobertLever's Avatar

Join Date: Aug 2013
Location: Everett, Washington
Posts: 295
RobertLever is on a distinguished road
I'm glad you're doing a front radiator on your fighter. I'll think it will look a lot cleaner and you will be able to see the VTR engine. Keep up the good work and keep on posting.
RobertLever is offline
Old 10-30-2013, 06:27 PM
  #4
Senior Member
SuperSport

Join Date: Apr 2013
Posts: 972
jerryh is on a distinguished road
Ditto the bike looks good!
jerryh is offline
Old 10-30-2013, 08:56 PM
  #5
Senior Member
MotoGP

7moore7's Avatar

Join Date: Jul 2010
Location: Phoenix, AZ
Posts: 3,867
7moore7 is on a distinguished road
Make sure you measure the space for a radiator when the front wheel is bottomed out... that seems to be the limiting factor Good on you for jumping in and good luck with the build!
7moore7 is offline
Old 10-30-2013, 10:13 PM
  #6
Member
Squid
Thread Starter

quillinsmat's Avatar

Join Date: Aug 2013
Posts: 44
quillinsmat is on a distinguished road
Originally Posted by 7moore7 View Post
Make sure you measure the space for a radiator when the front wheel is bottomed out... that seems to be the limiting factor Good on you for jumping in and good luck with the build!
Thanks, i had heard about the fender vs rad problem and that trimming might be the answer. I tilted the top of the rad toward the forks, the bottom till it was just touching the pair valve hose, and i wasn't able to make the two touch when i held the brakes and jumped on the forks. Is there some way of collapsing the suspension long enough to take measurements??? i'd like to know just how much to trim

also i haven't been able to find out what sort of pressure the oil cooler runs at and i'm a little concerned about my cheap *** hose clamp set up
quillinsmat is offline
Old 10-31-2013, 12:00 AM
  #7
erno
Back Marker

erno's Avatar

Join Date: Apr 2009
Location: Australia
Posts: 226
erno is on a distinguished road
Good onya mate

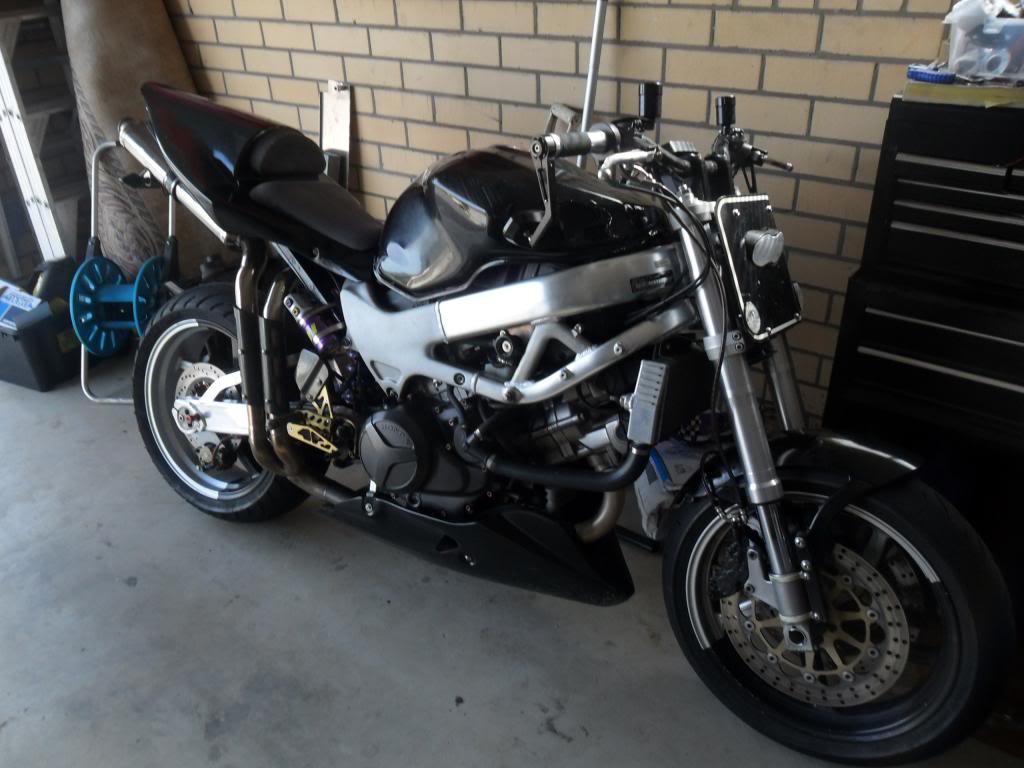

Always wanted to do a fighter,but I cheated and bought this one of my mate

Name:  Picture553_zps65552f48.jpg
Views: 97
Size:  85.5 KB
erno is offline
Old 10-31-2013, 04:19 AM
  #8
Thread Killer
SuperBike

Join Date: Apr 2013
Location: Geneseo, IL
Posts: 1,637
VTR1000F is on a distinguished road
Originally Posted by quillinsmat View Post
Is there some way of collapsing the suspension long enough to take measurements???
Take the springs out.
VTR1000F is offline
Old 10-31-2013, 06:46 AM
  #9
Senior Member
Superstock

insulinboy's Avatar

Join Date: Jul 2013
Location: Rome, GA
Posts: 458
insulinboy is on a distinguished road
Originally Posted by erno View Post
Good onya mate
Always wanted to do a fighter,but I cheated and bought this one of my mate

I'm not a fan of fighters, but that is purdy
insulinboy is offline
Old 11-01-2013, 07:20 PM
  #10
Member
Squid
Thread Starter

quillinsmat's Avatar

Join Date: Aug 2013
Posts: 44
quillinsmat is on a distinguished road
erno that is a sweet bike, all kinds of crazy cool stuff going on there. i especially like the exhaust and lower fairing. Do you ever have trouble with your fender making friends with your rad. I can easily get mine up that high sans trimming, and if it doesn't hit then that is awsome news
quillinsmat is offline
Old 11-01-2013, 07:24 PM
  #11
Member
Squid
Thread Starter

quillinsmat's Avatar

Join Date: Aug 2013
Posts: 44
quillinsmat is on a distinguished road
Originally Posted by VTR1000F View Post
Take the springs out.
that sucks i was hoping for a much lazier and less messy option, oh well
quillinsmat is offline
Old 11-01-2013, 09:19 PM
  #12
Thread Killer
SuperBike

Join Date: Apr 2013
Location: Geneseo, IL
Posts: 1,637
VTR1000F is on a distinguished road
Ratchet straps? A pile of cinder blocks? Perhaps a complex system of weights and pulleys? No, wait; I forgot, lazy.
VTR1000F is offline
Old 11-02-2013, 12:01 AM
  #13
erno
Back Marker

erno's Avatar

Join Date: Apr 2009
Location: Australia
Posts: 226
erno is on a distinguished road
Originally Posted by quillinsmat View Post
erno that is a sweet bike, all kinds of crazy cool stuff going on there. i especially like the exhaust and lower fairing. Do you ever have trouble with your fender making friends with your rad. I can easily get mine up that high sans trimming, and if it doesn't hit then that is awsome news
Cant take the credit,
Know previous owner for 5yrs had no hassels with front guard
Has a ducati 900ss f/end
And mate its sooooo fun to ride
erno is offline
Old 11-02-2013, 07:42 AM
  #14
Senior Member
Superstock

RobertLever's Avatar

Join Date: Aug 2013
Location: Everett, Washington
Posts: 295
RobertLever is on a distinguished road
Great looking exhaust on your fighter Erno.
RobertLever is offline
Old 11-02-2013, 08:44 AM
  #15
Member
Squid

jedrek750's Avatar

Join Date: Feb 2009
Location: POLAND EUROPE
Posts: 50
jedrek750 is on a distinguished road
Nice firestorm...
jedrek750 is offline
Old 11-02-2013, 01:17 PM
  #16
Member
Squid
Thread Starter

quillinsmat's Avatar

Join Date: Aug 2013
Posts: 44
quillinsmat is on a distinguished road
Originally Posted by erno View Post
Cant take the credit,
Know previous owner for 5yrs had no hassels with front guard
Has a ducati 900ss f/end
And mate its sooooo fun to ride
Right USD forks. I didn't see that before. Still it's good news that the fender doesn't hit. I know I wanted to be lazy but there's still at least five months before riding season. What's an hour or two more invested in my favorite toy.
quillinsmat is offline
Old 11-02-2013, 09:56 PM
  #17
Member
Squid
Thread Starter

quillinsmat's Avatar

Join Date: Aug 2013
Posts: 44
quillinsmat is on a distinguished road

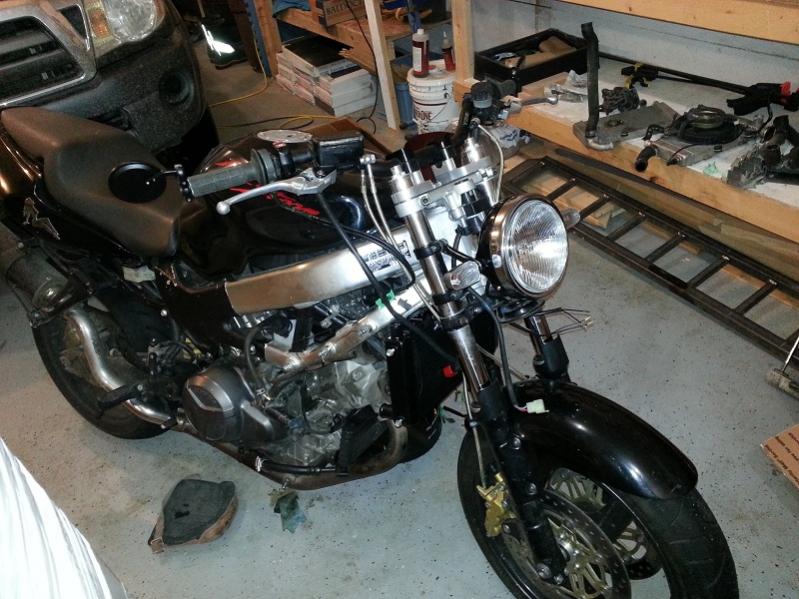

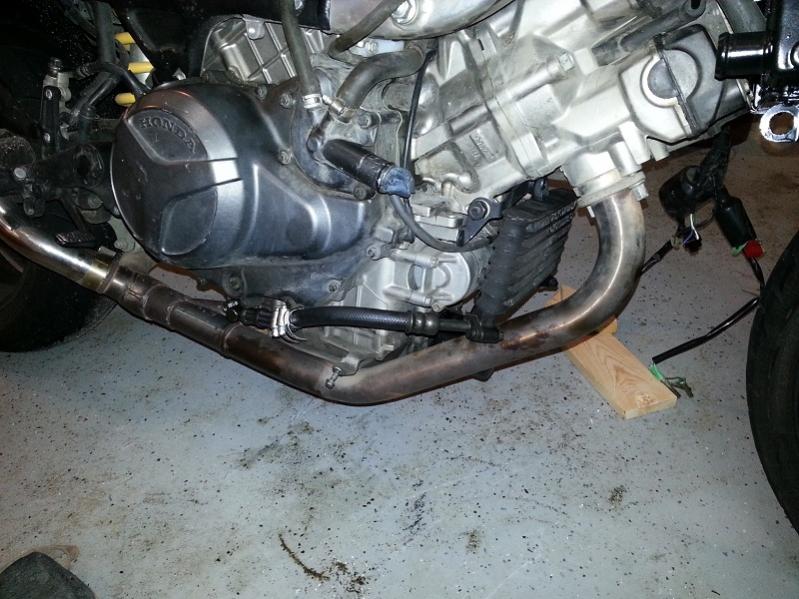

Did some more work on the bike tonight. I plumbed in the oil cooler with some hose splices, I ended up buying some heavy duty push-lok ones, It looks kinda cheesy with the hose clamps but i can always do the stainless lines later. Once i make sure this set up will work for me.

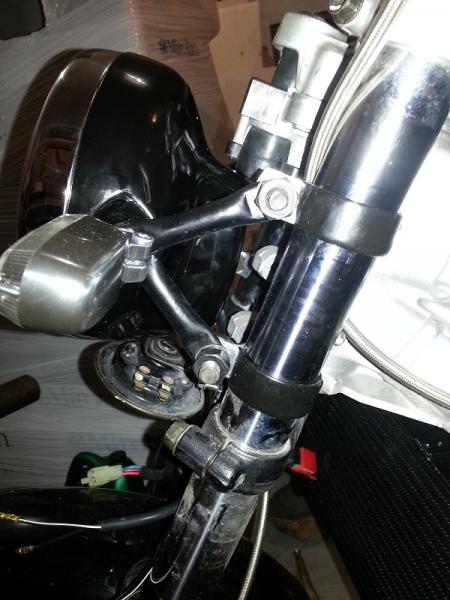

I also mounted the headlight and turn signals, next step is hacking apart the wiring harness i suppose. or maybe collapsing the forks, we'll see how i feel when the time comes
Attached Thumbnails Another naked firestorm-nov-2-2013-339.jpg   Another naked firestorm-nov-2-2013-340.jpg   Another naked firestorm-nov-2-2013-342.jpg
quillinsmat is offline
Old 11-15-2013, 07:48 PM
  #18
Senior Member
SuperSport

Join Date: Apr 2013
Posts: 972
jerryh is on a distinguished road
Originally Posted by quillinsmat View Post
Did some more work on the bike tonight. I plumbed in the oil cooler with some hose splices, I ended up buying some heavy duty push-lok ones, It looks kinda cheesy with the hose clamps but i can always do the stainless lines later. Once i make sure this set up will work for me.

I also mounted the headlight and turn signals, next step is hacking apart the wiring harness i suppose. or maybe collapsing the forks, we'll see how i feel when the time comes
Bike is looking clean!
jerryh is offline
Old 11-21-2013, 05:26 PM
  #19
Sprung
World Champion

Hawkrider's Avatar

Join Date: Dec 2004
Location: Fulton, MO
Posts: 105,285
Hawkrider will become famous soon enoughHawkrider will become famous soon enough
When you bottom the forks and fabricate brackets, leave about 1/4" of extra space. When braking, the forks (even non-stock forks) will bend back a little bit. They are designed to do that, and they stay in the elastic range so it's not permanent.
Hawkrider is offline
Old 11-21-2013, 06:53 PM
  #20
Senior Member
SuperBike

NHSH's Avatar

Join Date: Jul 2011
Location: South of Live Free or Die & North of Family Guy
Posts: 1,401
NHSH is on a distinguished road
Originally Posted by erno View Post
Cant take the credit,
Know previous owner for 5yrs had no hassels with front guard
Has a ducati 900ss f/end
And mate its sooooo fun to ride
Erno, how about the rear end? I may have asked you that before on a different thread... can't remember, is this from a Kawi?
Awesome looking bike mate, good catch
NHSH is offline
Old 11-21-2013, 08:53 PM
  #21
erno
Back Marker

erno's Avatar

Join Date: Apr 2009
Location: Australia
Posts: 226
erno is on a distinguished road
Originally Posted by NHSH View Post
Erno, how about the rear end? I may have asked you that before on a different thread... can't remember, is this from a Kawi?
Awesome looking bike mate, good catch
Are you talking about swingarm?If so its a JMC from the UK.
Tail is a (Mario) special,similar to a R1


cheers
erno is offline
Old 11-21-2013, 10:07 PM
  #22
Senior Member
SuperBike

NHSH's Avatar

Join Date: Jul 2011
Location: South of Live Free or Die & North of Family Guy
Posts: 1,401
NHSH is on a distinguished road
Originally Posted by erno View Post
Are you talking about swingarm?If so its a JMC from the UK.
Tail is a (Mario) special,similar to a R1


cheers
Yes, the swingarm indeed also good to know about the tail as well
Thanks for the info mate.

Cheers
NHSH is offline
Old 05-01-2014, 10:32 AM
  #23
Member
Squid
Thread Starter

quillinsmat's Avatar

Join Date: Aug 2013
Posts: 44
quillinsmat is on a distinguished road
So I've been slacking in the update department, but i have been working on the bike. I was being a wimp though and when it was really cold outside i took a long hiatus.

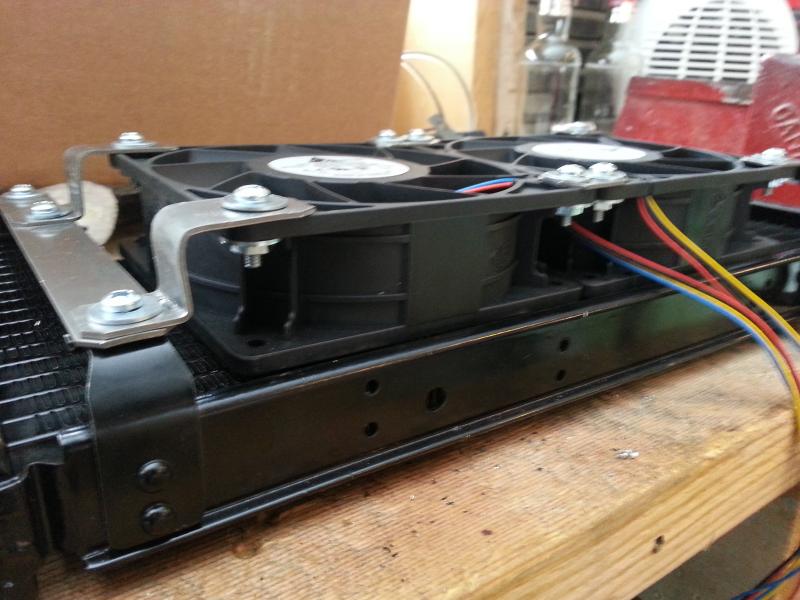

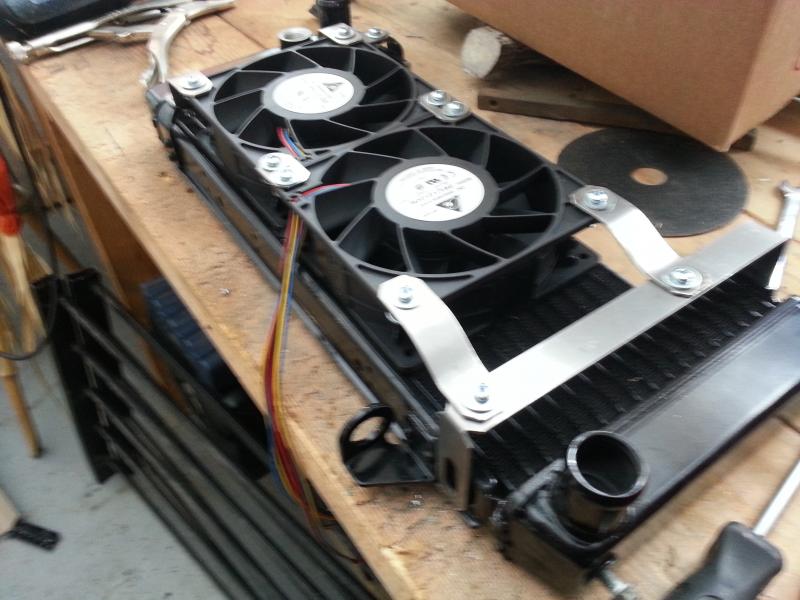

I fabbed up two different radiator set ups because i poked a hole in the first one when i was drilling a mounting hole. I did the pair valve removal and made my own front block off plate to make room for the cooling set up. I ended up moving the fork tubes all the way down in the triple clamps to get as much clearance as possible between the fender and the rad. And i bought a couple of KOSO guages.

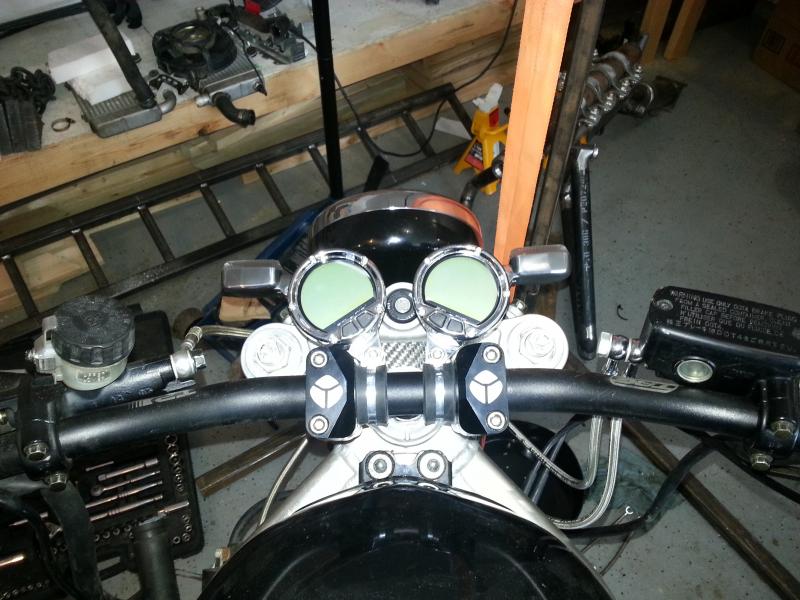

Now i'm working on shortening the wiring harness and getting the new pieces to jive with the old harness. I've got two wire turn signals and i'm not sure how to make them work with the three wire set in the harness, and the computer fans i got for the rad have four wires and the original fan has two plus the temp sensor. Does anyone have any experience with this that could maybe help me out?

P.S.
sorry my pics are a little out of date, thats the old rad set up the new one is the right hand side rad with some homemade brackets like the ones on the suzi rad and the same fans. I'll try to get some more up to date pics on here soon
Attached Thumbnails Another naked firestorm-284.jpg   Another naked firestorm-285.jpg   Another naked firestorm-286.jpg
quillinsmat is offline
Old 05-05-2014, 07:51 PM
  #24
Member
Squid

Join Date: Mar 2014
Location: CA
Posts: 94
CrickiKaze is on a distinguished road
What dimension are the radiator you are working with, may have to borrow your idea?
CrickiKaze is offline
Old 05-06-2014, 11:03 AM
  #25
Member
Squid
Thread Starter

quillinsmat's Avatar

Join Date: Aug 2013
Posts: 44
quillinsmat is on a distinguished road
I'm not sure what the dimensions of the radiators are but the first one was an sv1000 rad that i had to notch out four rows. It was a super cheap chinese knock off though and i wasn't able to tig weld the tubes shut cause it was too thin. I ended up using some epoxy(metal magic) to make caps instead. the epoxy did seal but since i poked a hole in the rad with a drill bit when i was drilling mounting holes, i never did get a chance to run it up to temperature and see if epoxy was really a viable option.
After i screwed up the first rad i didn't want to pay for another one, cause i'm pretty cheap, I used the right hand side rad from the firestorm and it looks like its going to work better anyway. I can still turn lock to lock and i have it mounted high enough that the bottom of the valve cover is lower than my rad. I did have to remove the front pair valve hose to make room for the fans and it is TIGHT in there now but nothing is rubbing. I'm also going to use the extra hose outlet as a place to mount the KOSO water temp guage so i didn't have to get it blocked off.
The firestorm rad is smaller than the SV rad so the cooling is obviously not going to be as good. i have an 8 row oil cooler from a zx7 and i'm hoping that it will make enough of a difference.

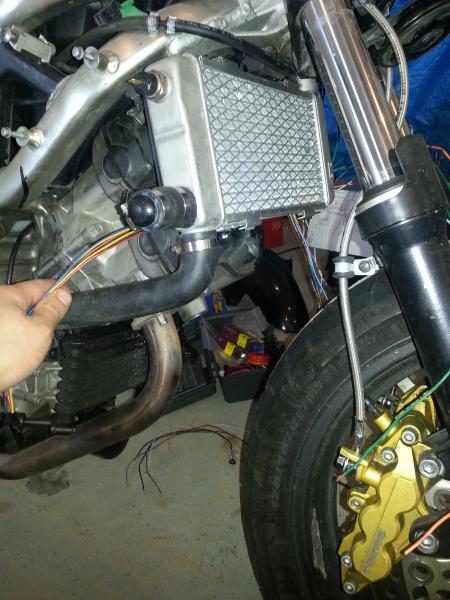

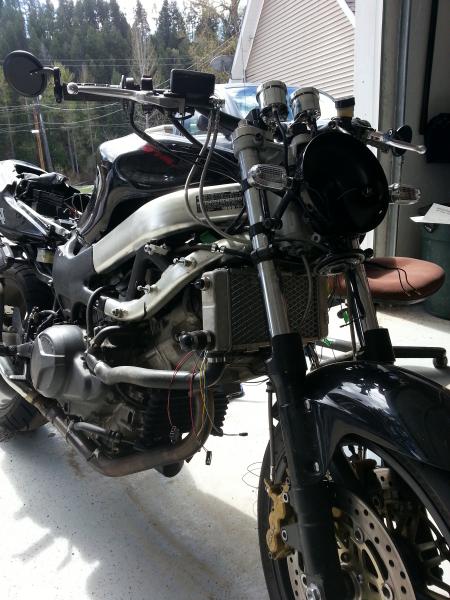

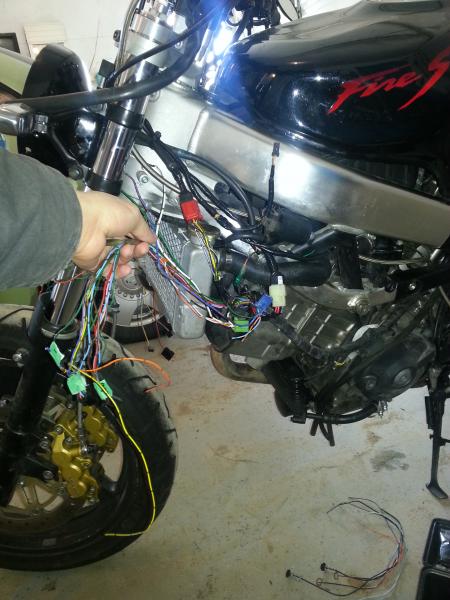

Here are a couple more pics of the new rad set up and some of the wiring work i've been doing. I have no idea what to do with the un-used wires now that i have different guages. Are the neutral switch and side stand swtich going to stop me from running if i dont put a resistor in there or something?
Attached Thumbnails Another naked firestorm-20140505_140142.jpg   Another naked firestorm-20140505_140036.jpg   Another naked firestorm-20140503_122157.jpg
quillinsmat is offline
Old 05-06-2014, 10:58 PM
  #26
erno
Back Marker

erno's Avatar

Join Date: Apr 2009
Location: Australia
Posts: 226
erno is on a distinguished road
Looking good there mate ,keep it up
erno is offline
Old 05-14-2014, 05:40 PM
  #27
Member
Squid
Thread Starter

quillinsmat's Avatar

Join Date: Aug 2013
Posts: 44
quillinsmat is on a distinguished road

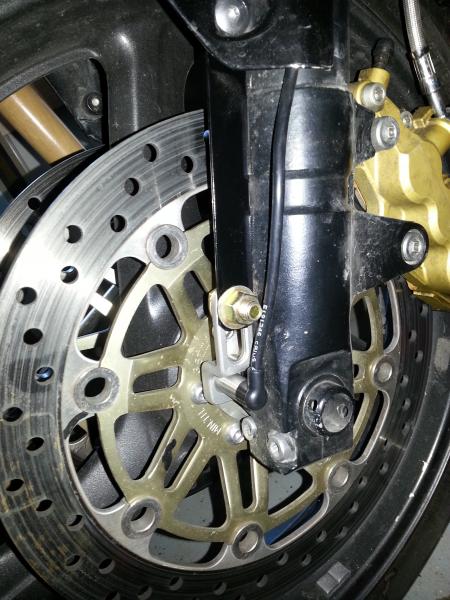

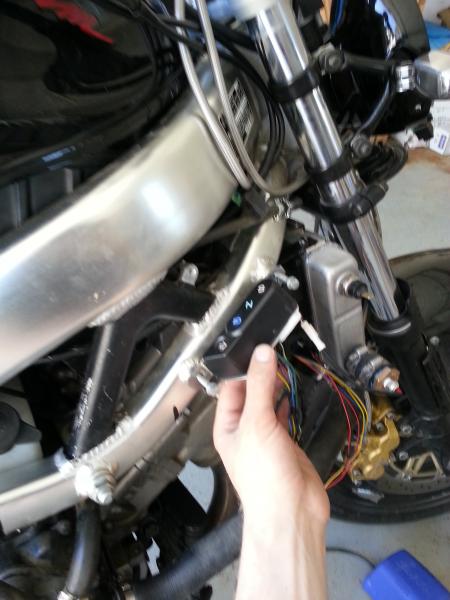

I got to work on the bike today a bit. I finished installing the sensor for my new speedoAnother naked firestorm-20140514_171532.jpg
I'll have to zip tie the little aluminum bracket to the fork to stop it from vibrating too much, but i've got new rotors coming tomorrow so i'll just wait till i swap those out.

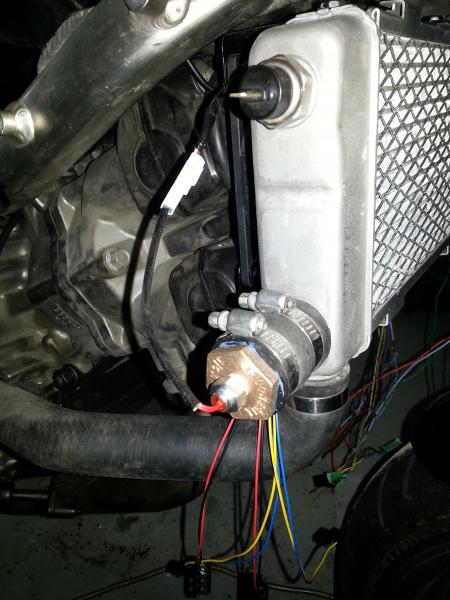

Then i mounted and wired the temp sensor in the unused outlet on the rad. Another naked firestorm-20140514_171616.jpg

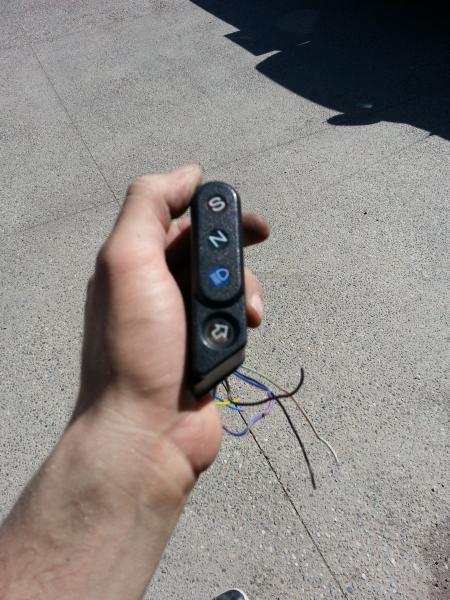

This is when i got a little distracted. I started looking at all the unused wires for the dummy lights. I had read on other forums for other bikes that if you don't want to use the kickstand light or the neutral light or whatever that you have to put a resistor or something in there or the bike won't run. I also thought that since the VTR is carbureted it probably doesn't have a whole lot going on in the computer department for things like that. At any rate i decided that i kinda like dummy lights anyway, so i thought that since i wasn't using the factory gauges anymore i could probably steal the lights out of there! And holy crap there are plugs there too that I could steal and make it look like its kinda sorta supposed to be there. This is what I came up with in the end
Another naked firestorm-20140514_154331.jpg
Another naked firestorm-20140514_163314.jpg
when i cut it down to size i got rid of the screw holes that hold the front cover on, so i used some construction adhesive i had in the shop and i glued the parts together, then i made the mounting bracket and glued that to the back. After it all cures a bit i'll seal it up with some silicone and paint it. I don't know if the adhesive is going to hold super well but its pretty good stuff when you're gluing boards and styrofoam and stuff.
quillinsmat is offline
Old 06-04-2014, 03:48 PM
  #28
Member
Squid
Thread Starter

quillinsmat's Avatar

Join Date: Aug 2013
Posts: 44
quillinsmat is on a distinguished road
So I got everything finished finally! All the wiring works and is tucked away as much as I could with no fairing. The computer fans work when I ground them out, but I haven't had a chance to run it up to temp (more on that later). The new gauges work as well as I can tell so far. I spun the wheel and the speed went up and the rpm went up when I started it. I collapsed the front forks with everything installed and the fender just barely touched the new radiator so I'm happy with that. I did run it for a minute or two and nothing was leaking. This is where the bad news starts though. While I was bleeding the air out of the coolant system with the bike running I heard a ticking/knocking sound coming from the motor. I revved it a little to make sure I wasn't imagining the noise then shut it off.
I started checking over everything and found that there was no oil in the sight glass. I had to add almost a litre before I could see it again.
I've been talking with the millwrights and mechanics at work my plan before trying to start it again is to drain some oil through a screen to see if there are bearing parts on there. If that checks out I'll spin the motor over with a drill on the crankshaft and no plugs in it to pump oil through the system. Then try again I guess. It didn't sound to me like chains slapping and it follows the rpm so I don't think it's the ccts. Not too mention they only have about 3000km on them.
Anyway that's my update for today. I'll try to get some more pictures uploaded tonight
quillinsmat is offline
Old 06-07-2014, 07:29 PM
  #29
Member
Squid
Thread Starter

quillinsmat's Avatar

Join Date: Aug 2013
Posts: 44
quillinsmat is on a distinguished road
hey i finally got around to the pictures of the bike all put together, and i finally figured out the photo hosting biz so here you go.

Name:  20140531_151240_zpslsr6n5ry.jpg
Views: 92
Size:  73.6 KB
these are my old rotors complete with cracks from being an idiot and not cleaning out my gixxer calipers before i installed them.
Name:  20140531_151151_zps9gloprpp.jpg
Views: 99
Size:  122.5 KB
these are the new EBC rotors mounted to the wheel
Name:  IMG_20140607_191036_zpsb5nisrip.jpg
Views: 158
Size:  120.4 KB
this is the whole mess mounted back on the bike partway through the soul crushing experience of bleeding the front brakes. there is very little i hate as much as bleeding brake lines.
Name:  20140607_181918_zpsdynd3rvx.jpg
Views: 95
Size:  110.7 KB
this is the previously loved ZX7 oil cooler mounted and plumbed.
Name:  20140605_183701_zpsoek0tmju.jpg
Views: 83
Size:  93.7 KB
my new guages, all working and stuff
Name:  20140605_183644_zpsyoc2s1uk.jpg
Views: 84
Size:  132.5 KB
face shot
Name:  20140605_183621_zpsai0eeyap.jpg
Views: 108
Size:  125.6 KB
super tedious wiring job that didn't turn out as pretty as i wanted, i may need to revisit this next winter. at least it all works
Name:  20140605_183604_zpshyglqexb.jpg
Views: 90
Size:  105.4 KB
the tight clearances between the fans and valve cover, gonna suck to try and do timing now.
quillinsmat is offline
Old 06-27-2014, 04:16 PM
  #30
Member
Squid
Thread Starter

quillinsmat's Avatar

Join Date: Aug 2013
Posts: 44
quillinsmat is on a distinguished road
update time

so i kinda suck at this regular update thing but i have been working on the bike, and i have some progress to report. . . IT RUNS! oh my god it finally runs again. I definitely over reacted about the ticking noise i was hearing too. there are no leaks, the fans come on at about 100*C and do a pretty damn good job off cooling off the system, the tach isn't quite set up right yet. i think its set for a 4 cyl 2 stroke instead of a 2 cyl 4 stroke, cause it says i'm idling at about 3000 rpm, i'll have to investigate that later
I ended up taking the carbs off and cleaning them, and re-adjusting the pilot screws to 2 1/4 turns out. In the process i decided to order some of the sweet thumb screws made by Jack Flash to make adjustments easier in the future. I know i'll have to take everything apart again to install them but w/e thats what rainy days are for right.
This time i tried to use the little thing that came in the dynojet kit to adjust them while they were installed on the bike but that just wasn't happening so i did this to it
Name:  output_zpsesaehot1.jpg
Views: 94
Size:  47.3 KB


and tried to use this to get it in there




it didn't work (is it ever tight in there) but it was kinda fun to make. I got ahead of myself there a little. while i was tearing things apart i read on here about balancing carbs and decided i would make the vacuum lines to attach a manometer.

Name:  output_zpst1z5w4yi.jpg
Views: 93
Size:  104.2 KB


i took the little brass nipple thing for running the petcock diaphragm out of the rear cylinder so that the honda guys could see what i was talking about. fast forward, parts are on order and i'm putting the little brass thing back in with my nut driver, i got it snug and thought "just a little more so i'm sure it seals" and then this happened


Name:  output_zpszpj1yqvy.jpg
Views: 80
Size:  74.5 KB

so i called honda and doubled my order. what else can you do.

I also built this sweet manometer using some plans i found somewhere on the forum, it works like a hot damn, it maybe cost $5 in tubes and rubber caps, $10 if you count the beer.

Name:  output_zpsplu1fwtk.jpg
Views: 88
Size:  81.6 KB

another side bar, i found some auto CCTS on ebay for a dollar so i bought them to turn the housings into manual ones, thanks again mike from penticton.

Name:  output_zpshmqkmtlc.jpg
Views: 91
Size:  102.4 KB

and then all taken apart

Name:  output_zpsec1xgolu.jpg
Views: 93
Size:  83.3 KB

So now the good news is over, while i was waiting on the vacuum parts i went to replace the left front turn signal bulb cause one of the filaments was gone. i changed the bulb turned on the blinker, it blinked maybe three times and quit. now it won't blink on either side( the other side was fine before). i took my test light to it and i'm getting power to the marker light wires but not to the intermittent turn signal light wires. and the back signals aren't blinking anymore either. does this sound like a buggered turn signal relay?
quillinsmat is offline

Thread Tools
Search this Thread
Quick Reply: Another naked firestorm


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

All times are GMT -7. The time now is 01:29 PM.


© 2019 MH Sub I, LLC dba Internet Brands
