HRCA#1

I agree but this one is nicer than just about anything else I've seen. What radiator was used, VLX? What oil cooler? Any install pic's?

RWhisen

Like Mikstr said, most nakeds are just "Meh" to me but yours looks very nice. I think the only thing I would work on would be how to clean up the oil hoses that go all over the place. One of the things that makes or breaks a naked to me is doing away with the clutter and with that one exception you have done a great job. How does it run with the two into one setup? Loud?

kai ju

That looks eerily familiar...........it's nice to see more undertail radiators, really cleans up the lines of the bike.

Nice job, let's see the fan set up.

Naked'98

mikstr- subframe is a chopped down stock unit.

Rz- sticker is actually a parking pass, no hassling from the cops yet...

tophatflash- mostly between Seattle and Bellingham.

7moore7- I'd like to run a cowl at some point, though I narrowed my tailsection so the stock unit would be too wide, wonder how it would look narrowed with a small ridge down the center?

As far as running, she runs pretty well, I followed the carb setup guide on this forum and it worked well for me. Good, even power throughout the rev range but I do still need to tweak my idle circuit as i get slight popping with the throttle fully closed below 3K RPM.

RWhisen- yes, actually the oil lines are temporary, I will be cleaning those and a few other small things up in the future

Kai Ju- It is fairly similar to your build. I actually saw some frustratingly small pictures (couldn't find full-size at the time) of your bike before i bought mine ~1 year ago, I believe it still had the factory tank? Your bike was the one that inspired me to do the undertail radiator and the venting. Believe it or not, i hadn't actually seen your build thread or detailed pictures of you bike until I dug it up today after reading your post. The two bikes do indeed have eerie similarities: Ninja oil cooler, CBR954 forks, undertail, venting, VFR800 tank, etc.


To all of you, thank you for the kind words. To be honest, I was a little apprehensive to post this up as most are not fans of 2 into 1 exhausts and naked Superhawks.

Details to follow but for now here is a few shots of the radiator installation:

NHSH

Very nice

Naked'98

Now for a little background and the details:

I got the bike almost a year ago now. When I picked her up she was in pretty sorry shape. The bike had been down twice in the past, once on either side, and the previous owner had torn a lot of parts off en route to a minimalist, naked fighter. She was sporting a bent pair of GSXR600 front forks (minus the rotors and master cylinder) No bars, no ignition switch, no gauges, no headlight, no fairing or fairing stay. The frame was covered with scratched black paint, the tank was included but had not been made to fit (no mounts or block-off). Factory airbox was included with a K&N but the velocity stacks had been chopped in an effort to mount pod filters. Rear cylinder head was off of the bike (apparently for porting?). Exhaust had been cut up as a start to the 2-1 setup. Tail fairing had been sectioned 2"? narrower. Lastly... all connectors for hand controls, gauges, etc had been cut off of the harness. I had a pretty big project on my hands.

Bike is not yet done (when are they ever) but close. Future plans include:

-2-1-2 high mount exhaust, I like the look and sound of the setup I built though am probably losing some power.

-clean up lines and wires further.

-I have an RC51 SP1 swingarm and CBR954RR rear wheel that will find their way onto the bike eventually.

-Racetech internals for the front shock and a new rear.

-Newer rear tail?

Along with who knows what else



Right now what I have done is:

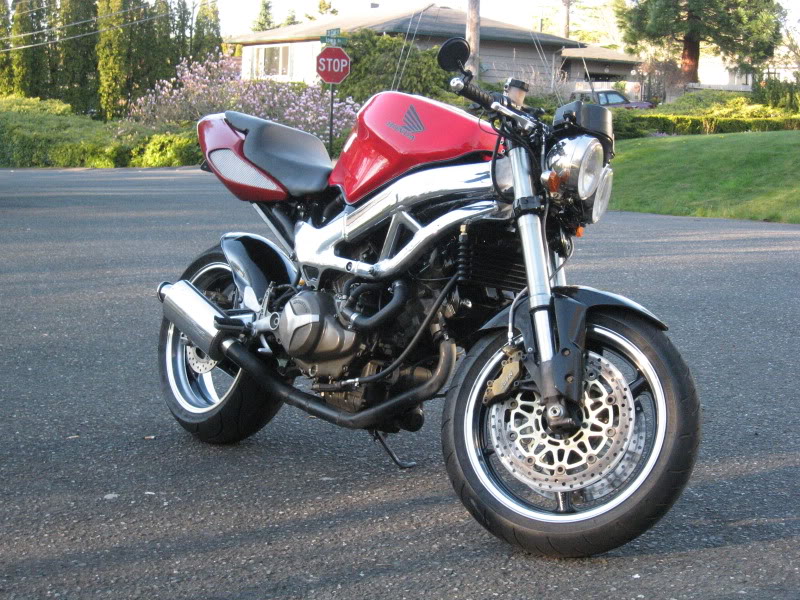

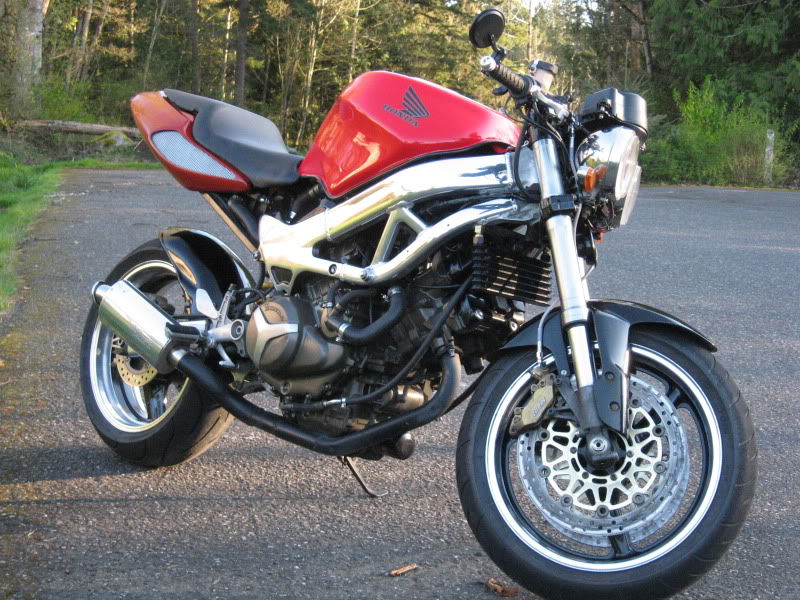

-custom 2-1 exhaust (cut and pieced together factory parts) with viper silencer.
-Converted the CCT's to manual via the stainless carriage bolt method.
-VTX1800 radiator mounted in the subframe (converted to cross-flow and a filler neck added at the top)
-stock airbox, paper filter, stock velocity stacks. Bigger jets, lifthole block, shimmed needles.
-TPS reset.
-mounted coils to LH rear of the airbox.
-CBR929RR fork bodies and dampeners which I rebuilt and installed GSXR1000 springs into
-CBR954RR front wheel
-520 chain conversion (stock gearing though)

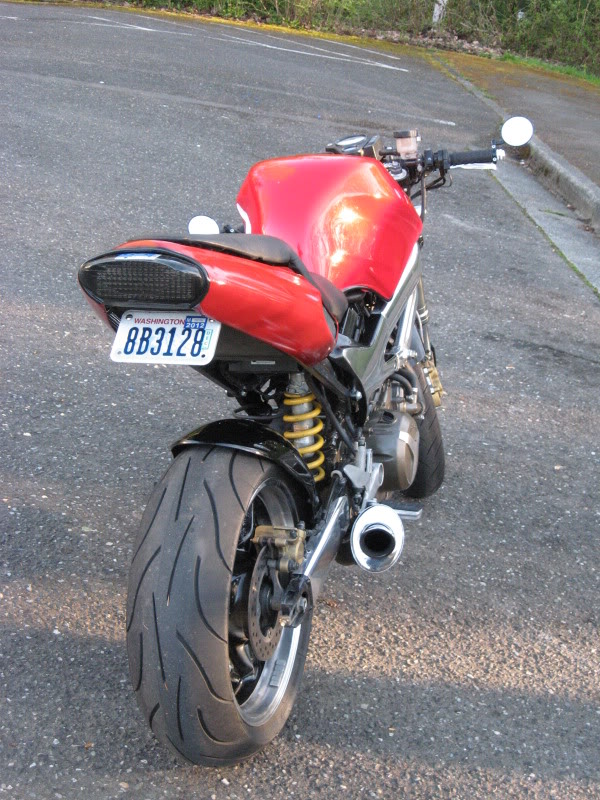

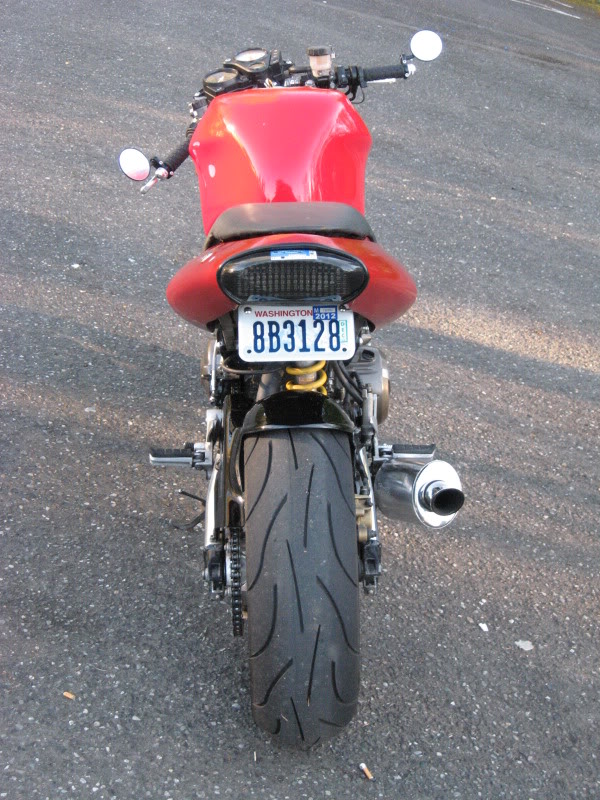

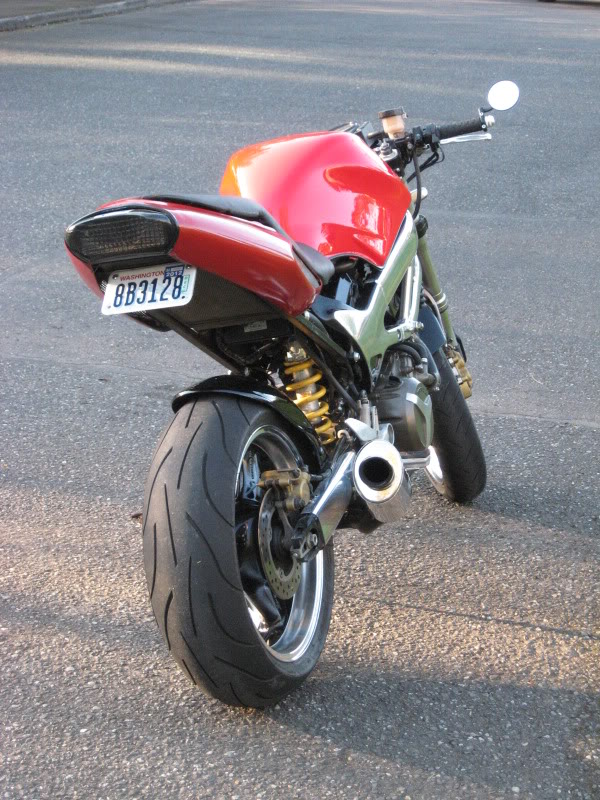

-Narrowed tail fairing
-VFR800 tank
-Hugger
-Integrated led tail
-GSXR600 front fender
-Re-mounted all electrical and shortened the entire harness accordingly.
-New mount for the factory-style cluster and wired on new connectors for everything.

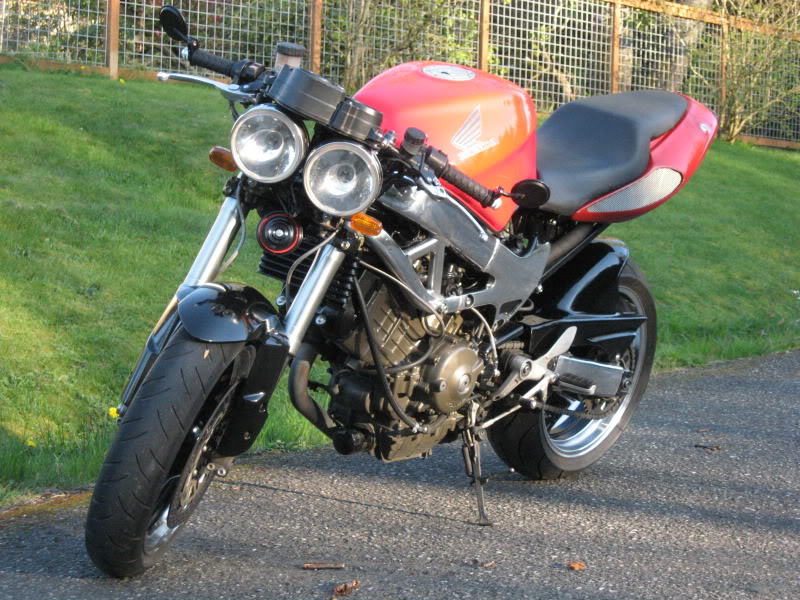

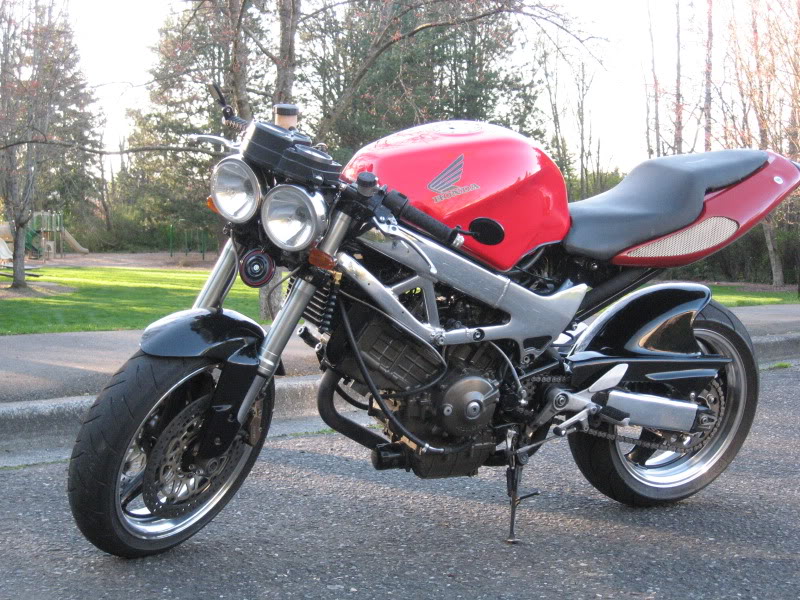

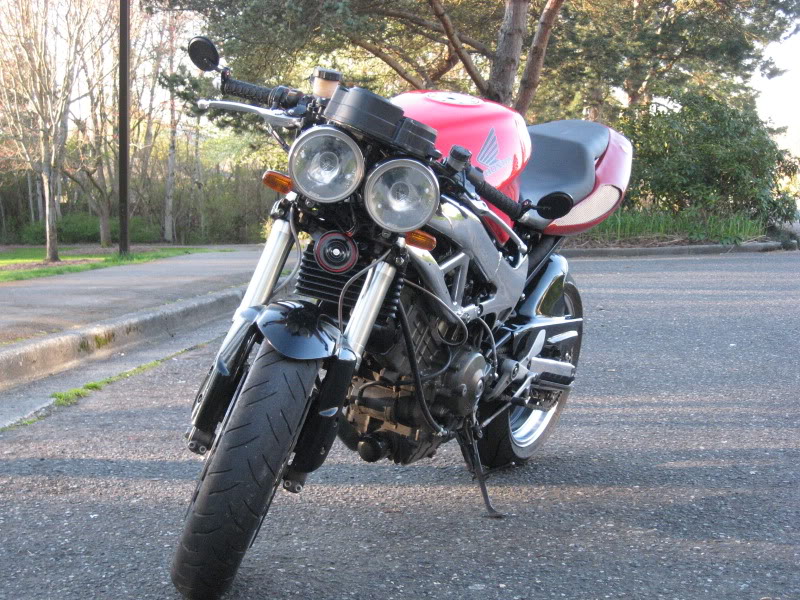

-Headlights on relays w/ a diode bridging the two so low beam is one light and high beam is both.
-Grip heaters
-Vista-cruise throttle lock
-Bar end mirrors
-Stainless lines
-Ninja oil-cooler

Wow, what a mouthful, and i'm sure I missed a lot, I've got many, many hours into this build...

Thanks again.

7moore7

One thing you could look into to save some space is put some CBR stick coils in there...

Awesome narrower tail, I didn't even notice that first time around. And a line down the middle of the cowl would probably look sick.

raylohne1

jesus...I never thought I'd like a naked...
I've seen the light Lord...
but I'll only do it if I get a chance to buy from someone like meanhawk...
wonder what he got for his bike?
great job...really...beautiful...

raylohne1

BTW...I agree about the horn...looks funny...
but other than that...
looks fantastic...

raylohne1

Oh...one other thing...where did you get that gorgeous rear hugger?

raylohne1

and...if this is a SQUID's bike...
then I'm spongebob squarepants diaper...

smokinjoe73

NOT a fan of nakids but this bike is a real work of art.

I want more details on the tail rads...... Does the fan run all the time? Is it one rad or 2? What rads? Why a huge tank on a bike that doesnt want to go that far?

I want answers immediately.... Thanks

oahu hawk

Nice naked, dual headlight set up looks very cool...be sure and post up more pics as your project moves forward...

Naked'98

Single Rad from a VTX1800, single fan which infrequently turns on. If it becomes insufficient in the summer heat I will add a second. As for the tank...I like the lines and I also run er til she's dry then filler up for more...

Naked'98

Tweaked my tune a tad more and swapped to an FH020AA yamaha style regulator/rectifier. Other than that, just riding for now...

E.Marquez

Most are not overly excited about wrecked bikes the owners can not afford to fix being turned in to "Street fighters" which normally means no more then rip off the broken bits and bolt on random parts to get it back on the road.

YOUR build is about as far from that as it can be.
Nice work, and while the Street fighter look is not for me... Yours looks good.

Really only two things that look..."unfinished"
The horn placement.. and the oil filter, normally hidden by a cowl or faring.

The Horn... not sure tuck it up at the cost of loosing volume and reach..
The oil filter sticking out like a .. well never mind,, but sticking out....
I'd be tempted to make/buy a oil filter by pass plate that will work, and remote the filter to another location...

Or, machine the case to except AN fittings and remote the filter to a new location.

And as suggested, you have done well with cleaning up the front end area normally covered in plastic.. ditching the coils and going with COP would extend that work.

Over all nice work.. and.. if I built a Nekid SH, it would look like this one.

Naked'98

Not much progress, just riding. I did however find the factory chin and associated brackets while digging through my SH parts. Looks much better now. Might spend some time re-routing things this winter, for now I work on the car project...

VtrInMtl

And I just got that exact same hugger, so thanks for the pictures, now I know how it mounts.

JKnight5

How did you mount the stock guages?

twinman

Awesome build!!
