found MY solution to the "ugly" side radiators
#1
found MY solution to the "ugly" side radiators

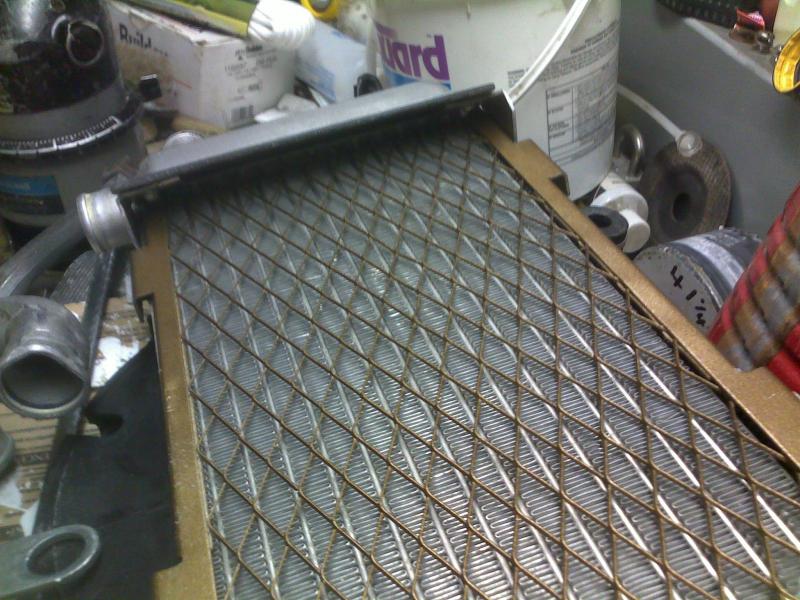

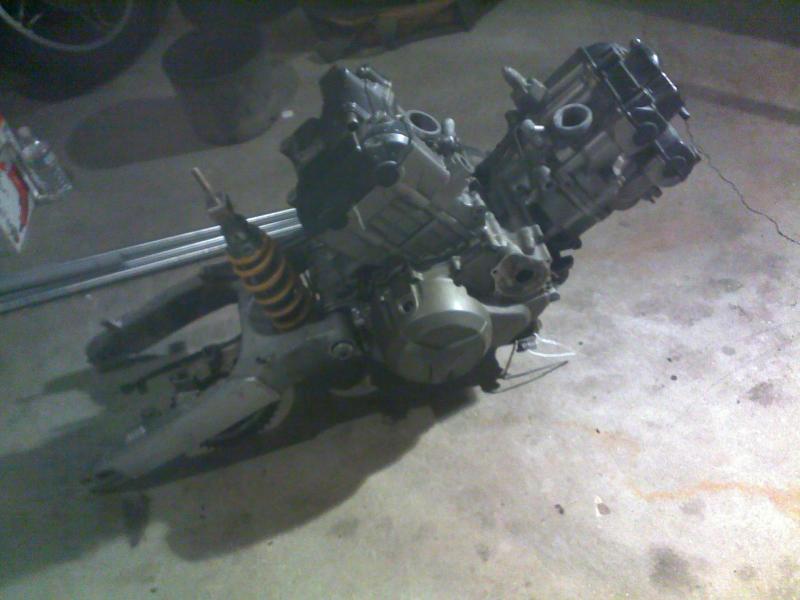

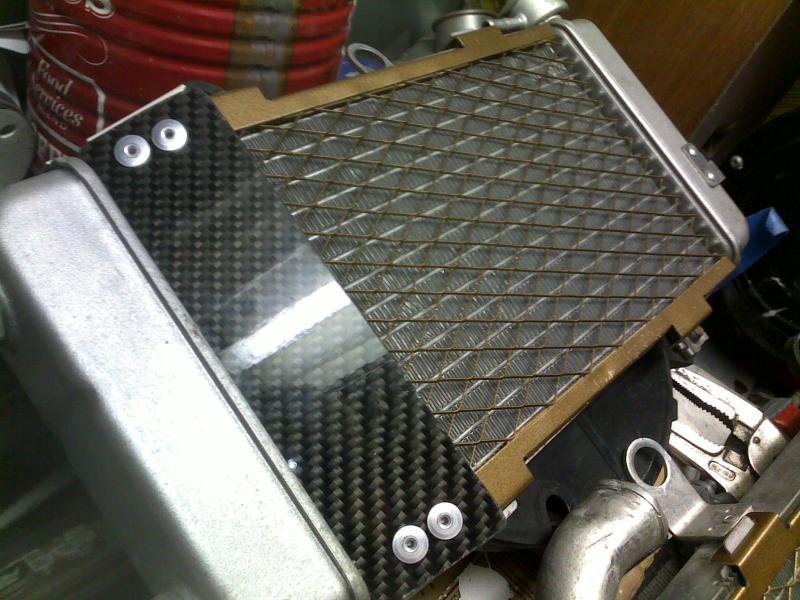

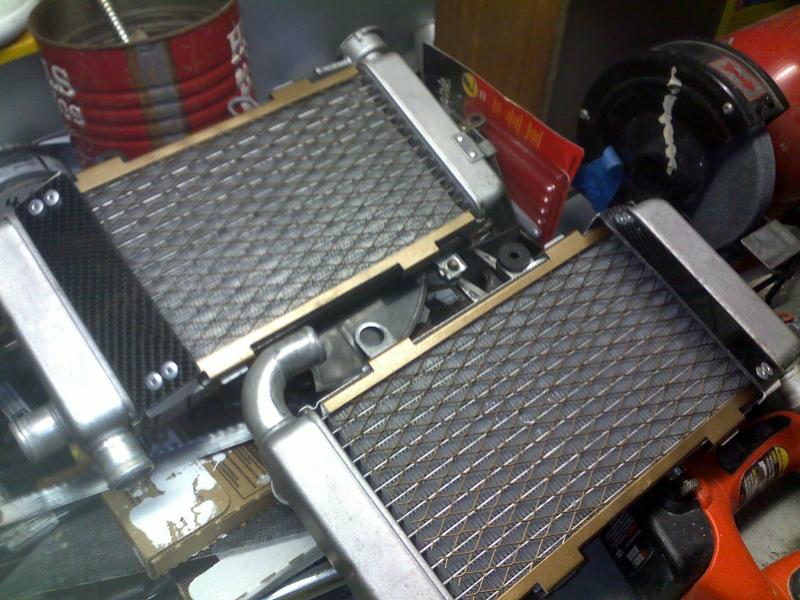

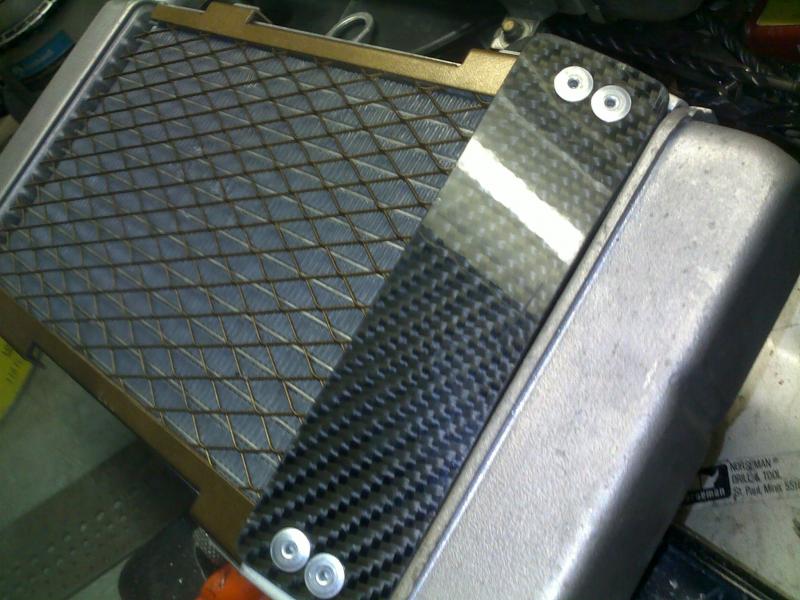

worked tirelessly today to make up some scoops that sit at the rear of the radiators, hopefully to draw in some air while on the move. since I'm naked like a bunch of us on here and currently have my bike apart, I needed a way to get the airflow going as an alternative to relocating a front radiator of some sort because I heard it hits the front fender when the suspension was depressed. so this is what I came up with.
parts:
scrap aluminum
carbon fiber
stainless rivets
tell me what you think
parts:
scrap aluminum
carbon fiber
stainless rivets
tell me what you think
#3
Here is a mod that was done that eliminated 1 radiator.
He put it under the seat, fabricated vents in the rear, and added a fan.
It doesn't look very easy, but the results look pretty sweet.
https://www.superhawkforum.com/forum...tor+seat+naked
He put it under the seat, fabricated vents in the rear, and added a fan.
It doesn't look very easy, but the results look pretty sweet.
https://www.superhawkforum.com/forum...tor+seat+naked
#4
^yep I've seen that one, I use the minimal trunk space so that was out of the question. I wasn't having overheating issues because I'm typically around a colder climate, but I'm going to south dakota in a couple weeks, it'll be hot there ;/
#6
Yes, 8541hawk is right the air flow is from inside the bike to the outside.
My bike´s naked too and i dont notice any changes in op. temp.
It´s exactly the same has it is with the fairings.
I think you dont need any extra cooling besides the stock form and specs.
My bike´s naked too and i dont notice any changes in op. temp.
It´s exactly the same has it is with the fairings.
I think you dont need any extra cooling besides the stock form and specs.
#7
Senior Member
SuperSport
Join Date: Oct 2009
Location: In a van down by the river (I wish!)
Posts: 617
Sharp. I was thinking it would be possible to mod up dirt bike side scoops, too. Something like this:
http://cgi.ebay.com/ebaymotors/SUZUK...Q5fAccessories
but I don't know if that would be an improvement aesthetically over stock.
I'll be interested to see how this ends up.
CR
http://cgi.ebay.com/ebaymotors/SUZUK...Q5fAccessories
but I don't know if that would be an improvement aesthetically over stock.
I'll be interested to see how this ends up.
CR
#8
#9
^^I was looking for something like those side scoops off of a KTM or something, but I never found anything I liked, except in a superhawk youtube video one was really modded out with those side rad scoops.

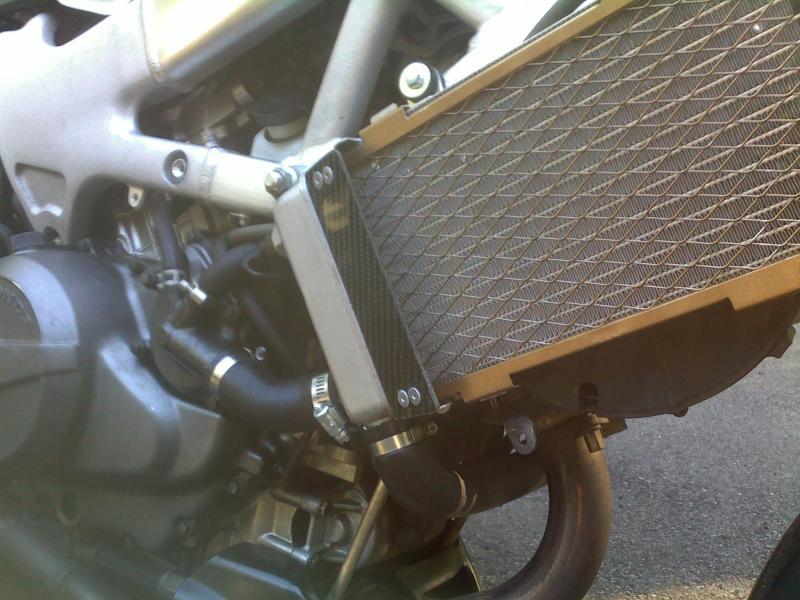

Well the airflow would be flowing like that, but I used some washers/spacers and longer bolts to prop the rear of the radiator out further from the center of the bike and shorter bolts with no spacers on the front of the radiators so me being the "T" on the bike the rads angle like this:
now:
/T\
stock:
|T|
or even a bit different.
I haven't done any flow testing, but that will come when I flow test it on the streets. My bike never actually got past the halfway mark except for sitting in traffic, but I was taking preventative measures for some hotter cruising riding. Hopefully the airflows don't counteract each other.
now:
/T\
stock:
|T|
or even a bit different.
I haven't done any flow testing, but that will come when I flow test it on the streets. My bike never actually got past the halfway mark except for sitting in traffic, but I was taking preventative measures for some hotter cruising riding. Hopefully the airflows don't counteract each other.
#10
interesting, I just took their word for it. only had the stock scoops on for a couple days or two.
#11
The stock scoops inside the fairing feeds air into the inside of the radiators.
The fan pushes the air into the rad.
Didn´t you notice the hot air in your right leg when the fan is working?
You never ride in shorts?
Humm, wait a minute, wasn´t it you who rode naked somewhere?
Hot air in your nuts, no? Doesn´t it ring any bell?
#12
^^I was looking for something like those side scoops off of a KTM or something, but I never found anything I liked, except in a superhawk youtube video one was really modded out with those side rad scoops.
Well the airflow would be flowing like that, but I used some washers/spacers and longer bolts to prop the rear of the radiator out further from the center of the bike and shorter bolts with no spacers on the front of the radiators so me being the "T" on the bike the rads angle like this:
now:
/T\
stock:
|T|
or even a bit different.
I haven't done any flow testing, but that will come when I flow test it on the streets. My bike never actually got past the halfway mark except for sitting in traffic, but I was taking preventative measures for some hotter cruising riding. Hopefully the airflows don't counteract each other.
Well the airflow would be flowing like that, but I used some washers/spacers and longer bolts to prop the rear of the radiator out further from the center of the bike and shorter bolts with no spacers on the front of the radiators so me being the "T" on the bike the rads angle like this:
now:
/T\
stock:
|T|
or even a bit different.
I haven't done any flow testing, but that will come when I flow test it on the streets. My bike never actually got past the halfway mark except for sitting in traffic, but I was taking preventative measures for some hotter cruising riding. Hopefully the airflows don't counteract each other.
So you´re might be messing a bit more in the air flow than you think.
Once again, the stock position of the rads in a naked SH doesn´t affect that much (not to saying anything ) in the operative temperature.
I wouldn´t bother to change the rads position if i were you, unless you dont like the looks of it.
I didn´t change it in mine and it´s Summer in Portugal, temp can reach 34ºc here. You can guess when we stop in a red light what happens, but once the green light is on the temp gauge goes down very fast.
So no worries about it.
I know someone´s going to kill me for this, but to tell you the truth i think my bike runs a bit colder now than with the fairings.
There are people who says that the fairing scoops force the rads to cool faster and better, but i think the rads are much better in the open air and they get cooler much faster than inside the fairings. You see, one thing is the air being forced to the nest when is moving, and another thing is the whole rad surface in contact with the flowing air, including the nest.
But that´s another issue.
Sorry for the long post. Get carried away
#13
^I agree with you on the exposure part, having the entire rad exposed to fresh air is probably a plus. as for temps, it can get up to 105f here (about 46*c) and sometimes even worse. not that I'm too worried about it but you bring a valid point about disrupting airflow. once they're mounted back up I may adjust the spacing on front and rear to see if I can benefit anywhere.
#14
Nop, sorry Old Yeller.
The stock scoops inside the fairing feeds air into the inside of the radiators.
The fan pushes the air into the rad.
Didn´t you notice the hot air in your right leg when the fan is working?
You never ride in shorts?
Humm, wait a minute, wasn´t it you who rode naked somewhere?
Hot air in your nuts, no? Doesn´t it ring any bell?
The stock scoops inside the fairing feeds air into the inside of the radiators.
The fan pushes the air into the rad.
Didn´t you notice the hot air in your right leg when the fan is working?
You never ride in shorts?
Humm, wait a minute, wasn´t it you who rode naked somewhere?
Hot air in your nuts, no? Doesn´t it ring any bell?
Ummm...no.
#19
8451 is right. Flows from the inside-out. The scoop on the inside doesn't do as much as the outside shape of the fairing. Like an airplane wing, it's designed to create an area of low pressure on one side, the outside of the fairings on our bikes, drawing air through the rad.
#20
I think the air issupposed to move in to out. Maybe try your scoops just like they are but on the other end (forward end) of your radiators so the air flows over them and causes a low pressure to draw air from the inside out. I think this is what the fairing does. My bike is naked and this is the direction I'm thinking of going.
#21
I think the air issupposed to move in to out. Maybe try your scoops just like they are but on the other end (forward end) of your radiators so the air flows over them and causes a low pressure to draw air from the inside out. I think this is what the fairing does. My bike is naked and this is the direction I'm thinking of going.

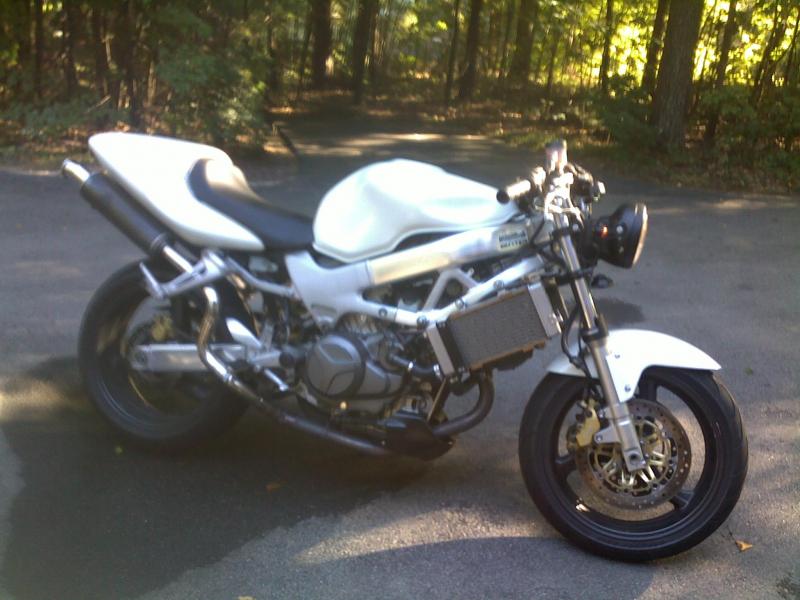

From riding over the weekend, since it's been 90-95*+ out here, I never saw a temperature over half way. I did only use 1 bottle of water wetter and some distilled water in the radiators but even before with the same coolant combination riding around this hot would bring me to at least the halfway mark whereas now, I'm not seeing as high of temps. If I were sitting at a light it would creep the halfway mark but I never actually saw it make it there, especially while riding.
I did a little experiment seeing of how some of you noted that the air scoops from inside-out, so while cruising around my neighborhood I felt for air movement both inside and outside of the radiators. It was hard to tell but there was a lot of air circulation going on in the area anyways and as long as things are moving I'm happy with the result from these scoops.
#22
Well in my experience the stock scoops in the fairing actually do nothing but rattle and send some air to your knees. I pulled mine out around 10yrs ago, as the rattle was bothering me and never noticed any difference in the cooling of the bike.
#24
The stock fairing collects moves air from the inside to the outside. It's plain to see when looking at the fairing (the fan blows outward too).

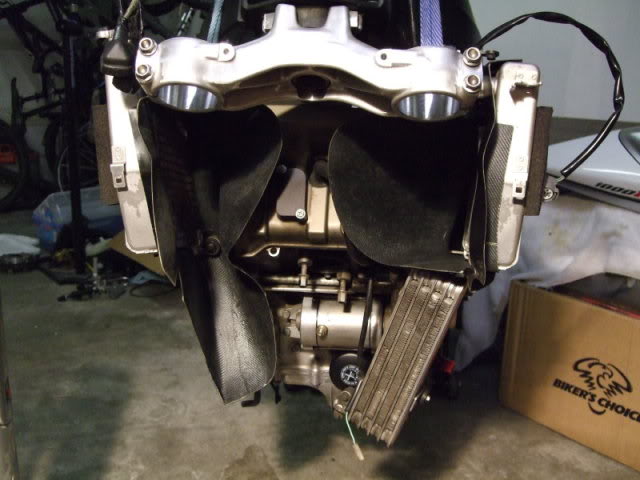

Another thing to look at for the naked setup is the plastic vents/guards that motocross bikes use. They are shaped like louvers and could probably be modded to fit the inside of the radiators to help with the in-to-out airflow?
Another thing to look at for the naked setup is the plastic vents/guards that motocross bikes use. They are shaped like louvers and could probably be modded to fit the inside of the radiators to help with the in-to-out airflow?
#27
haha I've seen those on some site, but everything was in #'s so I wasn't interested in them except for the fact that they looks great and probably performed the same. since the RC rads are a bit larger I would have had to modify them, might have been easy though. are those yours or from somewhere you saw them?
