Finalized streetfighter concept
#1
Army Aviation
Squid
Thread Starter
Streetfighter build!
Thoughts/feedback/praise/hate?
(Thought this was the most appropriate area, if I'm wrong my mistake.)
Last edited by Firefly; 04-30-2011 at 10:30 AM.
#2
As a former REAL Aircraft Armament tech (68JW-Cobras and Warriors) I can say I am not fond of the concept. The single sided swingarm is difficult to accomplish at best and your bobbed subframe looks like disaster waiting to happen. Not sure how you plan to do the pipes since that will be a pretty short run that will require gobs of tuning experience to get right.
#4
#6
Army Aviation
Squid
Thread Starter
As a former REAL Aircraft Armament tech (68JW-Cobras and Warriors) I can say I am not fond of the concept. The single sided swingarm is difficult to accomplish at best and your bobbed subframe looks like disaster waiting to happen. Not sure how you plan to do the pipes since that will be a pretty short run that will require gobs of tuning experience to get right.
Thanks for the encouragement everyone . I know it's ambitious, it's probably the most ambitious thing I've done in life. But hopefully it will turn out auspicious; and if it doesn't, I'm making it happen anyway. I'll start a build thread once everything is painted. As of right now I have the subframe off and am going to be taking the swingarm and rear wheel off this week if I get the time away from work. So hopefully everything should be together and rolling by March 15 or so (Fiancée gets her post deployment leave starting the 20th, and if it's not done by then she might just kill me).
#7
I'm picking up a 98 VTR on Saturday and want to do something similar.. Let me know how your build is going? If anyone has any reputable companies they can recommend it would be greatly appreciated.. I guess the first step is to get the handle bars (and hardware) get the plastics off and an after market head light.
#8
Thanks for your service to our country, my man. I was a zoomie about 25 years ago myself. And while I think your plans look amazingly difficult, props to you for taking on the challenge. Post lots of pics and updates.
#9
Ju can do eete!
I'm currently working on an 02EX500R for my daughter. Doing the SSSA as well...
the old adages always apply , patience is a virtue, measure, measure and measure again
cut once
LOL and make sure you spot weld before you get to it on the actual welding of the pieces for fitment...
I'm pretty busy on other forums but I'll post up pics when I can... stay tuned since I have to have this done BEFORE AUGUST whew doesn't leave me a lot of time... come on parts show up faster...
oh and yes... I have a **** load of SSSA bikes (ask Jamie) LOL
I'm currently working on an 02EX500R for my daughter. Doing the SSSA as well...
the old adages always apply , patience is a virtue, measure, measure and measure again
cut once
LOL and make sure you spot weld before you get to it on the actual welding of the pieces for fitment...
I'm pretty busy on other forums but I'll post up pics when I can... stay tuned since I have to have this done BEFORE AUGUST whew doesn't leave me a lot of time... come on parts show up faster...
oh and yes... I have a **** load of SSSA bikes (ask Jamie) LOL
#13
#14
#17
Yea man.. that first pic is what I was talking about.. I want to do that to my bike.. Aside from just removing all the plastics what other fabrication do you have to do to get your seat like that? I know you have to get some aftermarket headlamps, brackets and such but how do you get that seat that way?
Link : https://www.superhawkforum.com/forum...ad.php?t=23422
#19

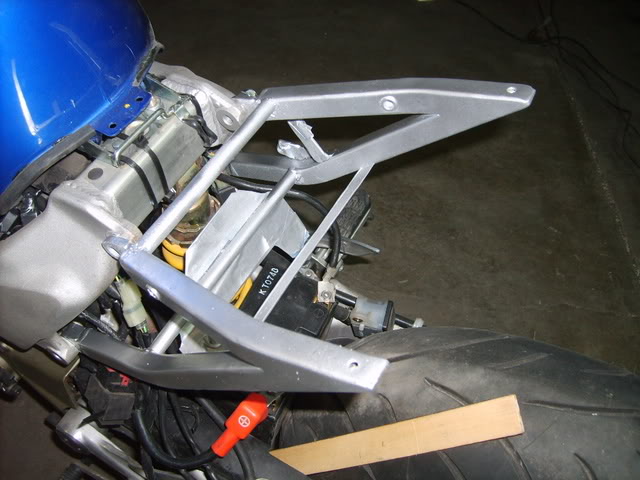

Factory seat with the rear cut off then re-shaped, padding and upholster. The subframe was re cut, flipped, re-welded then a pan fab out of 32 gauge metal. The outer cover was fiberglassed to fit the contour of the new seat and subframe with LEDs embedded.
See the links
BTW- I am selling the headlights with the custom brackets for $60 shipped
https://www.superhawkforum.com/forum...ad.php?t=23422
See the links
BTW- I am selling the headlights with the custom brackets for $60 shipped
https://www.superhawkforum.com/forum...ad.php?t=23422
#21
Army Aviation
Squid
Thread Starter
I'm picking up a 98 VTR on Saturday and want to do something similar.. Let me know how your build is going? If anyone has any reputable companies they can recommend it would be greatly appreciated.. I guess the first step is to get the handle bars (and hardware) get the plastics off and an after market head light.
Headlight is a 7" from Aztec8, they have an option to package everything (brackets with integrated signals) and it's a pretty nifty set up, thought you need to trim the brackets just a bit because they're too long and the clamps won't seat right, but it's nothing more than a few millimeters. I got my mirrors there too, I haven't had any problems with those except the onces I've made.
Clip-ons are woodcraft, fair priced and the half and half system the have to install, and the removable bars are a huge plus.
I appreciate all the encouragement. Thanks guys =)
Pictures will start going up as soon I start putting it back together. I'm not really cataloging the teardown, as there's a million pictures on here already of anything i could post.

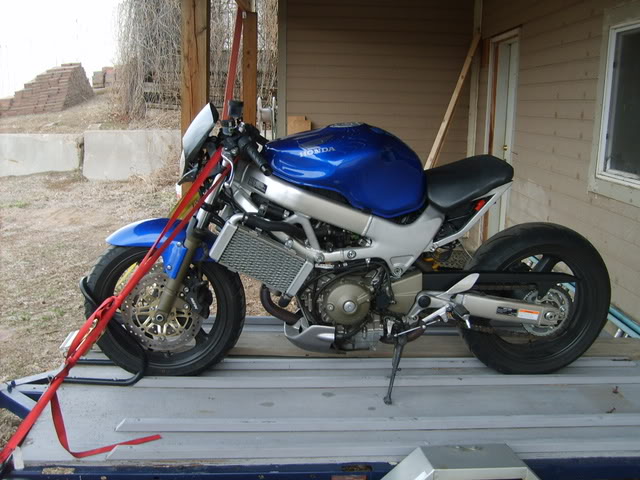

At the moment the build is kinda on hold as all the fabrication places I need are only open while I'm at work, and that's ALL I need at the moment. Though I did mess about a little while ago just to go riding in this indian summer colorado was having for a bit.
#22
Member
Squid
Join Date: Mar 2011
Location: currently stationed in La. but from the HOuston, Tx area and im home every weekend
Posts: 36
hey firefly,
i am a grunt currently in Afghanistan with 11yrs in. if you og with the olive drab there is an Akuma helmet that they have that is painted like an apache with the flat olive drab. i think that would top off the bike. Lets see pics when you get it done. and as we say in the grunt world what we do best is ADAPT AND OVEERCOME, so your concept's limits is your mind, do it up cant wait to see it!
i am a grunt currently in Afghanistan with 11yrs in. if you og with the olive drab there is an Akuma helmet that they have that is painted like an apache with the flat olive drab. i think that would top off the bike. Lets see pics when you get it done. and as we say in the grunt world what we do best is ADAPT AND OVEERCOME, so your concept's limits is your mind, do it up cant wait to see it!
#24
Any chance I could get a couple more shots of the headlight and gauge setup? I'm thinking that I'll use aztec8 for my build.
https://www.superhawkforum.com/forum...r-build-25180/
https://www.superhawkforum.com/forum...r-build-25180/
#25
Army Aviation
Squid
Thread Starter
Any chance I could get a couple more shots of the headlight and gauge setup? I'm thinking that I'll use aztec8 for my build.
https://www.superhawkforum.com/forum...r-build-25180/
https://www.superhawkforum.com/forum...r-build-25180/
As it stand I have ALOT of parts left over, including a set of Fireblade forks that need some TLC I bought before I picked up an entire front set up for a steal. Some wheels and my exhaust system, effectively anything that isn't the frame or part of the wiring harness. The entire suspension is getting replaced. Good times. Going to be fun to dial in.
A rear wheel is sitting in my garage until everything is ready to be dropped off to be powdercoated. The setback I have currently is getting the time to finish off the teardown. I'm down to just the engine and frame. I couldn't get the airbox off until someone removed some stripped screws for me so now it's all good in the hood, just gotta go pull everything tomorrow.
Btw, the greatest site I have ever found is: OEM Parts Honda SUPER HAWK (VTR1000F) 1998 AIR CLEANER - Cheap Cycle Parts Going to make replacing those screws and pretty much every damn other thing easy.
#26
Army Aviation
Squid
Thread Starter
Promotions!

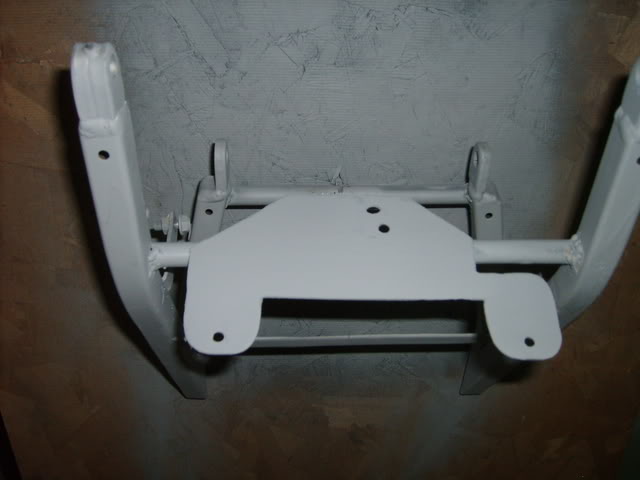

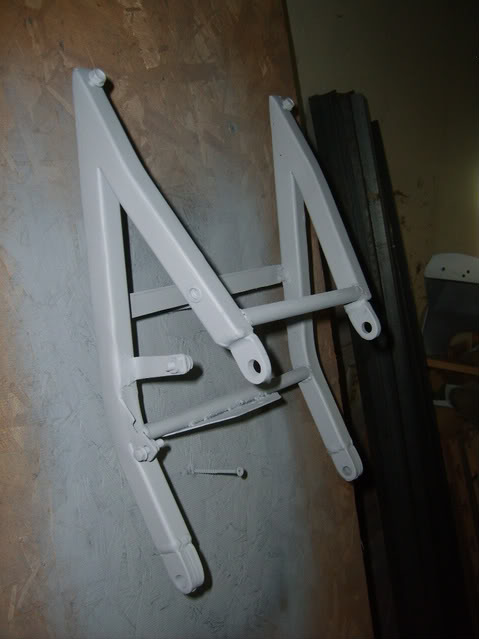

Got my modified subframe back, and the sharkskinz lower (they have excellent customer service btw). Just need to get my tire off my front wheel and the batch everything together to drop off to get powder coated.
(Don't mind my wife's corset, no seriously, it's not mine. Seriously. It's not.)
I need to get rolling on making the brackets I need. And the radiator shrouds. Good to know someone who does sheetmetal. I was thinking about making a holster and system so I could run my phone as a GPS, and I could probably set it up for that GoProHD that everyone is so happy with. And figure out how I'm going to mount my old tail light and turn signals set up I had because I love them. And CCTs while the engine is out.
Oh I'm so in over my head it's not even funny.

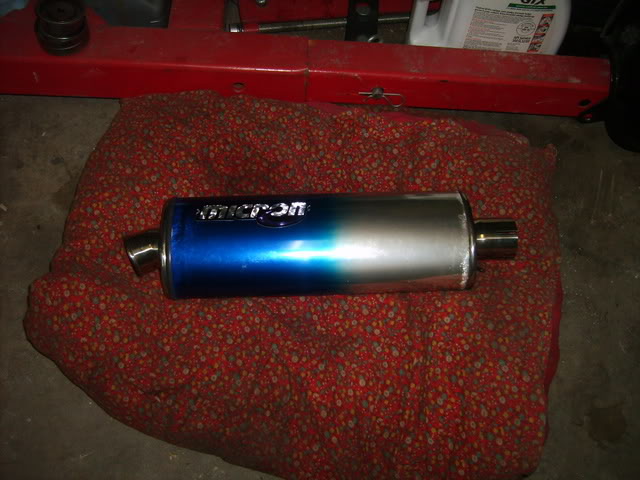

Anyone interested in buying this?

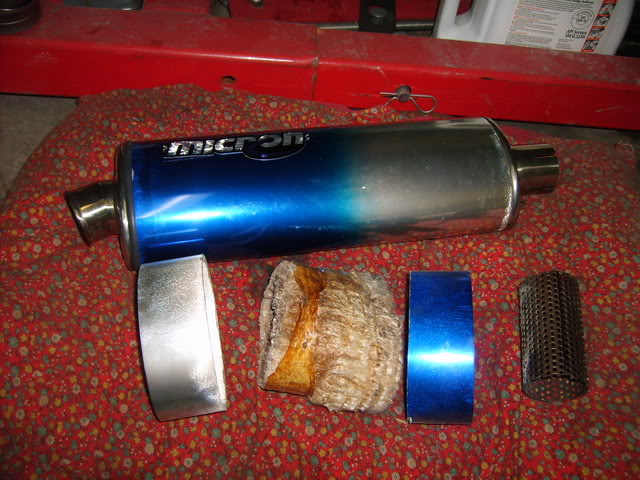

It'll come with the entire system midpipes, locking springs, etc. They're high mounts. The bolts are designed to fit with passenger footpegs. If you want them just PM with and offer or respond on here and I'll start getting them cleaned.
Got my modified subframe back, and the sharkskinz lower (they have excellent customer service btw). Just need to get my tire off my front wheel and the batch everything together to drop off to get powder coated.
(Don't mind my wife's corset, no seriously, it's not mine. Seriously. It's not.)
I need to get rolling on making the brackets I need. And the radiator shrouds. Good to know someone who does sheetmetal. I was thinking about making a holster and system so I could run my phone as a GPS, and I could probably set it up for that GoProHD that everyone is so happy with. And figure out how I'm going to mount my old tail light and turn signals set up I had because I love them. And CCTs while the engine is out.
Oh I'm so in over my head it's not even funny.
Anyone interested in buying this?
It'll come with the entire system midpipes, locking springs, etc. They're high mounts. The bolts are designed to fit with passenger footpegs. If you want them just PM with and offer or respond on here and I'll start getting them cleaned.
