Building of the Awesomeness

ive been away for a while and recently decided to tear into the bike and go street fighter.

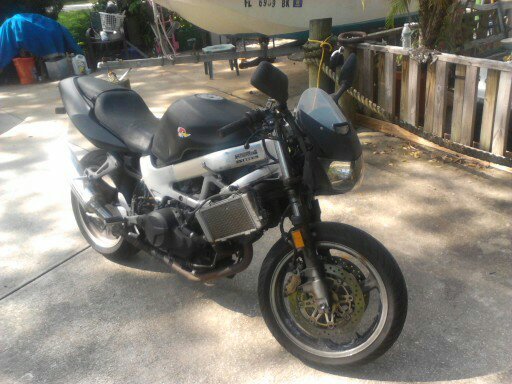

this is from the first day i brought it home



rode it around like that for a while until i let my buddy ride it and laid it down which turned into this


two weeks ago i went to tighten the chain up and realized the right side tensioner bolt was seized in the arm. took the swingarm off and brought it into work so i could drill it out on the radial arm drill. while i was doing that, i thought "hell i been wanting to change some stuff, so why not all at once"
so heres where im at and the list of whats being done, mind you, this is being done as an extreme budget build and being resourseful and creative as i can
ducati 748 biposto rear fairing and subframe
twin headlights
wire relays in for headlights
re-wire turn signals
clean up factory wiring harness
make tail light enclosure and lens for tail
modified f4i shock with 954lb racetech spring
custom bent undertail exhaust with harley pipes
make a passenger seat
figure out passenger peg location
relocate oil cooler and radiators

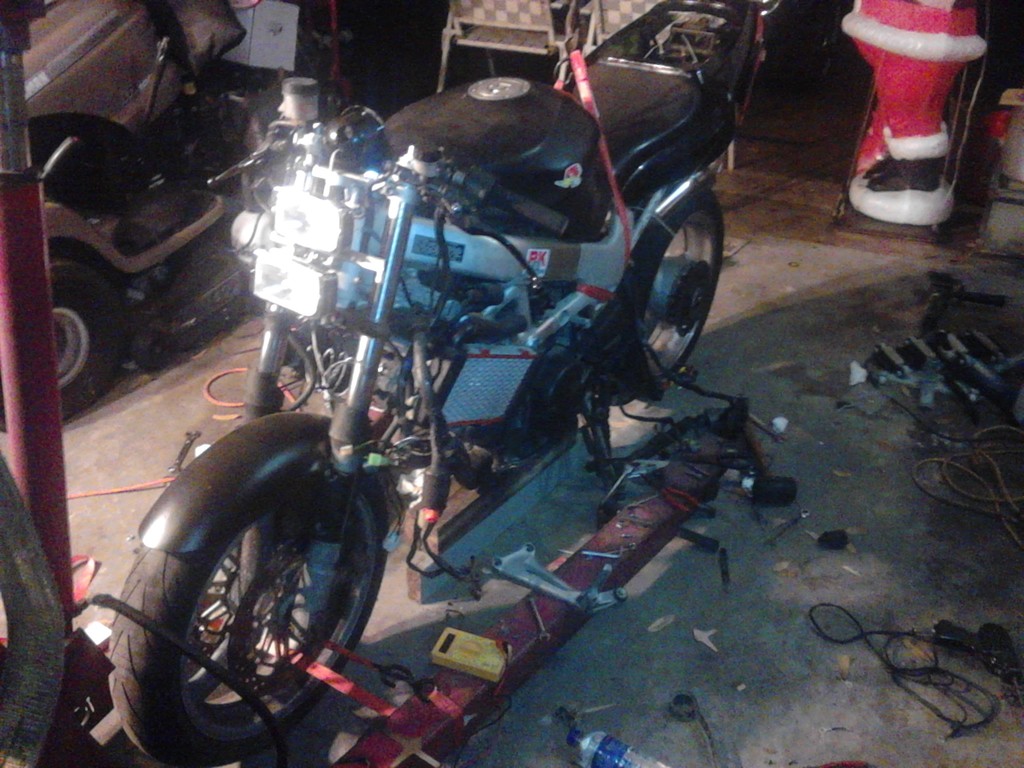

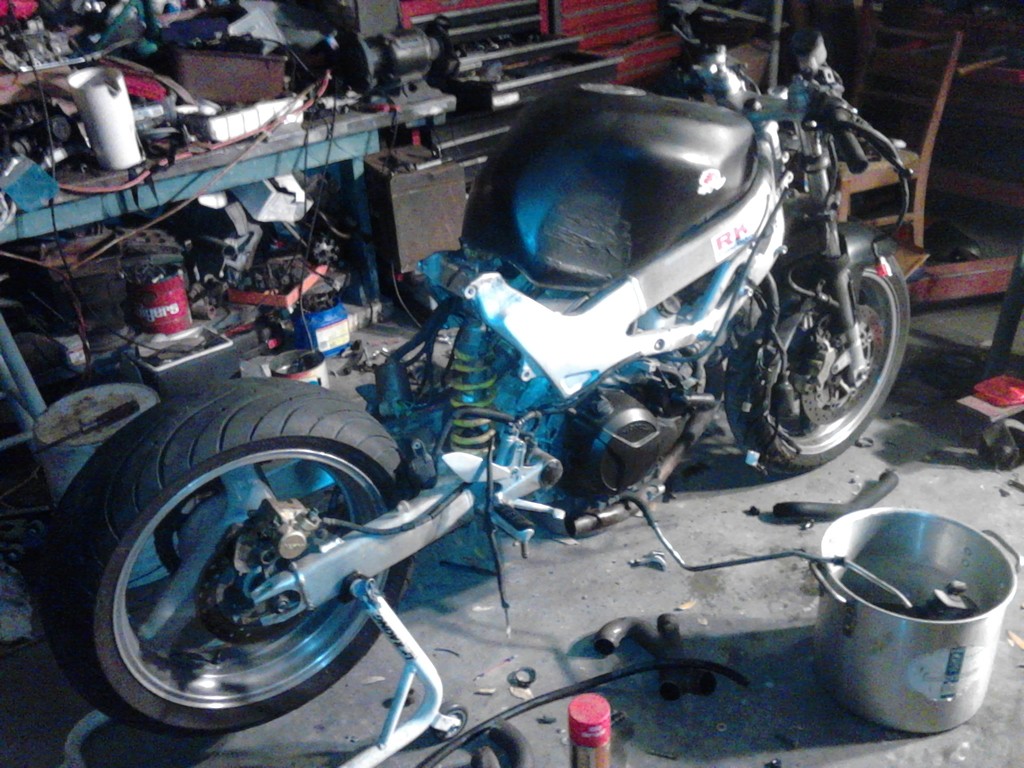

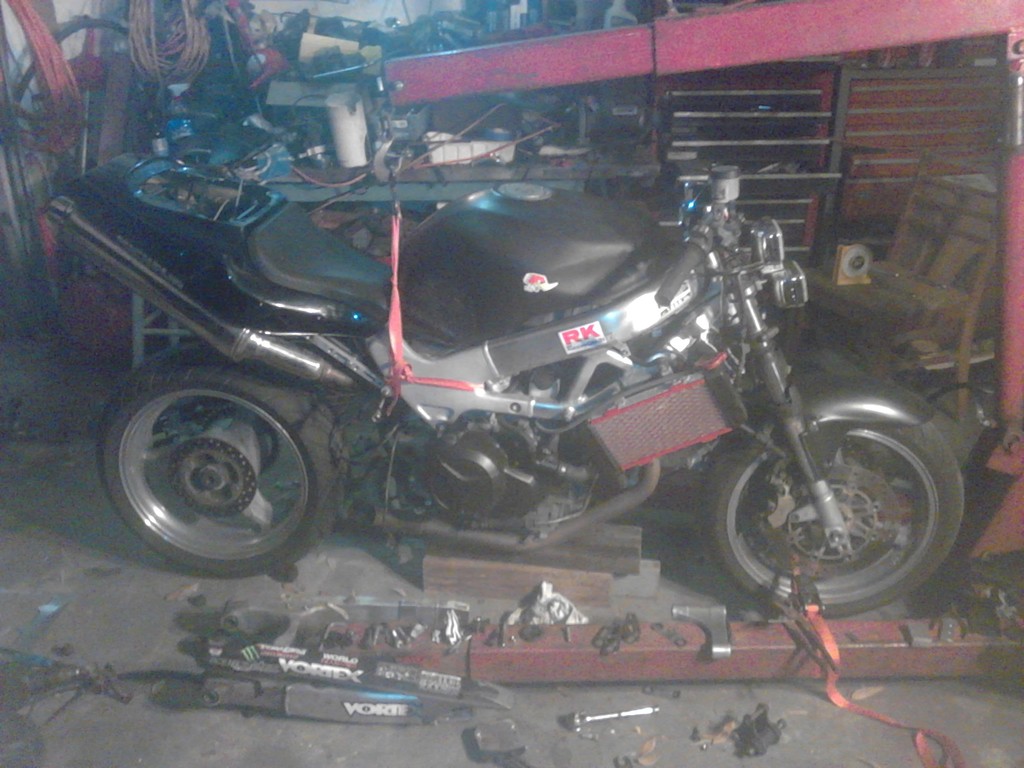

this is where it was a couple nights ago in mock up phase, still getting ideas on the direction i was going with it




i have the stock cans mocked up in those pictures, but they are too bulky to get to fit up there right so im going with the harley pipes.

im getting back out there and get to working on it. gotta get it done before bike week!!! i'll post more pictures as i take them
shake-n-bake is offline
Old 02-24-2013, 06:49 AM
  #2
Senior Member
SuperSport

matt365's Avatar

Join Date: Aug 2010
Location: Toronto, Ontario, Canada
Posts: 506
matt365 is on a distinguished road
Looks like a pretty ambitious project. Bike week is what, a few weeks away now?

How good of a friend was the buddy that dumped it? Did he at least cover the costs?

Personally, there is very few people I let ride my bikes, and its always a "you break it, you bought it" arrangement. -That, or i'm riding their bike until they fix mine...
matt365 is offline
Old 02-24-2013, 06:57 AM
  #3
Umm...I'm awesome. Duh...
Squid
Thread Starter

shake-n-bake's Avatar

Join Date: Mar 2011
Location: daytona beach, fl
Posts: 87
shake-n-bake is on a distinguished road
we had swapped bikes for a bit while we were on a ride and i warned him that my gearbox wasnt as smooth as the one in his r6. i didnt really mind that much since those fairings needed a bunch of work anyways. im just glad he didnt get hurt on my bike
shake-n-bake is offline
Old 02-26-2013, 09:24 AM
  #4
Senior Member
Back Marker

Join Date: Jan 2013
Location: Daytona
Posts: 143
19superchicken98 is on a distinguished road
Subed! Keep up the work man, let me know if you want help I live only 10 minutes away lol.
19superchicken98 is offline
Old 02-26-2013, 09:32 AM
  #5
Umm...I'm awesome. Duh...
Squid
Thread Starter

shake-n-bake's Avatar

Join Date: Mar 2011
Location: daytona beach, fl
Posts: 87
shake-n-bake is on a distinguished road
got some pics taken from the other night. on my lunch break, only have time to post up pictures, ill write a description later
sorry for the grainy pictures from the cellular device





after i was done with the exhaust, too late to use power tools, and frustrated enough to kick the damn thing over, i think i found my true calling... "duct tape decal master"


shake-n-bake is offline
Old 02-27-2013, 09:22 AM
  #6
Umm...I'm awesome. Duh...
Squid
Thread Starter

shake-n-bake's Avatar

Join Date: Mar 2011
Location: daytona beach, fl
Posts: 87
shake-n-bake is on a distinguished road
status update:
exhaust: pretty much done. just need to trim the cans to length and finish putting the wrap on it

Radiator: cut and filled the extra outlet, put a manual temp gauge in it, relocated the oil cooler, and ran the hoses to the radiator. Just need to permanently mout the rad.

Wiring: ... i hate wiring. Its a mess. I have no clue where im putting the battery. Still have headlight wiring to do since im going dual headlights and have to wire up two separate relays. Do turn signal wiring, and rear brake light switch.

Body: still need to permanently mount the sub-frame and fairing, make a passenger seat and pegs, and figure out what I'm doing for gauges and a mirror. Have to make an undertail for the fairing and battery box as well.

Suspension: got the adaptor made for the F4i shock at work yesterday and got the spring and fork seals in the mail today. just need to bring the shock in to work and install the spring. need to take the forks off and install the seals.

Deadline: 8 days till bikeweek...
shake-n-bake is offline
Old 02-27-2013, 10:39 AM
  #7
Senior Member
SuperSport

nnjhawk02's Avatar

Join Date: Mar 2006
Location: Pa
Posts: 672
nnjhawk02 is an unknown quantity at this point
Dood good luck

FWIW - Clean up the garage already - a clean work space makes doing work easier.

LOL
nnjhawk02 is offline
Old 02-27-2013, 11:14 AM
  #8
Umm...I'm awesome. Duh...
Squid
Thread Starter

shake-n-bake's Avatar

Join Date: Mar 2011
Location: daytona beach, fl
Posts: 87
shake-n-bake is on a distinguished road
lol yeah i know. mostly its just that work bench thats a mess. ive taken the pictures when i was in the middle of working on it and me working is like a tornado. all the tools get put away at the end. workbench such a mess because i havent had time to organize. thats what happens when you have 2 boats, hot rod, muscle car, mud truck, flatbed, bike, and a dd. spare parts tend to end up everywhere. its an "organized mess" haha
shake-n-bake is offline
Old 02-27-2013, 11:47 AM
  #9
Well take off, eh.
SuperBike

Jack Flash's Avatar

Join Date: Jun 2012
Location: QC, Canada
Posts: 1,166
Jack Flash is on a distinguished road
Originally Posted by shake-n-bake View Post
you have 2 boats, hot rod, muscle car, mud truck, flatbed, bike, and a dd. haha
Some have it better then others. I can hardly afford to put gas in my bike.
Jack Flash is offline
Old 02-27-2013, 12:28 PM
  #10
Umm...I'm awesome. Duh...
Squid
Thread Starter

shake-n-bake's Avatar

Join Date: Mar 2011
Location: daytona beach, fl
Posts: 87
shake-n-bake is on a distinguished road
Lol don't make it sounds like that. bought everything in cash over ten years most expensive thing was the 70 mustang at 2500. Bartered and traded for everything else. He'll I got the bike for mud tires a gun and 100 bucks lol. Why do you think this is being built on such a tight budget
shake-n-bake is offline
Old 02-28-2013, 08:35 PM
  #11
Umm...I'm awesome. Duh...
Squid
Thread Starter

shake-n-bake's Avatar

Join Date: Mar 2011
Location: daytona beach, fl
Posts: 87
shake-n-bake is on a distinguished road
got my shock all done at work during lunch break. '02 f4i shock milled two flats on the bottom end, made a stainless press bushing to take place the original bearing, made adaptor out of 304 stainless since all we had was 6061 and we didnt have any 7075 that was big enough. that put centerline of the holes 40mm apart with a press fit on the bearing, eibach 950lb spring, and racetech adaptor bushings.
shake-n-bake is offline
Old 02-28-2013, 08:58 PM
  #12
Senior Member
Back Marker

Join Date: Jan 2013
Location: Daytona
Posts: 143
19superchicken98 is on a distinguished road
Originally Posted by shake-n-bake View Post
got my shock all done at work during lunch break. '02 f4i shock milled two flats on the bottom end, made a stainless press bushing to take place the original bearing, made adaptor out of 304 stainless since all we had was 6061 and we didnt have any 7075 that was big enough. that put centerline of the holes 40mm apart with a press fit on the bearing, eibach 950lb spring, and racetech adaptor bushings.
I could have sworn you were speaking Japanese LOL
19superchicken98 is offline
Old 03-26-2013, 12:34 AM
  #13
Umm...I'm awesome. Duh...
Squid
Thread Starter

shake-n-bake's Avatar

Join Date: Mar 2011
Location: daytona beach, fl
Posts: 87
shake-n-bake is on a distinguished road
oh man where to pick up...
guess ill start with some more pictures of the exhaust when i was tacking it up



then to quieten the bark of the bare harley pipes i made baffles out of some oil filters. i ended up making a dual chamber and made the first to act as an expansion chamber equal to the same volume that was being displaced by the engine to get rid of the harsh pulse and try to gain back SOME power lost by not using a crossover





when putting the forks back together, just remember; if you find yourself reaching for a 3lb sledge hammer, stop. you've had too much to drink and you're doing it wrong... (flames will come, i know but whatever, i learned my costly lesson) $50 and a bent complete fork assembly from ebay later...


then i started to tackle the wiring and was tickled sh*tless when i found a spot for the battery to live. also found a hiding place for all the wires that were in the headlight stay to reside right in front of the airbox inside the frame




i dont have any good pictures of the radiator, but i hacked the inlet tube that would be hanging off the side and welded it up and put a analog temp gauge in the fan switch slot. the screws were seized in the rear brake reservoir, so i couldnt get to the fluid. i had an old clutch master from a ranger laying around so i stole the reservoir off it and did some trimming to the bracket. it fit perfectly behind the shock reservoir that i mounted on my subframe extension. i mounted my coil the same place, but on the other side

while i had the tank off, i did some much needed bodywork and sprayed some truck bedliner down where people put the grip tape



got to piddling and was thinking of something like this for the gauges i had seen another member do something along these lines, cant remember who it was

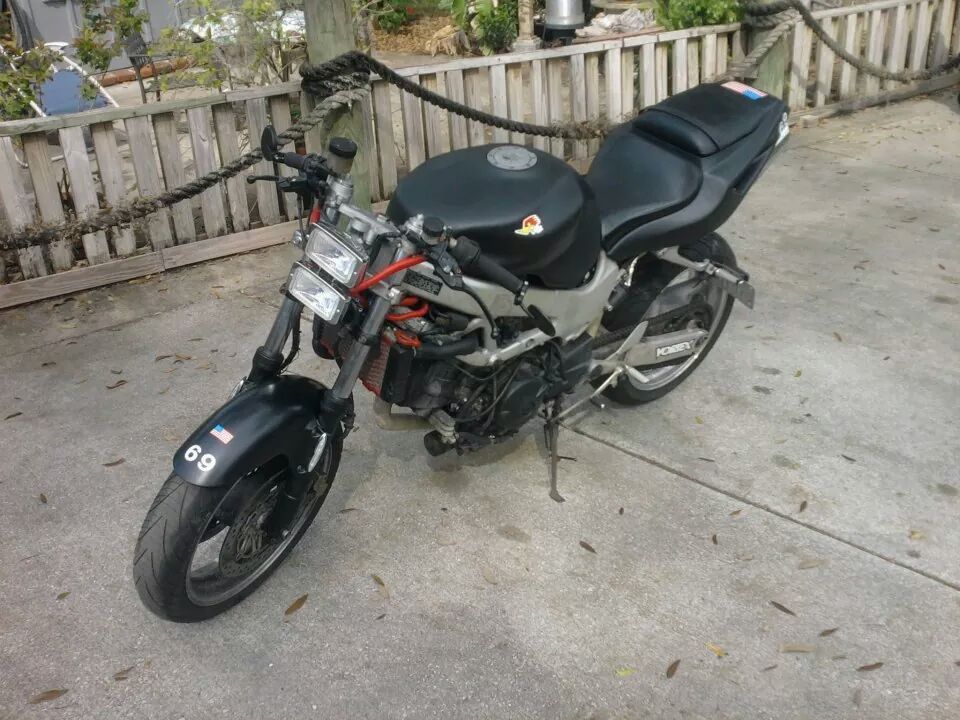

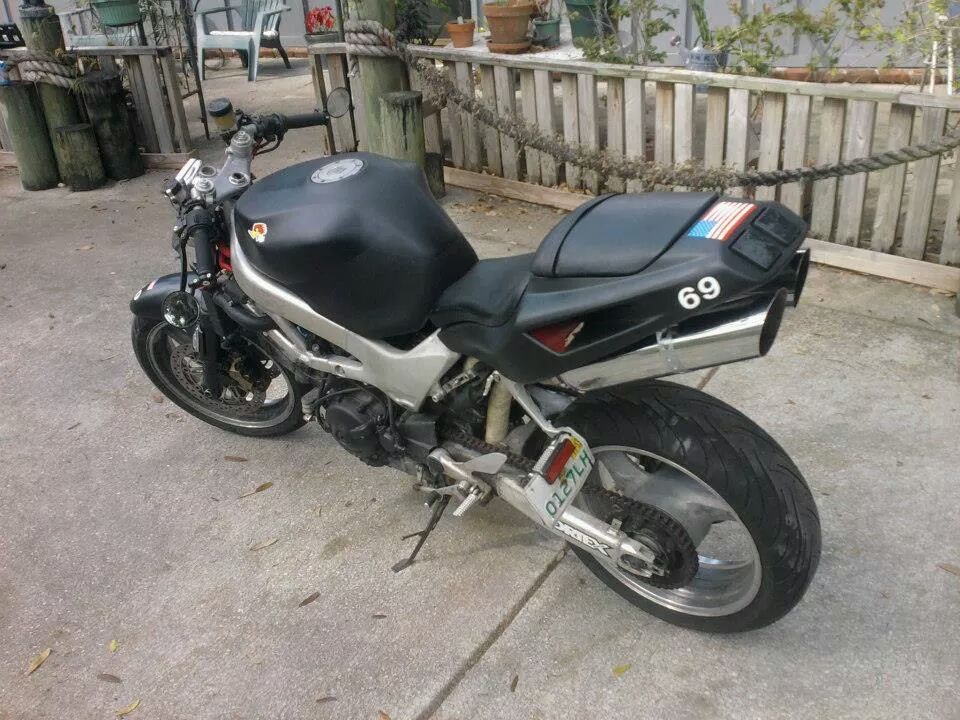

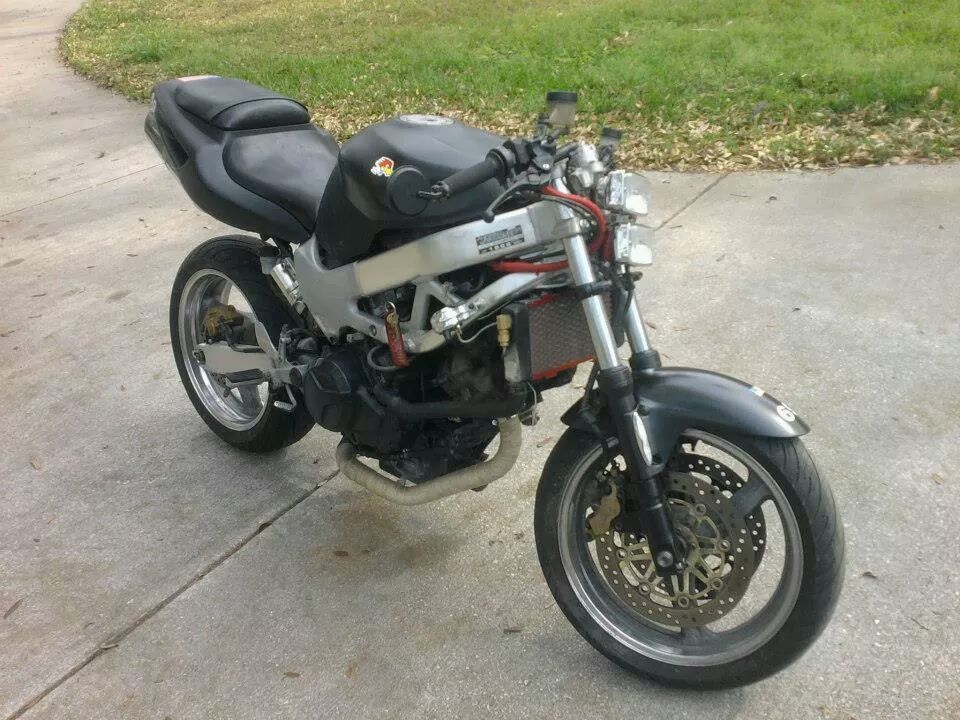

all in all, this is how she sets right now
