Rearset Adapters
01-13-2012, 04:20 AM
#37
Senior Member
SuperBike
Join Date: Aug 2005
Location: Fort Wayne, IN
Posts: 1,858
I kind of doubt you'll see any. The design I came up with would fall into the same category as any other - too costly. Even though it might seem there is a lot of interest, unless you can make 100+ parts a time there isn't any way to bring the cost down to a manageable level.
01-13-2012, 11:54 AM
#41
Senior Member
SuperBike
Join Date: Aug 2005
Location: Fort Wayne, IN
Posts: 1,858
Well, therin lies the probem. People don't want Asian parts but also don't want to pay $500 for rearsets. It's going to be really tough to get the price down to a manageable level, but I can try.
01-13-2012, 12:47 PM
#42
Senior Member
Superstock
Join Date: Oct 2011
Posts: 344
I'm fine with Japanese parts, or well made parts from non-communist countries...I just don't support our main global competitor if it is possible to avoid it.
Part of the problem with China stuff is that the prices don't match up to the quality...people move manufacturing there but then they suck up extra profit instead of making the same profit and selling it for cheaper. I refuse to the line pockets of ******** who move jobs overseas...those danmoto rearsets should cost about 50 bucks not 200. (BTW buddy of mine bought some for his R6...one side is already broken after only a couple of months..)
Stuff here is expensive for two reasons: a lot of shops aren't run efficiently and have too much overhead...and also materials have gotten f***ing expensive even compared to 5-10 years ago.
I'm not paying $500 for rearsets for a bike that cost me $3000...makes no sense. But what I WOULD pay for is someone to make an adapter plate that will let me use stock rearsets from a CBR or GSXR...the important part is achieving the lifted and rear positioning not having a fancy machined footpeg set.
Part of the problem with China stuff is that the prices don't match up to the quality...people move manufacturing there but then they suck up extra profit instead of making the same profit and selling it for cheaper. I refuse to the line pockets of ******** who move jobs overseas...those danmoto rearsets should cost about 50 bucks not 200. (BTW buddy of mine bought some for his R6...one side is already broken after only a couple of months..)
Stuff here is expensive for two reasons: a lot of shops aren't run efficiently and have too much overhead...and also materials have gotten f***ing expensive even compared to 5-10 years ago.
I'm not paying $500 for rearsets for a bike that cost me $3000...makes no sense. But what I WOULD pay for is someone to make an adapter plate that will let me use stock rearsets from a CBR or GSXR...the important part is achieving the lifted and rear positioning not having a fancy machined footpeg set.
Last edited by blamecanada; 01-13-2012 at 12:51 PM.
01-13-2012, 01:07 PM
#43
Senior Member
SuperSport
Join Date: Aug 2009
Location: Richmond, VA
Posts: 684
To me the main benefit if adapters would be the ability to change rearsets without messing with the swingarm. I lost two days at the track because there was no way to change them at the track. I don't care what rearsets theyre made to work for as long as they are one of the big brands like vortex or woodcraft so parts are easily available.
01-13-2012, 01:18 PM
#44
Out of my mind, back in 5
MotoGP
Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
To me the main benefit if adapters would be the ability to change rearsets without messing with the swingarm. I lost two days at the track because there was no way to change them at the track. I don't care what rearsets theyre made to work for as long as they are one of the big brands like vortex or woodcraft so parts are easily available.
Both work, they are just slighly different, the CBR's being easier, since the angle they sit at match up better with where the adapter sits... And since the CBR 929/954RR are slightly different from the CBR 1000RR, I opted to make mine for the 1000RR, since I had several other parts from one already...
01-14-2012, 05:33 AM
#45
Senior Member
Superstock
Join Date: Nov 2010
Location: St.Louis Mo
Posts: 317
forgive my ignorance guys on this guys but......what you are wanting is just a machined bracket that will allow you to take the setup from another bike (linkage and all) and mount it to our hawk thus with a the different setup moving your foot position?

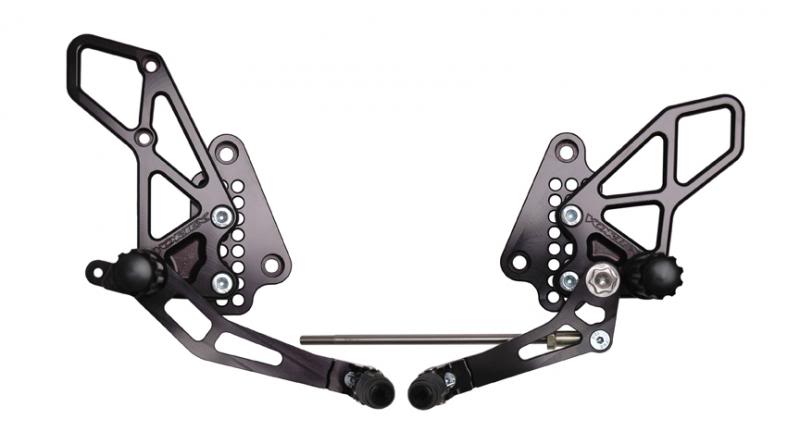

Or something complete like this which is for a Busa?
Or something complete like this which is for a Busa?
01-14-2012, 06:45 AM
#46
Senior Member
Back Marker
Join Date: Nov 2008
Posts: 129
Save your rear set money and buy a shock with ride height adjustment. Setup the ride height correctly and you will be unlikely to drag anything. I've never dragged anything on my bike at the track running a slow advanced group pace and I've touched anything down riding fast and hard here in the NC mountains.
01-14-2012, 09:05 AM
#48
Senior Member
Back Marker
Join Date: Nov 2008
Posts: 129
01-14-2012, 02:51 PM
#51
Out of my mind, back in 5
MotoGP
Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Well, if you go down on a trackday, and break off the mounting for the peg, not the peg itself, that makes it a PITA to fix, since the likelyness of that very specific part for the VTR being in stock somewhere is very low, and even if it's avaliable, it requires you to separate the bike in two halves... I have done that, and in that case I had to borrow a car, go to the nearby town and have the original piece bent back and welded, then go back and assemble the bike to be ready for the next day at the track...
With my adapters done, I can most likely find a set of CBR rearsets in 5 minutes, if I'm not too picky on price, and swap them in less time than that, since it's two bolts per rearset...
And with me making them a lot sturdier than they really needs to be, the chance of them breaking before the rearsets or pegs are about nil...
So, in my case, huge improvement...
With my adapters done, I can most likely find a set of CBR rearsets in 5 minutes, if I'm not too picky on price, and swap them in less time than that, since it's two bolts per rearset...
And with me making them a lot sturdier than they really needs to be, the chance of them breaking before the rearsets or pegs are about nil...
So, in my case, huge improvement...
01-14-2012, 03:02 PM
#52
Out of my mind, back in 5
MotoGP
Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
forgive my ignorance guys on this guys but......what you are wanting is just a machined bracket that will allow you to take the setup from another bike (linkage and all) and mount it to our hawk thus with a the different setup moving your foot position?
Or something complete like this which is for a Busa?
Or something complete like this which is for a Busa?

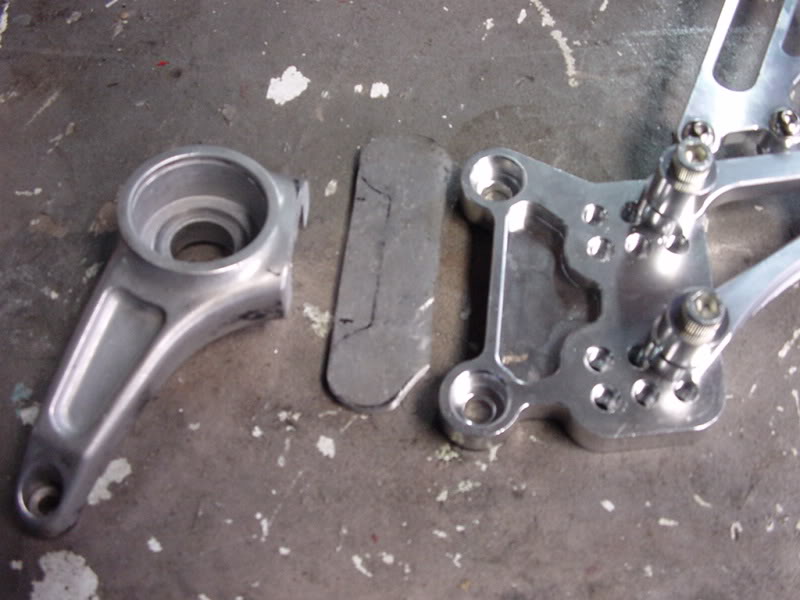

My take on this was the simple approach... I didn't have a CNC machine, just an old mill, old lathe and a old but frigging big tower drill... So I made a plate replacing the part of the pegmount that is bolted to the swingarm pivot bolt with two single holes... Those match the hole pattern of the CBR 1000RR... So I can now unbolt 4 bolts, and stick either a set of stock CBR pegs on there... Or whatever aftermarket parts that fit a CBR... And that list is a lot longer, and a lot cheaper than the parts for a VTR...
When this thread started, I think the idea was to make the same mounting to the swing, but add a star of boltholes to make it a fully adjustable rearset with the addition of a stock rearset from a suitable donor bike... That should in theory be cheaper than a VTR specific rearset... As long as the series is big enough... And the added bonus is that you skip the three pieces bolted together that I have... An adapter to the baseplate for the rearset, to the peg plate...
But my honest advice... Go for the adapter... Pick a bike with a long list of aftermarket options, and make it to that boltpattern, angle and size, be it CBR, or GSXR... Then when you guys get your sets, you can choose a chinese, non-chinese, or OEM rearset to bolt to that... Adjustable or not, each choose... It's still a marked improvement to have the option of just bolting on an adjustable set with ease, not having to find a set from one of three specific manufacturers that still make them for the VTR...

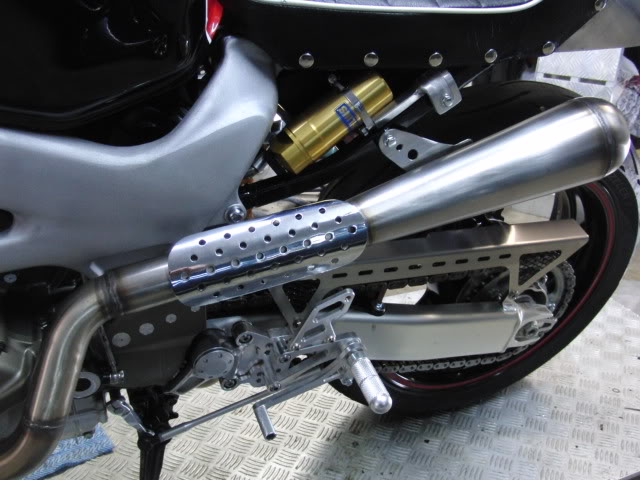

If you click the image in my sig, you can see how my setup looks like in the album...
Last edited by Tweety; 01-14-2012 at 03:07 PM.
01-14-2012, 05:44 PM
#56
Senior Member
SuperSport
Join Date: Aug 2009
Location: Richmond, VA
Posts: 684
Nice! I'd buy them. But why not just make the piece that attaches to the swingarm. Then either drill for a certain bikes rearsets, our just leave them blank and people can tap them themselves.
12-19-2013, 07:59 PM
#57
Senior Member
Superstock
Join Date: Apr 2013
Location: SF Bay Area
Posts: 466

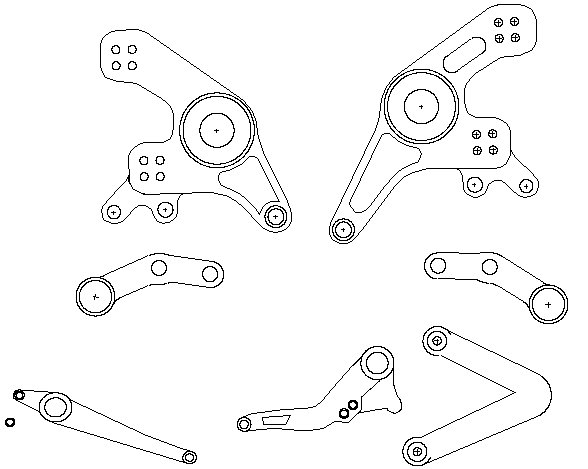

Sorry to revive a old thread but I saw his in the search of "will a 04/05 GSXR 600 swing arm brace fit the VTR" and no that's not what I entered into the search.... Getting back to the point, Looking at the 2D CAD Tweety so graciously offered all I would need to do it cut it out, (one for each side) counter some holes integrating the plate for the adapter and I'm good to go? I hate to simplify it to that but with a Plasma Cam and a drill press I cant see what more I need. Yes a CNC mill would be nicer (cleaner edges and all) but a DIY set could be made?
12-21-2013, 02:07 PM
#58
Out of my mind, back in 5
MotoGP
Join Date: Nov 2006
Location: Skurup, Sweden
Posts: 6,109
Yepp... DIY is definitely an option... Drill press and hand tools is more than enough to make a set of basic adapter plates, to get full use of CBR or GSXR rear sets, after market or OEM...
My work aren't that far from full on DIY, being a piece of left over scrap stock, that I just drilled, countersunk, tapped thread in, and then cleaned up a little... I don't do fancy, I do basic, working stuff... I might have tools, but I could do things just the same without them...
My work aren't that far from full on DIY, being a piece of left over scrap stock, that I just drilled, countersunk, tapped thread in, and then cleaned up a little... I don't do fancy, I do basic, working stuff... I might have tools, but I could do things just the same without them...
