Mystery connector
Gang, Im drawing a blank here.

I was asked to ID a connector

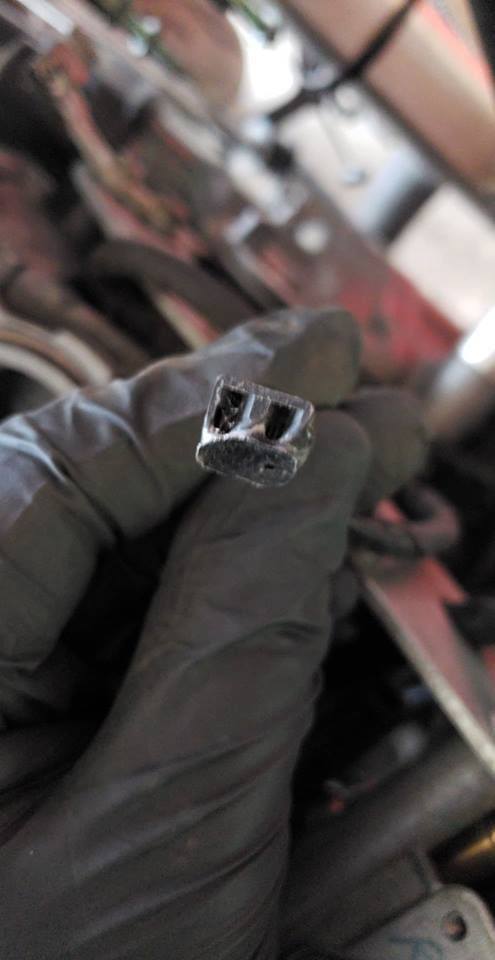

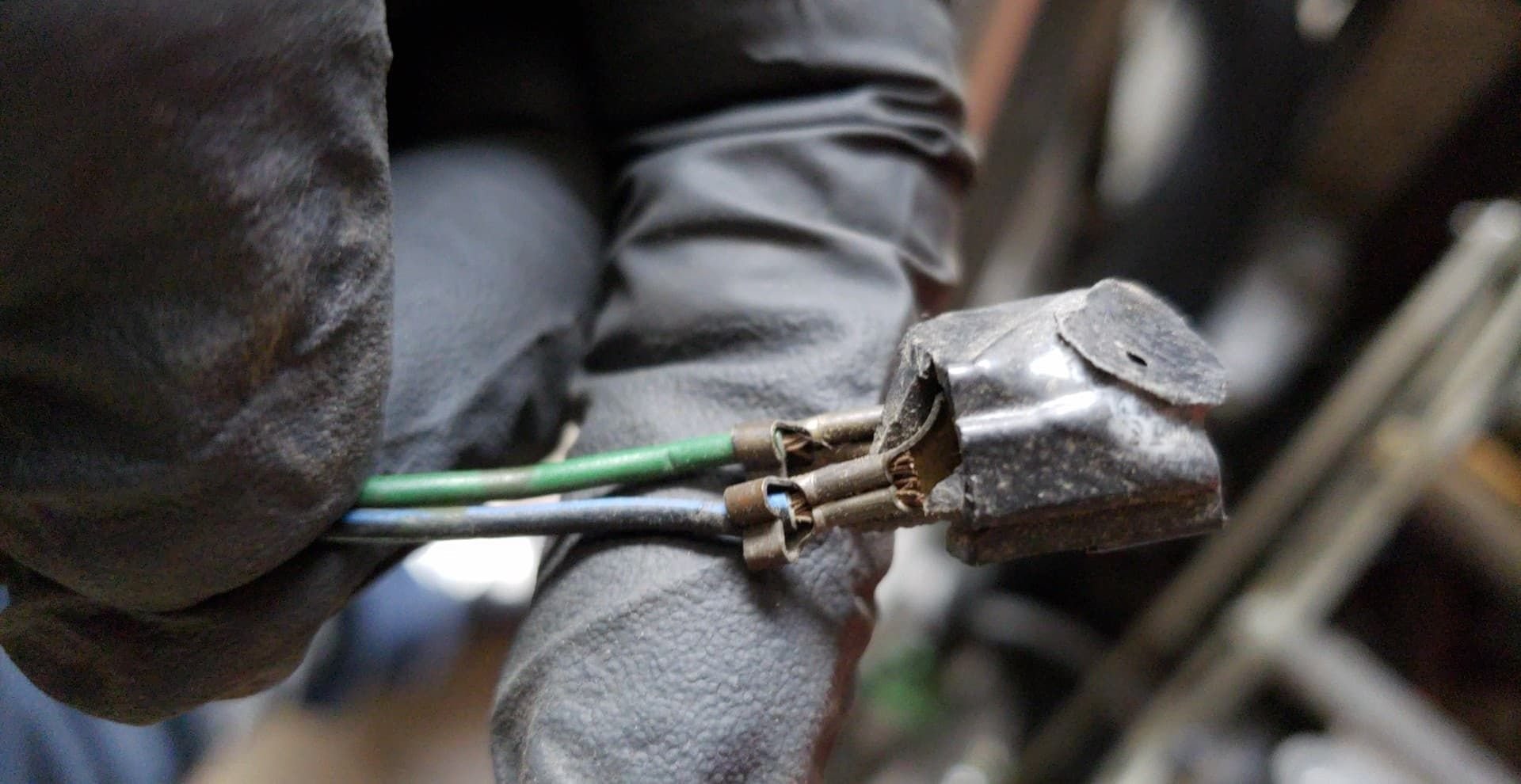

1998 US market bike, two pin female side by side black connector , Black blue and Green wire
Connector found on bike "near the TPS"

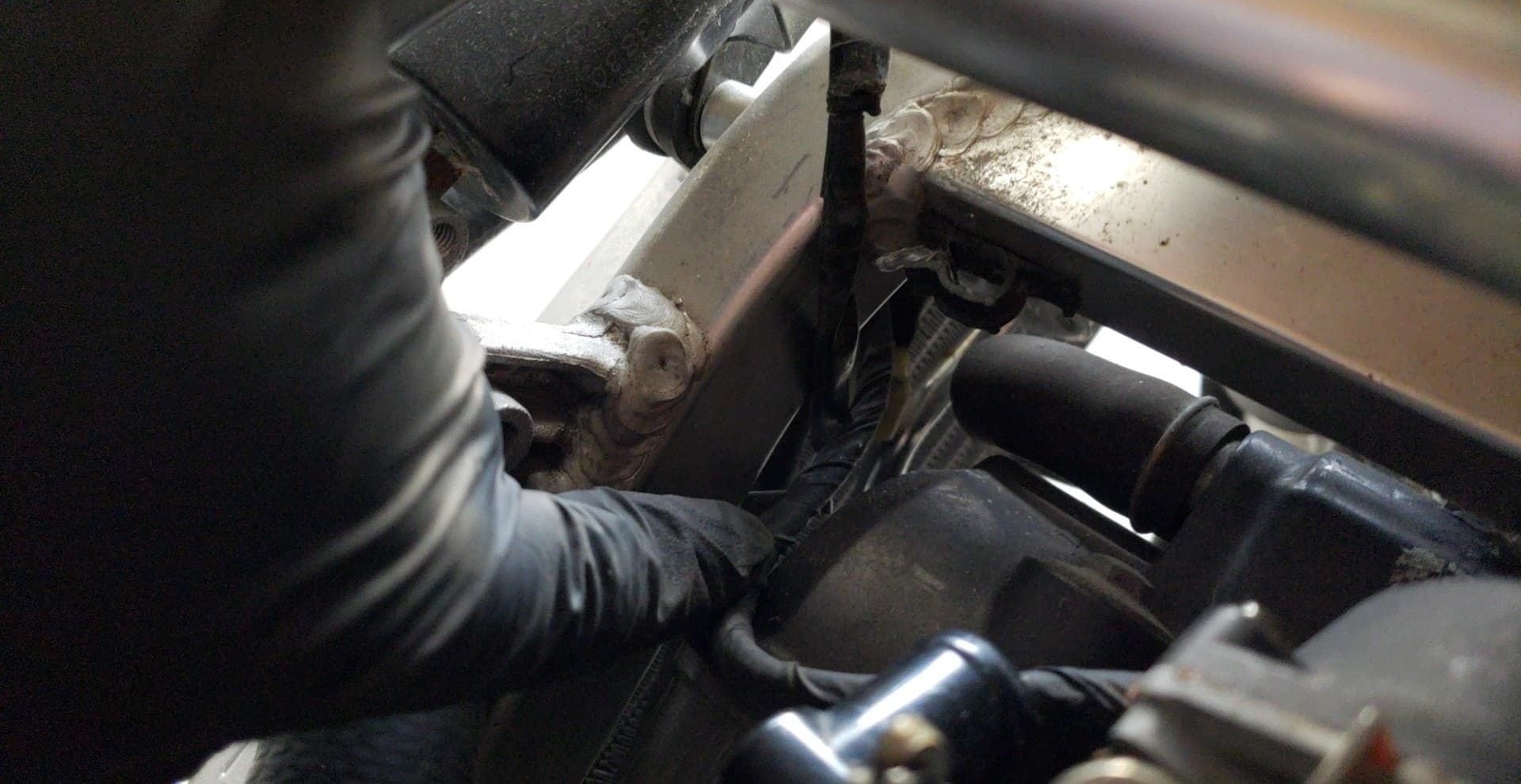

The connector wires lead in to this part of the harness......

E.Marquez is offline
Reply
Old 09-07-2018, 12:48 PM
  #2
Senior Member
Superstock

CaryDG's Avatar

Join Date: Sep 2013
Location: Costa Mesa, CA
Posts: 460
CaryDG is on a distinguished road
Looks a whole lot like the fan motor connector. Right colors (Bl/Bu & G) and all.
CaryDG is offline
Reply
Old 09-07-2018, 01:06 PM
  #3
Senior Member
SuperBike

kenmoore's Avatar

Join Date: Mar 2012
Location: New South Wales Australia
Posts: 1,544
kenmoore is on a distinguished road
Same,

What's it doing all the way back there ?
kenmoore is offline
Reply
Old 09-07-2018, 03:35 PM
  #4
Administrator
MotoGP
Thread Starter

E.Marquez's Avatar

Join Date: Apr 2006
Location: Kempner, TX
Posts: 4,402
E.Marquez is on a distinguished road
Originally Posted by CaryDG
Looks a whole lot like the fan motor connector. Right colors (Bl/Bu & G) and all.
See thats what I thought at first until he told me it was back by TPS plug and it ran into the harness where it did...

Then I asked him if he had everything plugged in, anything missing a plug..He said no.......LOL
I asked the wrong question.....

Nothing is left unplugged........................because he has no radiator fan on it....lol
E.Marquez is offline
Reply
Old 09-07-2018, 04:22 PM
  #5
Senior Member
Superstock

CaryDG's Avatar

Join Date: Sep 2013
Location: Costa Mesa, CA
Posts: 460
CaryDG is on a distinguished road
And it's in pristine shape! No evidence of overheating, or anything! LOL
