E.Marquez 09-07-2018 09:04 AM

Mystery connector

Gang, Im drawing a blank here.

I was asked to ID a connector
1998 US market bike, two pin female side by side black connector , Black blue and Green wire
Connector found on bike "near the TPS"



https://cimg7.ibsrv.net/gimg/www.sup...2bcd7db70e.jpg
https://cimg8.ibsrv.net/gimg/www.sup...511575646c.jpg


https://cimg9.ibsrv.net/gimg/www.sup...74e5a62bfd.jpg

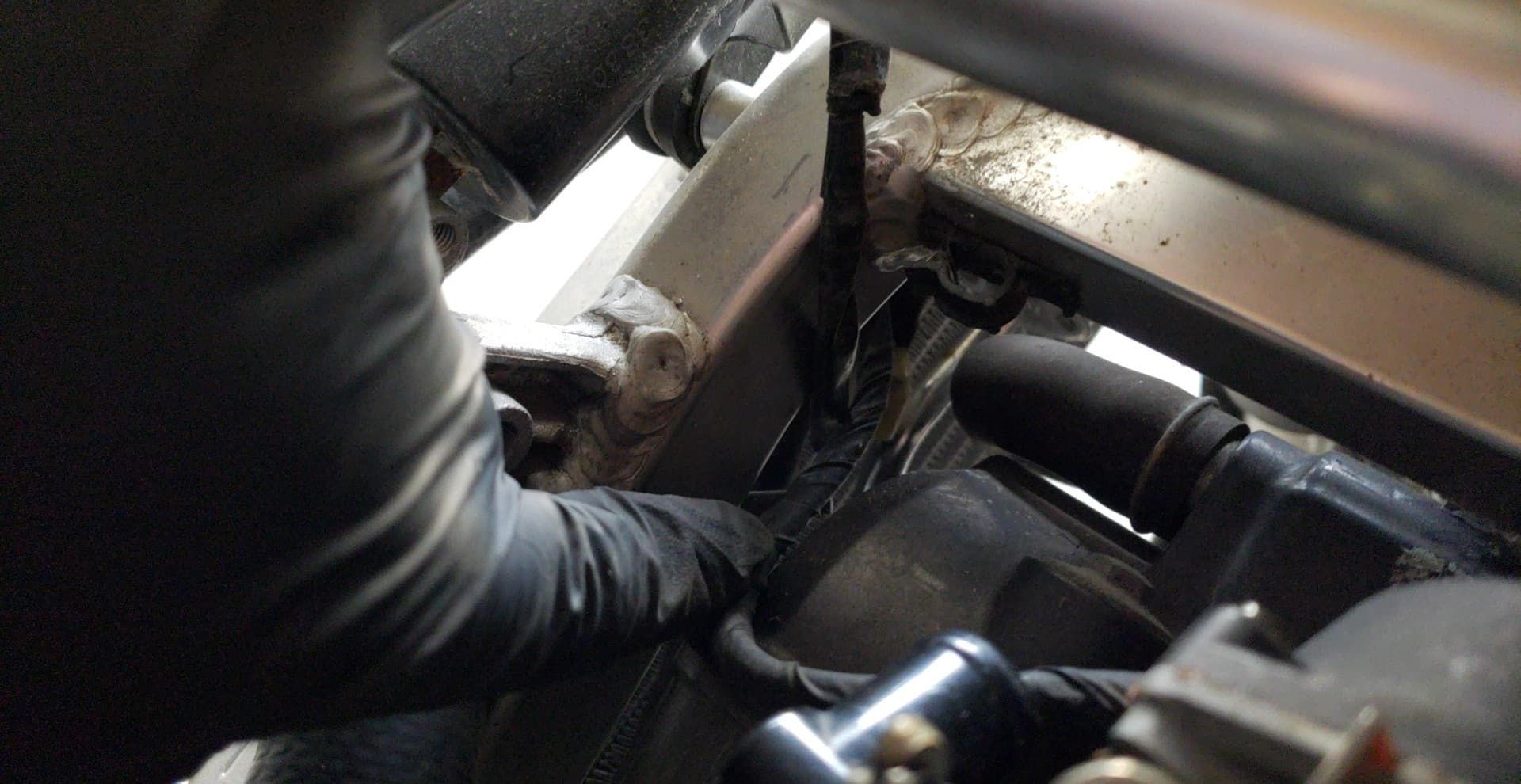

The connector wires lead in to this part of the harness......

https://cimg0.ibsrv.net/gimg/www.sup...4e7edf19fd.jpg

CaryDG 09-07-2018 12:48 PM

Looks a whole lot like the fan motor connector. Right colors (Bl/Bu & G) and all.

kenmoore 09-07-2018 01:06 PM

Same,

What's it doing all the way back there ?

E.Marquez 09-07-2018 03:35 PM


Originally Posted by CaryDG (Post 407595)
Looks a whole lot like the fan motor connector. Right colors (Bl/Bu & G) and all.

See thats what I thought at first until he told me it was back by TPS plug and it ran into the harness where it did...

Then I asked him if he had everything plugged in, anything missing a plug..He said no.......LOL
I asked the wrong question.....

Nothing is left unplugged........................because he has no radiator fan on it....lol

CaryDG 09-07-2018 04:22 PM

And it's in pristine shape! No evidence of overheating, or anything! LOL
